Audac ATEO6M

ATEO6M is the 6” version, with a 1” dome tweeter and a 6” Mid / Low frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech, whilst maintaining an ultra-flat frequency response. It features a stunningly designed and elegant-looking weatherproof ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting system using the weatherproof CleverMount+™ technology, making the loudspeaker cabinet flow together with the mounting system providing great ease for installing the loudspeaker in one good-looking entity. This design loudspeaker forms the ideal solution for fixed-install in- & outdoor applications.

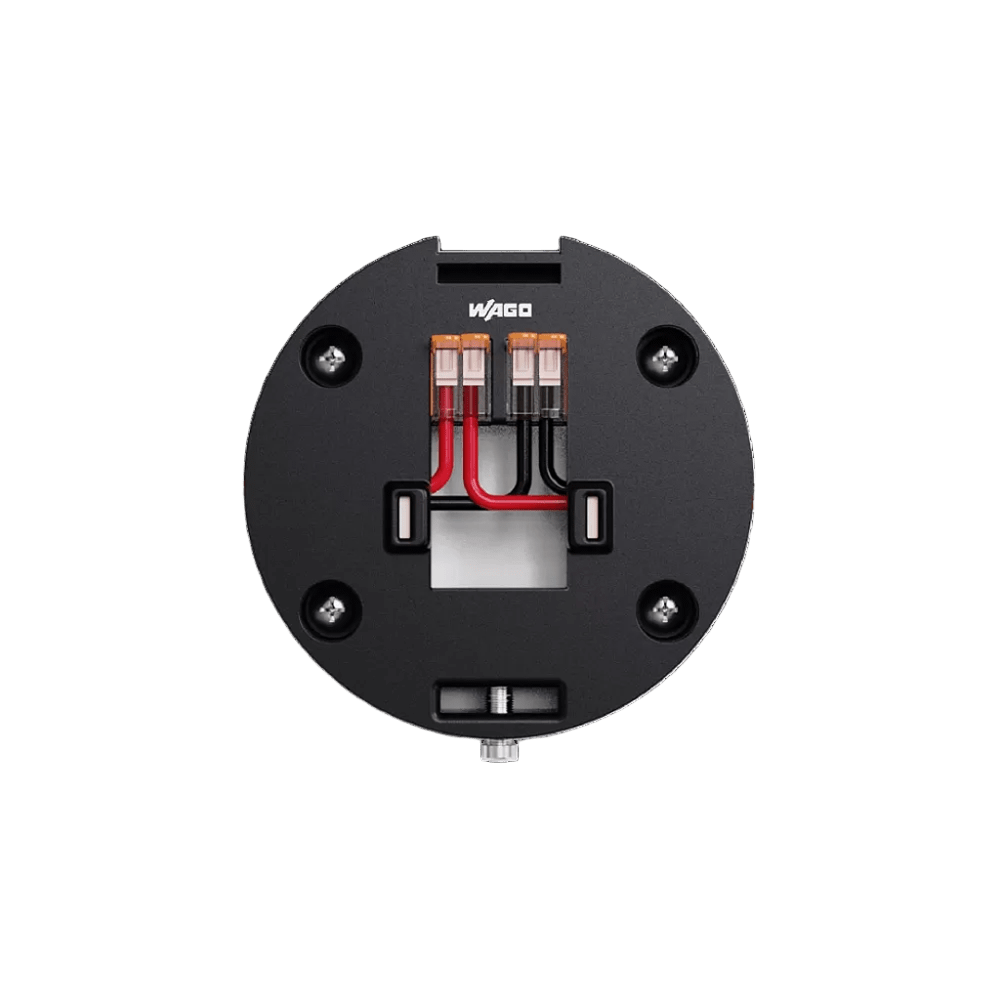

With the improved CleverMount+™ innovation, mounting and connection of the loudspeaker happens in seconds after attaching the wall mount to the desired location. During installation, the wires can easily be connected to the integrated WAGO connectors. For ease of installation & modification, the ATEOxM loudspeakers come with an external power tap selection switch located on the rear of the speaker. Like this, it’s really child’s play to install a large number of loudspeakers in no time

System specifications:

Speaker type: Full range
Peak power handling: 240 W
Program power handling: 120 W
Continuous power (AES): 60 W
Impedance: 8 Ω (ATEO6M), 16 Ω (ATEO6DM)
Incline angle: Left 30°, Right 30°, Bottom 30°, Top 5°
Sensitivity (1W/1m): 89 dB
Sound Pressure (Max. W/1m): @ 8 Ω 106 dB, @ 100 V 105 dB
Frequency: Response (± 3 dB): 65 Hz – 20 kHz, Range (-10 dB): 55 Hz – 20 kHz
Dispersion: Horizontal 120°, Vertical 120°
Connectors: 2 x WAGO terminal block connections
Drivers: 1” Dome tweeter, 6” MF / LF Woofer
Line Transformer Tappings:
1: 100 Ω – 100 V / Not used – 70 V / 50 W
2: 200 Ω – 100 V / 50 W – 70 V / 25 W
3: 400 Ω – 100 V / 25 W – 70 V / 12.5 W
4: 800 Ω – 100 V / 12.5 W – 70 V / 6.25 W
Ingress Protection rating: IP66

Product Features:
Dimensions: 193.1 x 347.5 x 215.2 mm (W x H x D)
Weight: 3.82 kg
Operating temperature: -20 °C ~ 60 °C
Accessories: Included: Allen-key wrench
Mounting: Weatherproof CleverMount+™
Construction: ABS
Front finish: Aluminium grill with hydrophobic cloth
Colours: Black (RAL9005) (ATEO6M/B, ATEO6DM/B), White (RAL9003) (ATEO6M/W, ATEO6DM/W)
