Audac MWX45
Gotovina/virman
Zidni kontroler (45×45). Kompatibilan s instalacijskim materijalima Niko i Legrand. Odabir izvora (1-8). Regulacija glasnoće. Spajanje terminalnog bloka. Tanak dizajn. Prekrasno se stapa sa zidovima. Jednostavna instalacija
CIJENA NA UPIT
The MWX45 is wall panel controller to be used in combination with the AUDAC MTX series Multi-Zone audio matrix systems and the AUDAC AMP20.

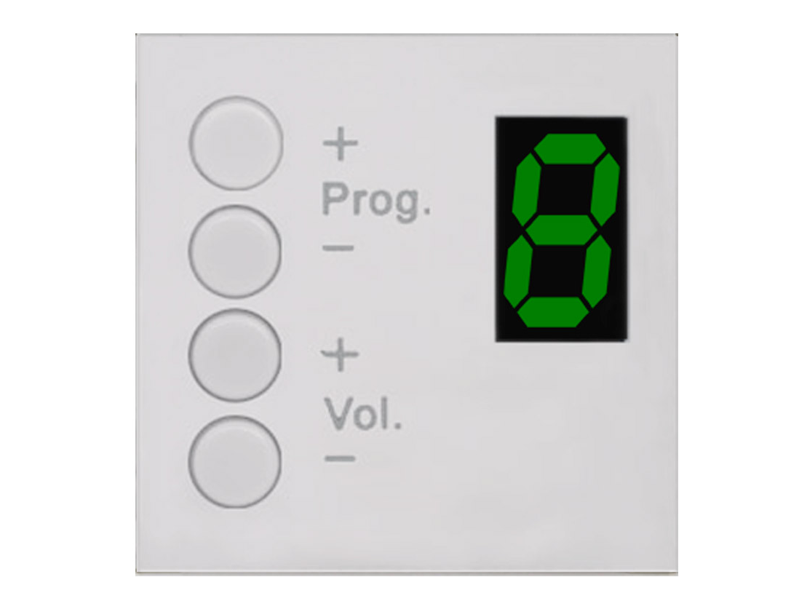

It provides the possibility to select the desired audio source and control the volume for one zone. The 7 segment LED display indicates the current selected audio source (1-8) or volume.
The connection between the wall panel and the matrix system is achieved by using standard CAT5 UTP cable which should be connected to the terminal block connector on the back side of the wall panel.
The MWX45 is compatible with Audac, Niko, Legrand and other standard 45 x 45 mm installation materials.
Due to its slim and good looking design, this wall panel conntroller will blend into all kinds of different environments or interiors.

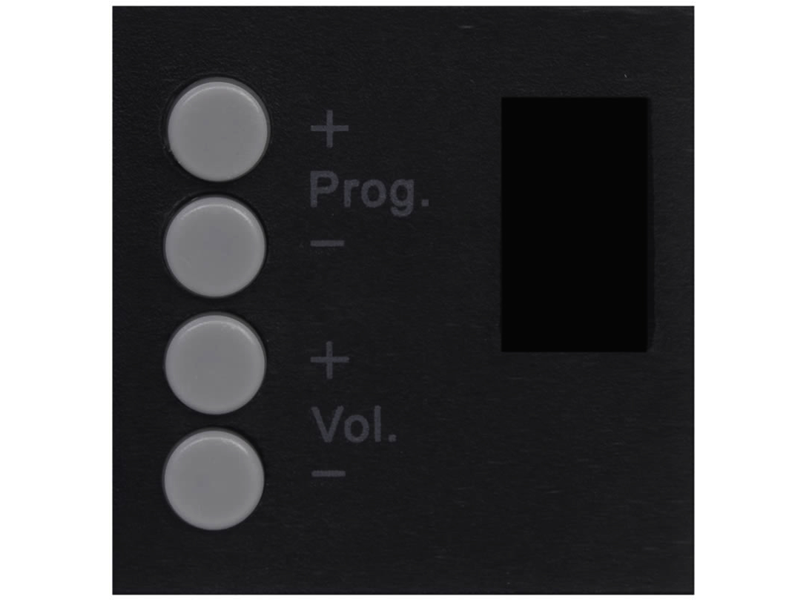

Available in Black (/B) and White (/W).
SYSTEM SPECIFICATIONS:
Digital control RS485
Cabling: UTP CAT 5 (Up to 500 meter)
Power consumption: 0.35 Watt – 14 mA / 24 V
PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 45 x 45 x 33 mm
Weight net: 28 g
Construction: ABS
Finish: Soft-touch painting
Connector: 4-pin Euro-Terminal block
Mounting: 45 x 45 mm
Colour: White (RAL9010) MWX45/W, Black (RAL9005) MWX45/B
Optional accessories: CP45CF1 Cover frame, CP45CF2 Cover frame
