BeamZ Pro BRUTE 20000
Gotovina/virman
2.750,00 €
Vanjski laser s čistom diodom
Brute 20000 ima zajamčenu izlaznu snagu od 20 W i pruža analognu modulaciju, osiguravajući glatkije blijeđenje boja i puno širi spektar boja. Kombinirajući ovu visoku snagu s preciznim 35K grafičkim skenerima, laser pruža izvanrednu točnost i kvalitetu snopa, što ga čini vrlo prikladnim za zahtjevne profesionalne primjene. Sustavom se može upravljati putem ILDA i DMX ili raditi samostalno u automatskom ili zvučno aktiviranom načinu rada. S kućištem s IP65 zaštitom, Brute 20000 je potpuno zaštićen od prašine i vode, što ga čini idealnim za unutarnju i vanjsku instalaciju.
Savršeno za fiksne instalacije, mobilnu upotrebu, multimedijske projekte, vanjske primjene na velike udaljenosti i ultraprecizne grafičke projekcije
Full-colour, IP65 semiconductor diode laser system
Red (4000mW), Green (4000mW) and Blue (12000mW) Powerful laser
Guaranteed 20W output
Dust-proof aluminium housing for minimum maintenance
LCD display
Interlock emergency stop signal in/output Ethercon
Scan Fail Safety system
35K@8° high speed optical scanner system
Maximum scan angle 50°
Temperature-controlled low-noise fan
DMX in/output via 5-pin XLR
Ilda in/output
Auto mode
X- en Y-Size inverter
Analog RGB colour modulation
Powerconnector TR in/output
Specifications:
Brand: beamZ Professional
Product serie: Brute series
Colour: Black
Light source:
Laser Maximum Output: 20000 mW
Laser Guaranteed Output: 20000 mW
Laser Red: 4000mW @ 638nm
Laser Green: 4000mW @ 525nm
Laser Blue: 12000mW @ 455nm
Optics:
Laser Scan Angle Max.: 50 °
Laser Scanner System: 35 kpps @ 8°
Control:
Control modes: DMX, ILDA
DMX Channels: 10, 34
DMX connector: 5-pin XLR
ILDA connector: DB25

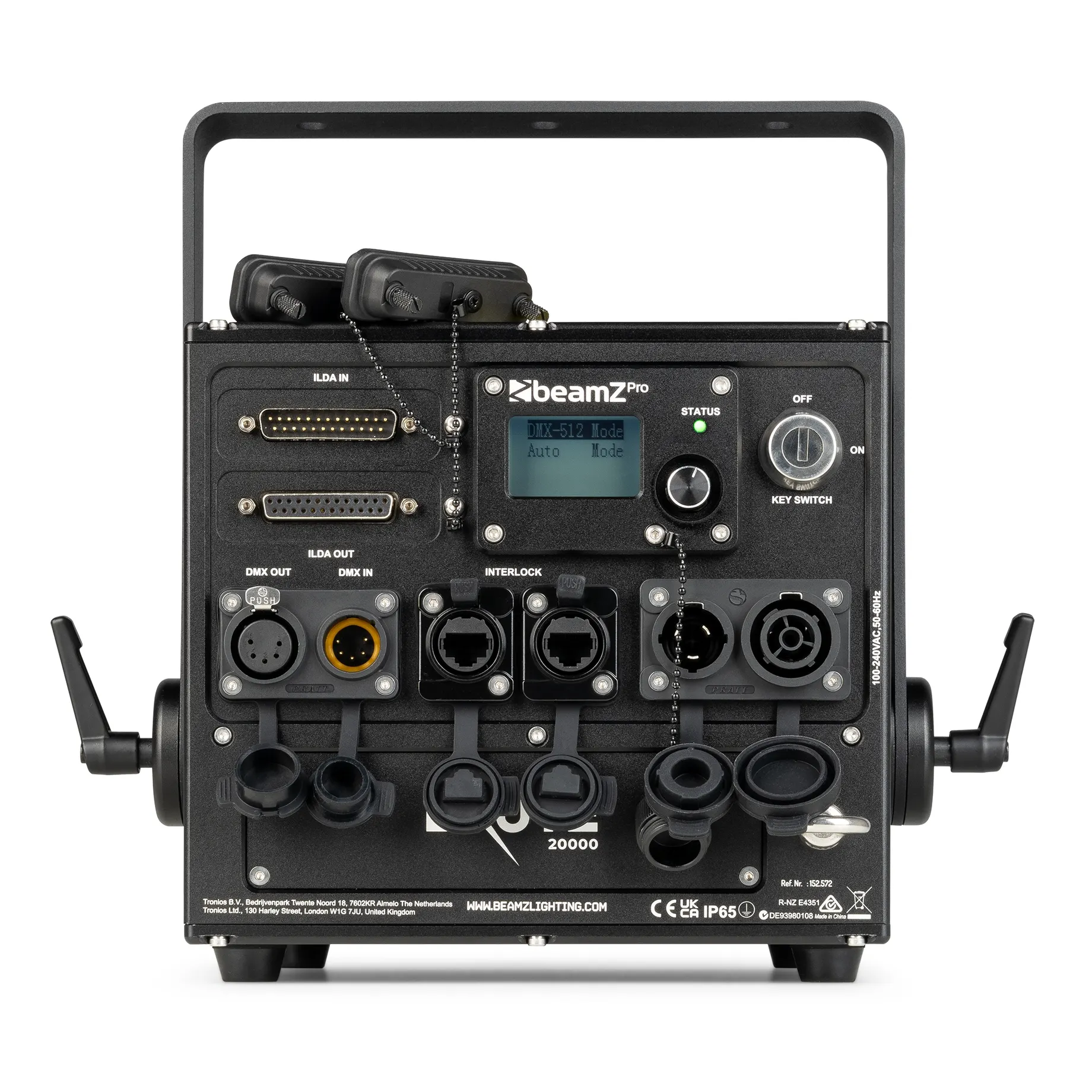

Connections:
Input connections: 1x Power – Powerconnector TR1 IP65 (A), 1x DMX – 5-pin XLR (M), 1x Ilda – DB25 (M), 1x Interlock – RJ45
Output connections: 1x Power – Powerconnector TR1 IP65 (B), 1x DMX – 5-pin XLR (F), 1x Ilda – DB25 (F), 1x Interlock – RJ45
Hardware features:
Cooling: Temperature controlled fan
Environmental:
IP rating: IP65
Electrical:
Power Supply: 100-240VAC 50/60Hz
Mechanical:
Dimensions: Without bracket 280 x 365 x 325 mm (W x D x H)
Weight: Without bracket 9.3 kg
