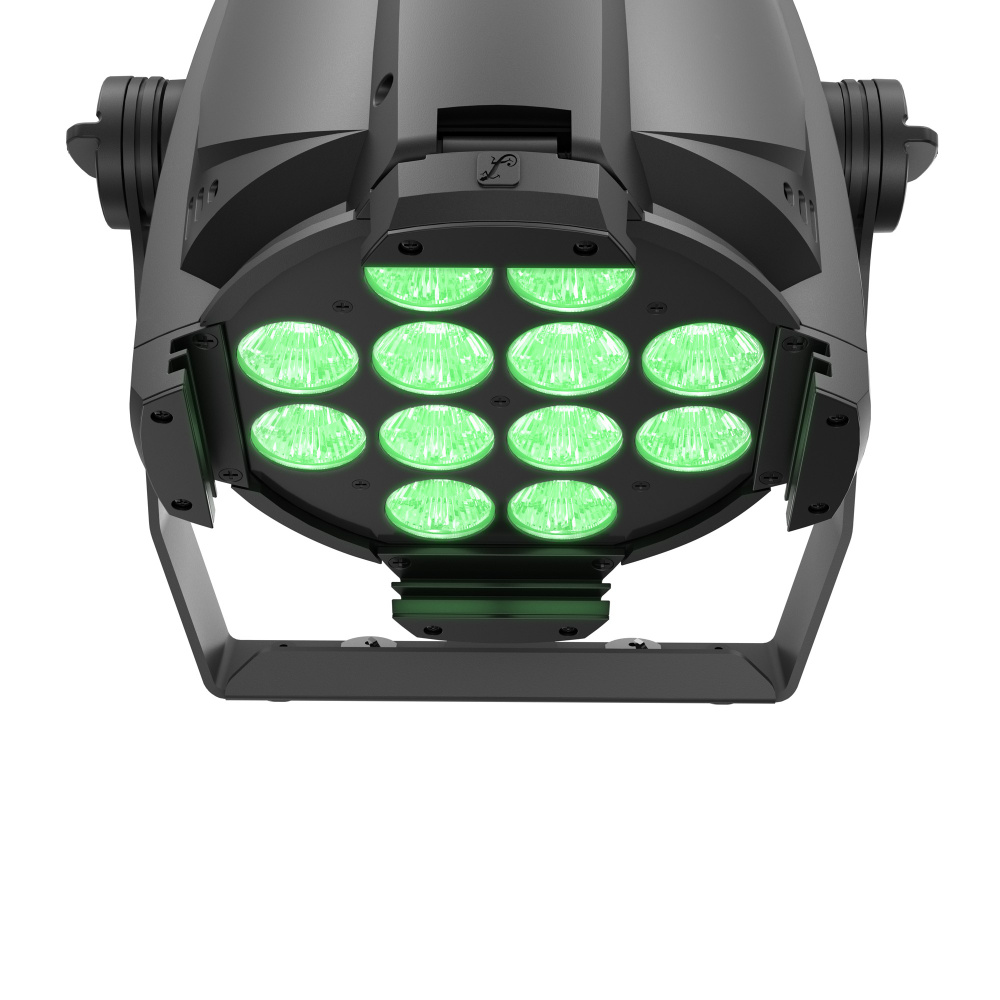

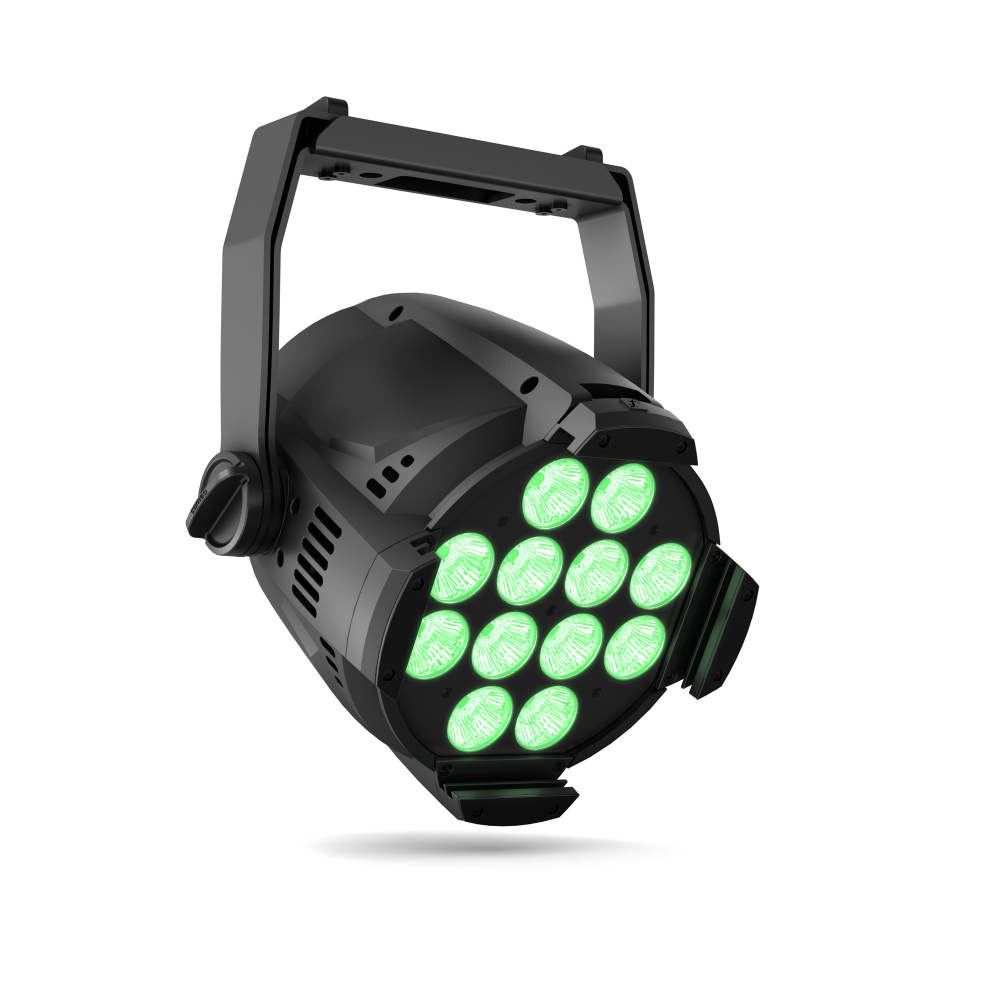

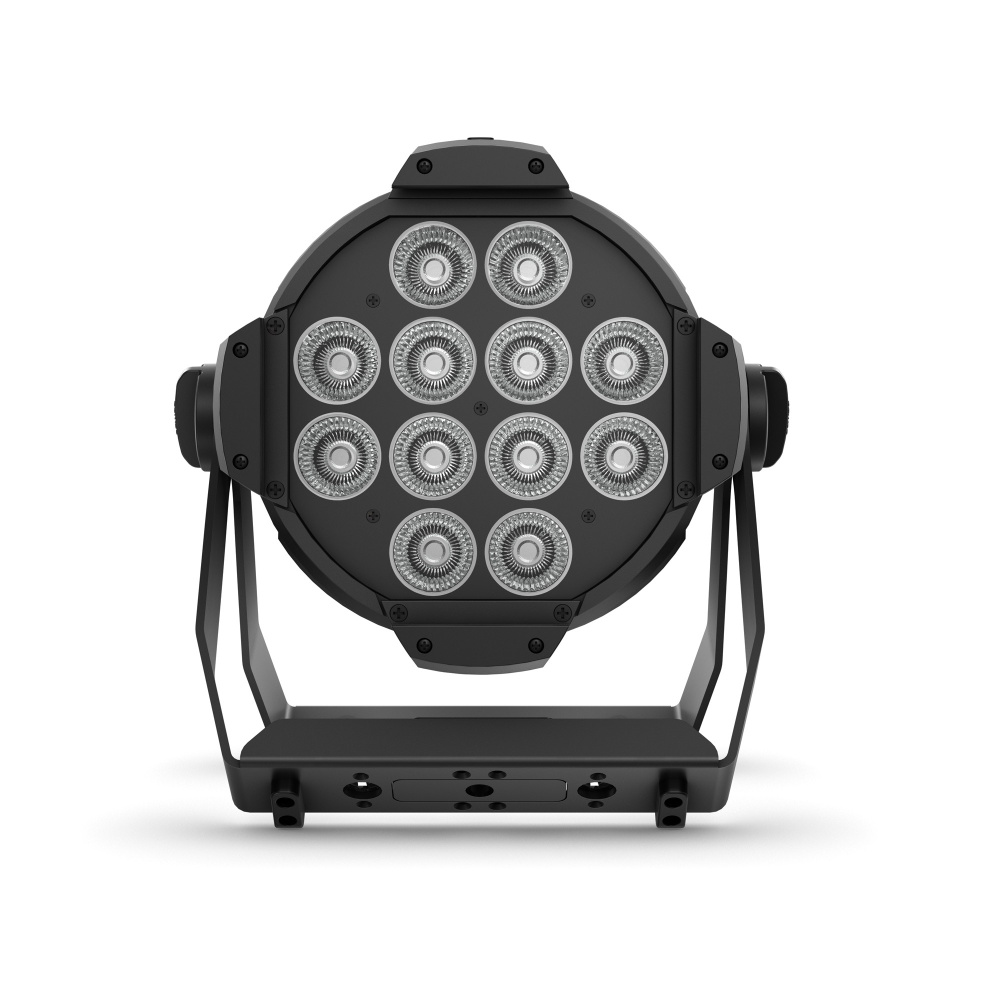

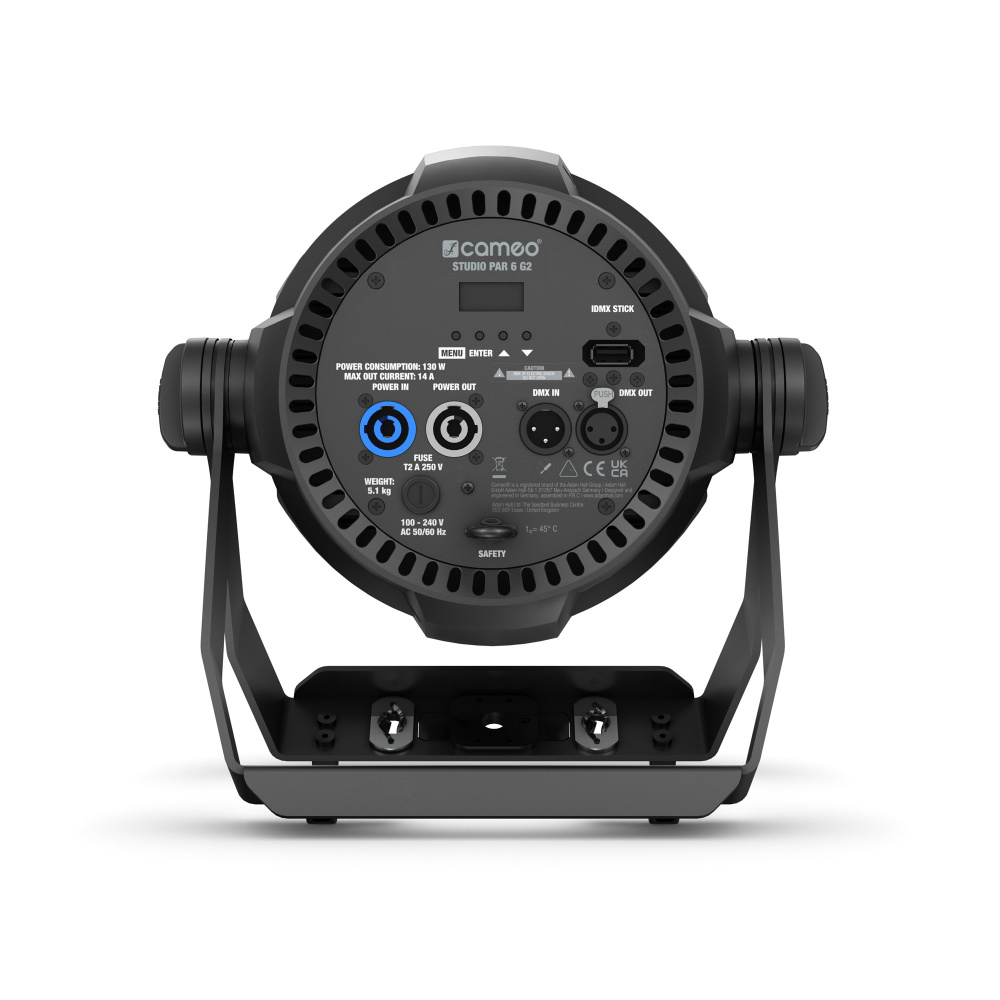

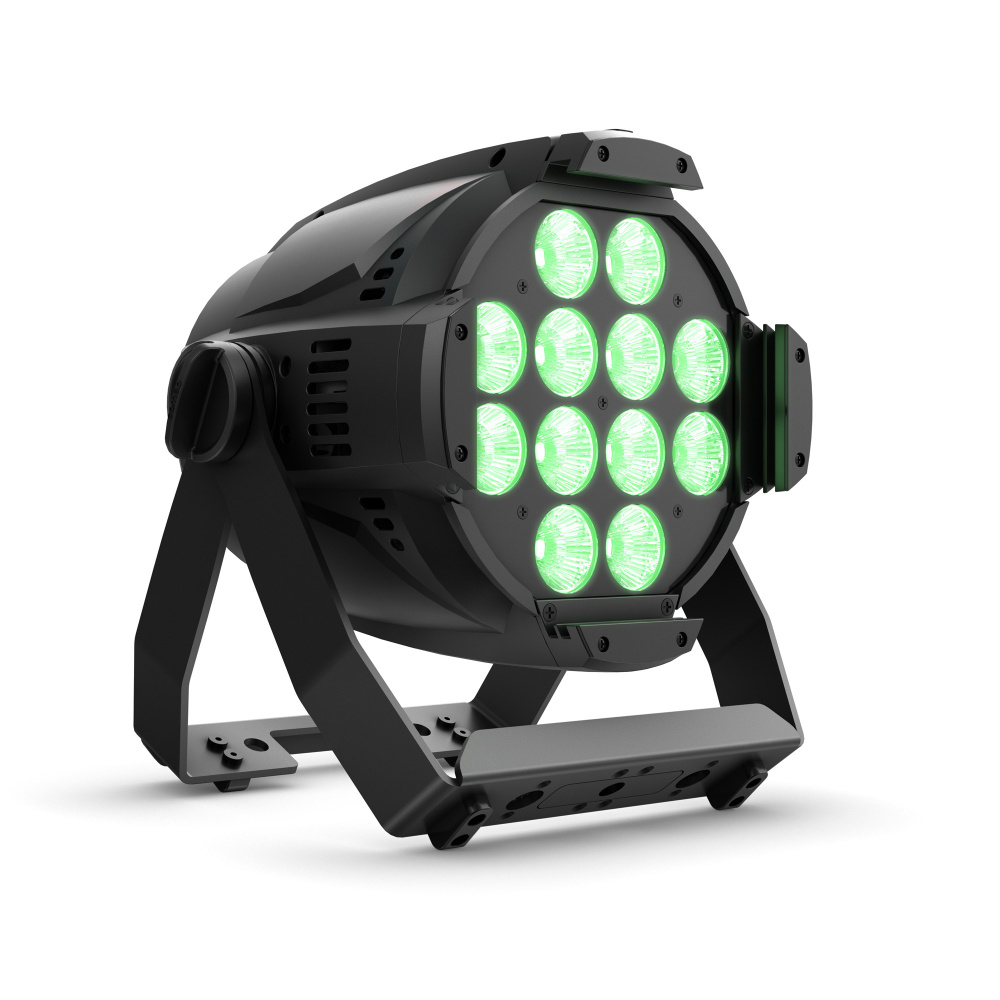

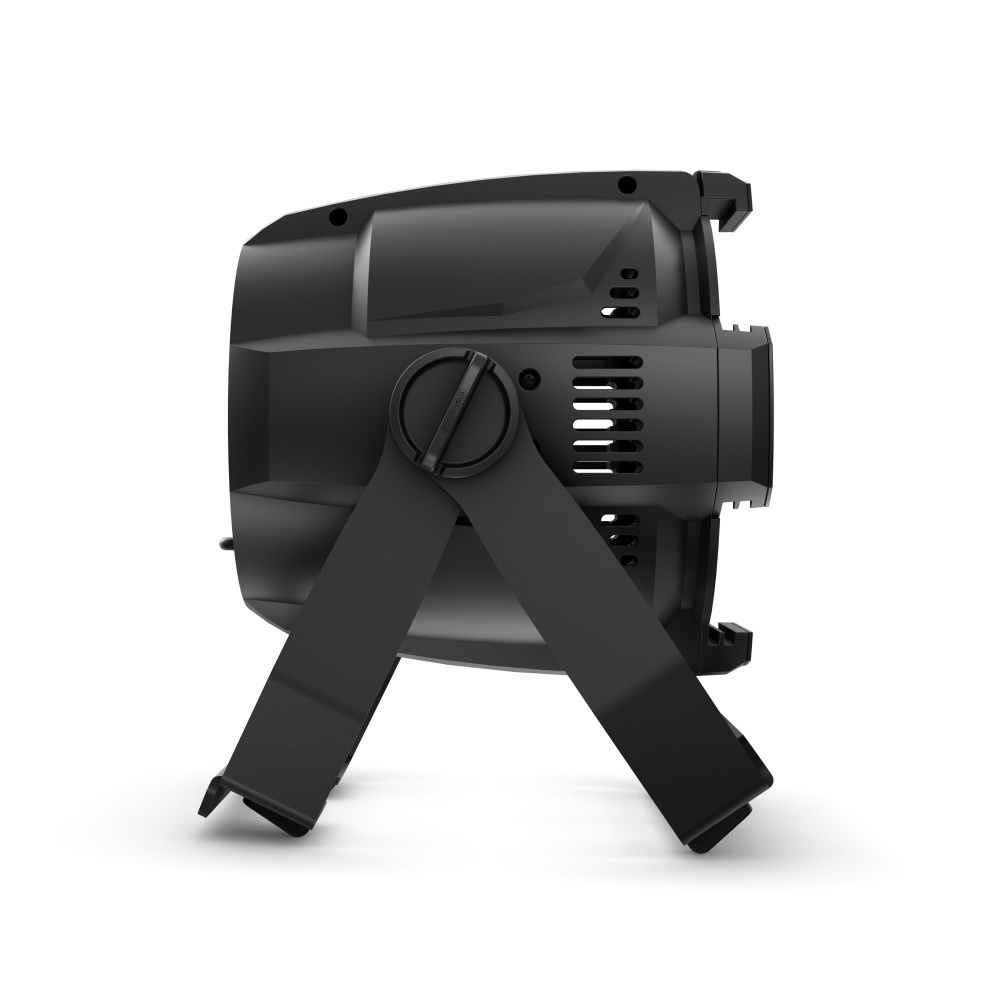

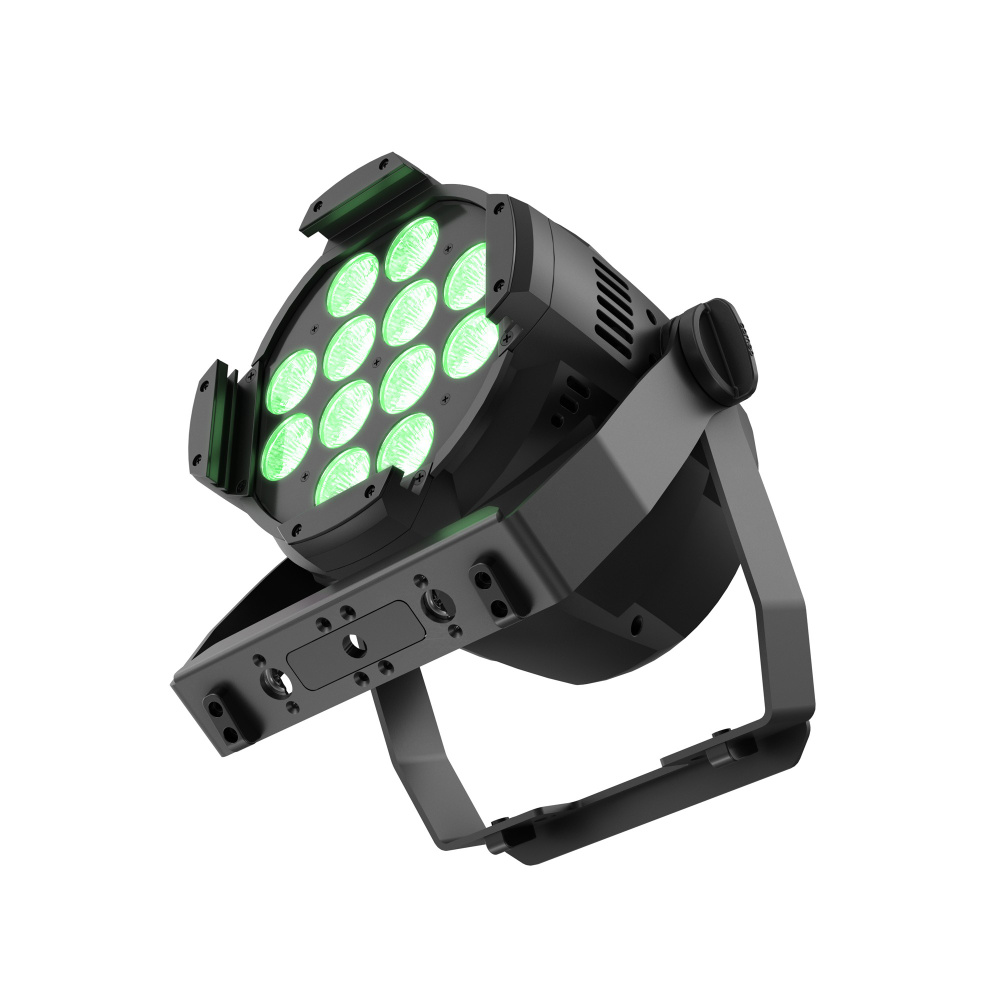

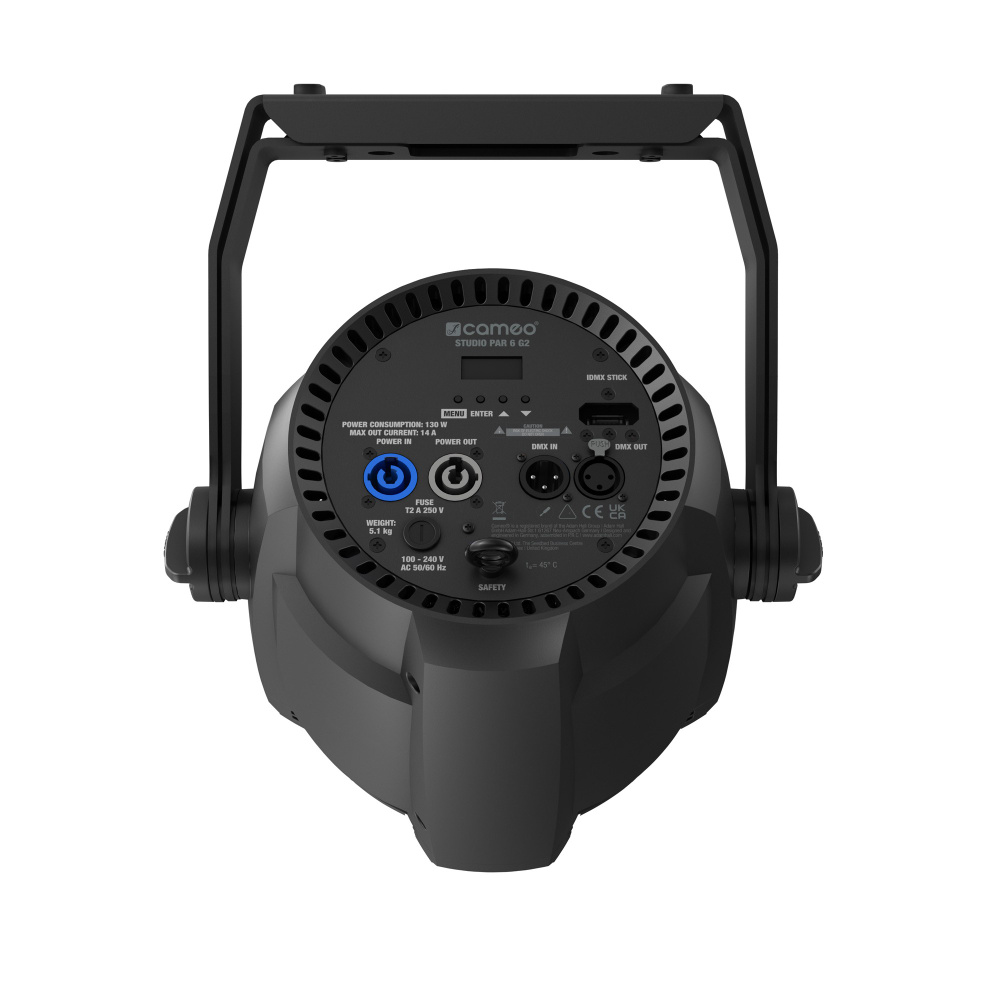

Cameo STUDIO PAR 6 G2
Gotovina/virman
580,00 €
12 x 12 W 6-u-1 RGBAWUV LED sa svjetlosnim tokom od 4700 lm
Revidirani dizajn s mnogim optimizacijama radnog procesa
Odabir pulsno-širinske modulacije (do 25 kHz) za rad bez treperenja
Gotovo tihi rad u “Silent Fan Mode”
Intuitivni mehanizam držanja za okvire filtera u boji
Bežično upravljanje putem W-DMX™ putem opcionalnog Cameo iDMX Sticka
Jednostavna konfiguracija putem OLED zaslona
PowerCON kompatibilan priključak za napajanje
Sklopivi 16 mm TV priključak (SPIN16®) može se naknadno ugraditi kao opcija
Product type: LED PAR Lighting
Type: Studio PAR
Colour spectrum: RGBWA + UV
Number of LEDs: 12
LED type: 6in1 RGBAWUV 12 W SMD LED
Luminous flux: 4700 lm
Dispersion: Beam Angle: 21 °, Field Angle: 35 °
Lens: 12 x acrylic lens
LED PWM Frequency: 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
Dimmer resolution: 16 bit
Dimmer curves: Exponential, Linear, Logarithmic, Square
Strobe: 0 – 20 Hz
CRI: >74 Ra
DMX input: 3-Pol, iDMX slot
DMX output: 3-Pol
DMX mode: 1-channel, 10-channel, 12-channel, 14-channel, 18-channel, 3-channel, 4-channel, 6-channel, 9-channel
DMX Functions: colour macro, Device Settings, Dimmer, Dimmer Curve, EZ-Chase, RGBWA, Strobe, UV
Standalone modes: Auto Mode, Static
System settings: Calibration, Default settings, Dimmer, Dimmer Response, Display, Fan mode, LED PWM Frequency, Signal Fail, Wireless
Controls: 4 x Buttons, Down, Enter, menu, Up
Indicators: OLED Display
Relative Humidity: < 80 %, not condensing
Protection class IP: IP20
Ambient temperature (operating): -10 – 40 °C
Cooling: Convection, low-noise fan
Operating voltage: 100 V AC – 240 V AC, 50 – 60 Hz
Power connector: PowerCon Blue I/O
Fuse: T2A
Max. Power consumption: 125 W
Housing: Die-cast aluminium
Cabinet surface: Powder coated
Cabinet colour: Black
Height: 360 mm
Width: 310 mm
Depth: 250 mm
Weight: 5,1 kg
