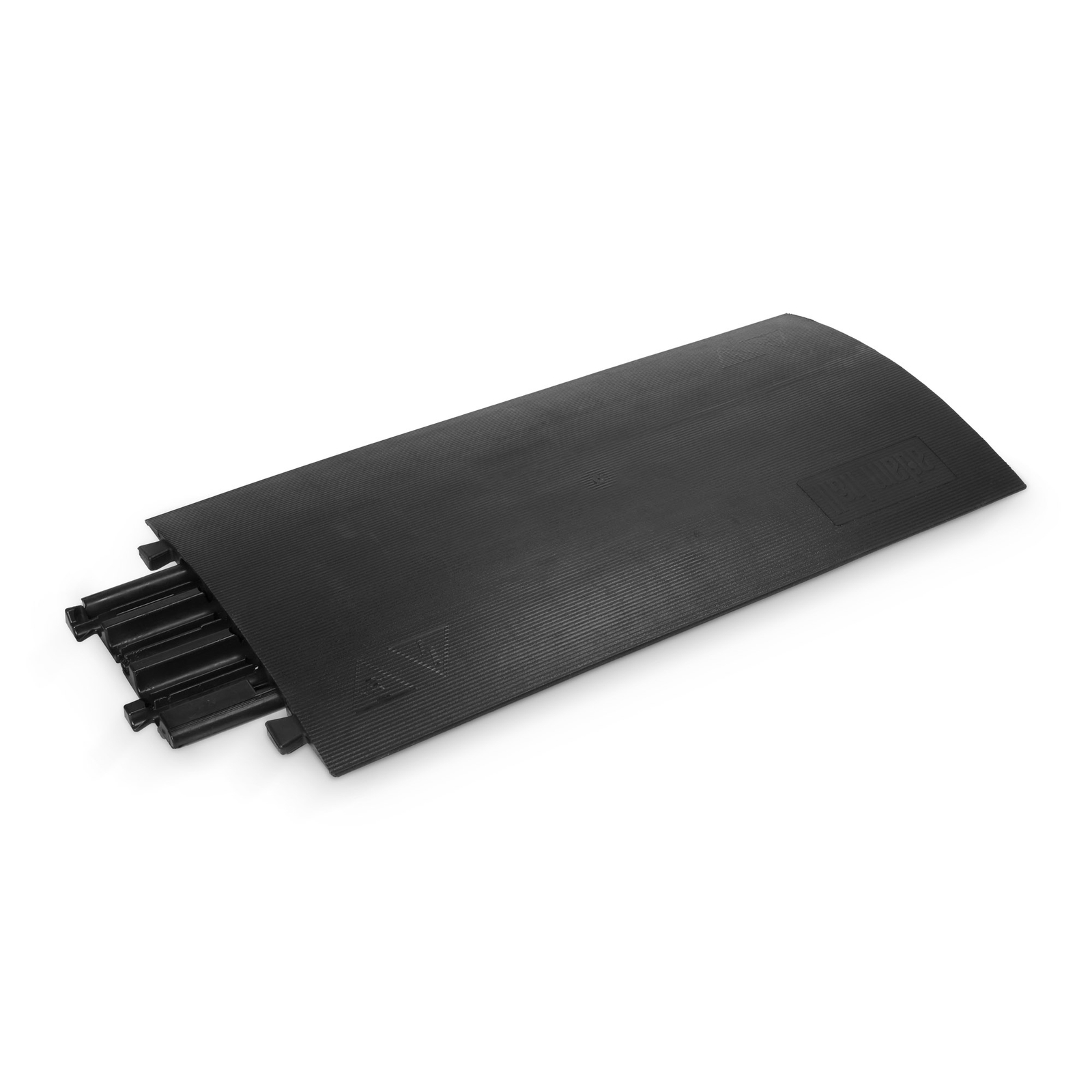

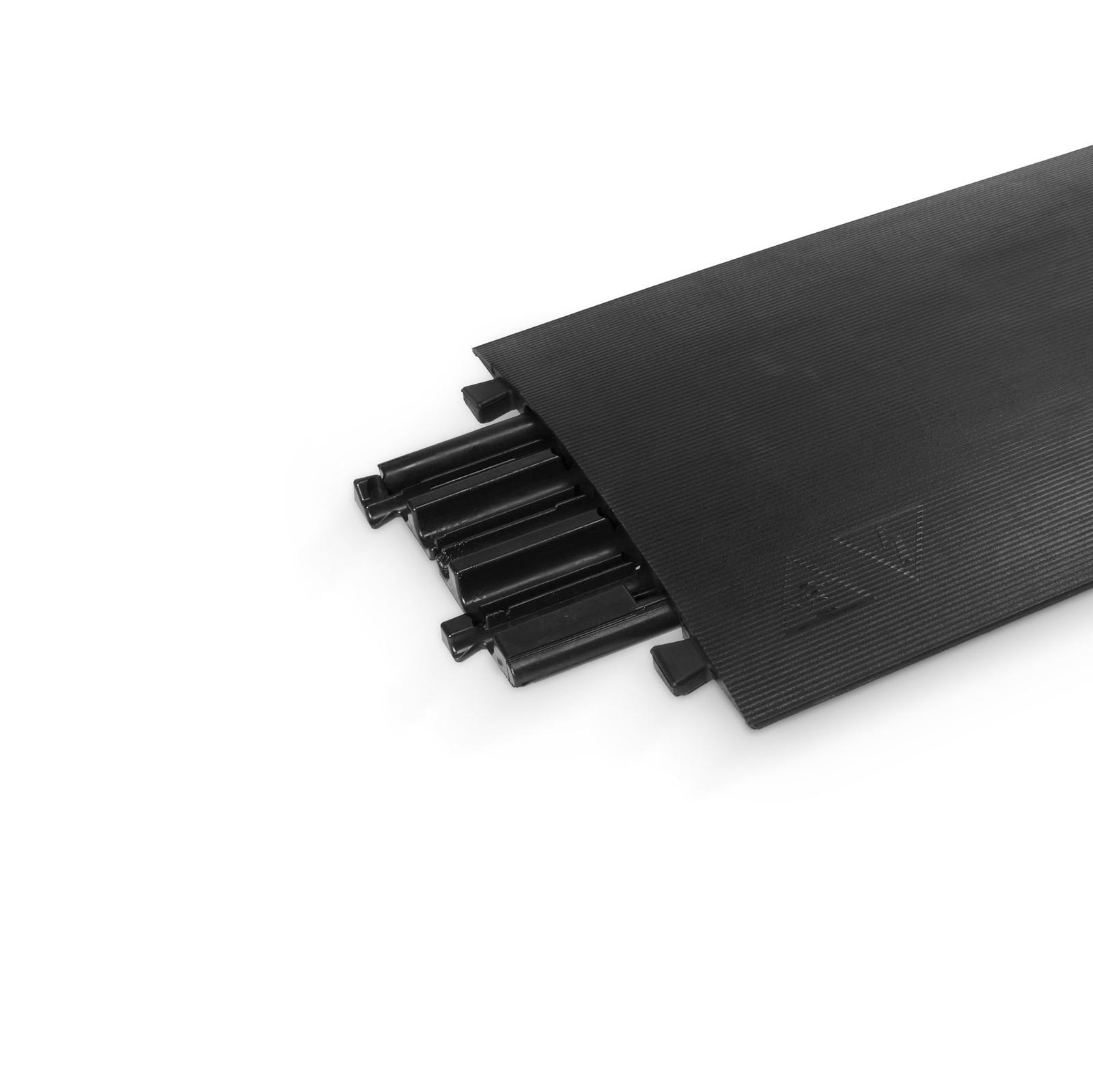

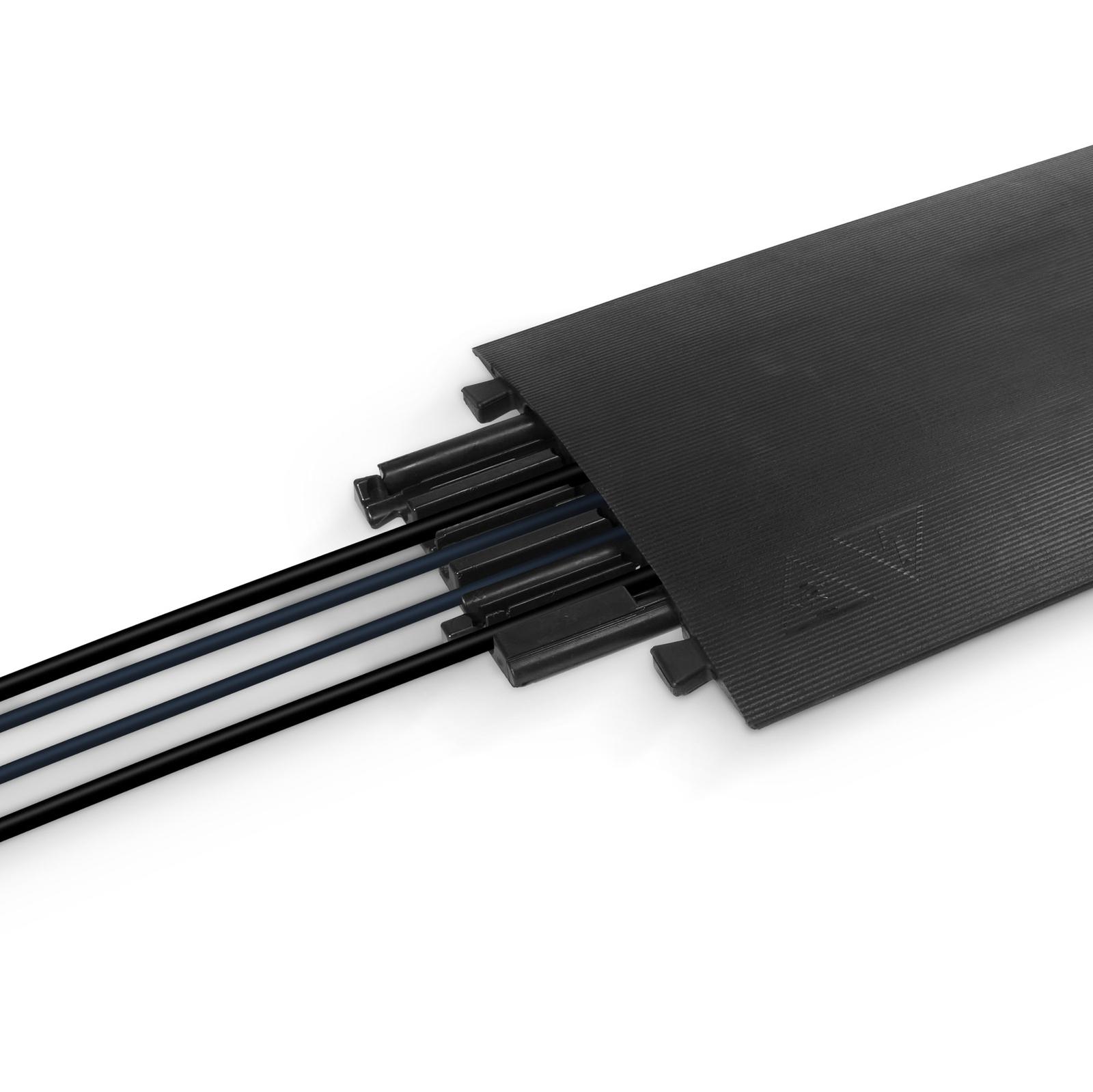

Defender COMPACT BASE
Gotovina/virman
85,00 €
Osnovni element štitnika za kabele | crni | za lakša opterećenja | visina 3,7 cm
Klasa zaštite od požara B2 (DIN 4102)
Otporan na ulja, kiseline, otapala i benzin
Dimenzije 80 x 43 x 4 cm
Pouzdana zaštita kabela i osoba za unutarnju i vanjsku upotrebu

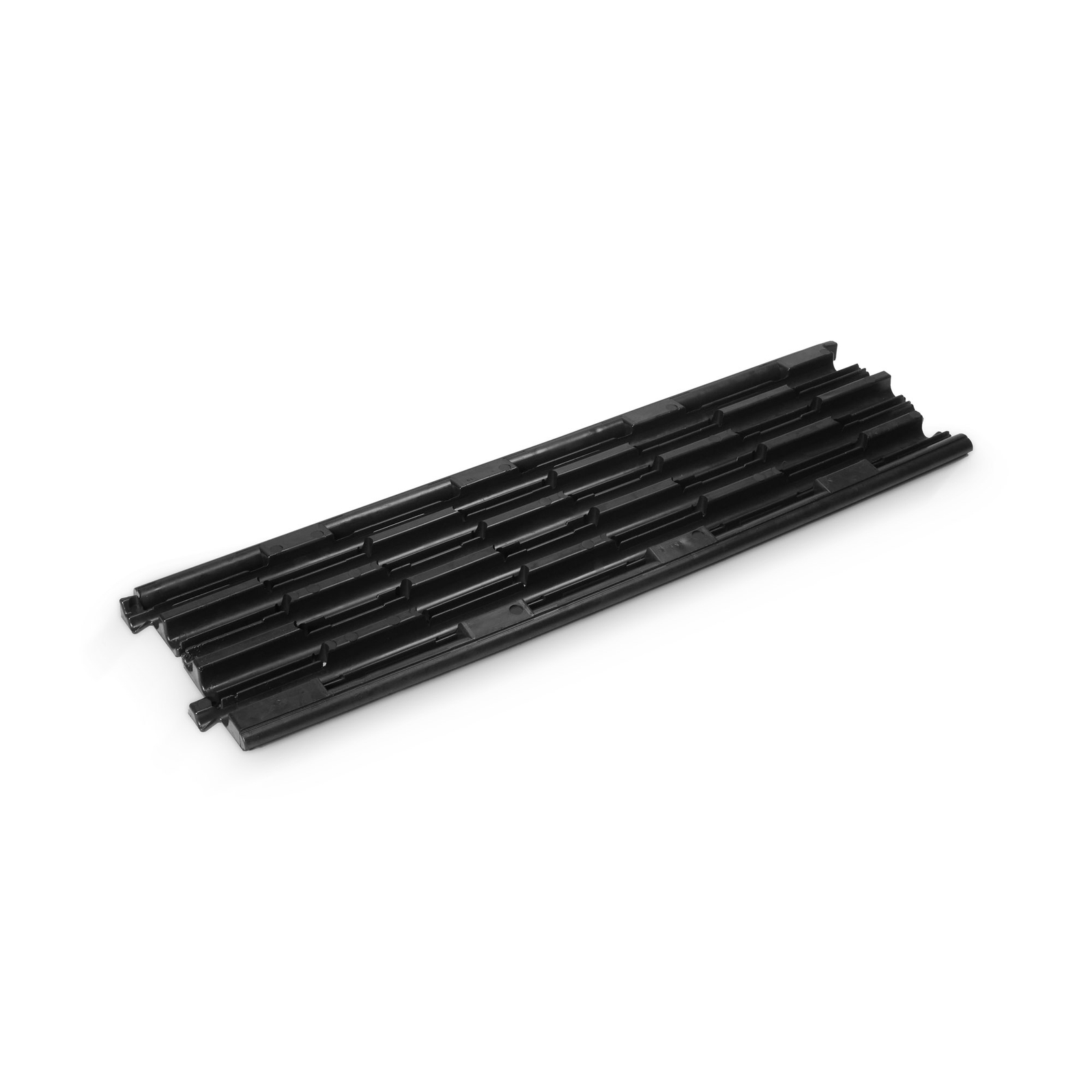

Prikladan za veća opterećenja, poput viličara i paletnih kolica (uz korištenje donjeg dijela)

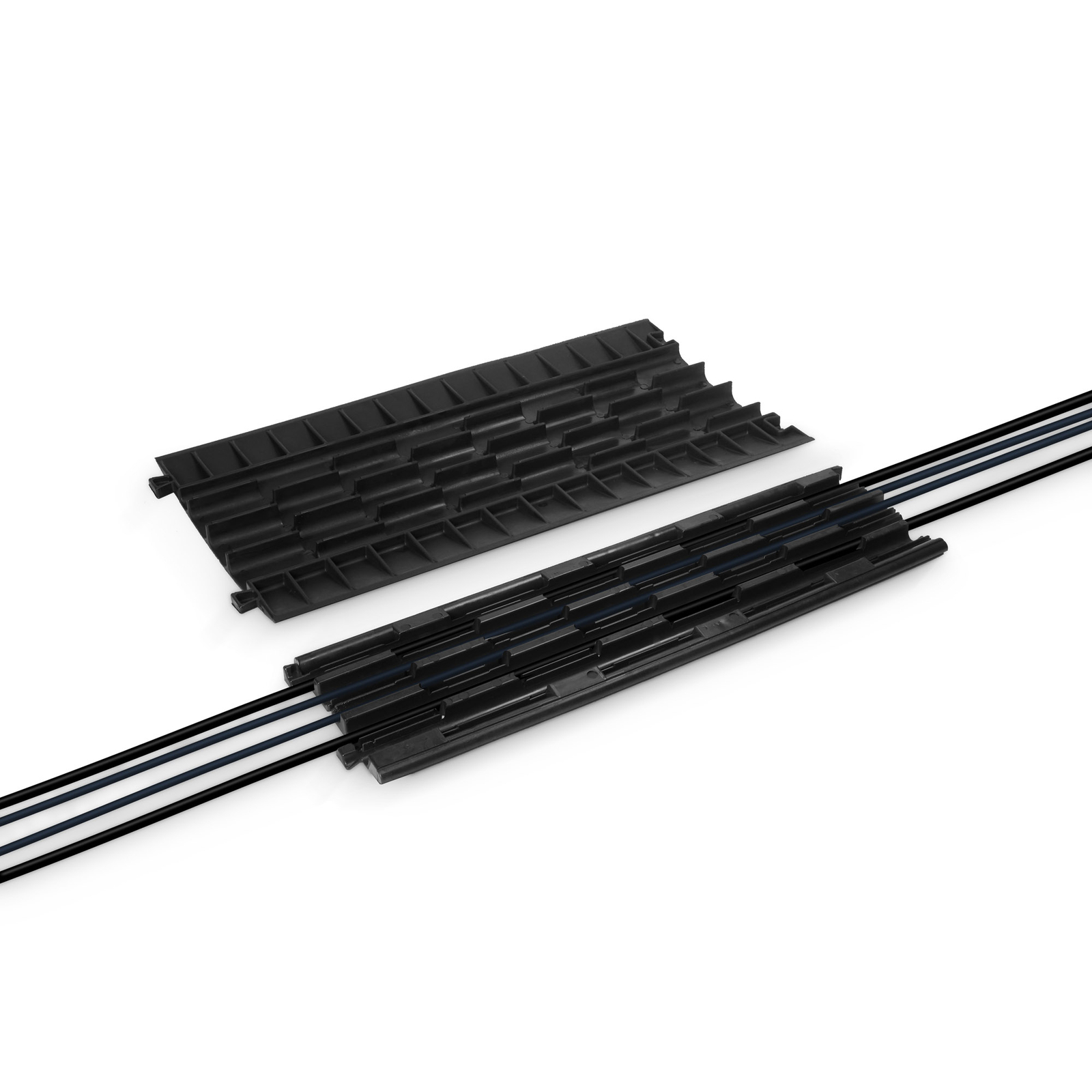

Kanali (s donjim dijelom): 5 kanala dimenzija 22 x 21 cm
Težina s gornjim dijelom: 5,5 kg
Nije prikladan za cestovni promet
Certifikat TÜV Süd
Specifications:
General:
Material: TPU (Thermoplastic polyurethane)
Surface structure: Ribbed
Colour: Black
Maximum load (on 20 x 20 cm): 2 t
Load per axle: 4 t
Max. Passing speed: 7 km/h
Chemical resistance: Petrol, Solvents (short-term contact), Oil
Shore hardness (±4 Shore A): 88 Shore A
Shape: Round
Cable ducts:
Quantity: 5
Cable ducts size (W x H): 28 cm x 23 cm – 28 cm x 30 cm
Duct length (effective length): 805 mm
Environmental:
Meets TSCA: Yes
Meets CP65: Yes
Fire protection class per DIN 4102-1: B2
Fire protection class per EN 13501-1: E
Inflammability (UL 94): V-2, HB
Ambient temperature: -30 °C – 60 °C
Dimensions & weight:
Length: 830 mm
Width: 232 mm
Height: 37 mm
Weight: 2 kg
Other properties:
Certifications: Germany: TÜV Süd
