Dynacord U60:1M + 4x Electro Voice EVID-S4.2T

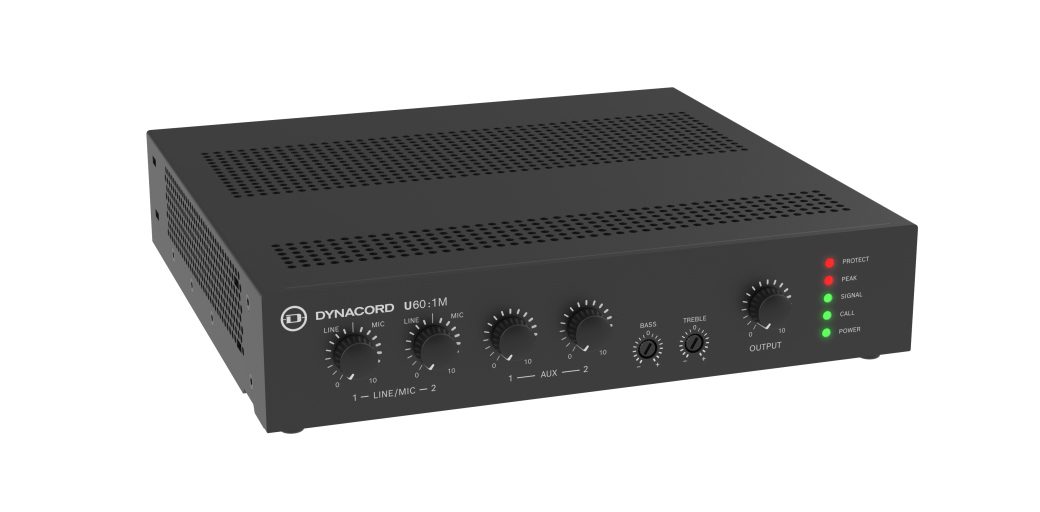

Dynacord U60:1M

Specifications:

Electrical:
Mains power supply:
Voltage: 100 VAC – 240 VAC, 50/60 Hz
Power: 100 VA
Consumption: Standby (Remote OFF active) 0.6 W, Idle mode 6 W / 6 W
Remote power (ON/OFF Stand by): 2-pin, Eurostyle, contact closure

Performance:
Frequency response, -3 dB ref. 1 kHz:
Any input to output: 70 Hz — 22 kHz
Any input to LINE output: <10 Hz — 65 kHz
Distortion: <1% @rated output power, 1 kHz
Output stage topology: Class D

Equalization:
Bass shelving: ±12 dB / 150 Hz — 3 dB (100 Hz)
Treble shelving: ±12 dB / 5 kHz — 3 dB (10 kHz)

Filter:
LO-CUT permanently: f=20 Hz, 12 dB/oct.
LO-CUT switchable, can be activated: f=120 Hz, 12 dB/oct.

Front status LEDs:
Protect (Red): Protection, short circuit
Peak (Red): 1 dB before clip (input and output)
Signal (Green): Input and output signal
Call (Green): EMG / priority trigger / Vox input active
Power (Green): Power on condition

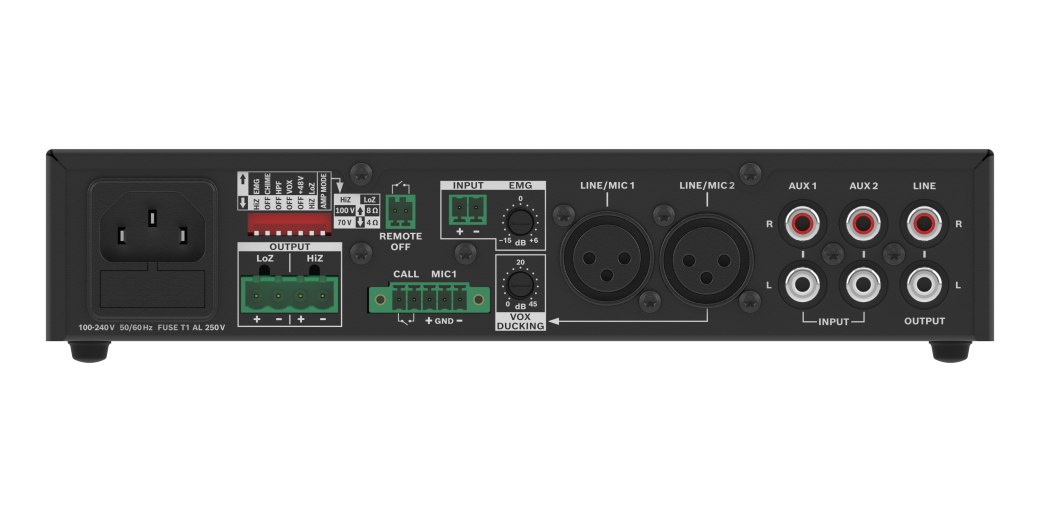

DIP switches: EMG (HiZ/LowZ), Two-tone Chime (ON/OFF), HPF (120 Hz), VOX (ON/OFF), Phantom power (+48 V/OFF) Output (HiZ/LowZ), Amp mode (70 V/100 V; 4Ω/8Ω)

Protections:
Amplifier: Audio limiters, high temperature, DC, HF, short circuit, over current protection
Switching mode power supply (µPC controlled): Mains over/under voltage protection, inrush current limiter, mains over current, high temperature
Remote power OFF: Contact closure

Inputs: 2 mic/line, 2 aux (+EMG)

Sensitivity with all level controls in max. position:
MIC / Call station: -68 dBu (300 µV)
AUX (only L or R): -22 dBu (60 mV)
AUX (Stereo) (L and R): -28 dBu (30 mV)

Maximum input level:
MIC / Call station: +8 dBu

Input impedances:
MIC / Call station: 10 kΩ
AUX: 4.7 kΩ
EMG (Line): >15 kΩ
EMG (HiZ): >470 kΩ
LINE (L and R): 75 Ω
Noise, MIC input to output, Aweighted, (HiZ 100 V): -59 dBu

Input 1
Type: Mic/Line, contact override with chime
Connector: 3-pin XLR, balanced / 5-pin Eurostyle, balanced (3 pin for input, 2 pin for trigger
Dynamic range: 61 dB (Mic gain min — max)
S/N (A-weighted): ≥98 dB
Phantom power supply, switchable: 48 V DC

Input 2:
Type: Mic/Line, VOX ducker override
Connector: 3-pin XLR, balanced
VOX Ducking: Ducking control 0 dB — -45 dB
VOX Threshold: -60dBu — +8 dBu, adjustable
Dynamic range: 61 dB (Mic gain min — max)
S/N (A-weighted): ≥98 dB
Phantom power supply, switchable: 48 V DC

Input 3:
Type: Line
Connector: RCA (chinch), stereo converted to mono, unbalanced
S/N (A-weighted): ≥98 dB

Input 4:
Type: Line
Connector: RCA (chinch), stereo converted to mono, unbalanced
S/N (A-weighted): ≥98 dB

EMG Input:
Type: Line; 100 V
Connector: 2-pin, balanced
S/N: (A-weighted): ≥98 dB

Loudspeaker output:
Connector: 4-pin Eurostyle (2 pin for LowZ, 2 pin for HiZ)
Rated output power: 60 W
Max output voltage, 1 kHz, THD=0.5%, no load: 4 Ω, 8 Ω, 70 V, 100 V, 16 VRMS 22 VRMS 85 VRMS 115 VRMS

Mechanical:
Enclosure:
IEC protection class: Class I (grounded)
Dimensions (HxWxD), without acessories: 44.2 mm x 218 mm x 217.7 mm
Color in RAL: RAL 9017 Traffic black
Net weight (without accessories): 2.53 kg
Net weight (with accessories): 2.99 kg
Shipping weight: 3.35 kg
Mounting: Stand-alone; 19″ rack; rack side-byside; half 19″ rack; table-top; undertable

Environmental:
Climatic conditions:
Cooling concept: Four-stage-fans (Off / Slow / Medium / Fast)
Operating temperature: -5°C — 45°C
Storage temperature: -40°C — 70°C

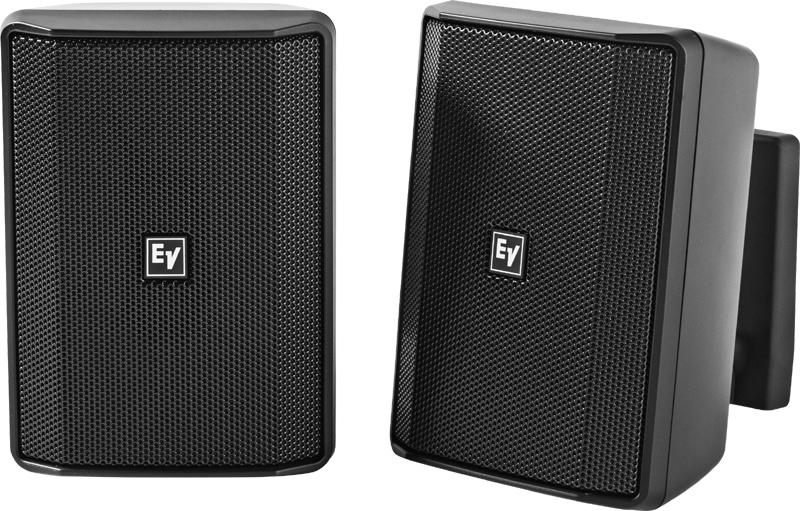

Electro Voice EVID-S4.2TB

Innovative mount system is included for quick, simple, and reliable installations
Carefully engineered for outdoor environments (IP54), without compromising performance
Long throw 4″ (102 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 75 Hz
40 W power handling provides for 103 dB maximum SPL (109 dB peak)
70 V/100 V transformer version (EVID-4.2T) available for constant voltage systems
The EVID-S4.2 from Electro-Voice is a high-performance, two-way, full-range, 4 inch (102 mm) surface mount speaker with excellent
wide, uniform coverage, and outstanding performance. It is designed for background and foreground music, paging, and sound reinforcement, and it’s ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.
The EVID-S4.2 includes the unique and innovative mount system, from Electro-Voice, making every installation quick, simple, and reliable. The mounting system allows for 90 degrees of rotation horizontally, and 45 degrees of rotation vertically, and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used, ready to make any job easier.
Frequency Range (-10 dB): 75 Hz – 20 kHz

Available in black and white color
