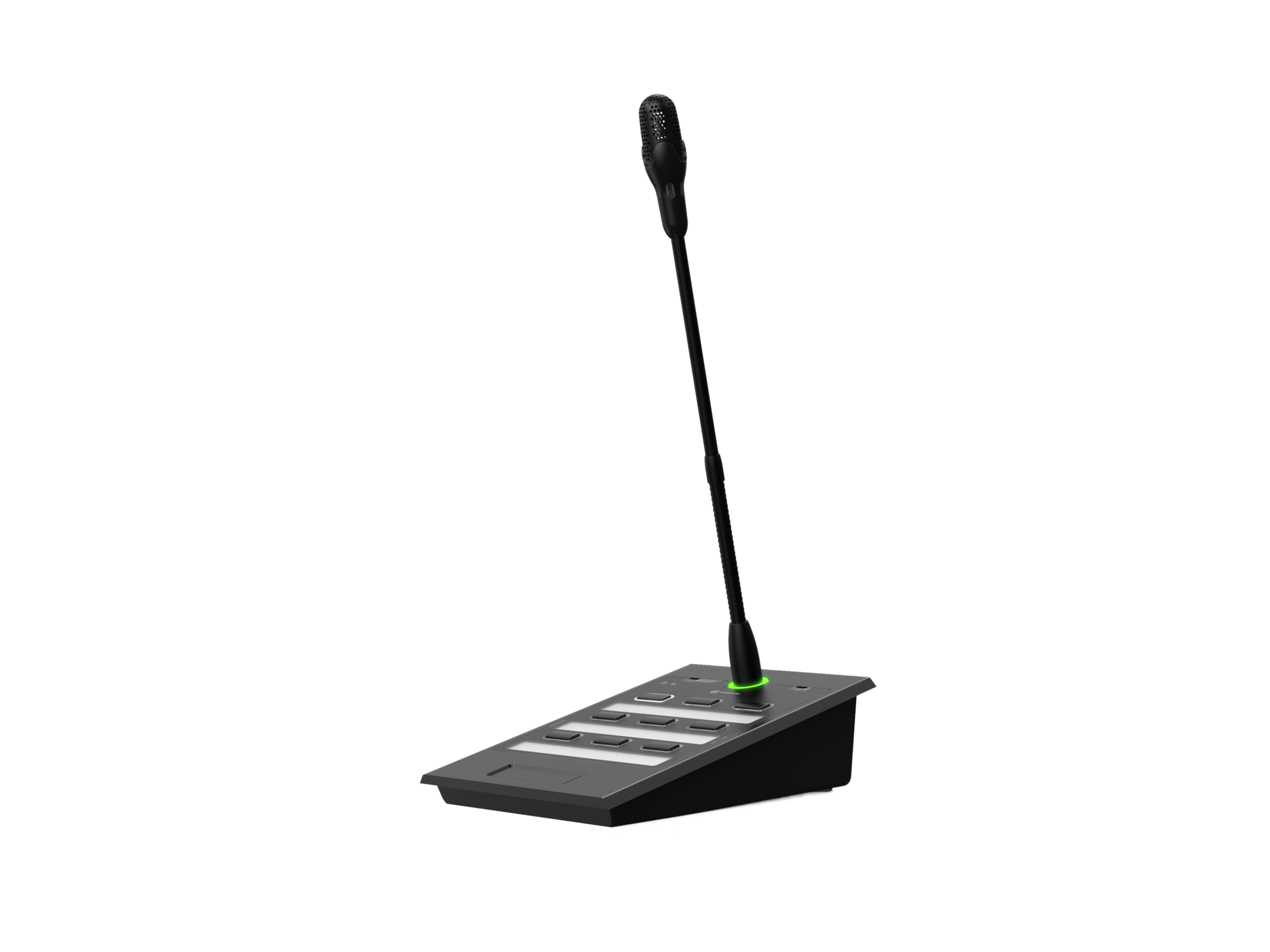

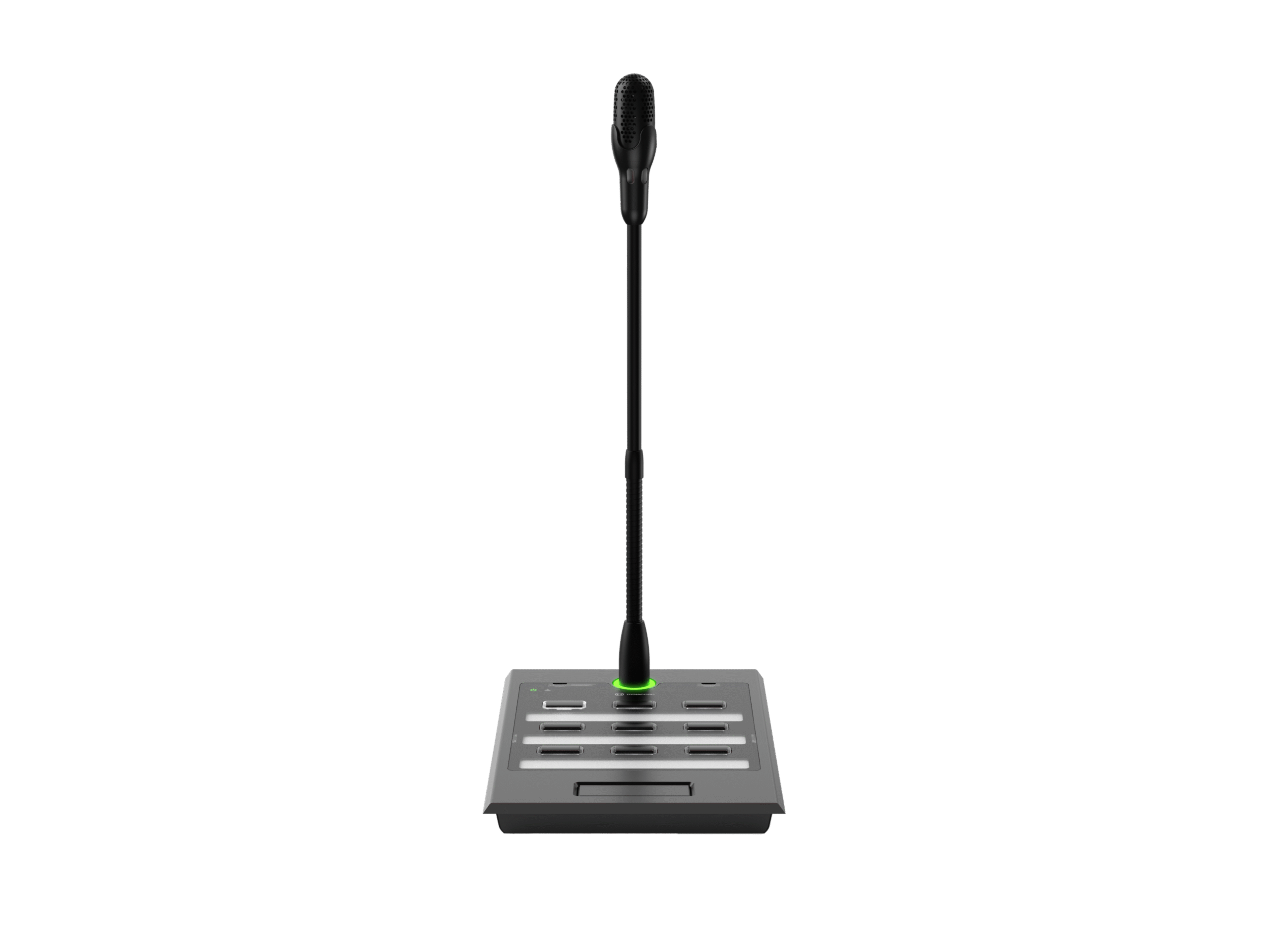

Dynacord VCS-8

Technical specifications:

Electrical:
General:
Maximum acoustic input level (dB SPL): 120 dB
Minimum signal-to-noise ratio: 68 dB (A-weighted)
Operating voltage (DC): 48 VDC (Bus powered)
Microphone:
Type: Hiqh-Quality Electret Condenser; Gooseneck, Non-detachable
Frequency response: 100 Hz – 14 kHz
Included polar pattern: Unidirectional

Mechanical:
Enclosure:
Light ring:
Green: Line open for talking
Orange: Pre-chime running or zone is busy (when zone is busy, selected zone button indicators additionally blink)
Blue: Updating
Buttons: 9 configurable buttons for selecting zones or assigning actions, Push-to-Talk button
LED indicators around buttons: 9 total. When illuminated, zone is assigned for paging/button is selected for assigned action. When a zone is busy, selected zone button indicator will blink.

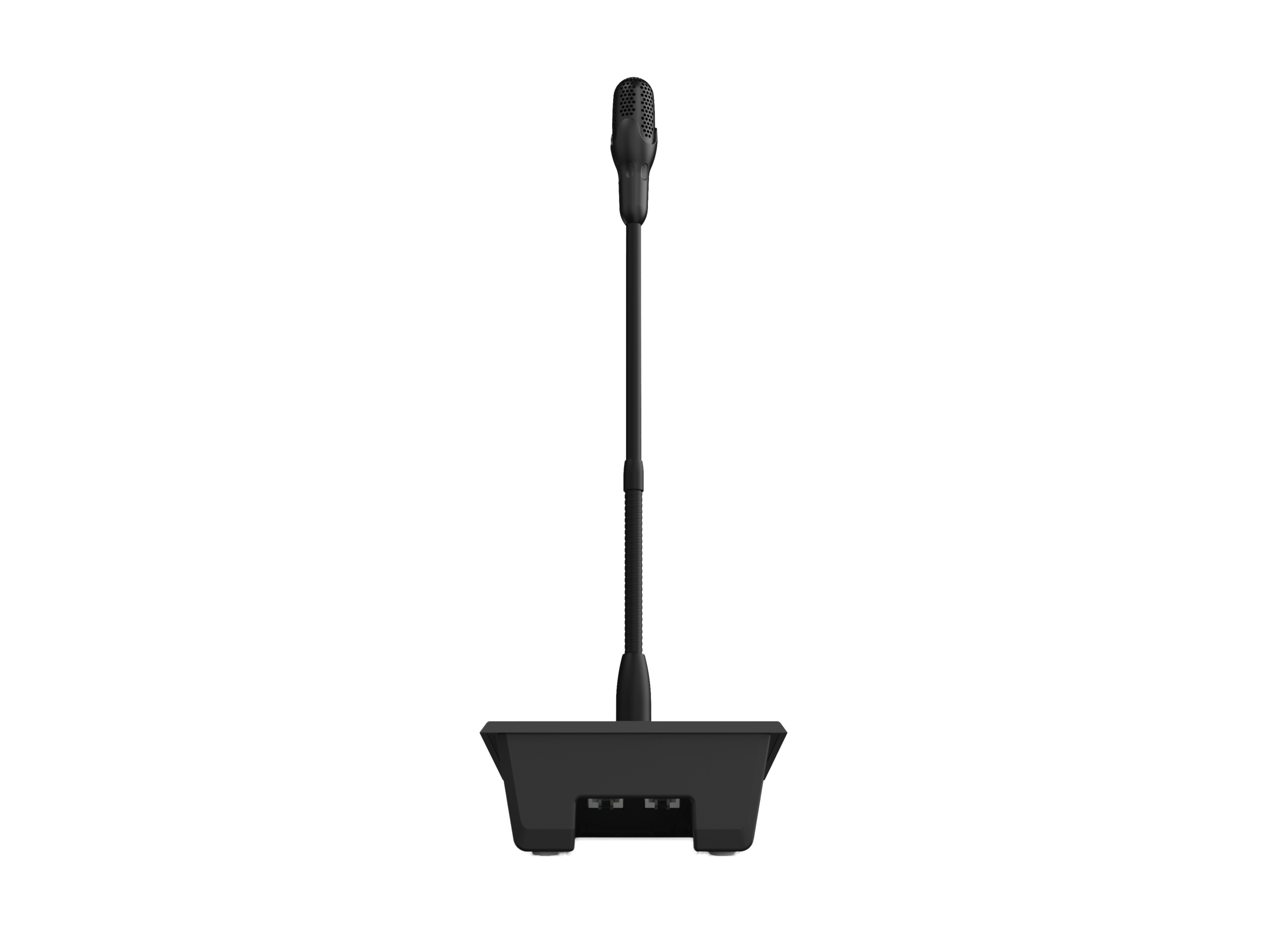

Connections: 2x RJ45, Out, In (for Daisy Chain)
Audio connection and power source: Accessory Bus of VZX-8 Zone Audio, Processor
CAN termination plugs: 1 per accessory line (A, B), place in unused port on last accessory connected to VZX-8 processor
CAN termination type: RJ45 termination with a 120 Ω resistor
Daisy Chain capable: Yes
Maximum devices supported: 8 maximum VCS-8 per VZX-8
Housing type: Top – PC/ABS; Bottom – Zamak
Mounting: Tabletop
Color in RAL: RAL 9017 Traffic black
Dimensions (HxWxD) without the microphone: 60 mm x 130 mm x 192 mm
Net weight: 0.92 kg

Environmental:
Climatic conditions: Operating temperature 5 °C to 40 °C
