Dynacord VWP
Gotovina/virman
339,00 €
Zidni kontroler, TFT zaslon u boji
Lako čitljiv 1,77” TFT zaslon u boji
Unicode podrška za više od 150 jezika
Proširivo do 16 kontrolera, lančano povezivanje
Fleksibilno upravljanje razinom, zonom, izvorom i media playerom u VZX web aplikaciji
Zamjenjiva prednja ploča (bijela/crna)

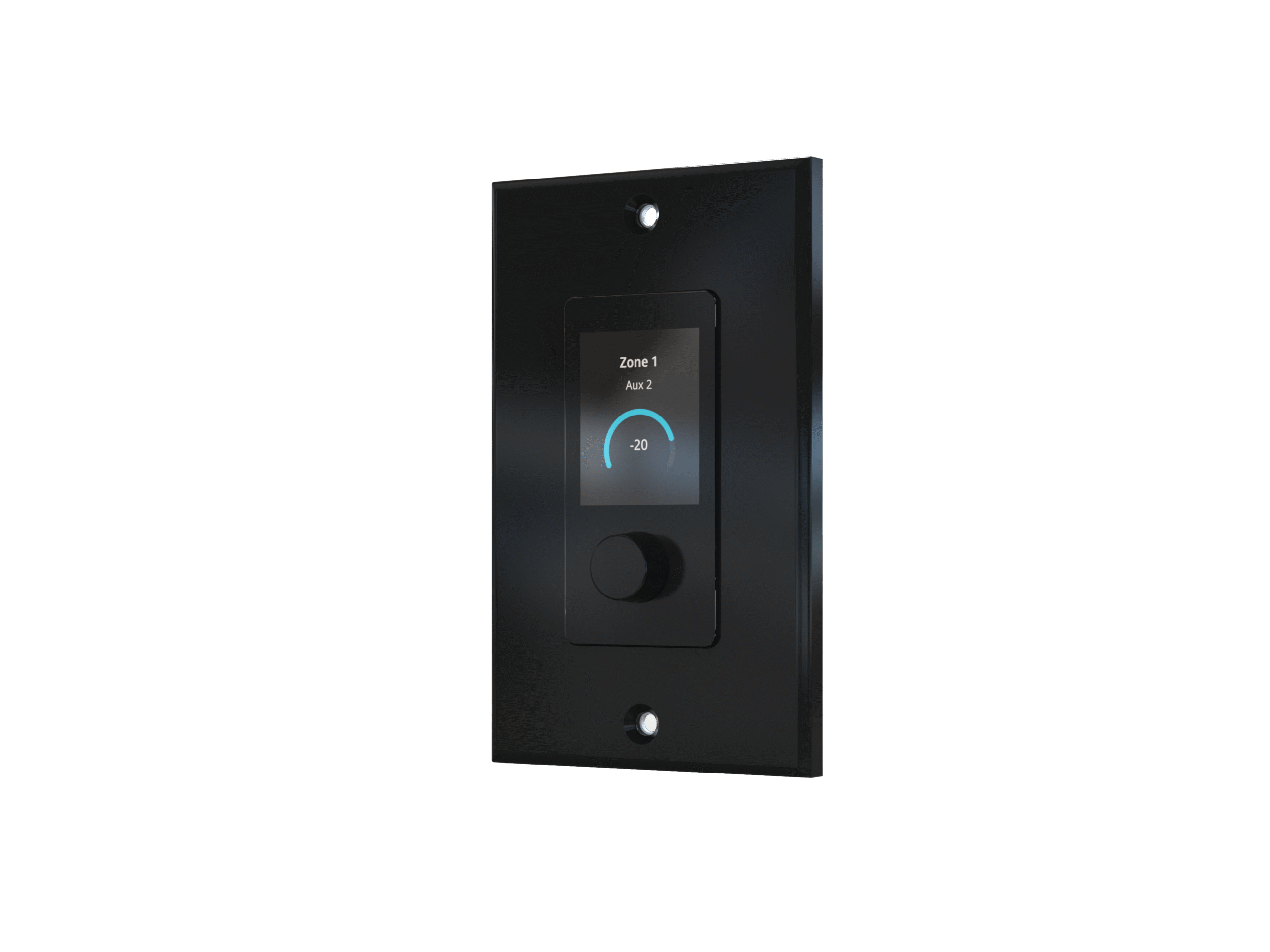

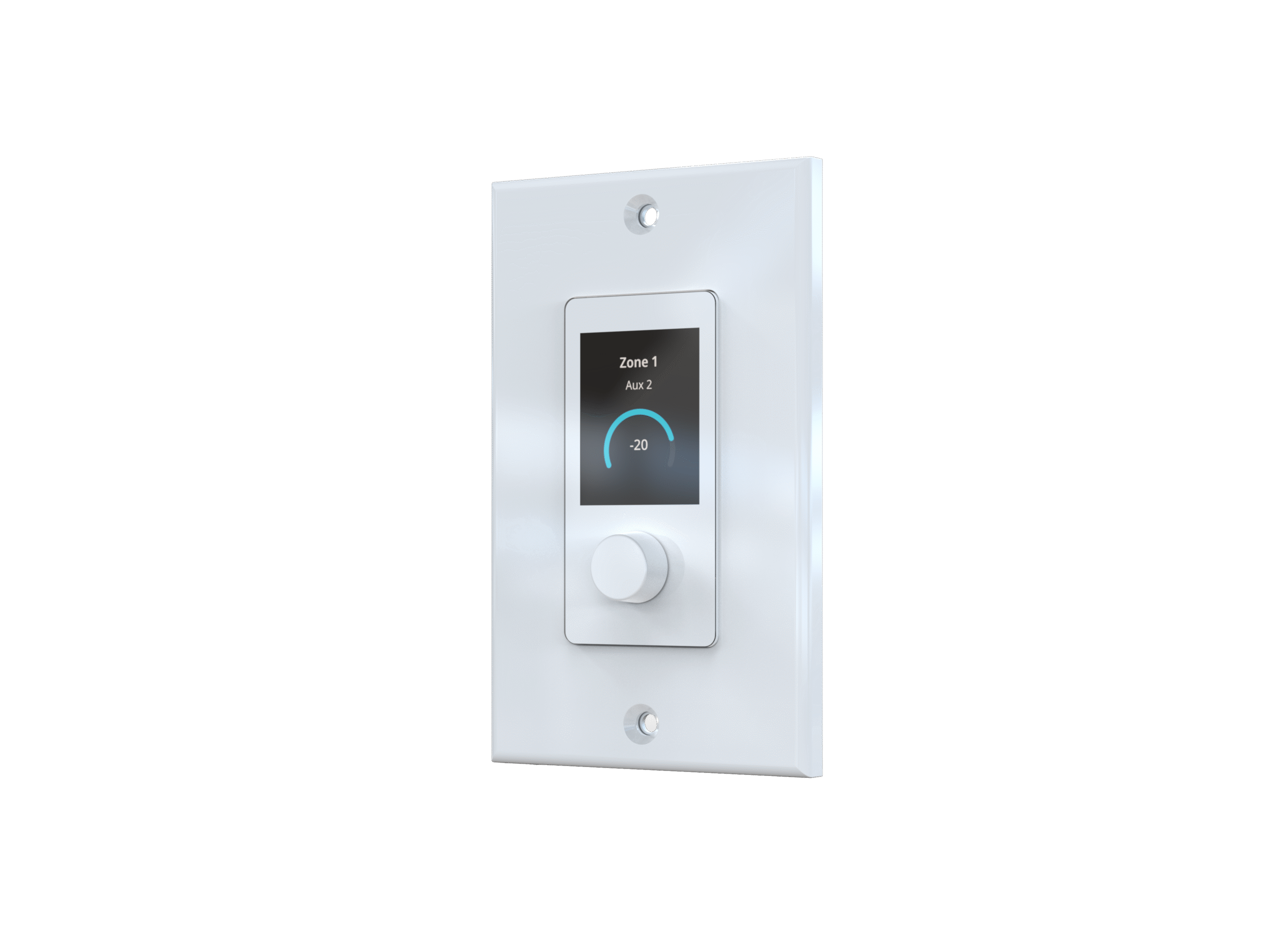

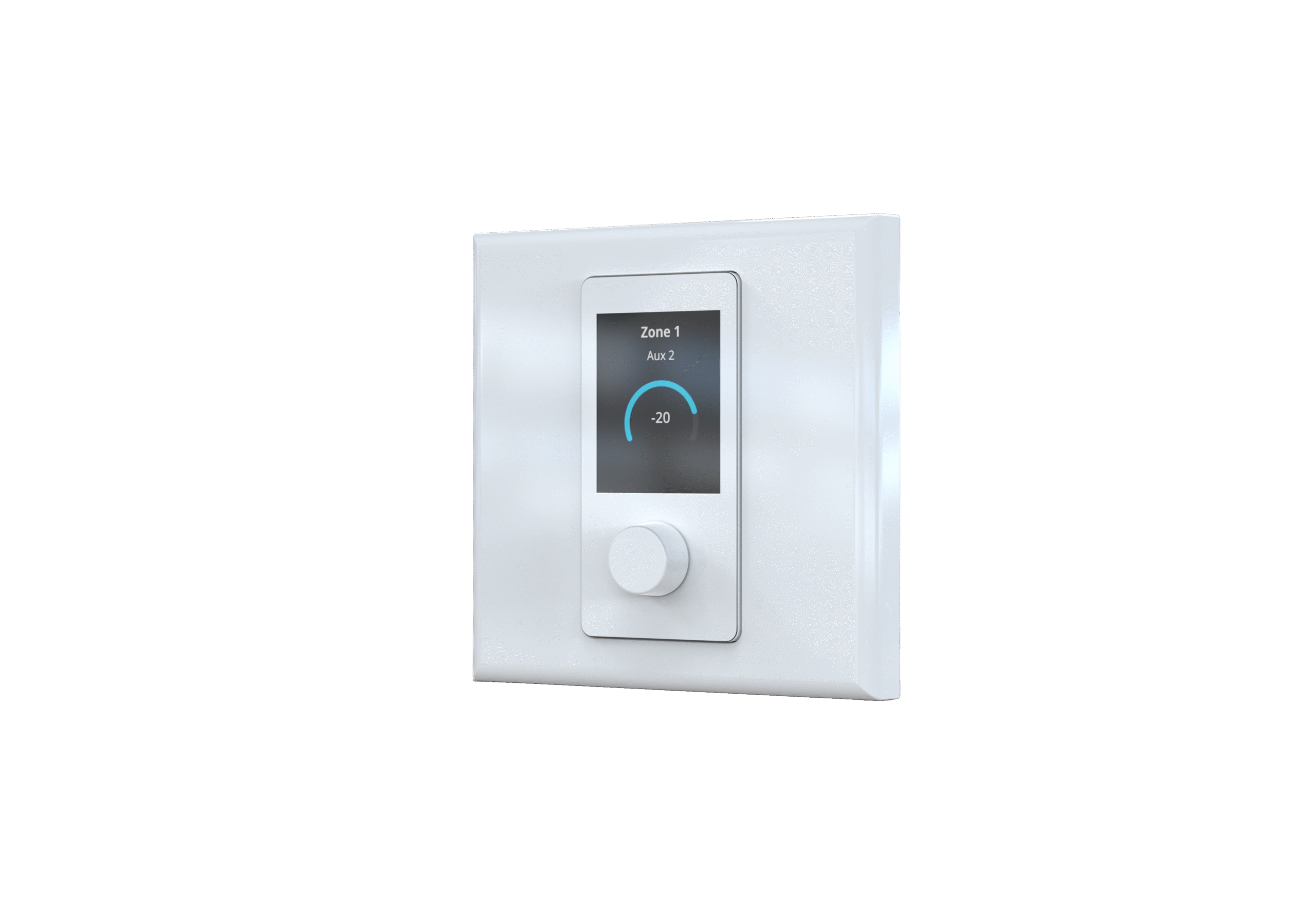

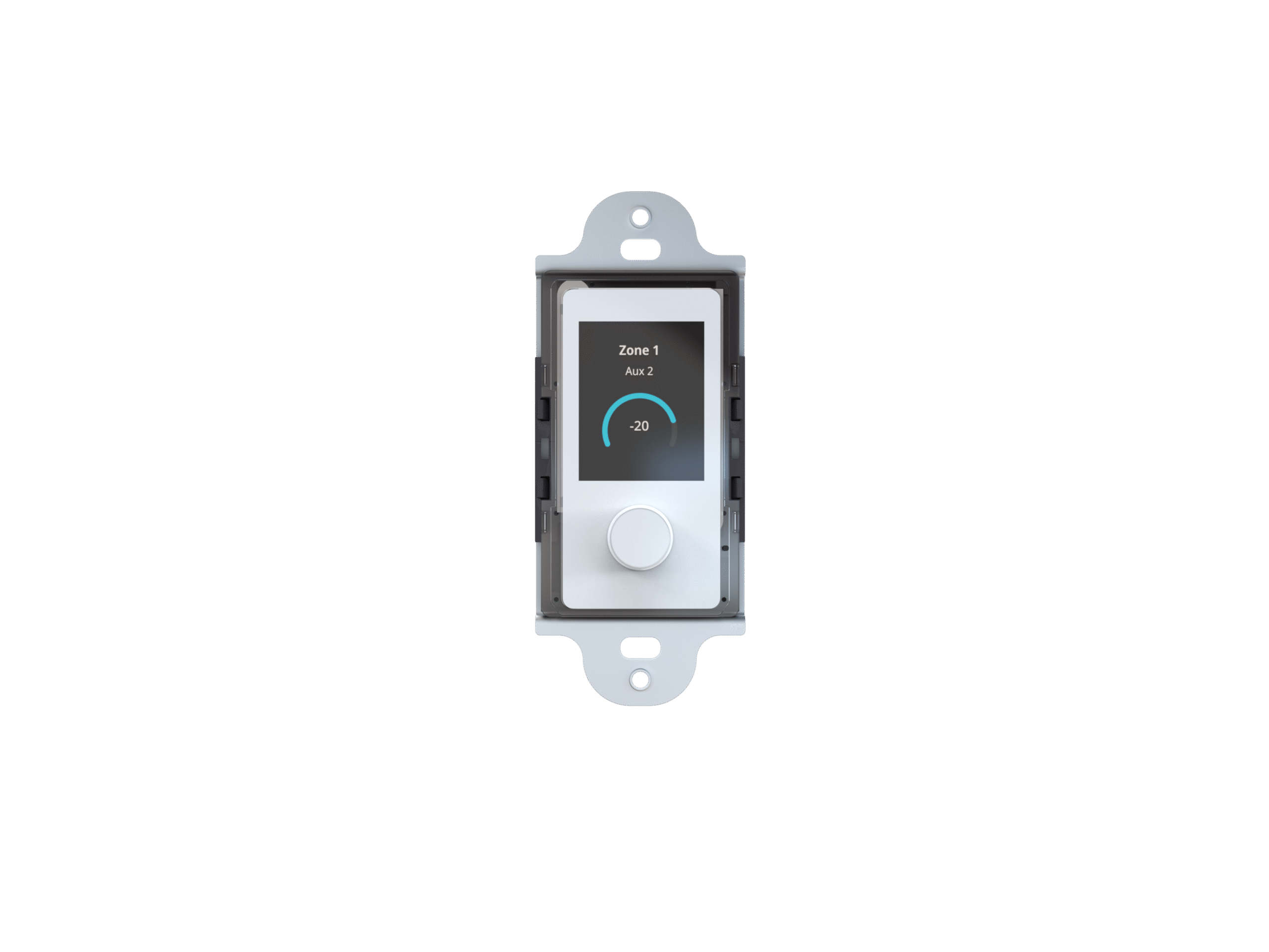

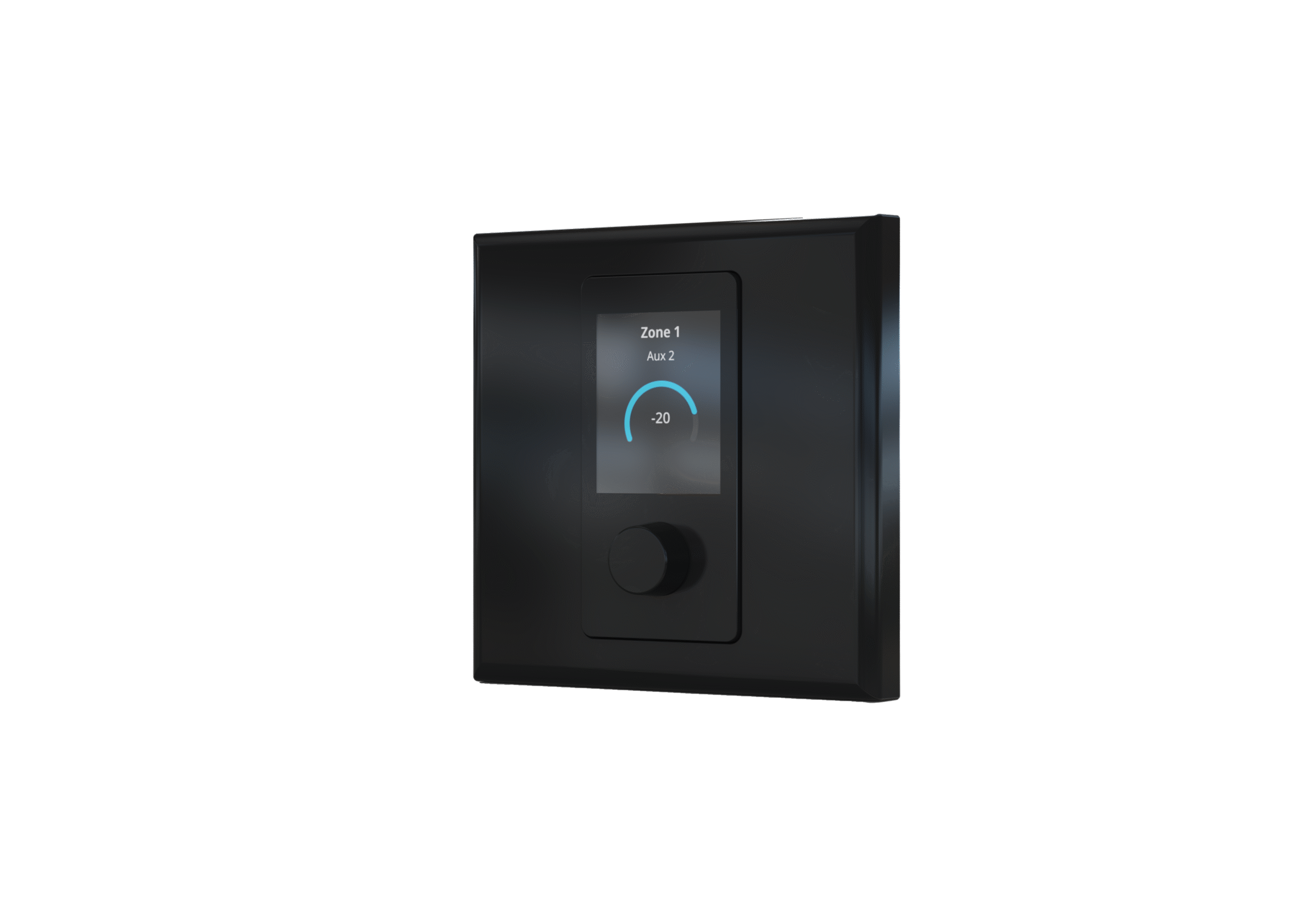

This wall panel controller provides level, zone, source & media playback control with a full color TFT multilingual display.
Technical specifications:
Electrical:
System specification:
Control type: 24 Detents 360° Continuous Push Button Encoder
User controls: Level, Mute, Zone, Source, Media Player
Language support: Unicode, 150+ languages supported
Power consumption: ≤0.4 W
Display:
Screen: 1.77 in Color TFT
Resolution: 160 x 128 pixels
Brightness: 480 cd/m2
Connections:

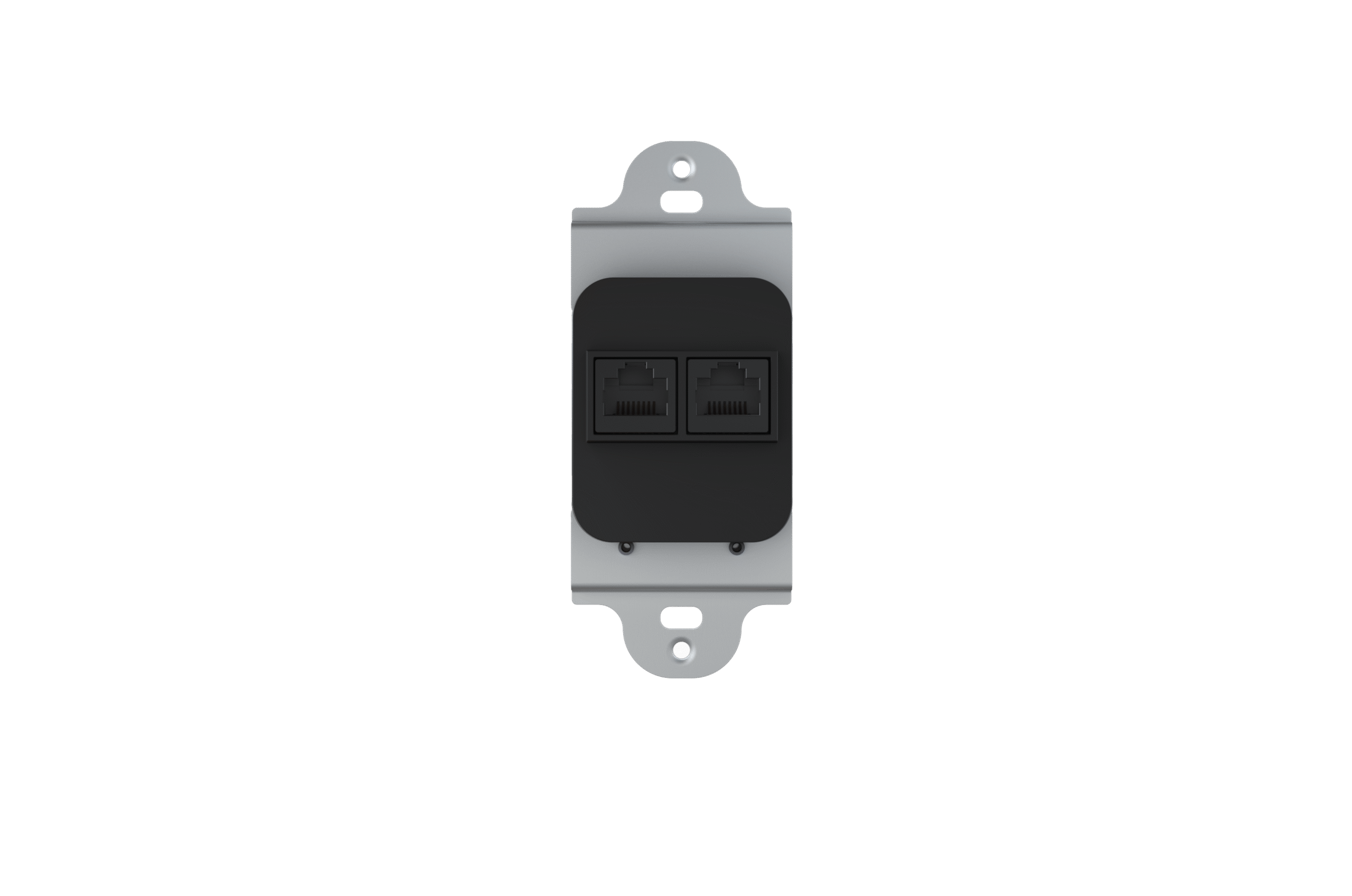

Connectors: 2x RJ45 In, Out (for Daisy Chain)
Connection & Power Source: Accessory Bus of VZX-8 Zone Audio Processor
CAN termination plugs: 1 per accessory line (A, B), place in unused port on last accessory connected to VZX-8 processor
CAN termination type: RJ45 termination with a 120 Ω resistor
Mechanical:
Enclosure:
Daisy chain capable: Yes
Maximum devices supported: 16 VWP per VZX-8 (8 per port)
Mounting type: Wall-mounted
Color: White, changeable to black
Required electrical box size (mm): 60 mm diameter, ≥60 mm deep
Dimensions (WxHxD) (with front cover): 86.3 mm x 86.3 mm x 47.3 mm
Weight: 100 g
Environmental:
Climatic conditions:
Operating temperature: +5 °C to +40 °C
Operating relative humidity, noncondensing (%): 15% – 93%
