Electro Voice EVID-PC6.2E
Gotovina/virman
385,00 €
PC6.2 (6,5-inčni dvosmjerni) dizajniran je kao najnapredniji stropni zvučnik dostupan danas, s vrhunskim performansama u svakom detalju. Svaka samostalna jedinica ima namjenski kompresorski drajver za poboljšane visokofrekventne performanse i kontrolu pokrivenosti u usporedbi s trenutnom ponudom EVID stropnih zvučnika. Pojednostavljeno ožičenje i inovativni novi integrirani montažni hardver omogućuju bržu ugradnju u širok raspon stropnih šupljina i konstrukcijskih formata.
High-performance EV-engineered compression driver. Ultra-wide HF dispersion provides extremely even coverage through room.
High-excursion woofer provides dramatic low-end frequency extension. Reinforced steel back can provides rigid enclosure to minimize acoustic loss.
Four-point clamp mechanism and integrated mounting legs enable quick ceiling installation.

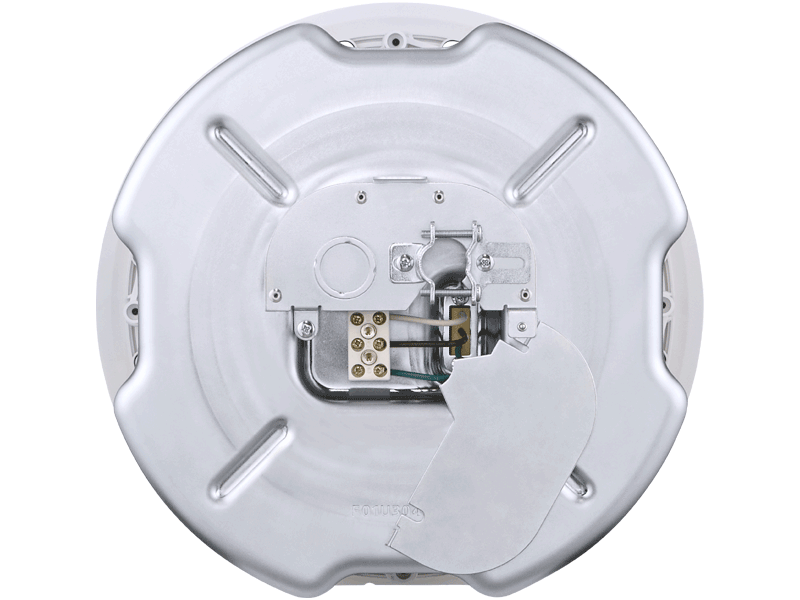

Detachable pass-thru Phoenix-style signal connections simplify installation wiring. Tap selector with 8Ω / 70 V / 100 V operation.
Fully reinforced ABS UL-rated baffle ensures long life. Fully compliant with EN 54 (pending), UL 1480, and 2043 standards.
Specifications:
Coverage (Nominal -6 dB): 120°
Cutout Size: 248 mm
Diameter (Max): 280 mm
Impedance: 8 Ω
Maximum SPL: 115 dB avg, 121 pk dB
Mounting Systems: C ring, tile bridge
Regulatory Approvals: UL1480, 2043; EN54; CE
Transformer Taps (Transformer Version Only): 70V: 60W, 30W, 15W, 7.5W, 8 ohm, 100V: 60W, 30W, 15W, 8 ohm
Frequency Response (-10 dB): 50 – 20kHz Hz
Sensitivity 1 W/1 m: 95 dB
LF Transducer: 165 mm (6.5 in)
HF Power Handling: 200 W program, 100 W pink noise Watts
HF Transducer: 35 mm compression driver
Connector Type: Removable locking 4-Pin (Phoenix) 12AWG (2.5 mm) max wire size
Enclosure Material: ABS plastic (UL94V-0) baffle, steel back can
Grill: Color-matched steel grille with fabric
Height: 260 mm
Weight Net : 7 kg
Shipping Weight: 16.83 kg
