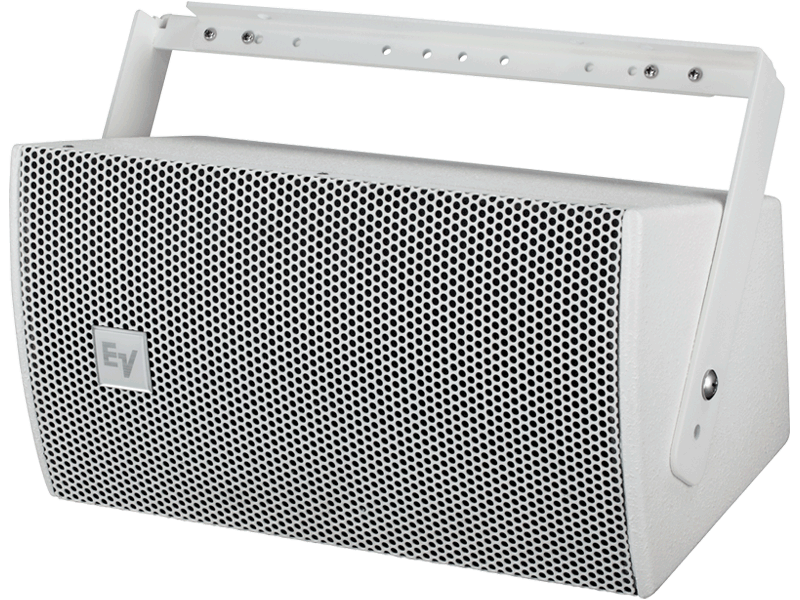

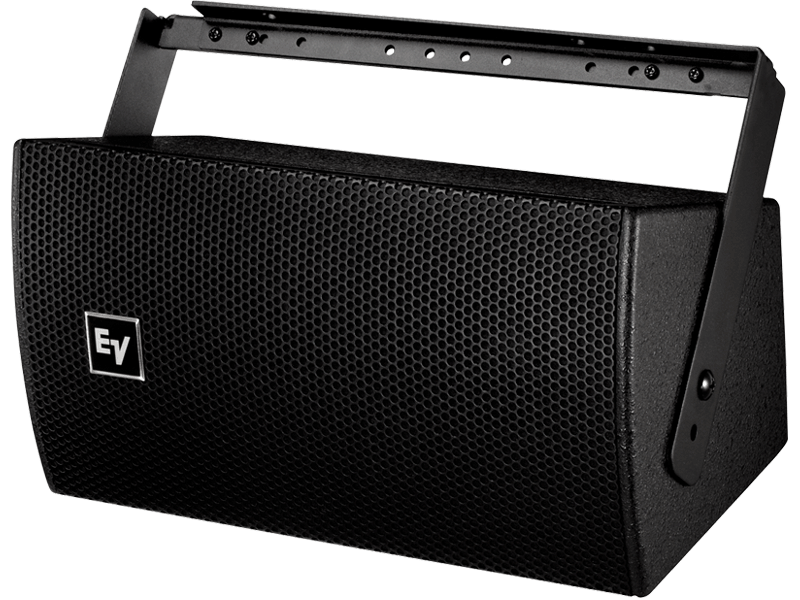

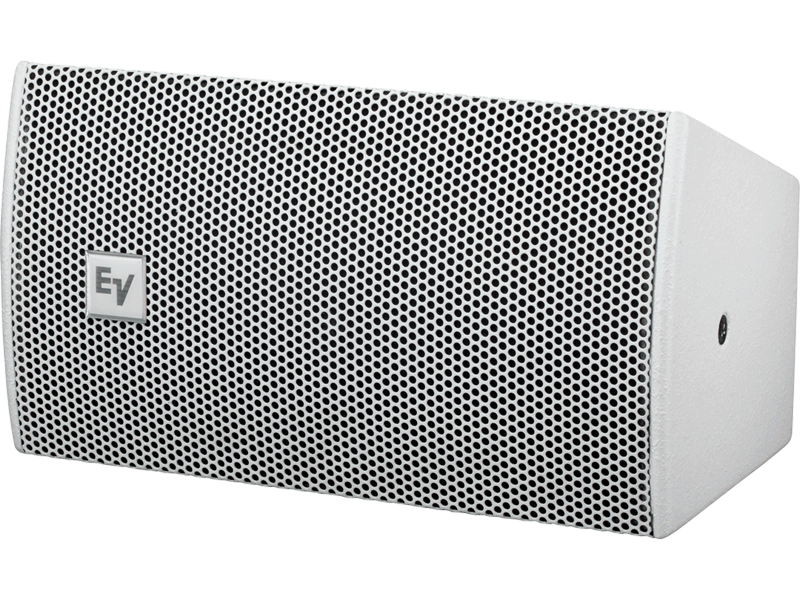

Electro Voice EVU-1062
Gotovina/virman
630,00 €
Ultrakompaktni dvosmjerni zvučnik s jednim 6,5-inčnim wooferom. Zvučno usklađen sa svim EV-Innovation linijama. Sofisticirane pasivne crossover/EQ mreže od 18 dB oktava. Asimetrično kućište za idealno usmjeravanje ispod balkona i prema ivici pozornice. Opcionalna Neutrik Speakon(R) konektorska ploča. Jedan 1,3-inčni (33 mm) dijafragmalni ikompresijski drajver. Uključen U-nosač. Opcionalno napajanje od 70 V i 100 V. Stražnje montažne točke kompatibilne s OmniMount(R). Dostupan u crnoj ili bijeloj boji (za unutarnju upotrebu). Ultrakompaktno kućište 8 x 14,5 inča. Rotirajući valovod 90º x 50º. Iznimno visoka snaga za veličinu: 160 W kontinuirano. 120 dB Max SPL. Asimetrični trapezoidni dizajn kućišta. Kompatibilan s OmniMount™.
Axial Sensitivity (SPL, 1 W @ 1 m): 92 dB
Color: Black or white
Finish: Textured paint
Nominal Impedance: 8 Ω
Waveguide: 6 in. x 6 in., rotatable
Frequency Response (-3 dB): 110 – 16000 Hz Half space
Frequency Response (-10 dB): 65 – 20000 Hz Half space
Recommended High-Pass Frequency: 90 Hz
Max. SPL/1m (calc): Continuous: 114, Peak: 120 dB
Coverage (Nominal -6 dB) H: 90 °
Coverage (Nominal -6 dB) V: 50 °
System Power Handling (Continuous/Program/Peak): 160//640 Watts EIA RS-426A (eight hours)
LF Transducer: One 6.5-inch (165 mm) ICT-6.5-8 woofer
HF Transducer: One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver
Minimum Impedance: 6 Ω
Connector Type: 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire)
Enclosure Material: 9-ply hardwood plywood
Grill: 18-gauge steel with cloth behind
Suspension: (6) M8 threaded points
Height: 209 mm
Width: 370 mm
Depth: 207 mm
Weight Net: 6.53 kg
Shipping Weight: 9.12 kg
