Guil ABZ-16
Gotovina/virman
TV kuka za okrugle i kvadratne cijevi. Nosivost: 300 kg
Izrađeno od aluminija. S prijemnikom od Ø 29 mm
CIJENA NA UPIT

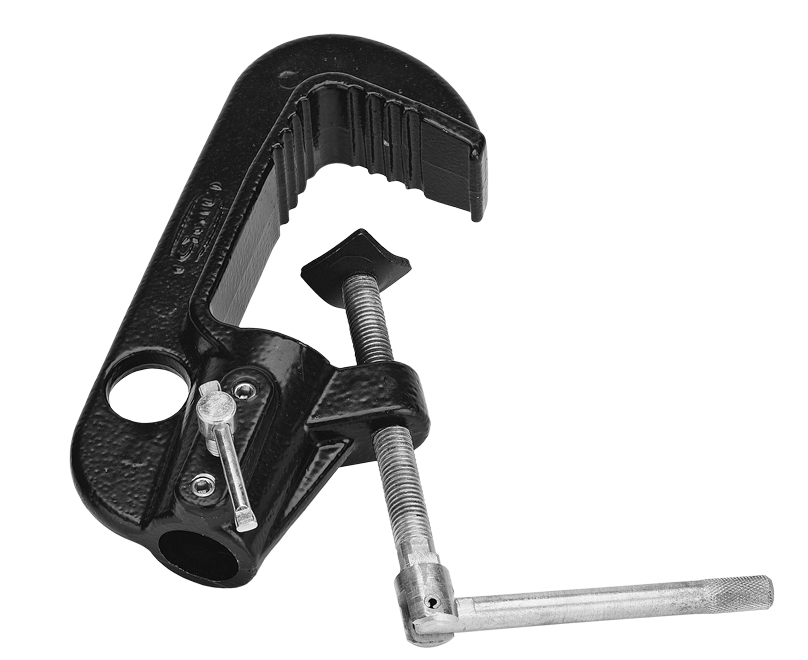

Aluminium TV hook clamp with a receiver of Ø 29 mm, for spigots of 18 mm to 30 mm (pressure screw: M10 x 30).
ABZ-16 Pipe clamp is the perfect accessory for the TV, Film and Theatre industries. It combines strength and durability with a high level of safety.
Its special design, allows this sturdy clamp to be fitted onto both square tubes of 20×20 mm to 70×70 mm and round tubes from 18 mm to 80 mm.
The bottom socket has three fixtures to secure the spigot. The hook has a handy hole to secure a safety sling.
Made with injection moulded aluminium with a special black anti-scratch paint finish.

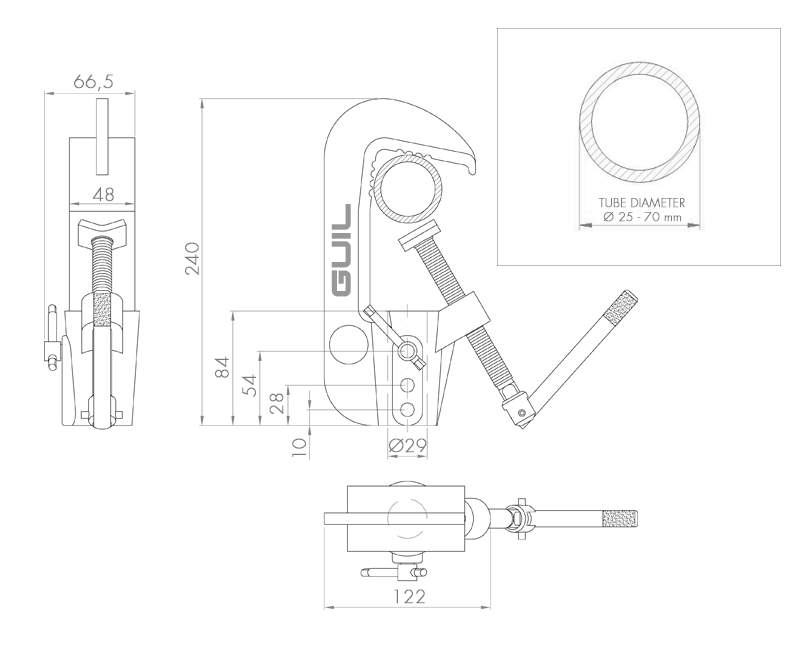

SPECIFICATIONS:
Maximum Load: 300 kg
For square tubes: 20×20 mm ato 70×70 mm
For round tubes: Ø 18 to 80 mm
Measures: 48 x 240 mm
Socket: Ø 29 mm
Screw Plug: M14 x 115
Material: Aluminium
Colour: Black
Net Weight: 1,13 kg
