Guil TTL-01

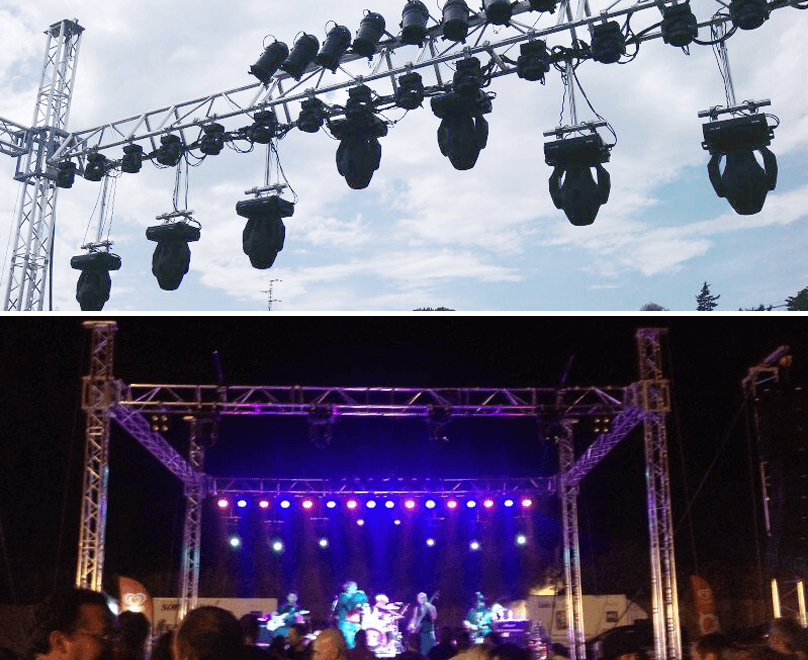

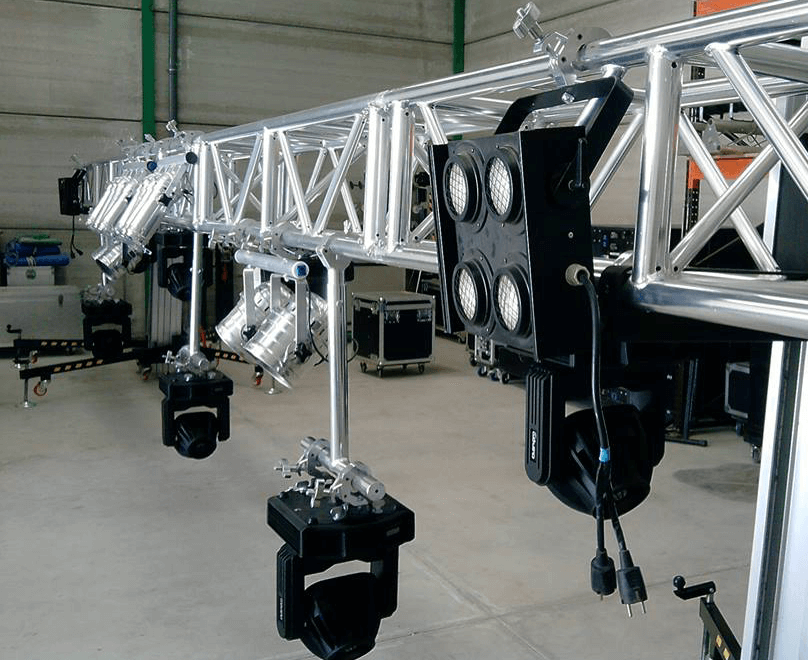

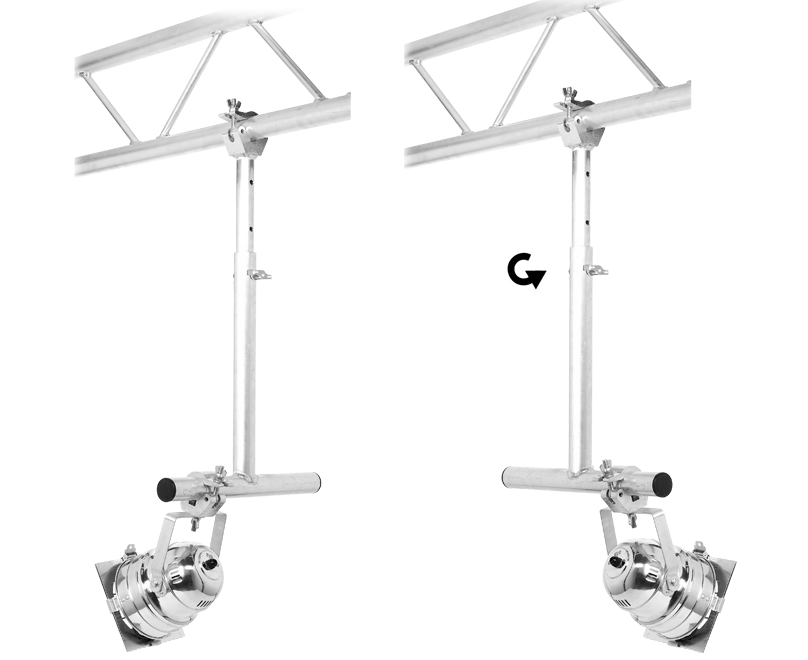

Telescopic drop-down arm used to hang lighting fixtures from trusses or tubes. Thanks to its telescopic design, devices can be suspended at different heights.

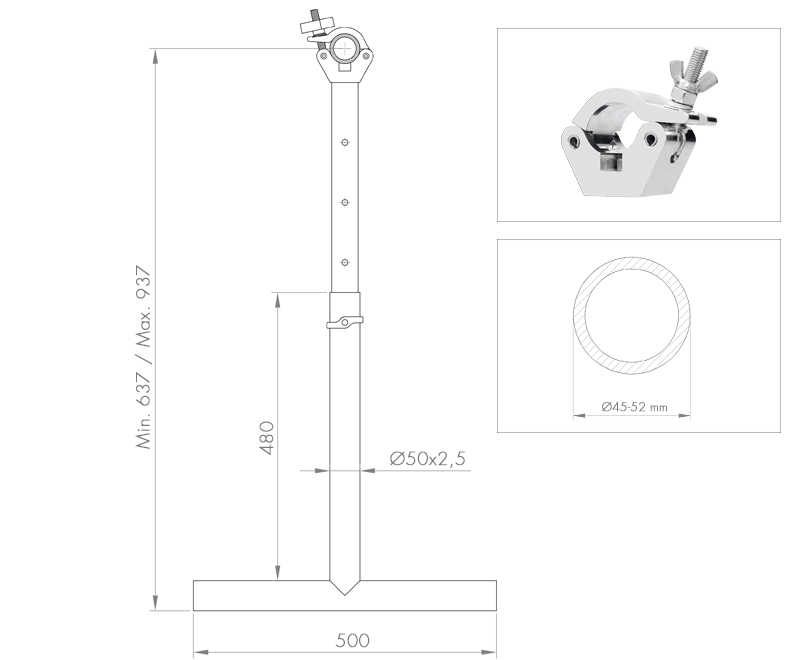

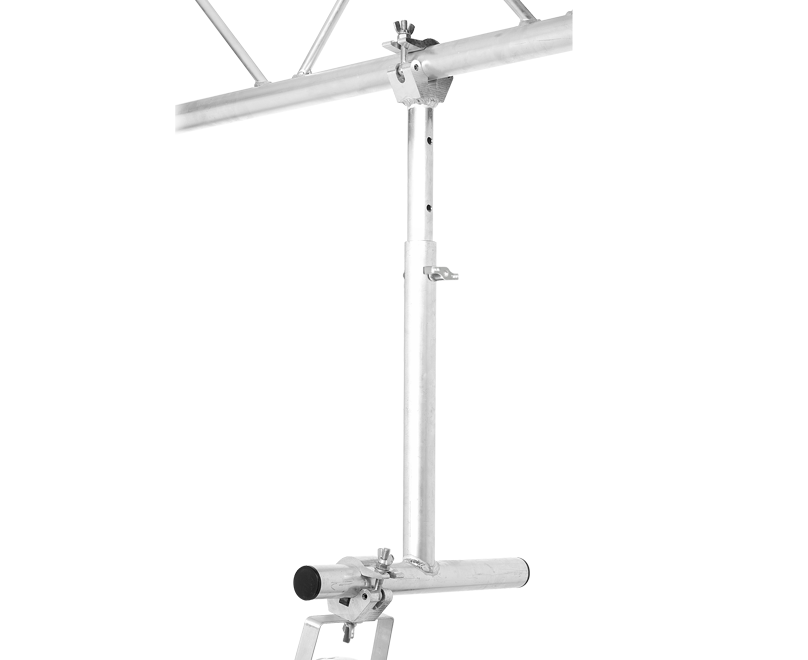

“T”-shaped aluminium telescopic arm can be set to four different positions with a metallic ergonomic knob: 63.7 cm – 73.7 cm – 83.7 cm – 93.7 cm.

TTL-01 Multi-purpose T-shaped telescopic arm is made of aluminium (Alloy: EN-AW 6082 T6) with a tube diameter of 50 mm x 2.5 mm that guarantees maximum resistance.

An extruded heavy-duty aluminium coupler (ref. ABZ-24 with an ergonomic knob) is welded to the bottom of the ‘T’ for its safe connection to tubes with an external diameter of 45 to 52 mm.

SPECIFICATIONS:
Maximum load capacity: 100 kg
Folded measurements: 8 x 50 x 70 cm
Adjustable: Yes (4 positions)
Folded length: 70 cm
For tube diameters: 45 – 52 mm
Material: Aluminium
Alloy: EN-AW 6082 T6
Net weight: 2 kg
