GUIL ULK 400

Lifting Tower designed to lift loads of up to 250 kg up to a maximum height of 5.15 m.
The ULK 400 may be small in size but the attention to detail put into its design is vast.

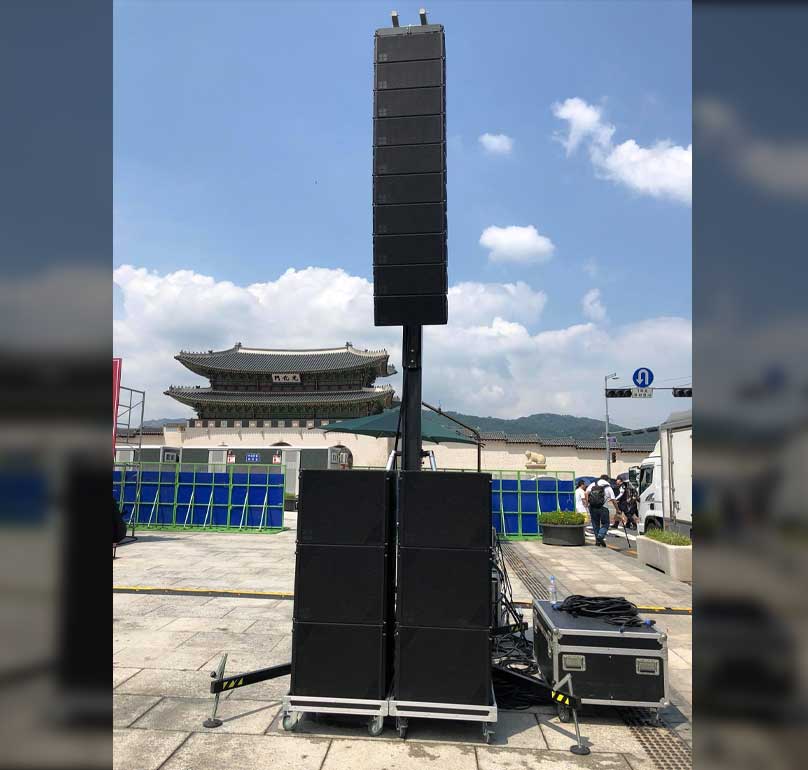

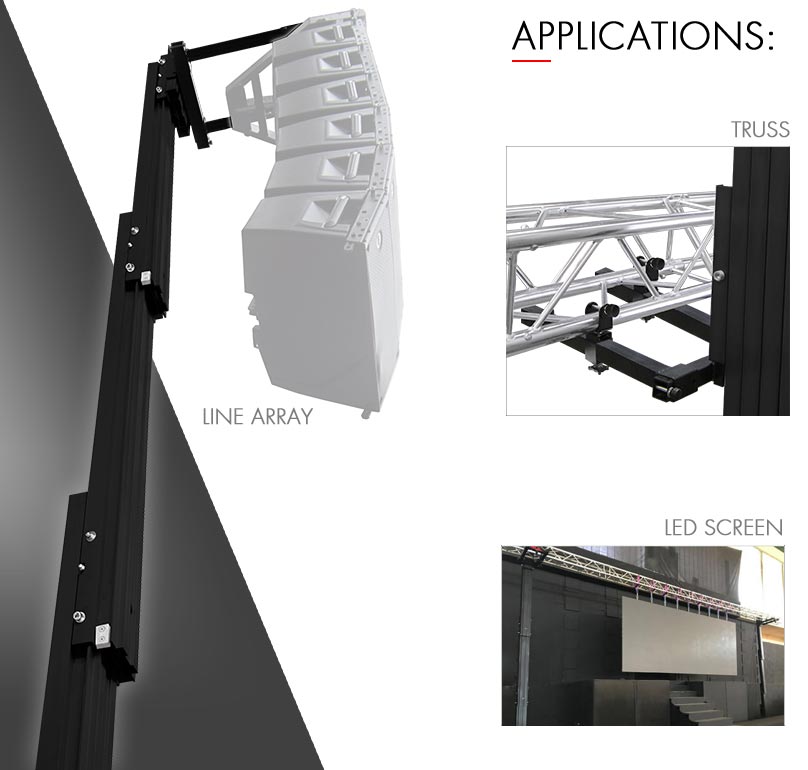

Lifting tower developed for holding heavy weights at a great height. Its user friendly, compact design and great strength, make the ULK Lift an ideal complement for any kind of event.

SPECIFICATIONS:

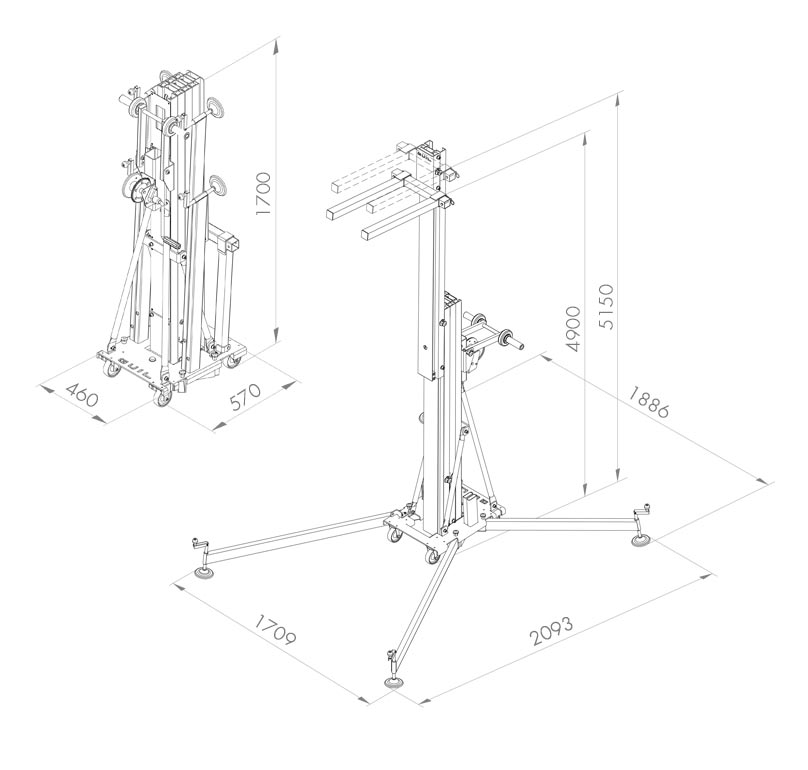

Maximum Height: 5.15 m
Maximum Load: 250 kg
Safety Systems: ASB System (Automatic Safety Blocking System), IPB System (Internal Pendulum Brake) + MSU System
Brake Winch: AL-KO 900 (900 Kg)

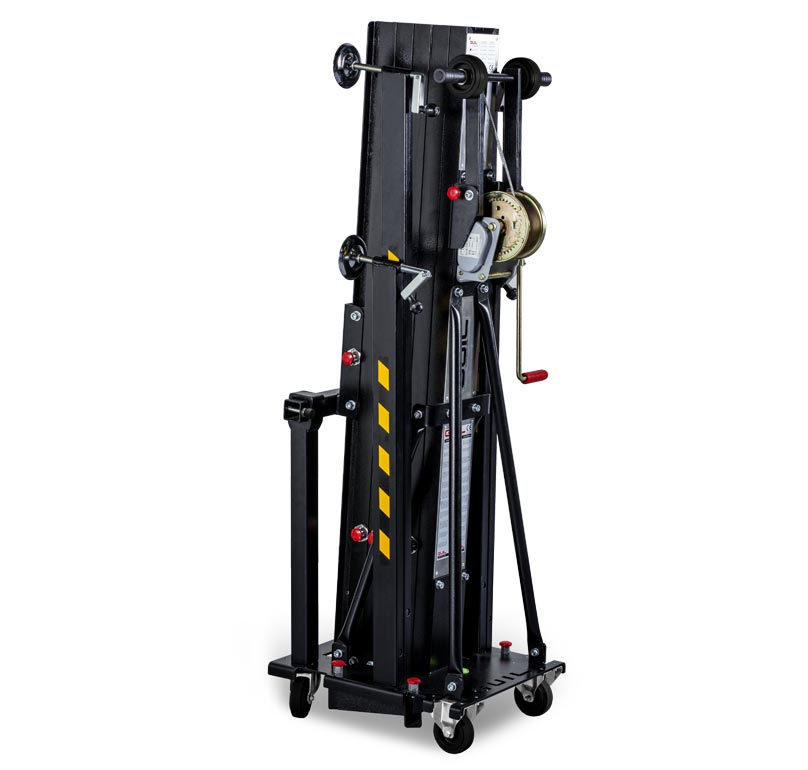

Height stowed: 1.70 m

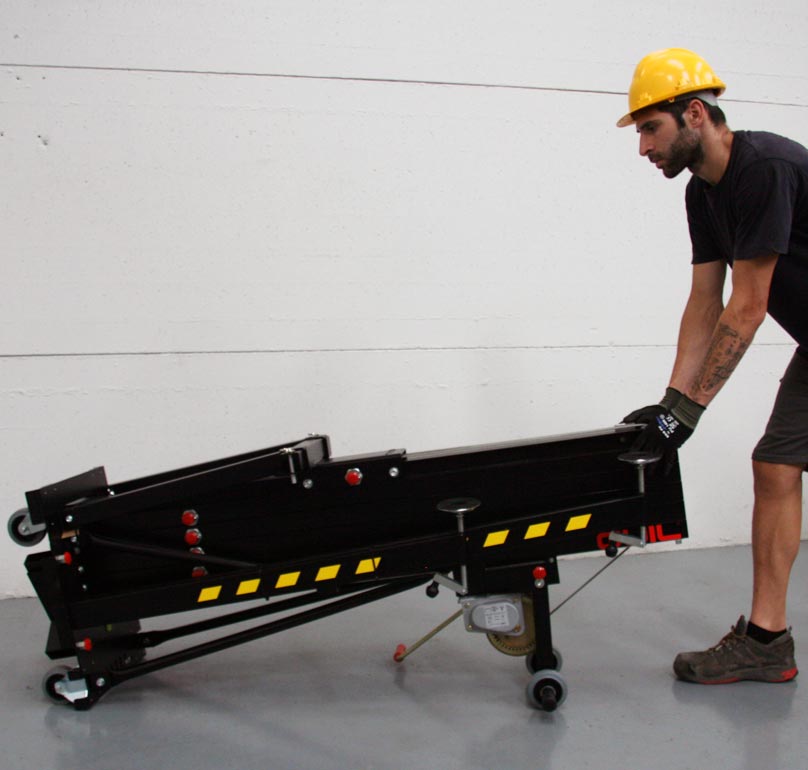

Horizontal Transport: Included (2 x Ø 100 mm wheels)
Wheels: Secured to the base with 4 fixing points
Leveller screw jacks: Trapezoidal thread TR24x5. Greater durability and speed
Material: Aluminium (alloy EN AW 6082-T6) & Steel. BLACK Colour
Complies with Standards: DGUV 17 & 18, DGUV Rule 115-002 (Formerly BGV-C1), DIN EN 17206 (Replaces DIN 56950-1), 2006/42/CE
Net Weight: 110 kg
Sections: 4 Sections – Profile dimension (width): 135 mm
