LD Systems STINGER G3 EVENT SET
Gotovina/virman
5.730,00 €
2 x 10″ pasivni PA zvučnik + 2 x 15″ pasivni subwoofer + rack za pojačalo
Za publiku do 300* osoba
Za DJ-eve, male bendove i privatnu upotrebu
Kompaktan i jednostavan za transport
Opsežan i pametan pribor za instalaciju i transport
Svestran uređaj za primjenu u punom rasponu, satelitima i monitorima
36 mm nosač za stup s dvostrukim nagibom za kut nagiba od 0° i 5°
Kućište od brezove šperploče s ultra-robusnim poliurea premazom
Namjenski izlaz za subwoofer za davanje signala i napajanja pasivnim satelitima
Set uključuje zaštitne navlake i kotačiće
Specifications:
General:

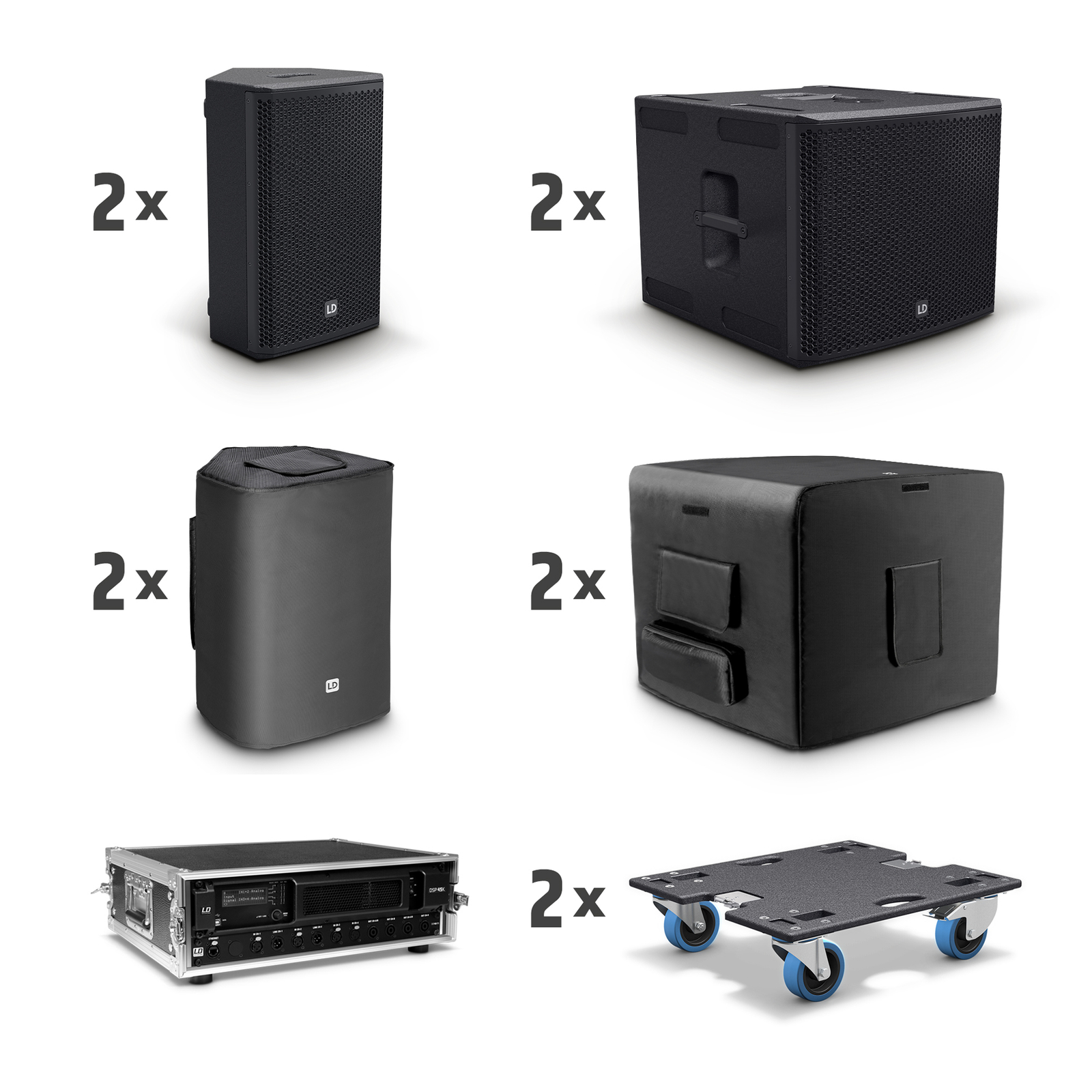

Scope of delivery: 2 x STINGER 10 G3, 2 x STINGER SUB 15 G3, 1 x DSP 45K RACK, 2 x STINGER 10 G3 PC, 2 x STINGER SUB 15 G3 PC, 2 x STINGER SUB 15 G3 CB
RMS output power: 1800 W
Frequency response (-6 dB, rel. Avg): 40 Hz – 20000 Hz
Dispersion: Hor.: 90° / Vert.:50°
Colour: Black
Weight: 109.7 kg
Items in this set:
LD Systems DSP 45 K RACK 4-Channel DSP Power Amplifier and Patchbay in 19″ Rack Case:
General:
Product type: Power Amplifiers
Type: 19″ / 3 HE
LD Systems STINGER SUB 15 G3 CB Castor board for STINGER SUB 15 G3 models:
General:
Material: Multiplex
Coating: Polyurea
Colour: Black
Wheel:
Roller type: Heavy-duty castor
Material: Rubber
Colour: Blue
Manufacturer: Adam Hall
Quantity: 4
Braked castors: 2
Diameter: 100 mm
With brake: Yes
Dimensions & weight:
Width: 567 mm
Depth: 624 mm
Material thickness: 15 mm
Weight: 6 kg
LD Systems STINGER 10 G3 2-Way Passive 10” Bass Reflex PA Loudspeaker:
General:
Type (active/passive): Passive
Power handling (Peak): 600 W
Power handling (RMS): 300 W
SPL (1 W/1 m): 96 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): 121 dB
Frequency response: 65 Hz – 20000 Hz
Impedance: 8 Ω
Speaker system: 2-way system
Dispersion: Hor.: 90° / Vert.:50°
Number of inputs: 1
Input connector types: Standard speaker connector 4-pole male & speakON®
Number of outputs: 1
Output connector types: Standard speaker connector 4-pole male & speakON®
Colour: Black
Bass driver:
Size: 10″
Manufacturer: Custom Made
Magnet: Ferrite
Voice coil: 2″
Tweeter:
Driver size: 1″
Manufacturer: BEM
Magnet: Ferrite
Voice coil: 1″
Housing:
Design: Bass reflex
Number of handles: 1
Mounting type: M10 for SuperClamp
Flange: 36 mm (0°/5°)
Cabinet material: Birch plywood
Material thickness: 12 mm
Front grille material: Aluminium
Dimensions & weight:
Width: 270 mm
Height: 457 mm
Depth: 290 mm
Weight: 11.5 kg
Other properties:
Included accessories: Mains cable
LD Systems STINGER SUB 15 G3 PC Padded protective Cover for STINGER® G3 Subwoofer 15″:
Material: Nylon 1680D
Padding thickness: 8 mm
Colour: Black
Width: 567 mm
Height: 470 mm
Depth: 625 mm
Weight: 1.2 kg
LD Systems STINGER 10 G3 PC Padded protective cover for Stinger® G3 PA Loudspeaker 10″:
Product type: PA Loudspeakers Accessories
Type: Covers
Material: Nylon 1680D
Color: Black
Thickness of the padding: 8 mm
Height: 530 mm
Width: 350 mm
Depth: 320
LD Systems STINGER SUB 15 G3 Passive 15” Bass Reflex PA Subwoofer:
General:
Power handling (Peak): 1200 W
Power handling (RMS): 600 W
SPL (1 W/1 m): 99 dB
Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %): 127 dB
Low frequency limit: 40 Hz
Impedance: 8 Ω
Number of inputs: 1
Input connector types: Standard speaker connector 4-pole male & speakON®
Number of outputs: 1
Output connector types: Standard speaker connector 4-pole male & speakON®
Colour: Black
Bass driver:
Size: 15″
Outer diameter: 381 mm
Manufacturer: Custom Made
Magnet: Ferrite
Voice coil: 3″
Housing:
Design: Bass reflex
Number of handles: 4
Flange: M20
Cabinet material: Birch plywood
Material thickness: 18 mm
Front grille material: Aluminium
Dimensions & weight:
Width: 567 mm
Height: 477 mm
Depth: 624 mm
Weight: 29.7 kg
Other properties:
Included accessories: Mains cable
