LD Systems ADA TPP
Gotovina/virman
1.199,00 €
MPC: 1.599,00 €
3U, 19″ prednja I/O prespojna ploča
Prespojna ploča za 3 × ADA 12 K4 / ADA 8 K4
Jasan raspored i označavanje za brzo i pouzdano ožičenje
Izlazi za zvučnike: 3 × SpeakON NL8 i 12 × SpeakON NL4
Ulazi: 12 × XLR analogni, 4 × AES3 digitalni
Veza: 12 × analogni putem 6 × RJ-45 za Audio over Cat (AoC)
Mreža: 2 × Ethernet RJ-45 (Dante®)
Premium Neutrik® konektori
Specifications:
General:
Material: Steel
Colour: Black

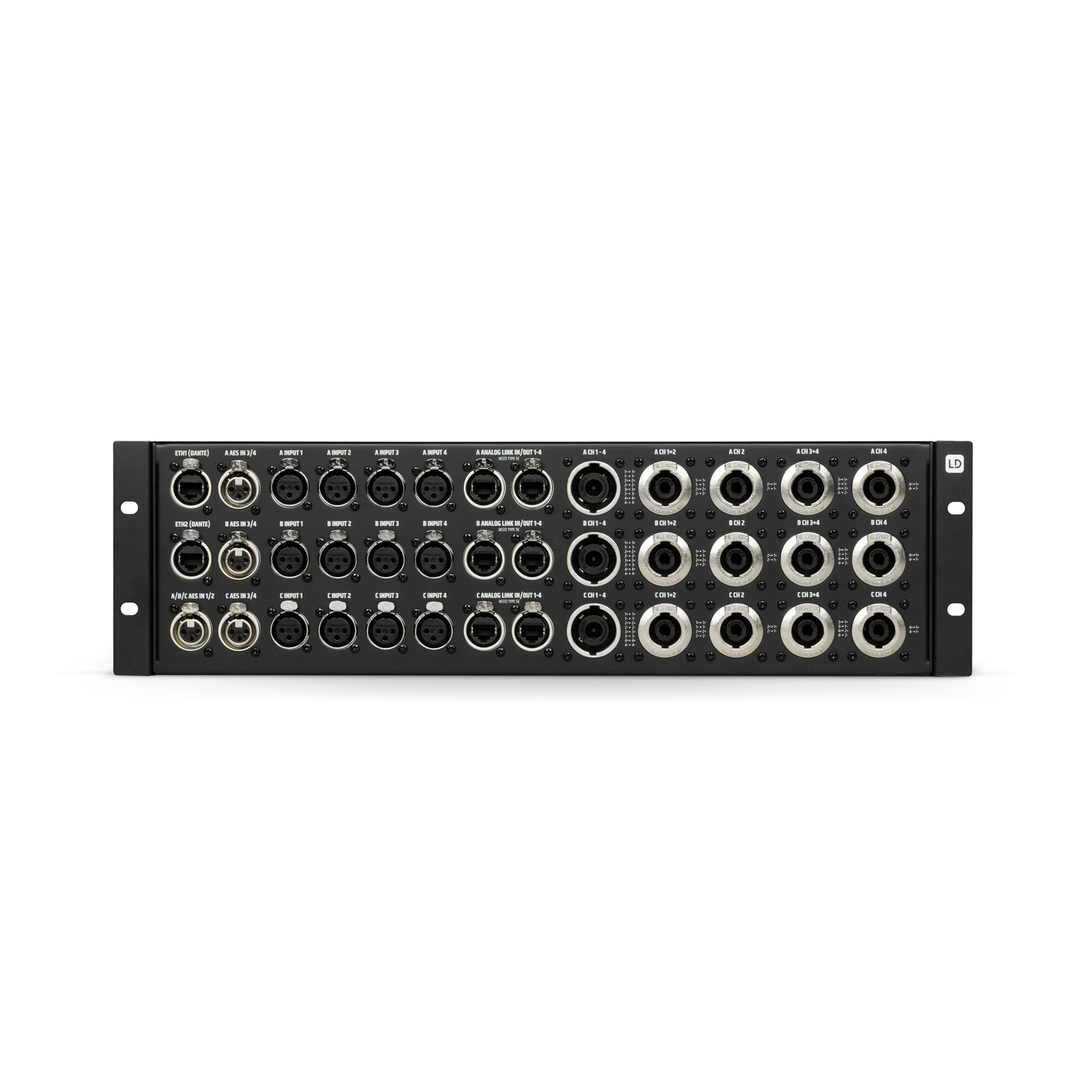

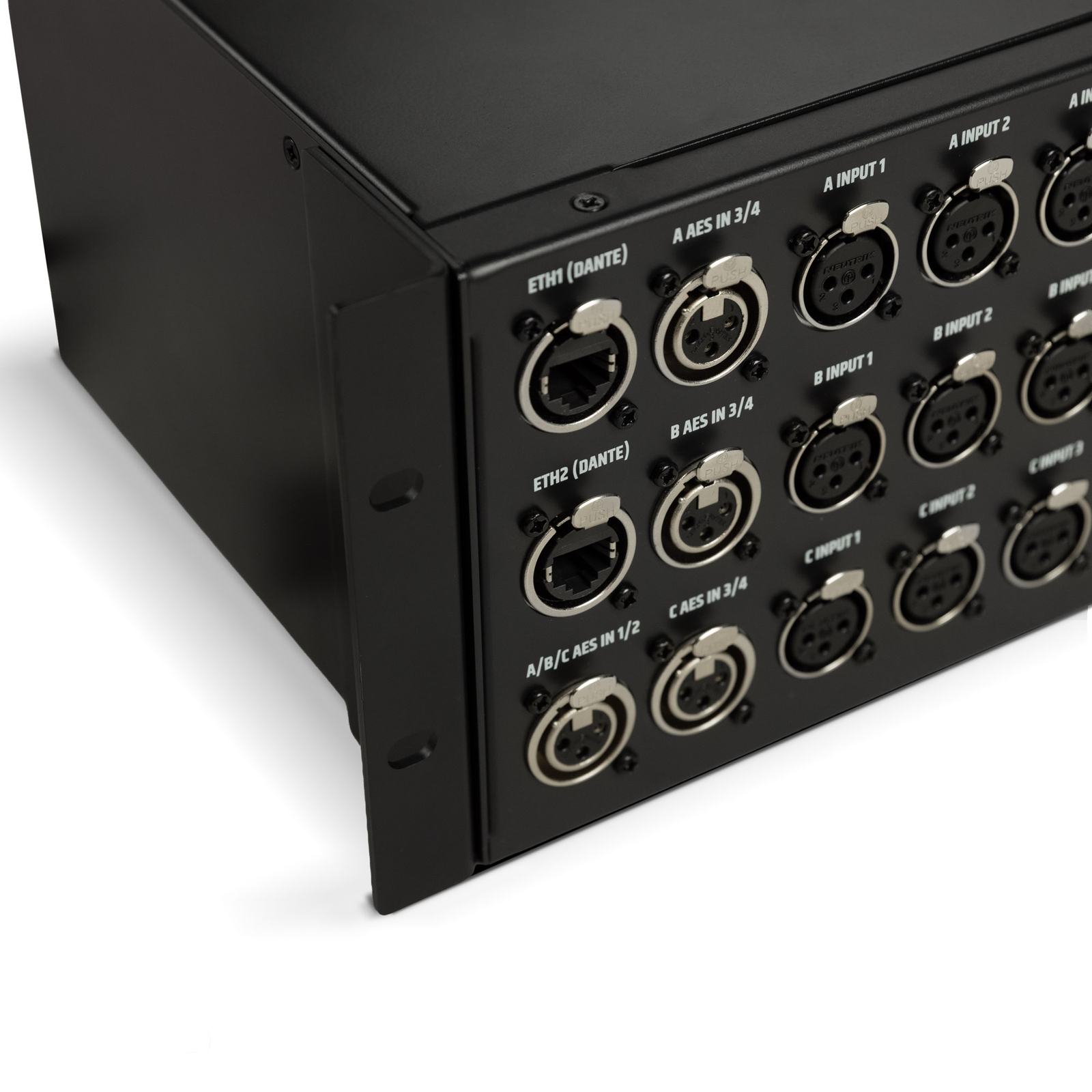

Front panel connectors:
XLR 3-pole female (analog in): 12
XLR 3-pole female (AES3 in): 4
RJ-45 (AES72): 6
RJ-45 Ethernet (Dante®/AES67): 2
speakON® 4-pole male: 12
speakON® 8-pole male: 3
Dimensions & weight:
Width: 480 mm
Height: 132.5 mm
Depth: 249 mm
Rack width: 19″
Rack height: 3 U
Installation depth: 244 mm
Weight: 8.52 kg
