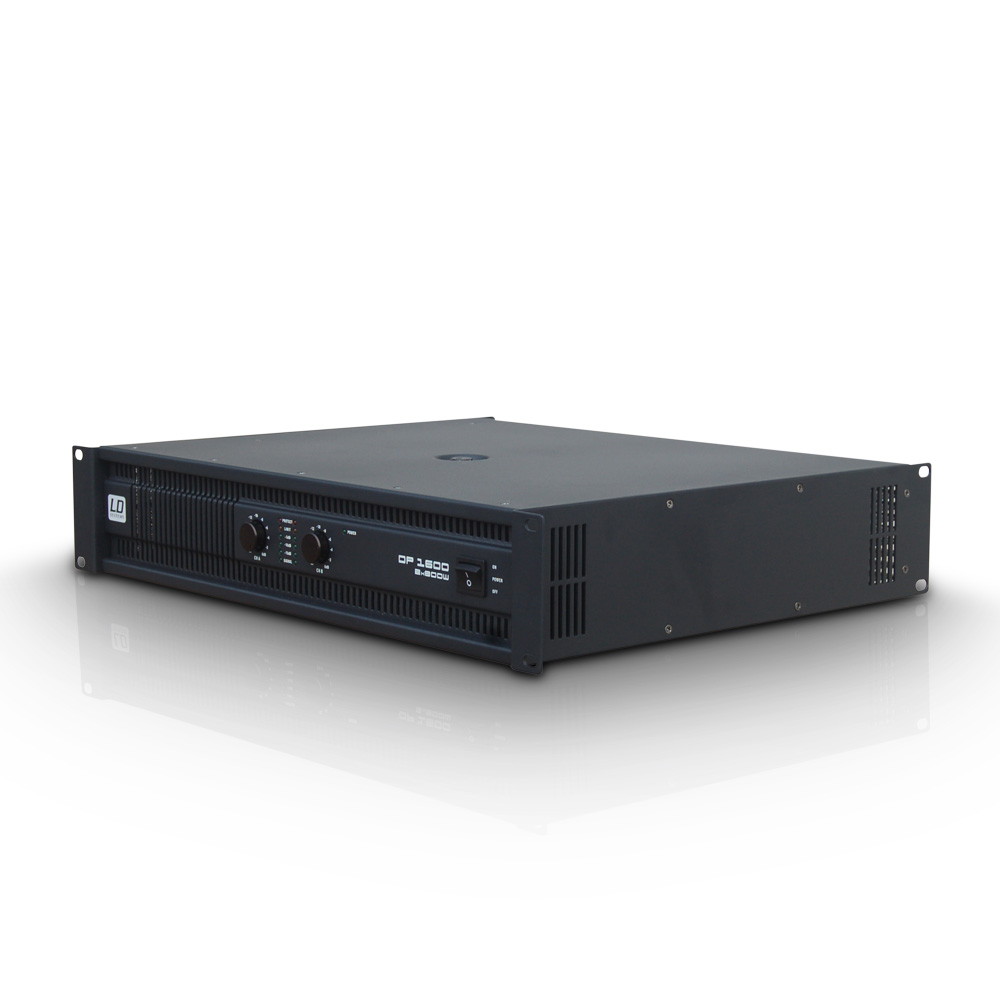

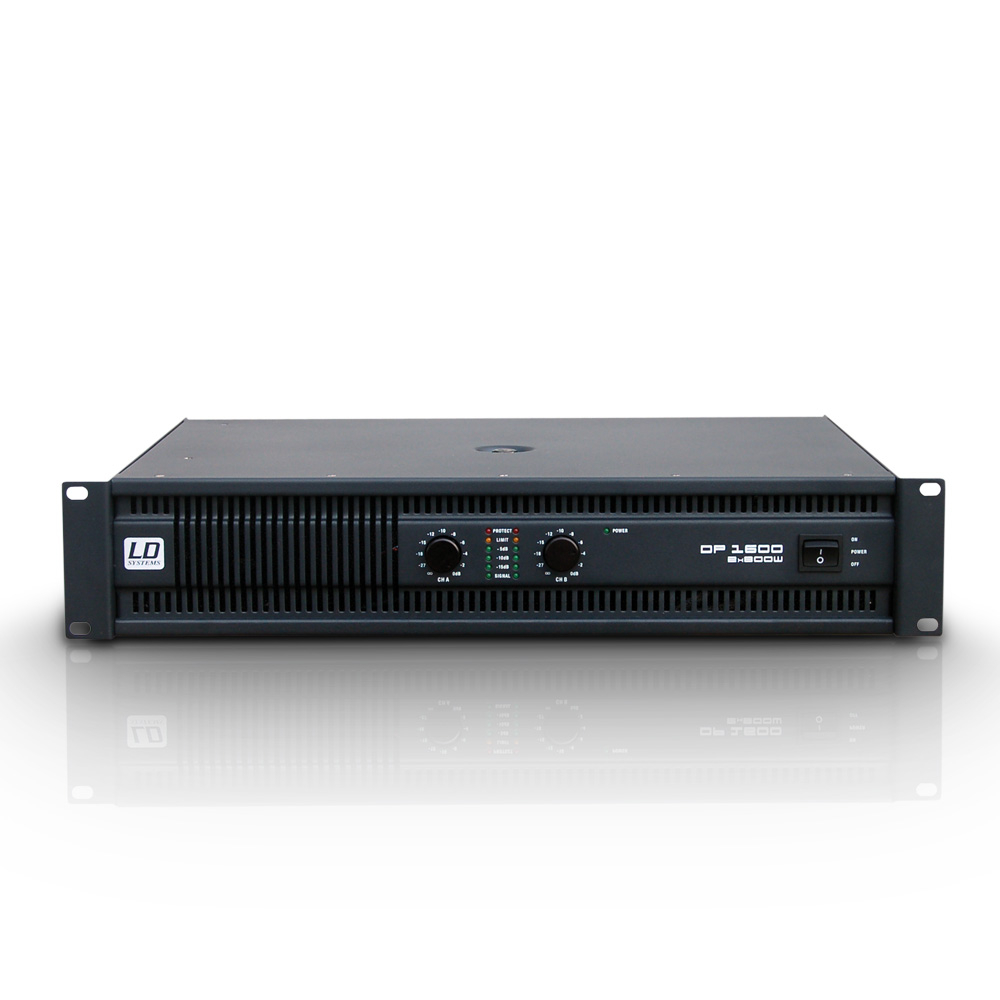

LD Systems DEEP2 1600

Specifications:

Product type: Power Amplifiers
Type: PA Power Amplifiers
Rated ouput power (1kHz @ 2 Ohms): 2 x 800 W
Rated ouput power (1kHz @ 4 Ohms): 2 x 650
Rated ouput power (1kHz @ 8 Ohms): 2 x 450
Rated ouput power (1 kHz @ 4 Ohms, bridged): 1600 W
Rated ouput power (1kHz @ 8 Ohms, bridged): 1300 W
Output circuitry: Class H
Frequency response: 20 – 20000
Total Harmonic Distortion (THD): < 0.1 %
Signal-to-noise ratio: 106 dB
Damping factor (20Hz-500Hz @8ohm): >400
Crosstalk: >80 dB
Gain: 39 dB
Input sensitivity: 0.775 V
Protection circuits: thermal overload, DC protection, clip limiter, Short circuit
Controls: mains switch (on/off), 2 x volume, bridge/stereo mode selector, ground lift
Indicators: Limit, Signal, Power, Protect (protection circuit engaged), level

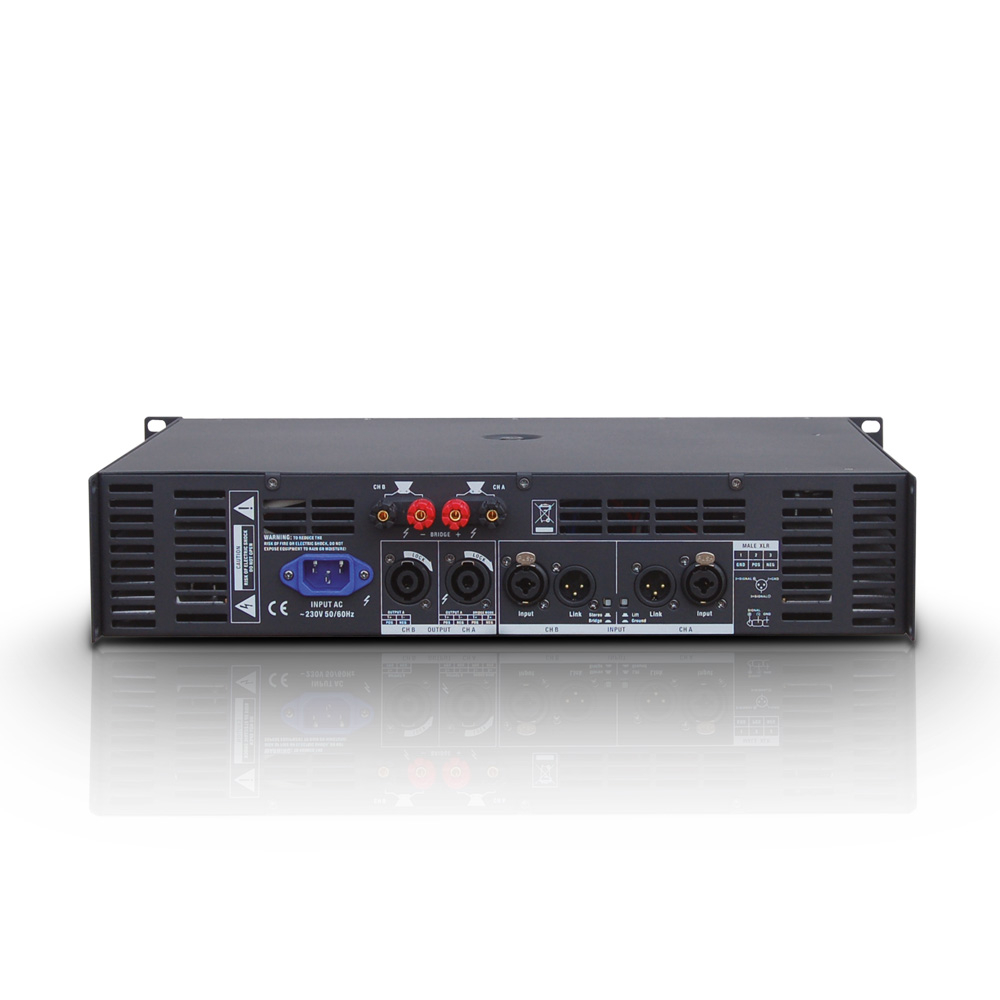

Loudspeaker outputs: 2
Speaker output connections: Terminal posts, Speakon compatible
Cooling: highly efficient, automatic
Power suply: transformer
Operating voltage: 230 V AC / 50-60 Hz
Features: Volex mains socket
