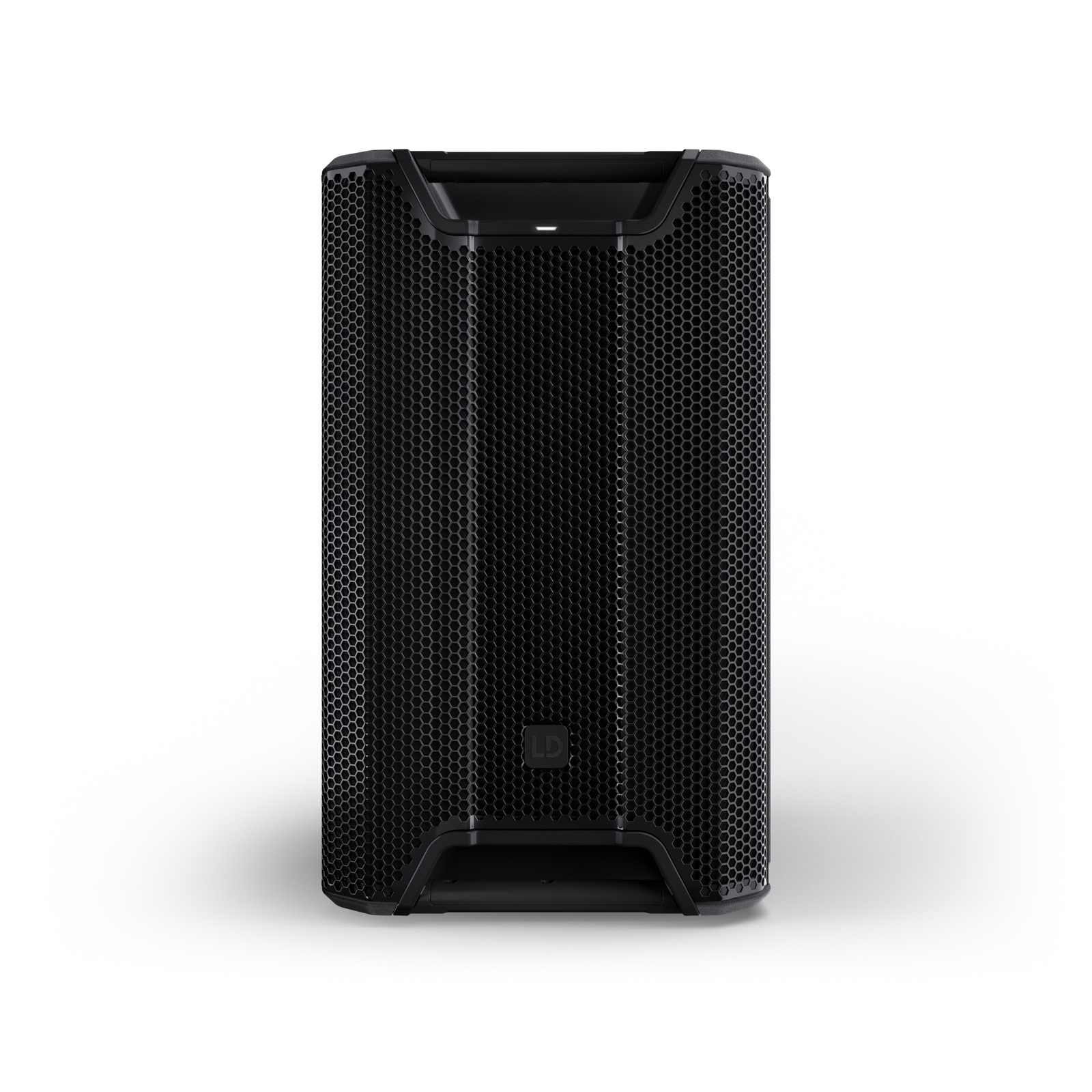

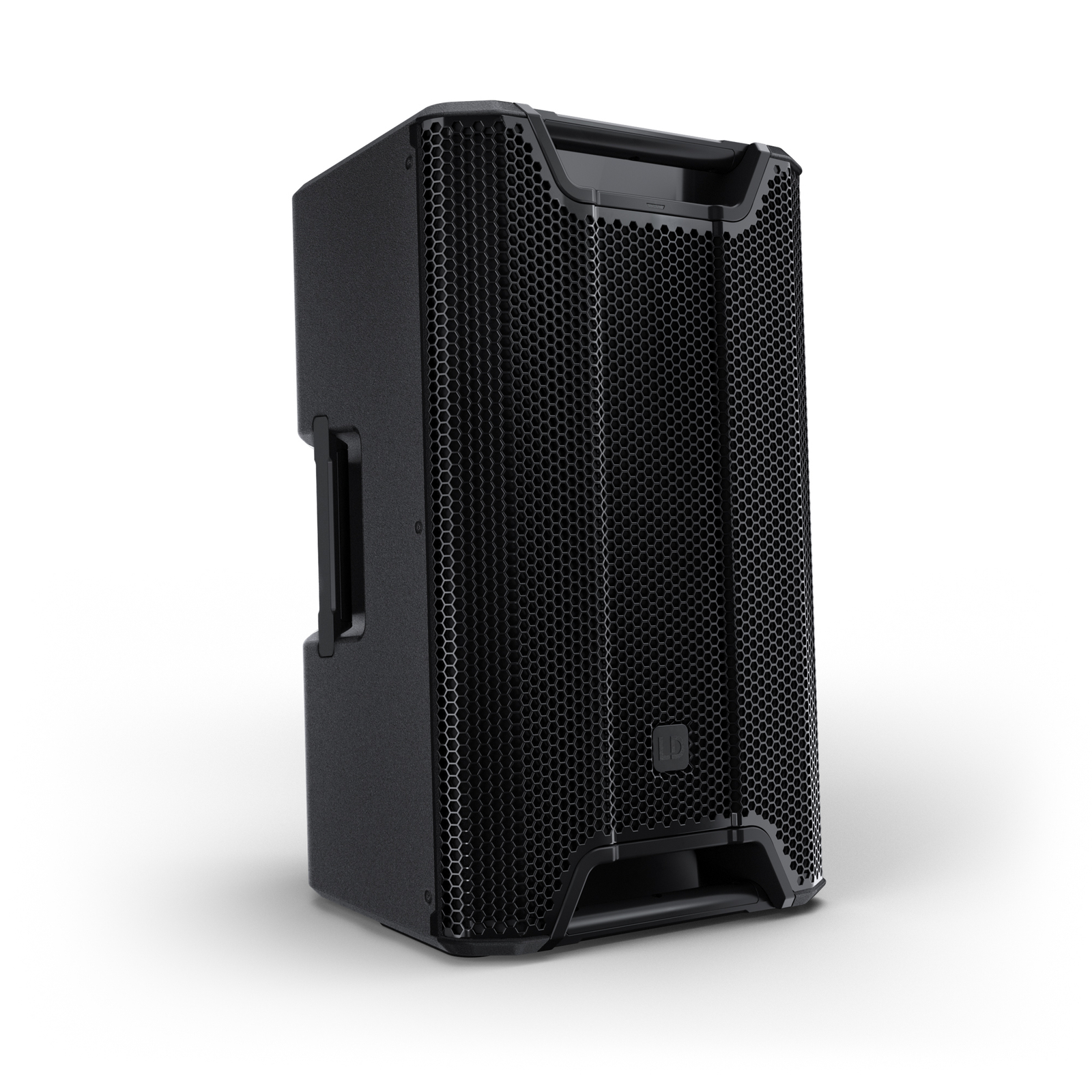

LD Systems ICOA® PRO 12 A
Gotovina/virman
1.080,00 €
12″ koaksijalni visokoučinkoviti PA zvučnik s Bluetoothom i aplikacijom
Snažan zvučnik s vrhunskim komponentama za punopojasni, satelitski, monitorski i integrirani zvuk
133 dB maks. SPL i 1000 W RMS / 2000 W peak
Koaksijalni dizajn sa zajedničkim motorom za pravi točkasti izvor
12″ woofer s 3″ zvučnom zavojnicom i 3″ titanijskim HF drajverom

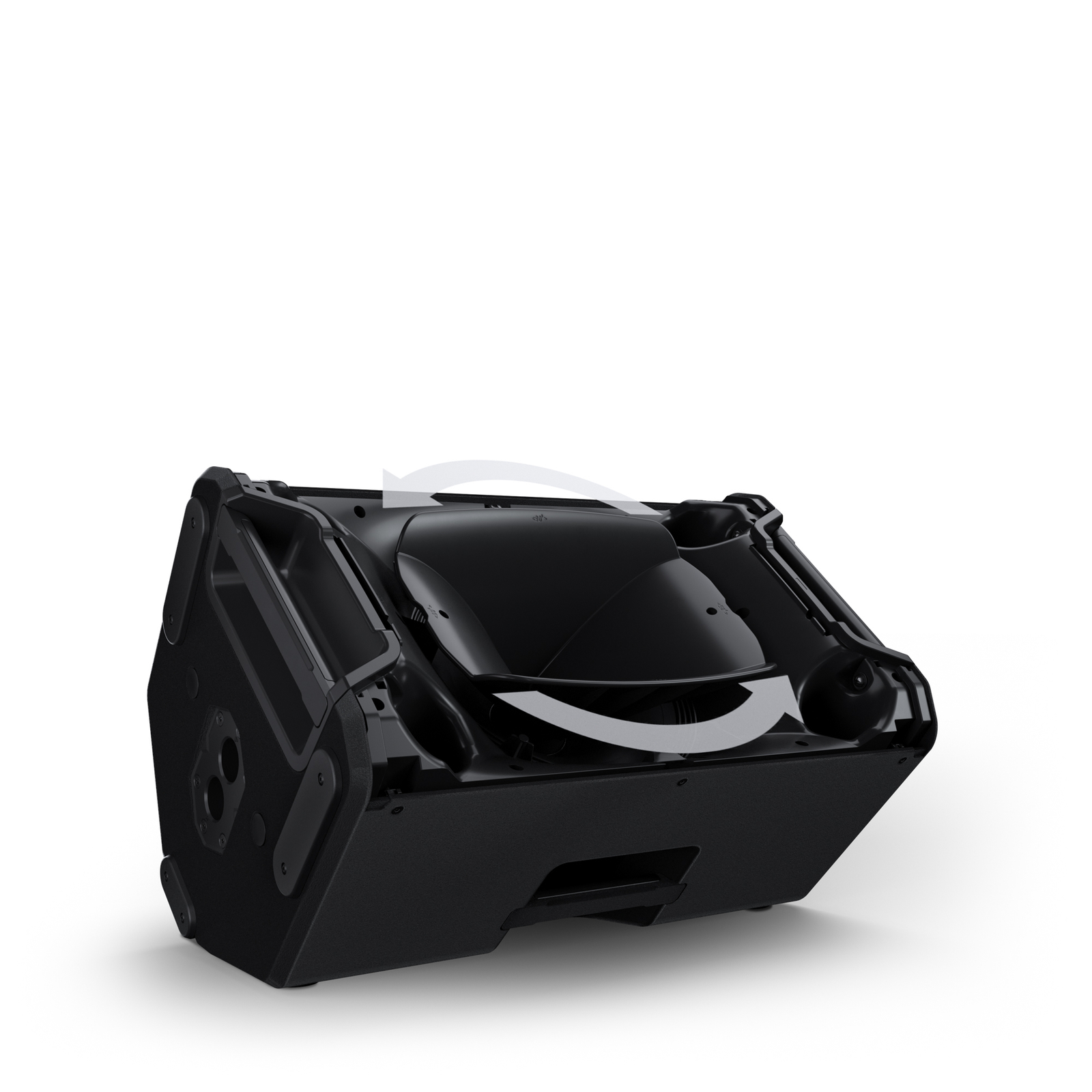

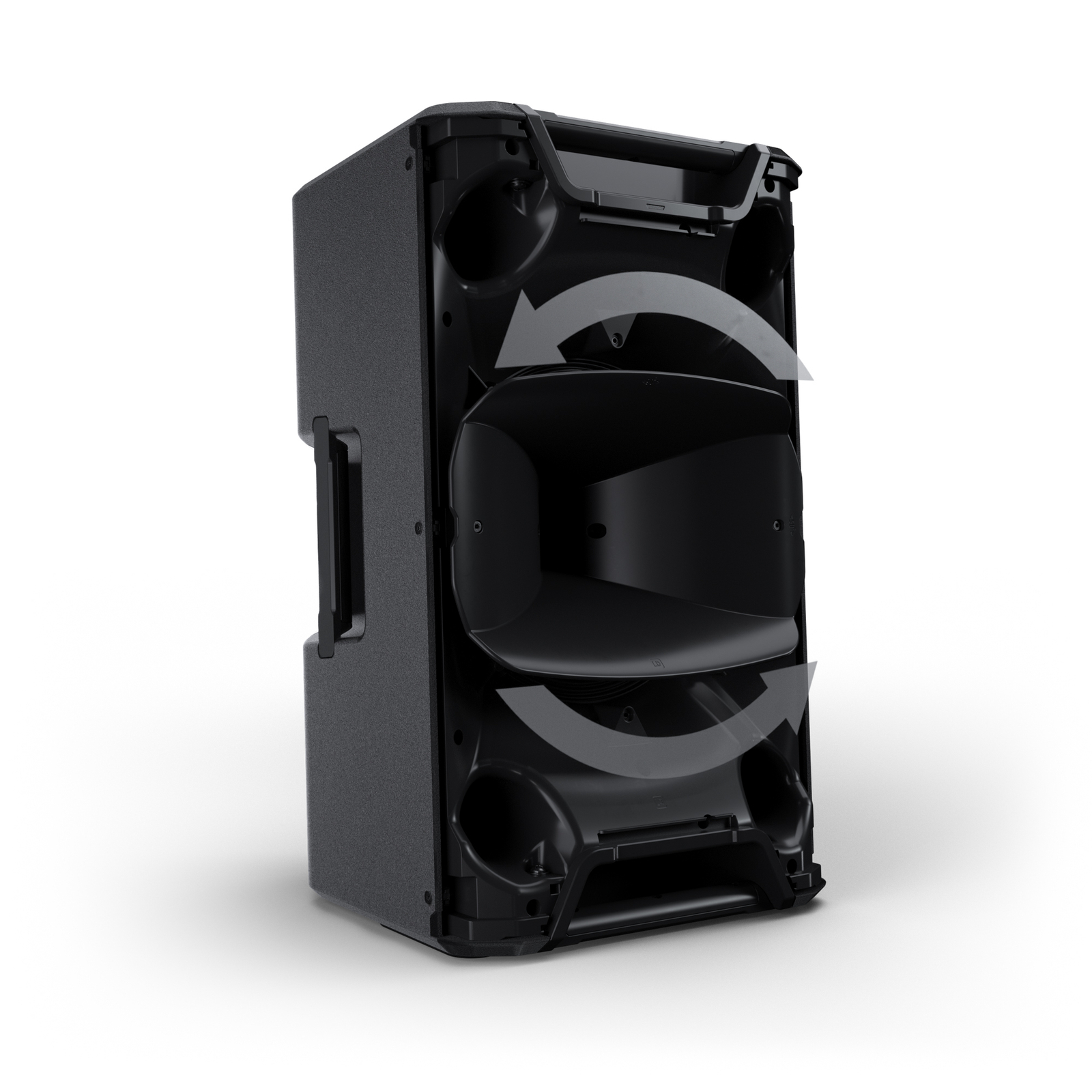

Veliki, rotirajući, BEM-optimizirani CD horn s 800 Hz skretnicom za homogenu disperziju od 90° x 50°
Bas refleks priključci optimizirani za protok za izvanredne performanse punog raspona
SysCore® DSP s FIR/IIR filterima i skretnicom za zvuk bez izobličenja, čak i pri maksimalnoj glasnoći

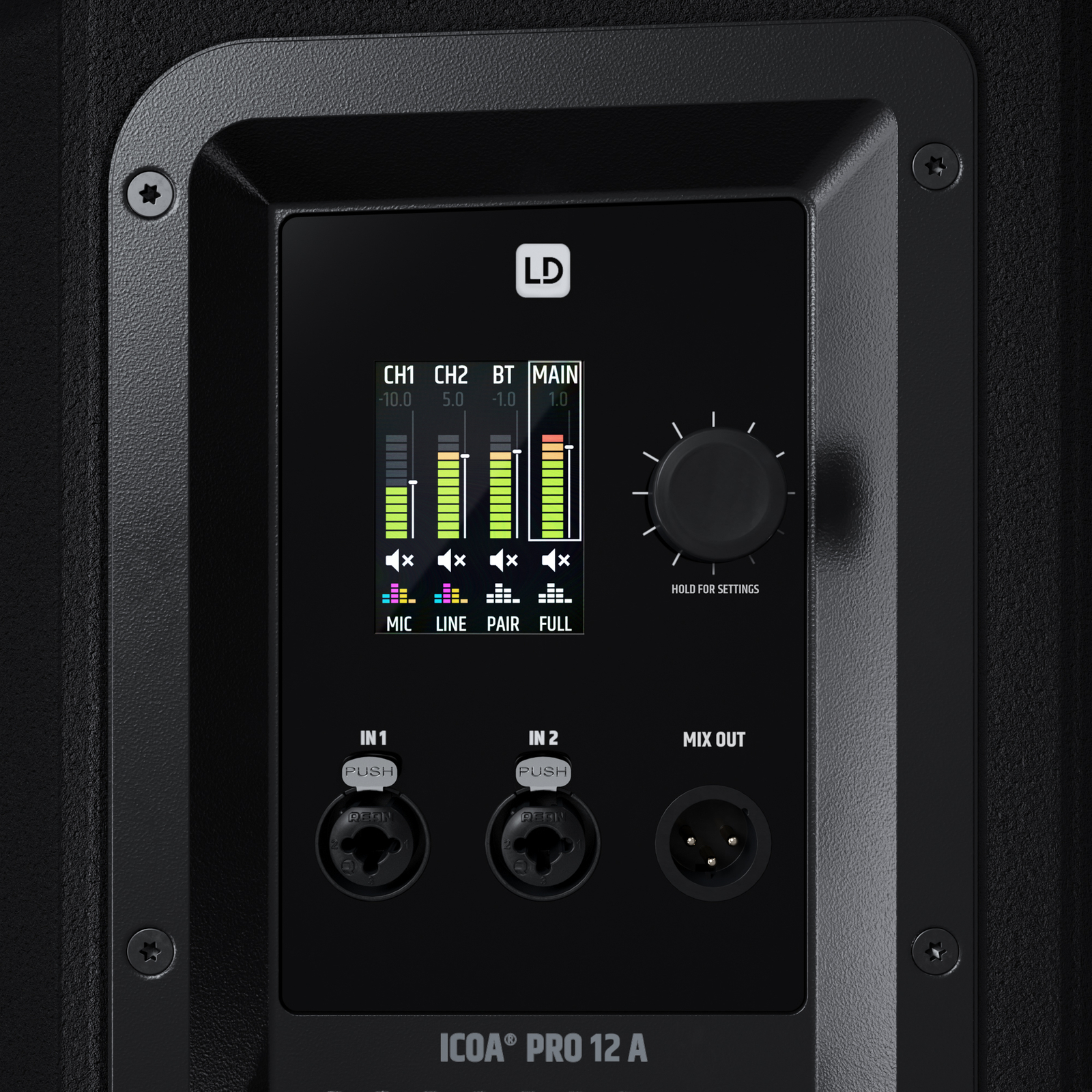

2 x linijska/mikrofonska ulaza s individualnom kontrolom pojačanja, plus 1x mono mix izlaz

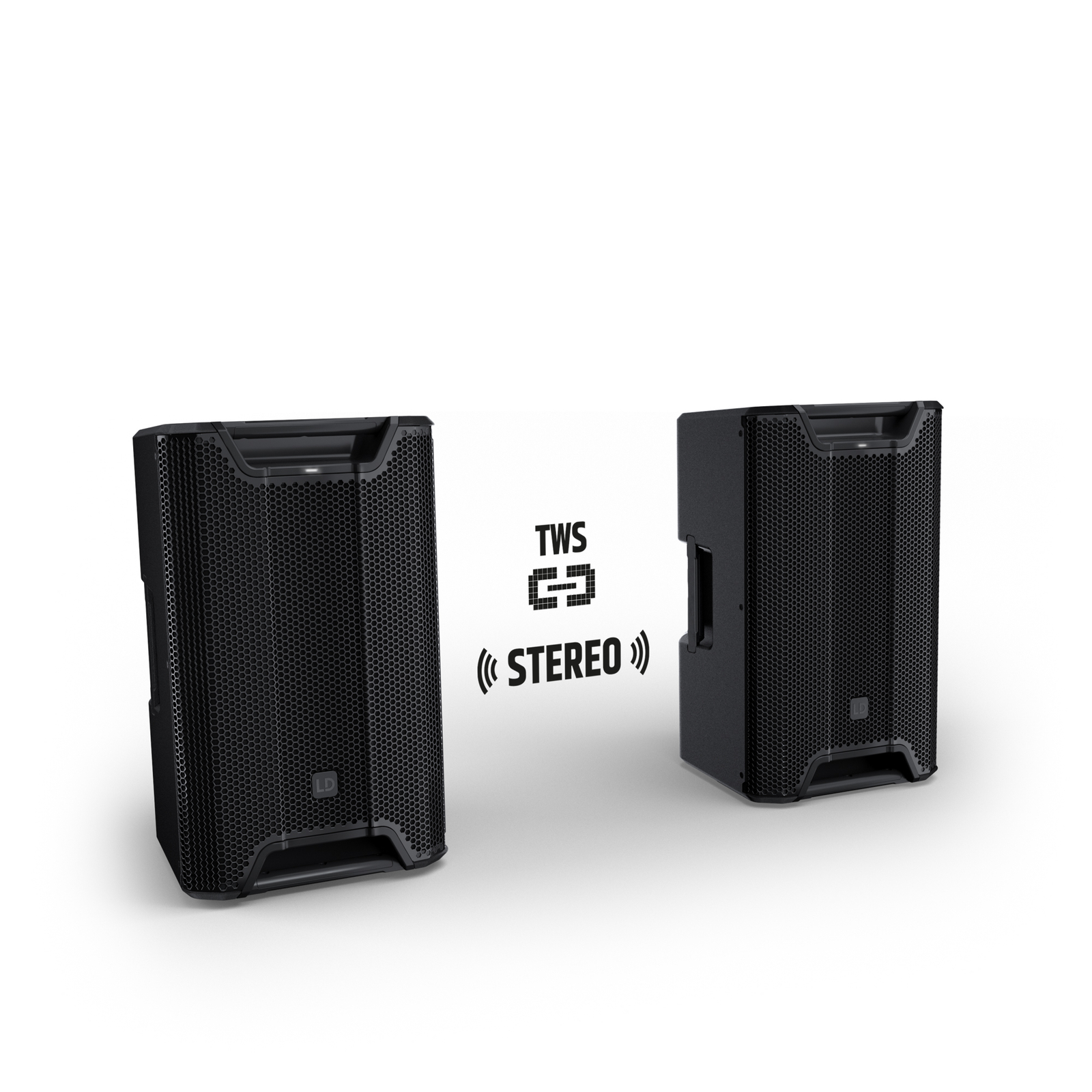

Bluetooth® 5.1 i stereo streaming (TWS) s dva ICOA PRO 12 A

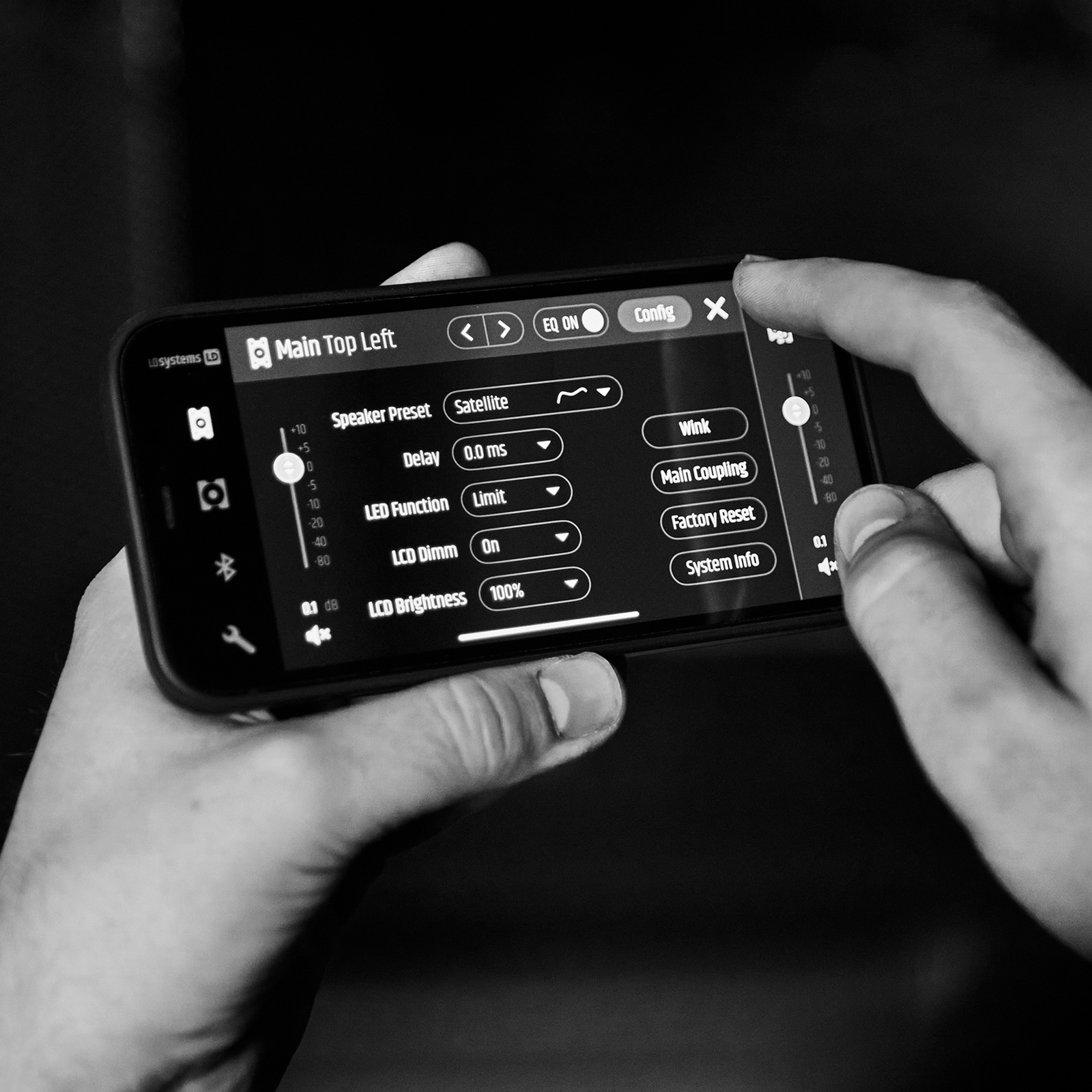

Besplatna aplikacija za daljinsko podešavanje putem pametnog telefona i tableta (iOS i Android)
4-pojasni Parametrijski EQ, 4 unaprijed postavljena programa (uklj. monitor s niskom latencijom) i funkcija odgode

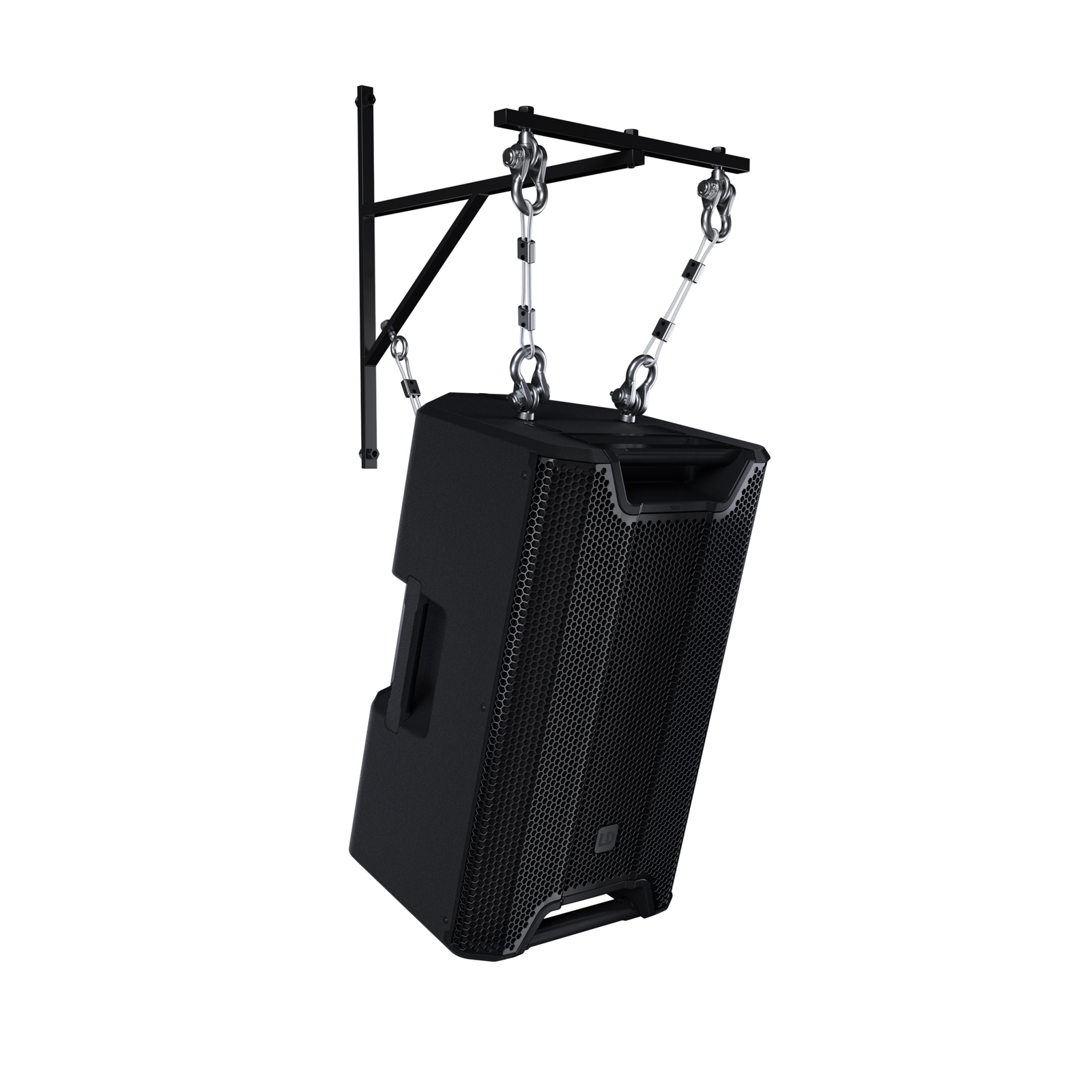

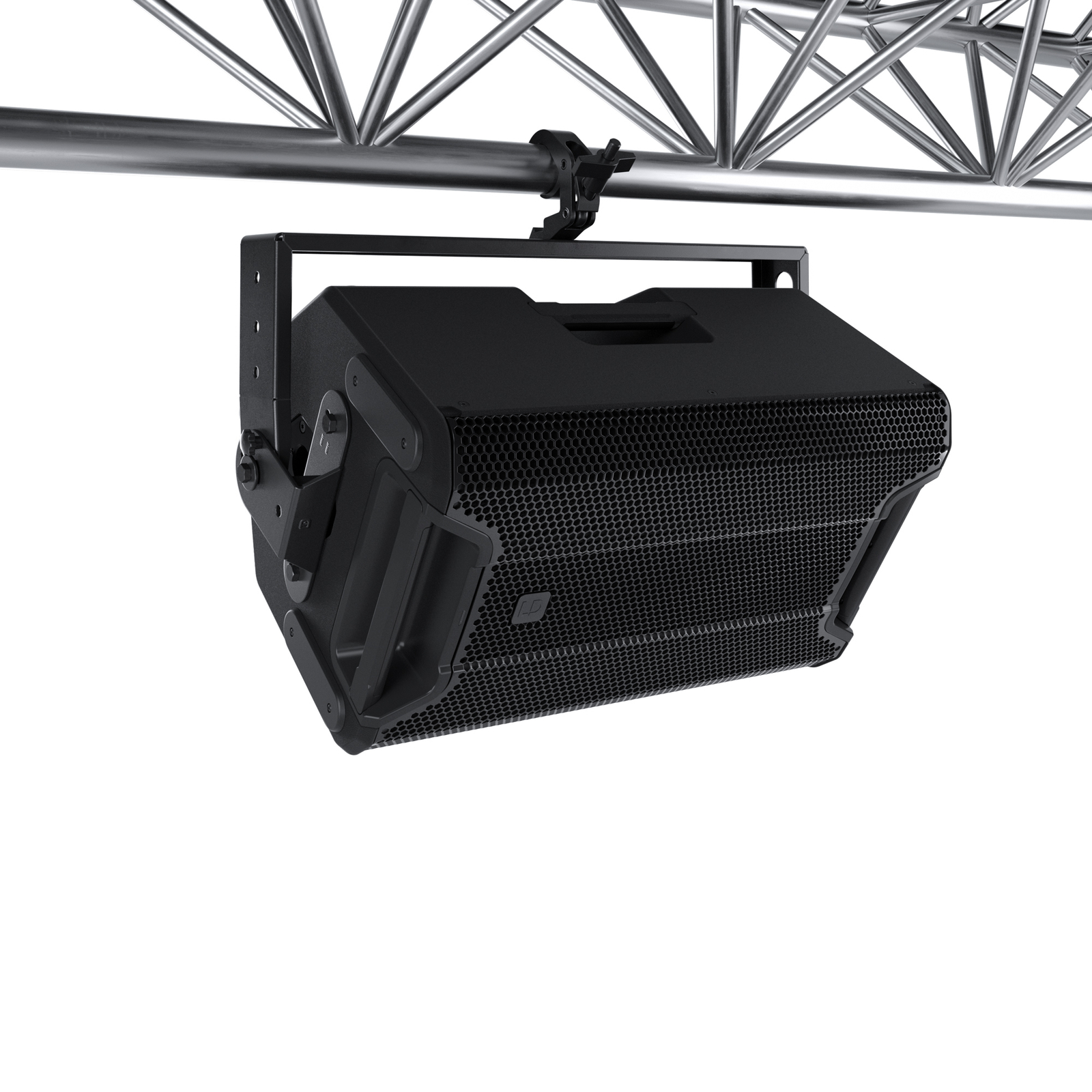

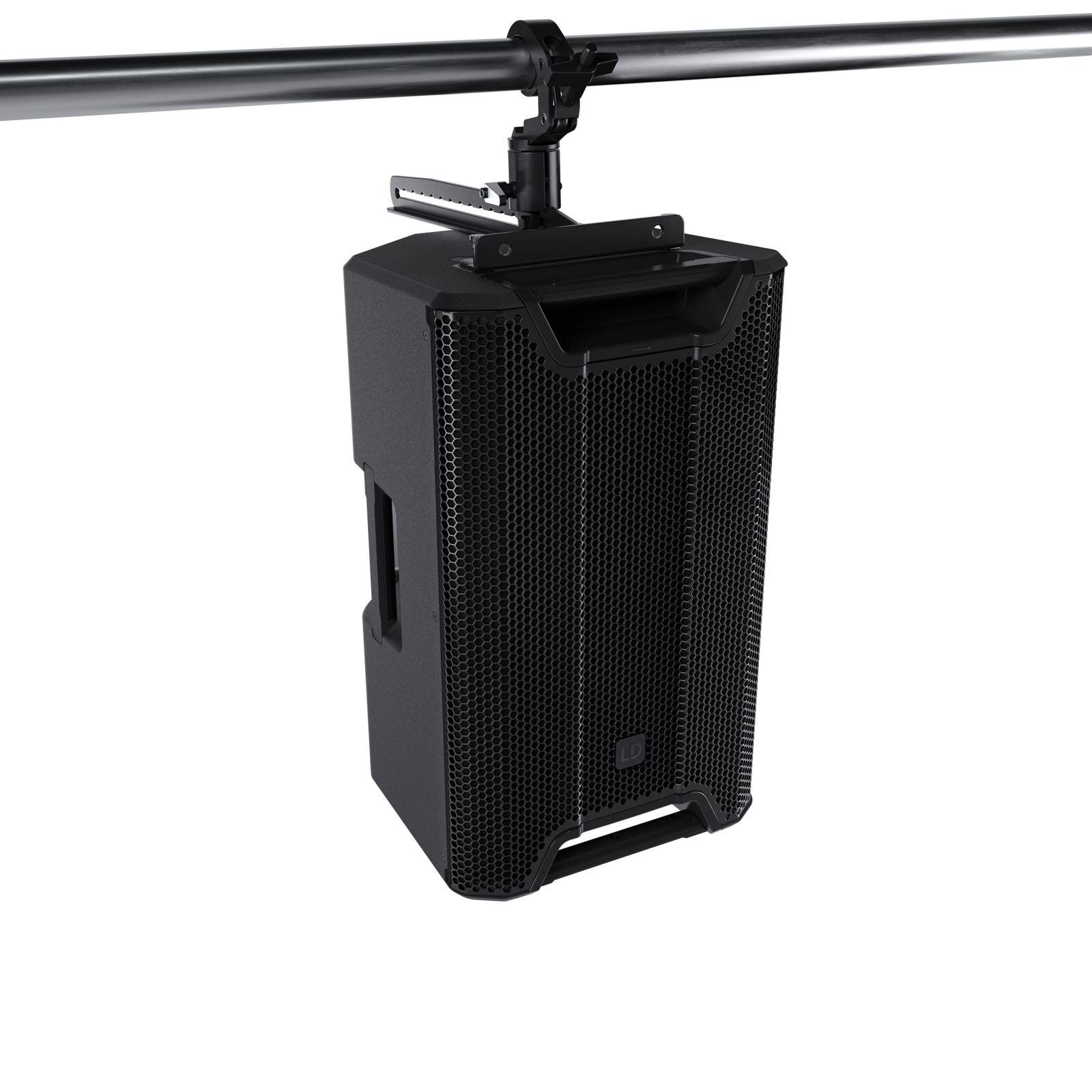

Kompatibilan s EasyMount®-om za montažu bez alata, kao i 6 x M10 točaka za pričvršćivanje

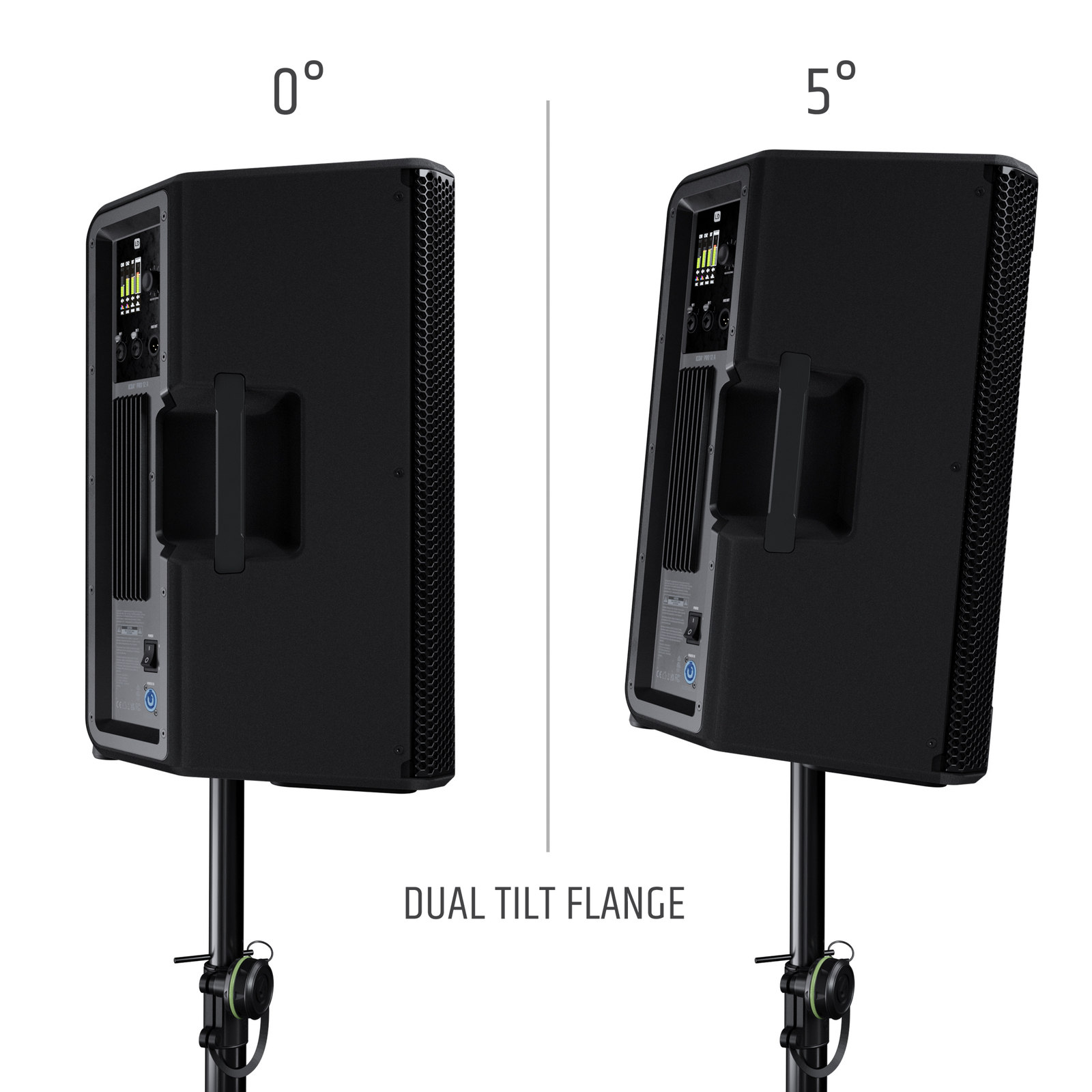

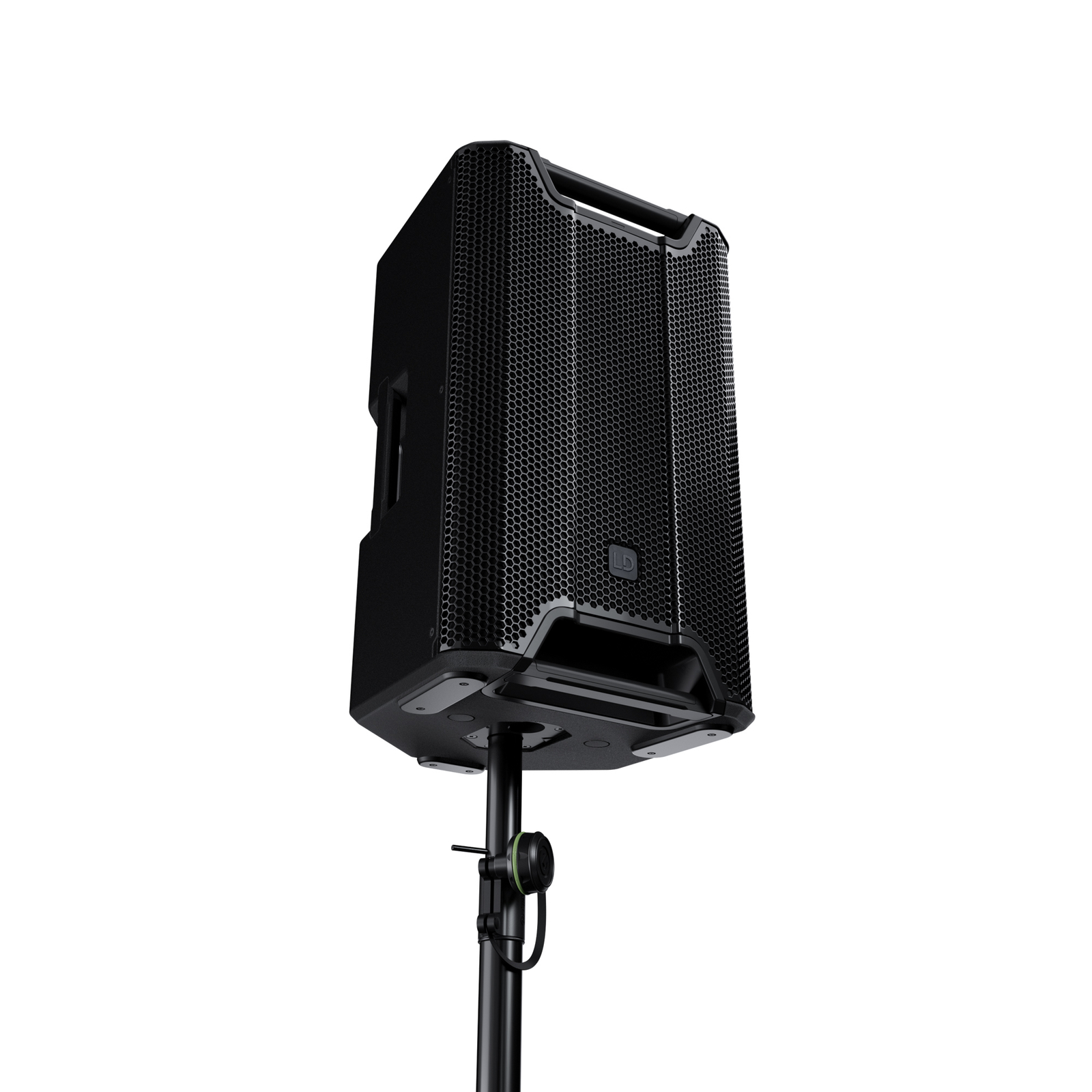

35 mm dvostruki nagibni nosač za stalak s kutovima nagiba od 0° i 5°

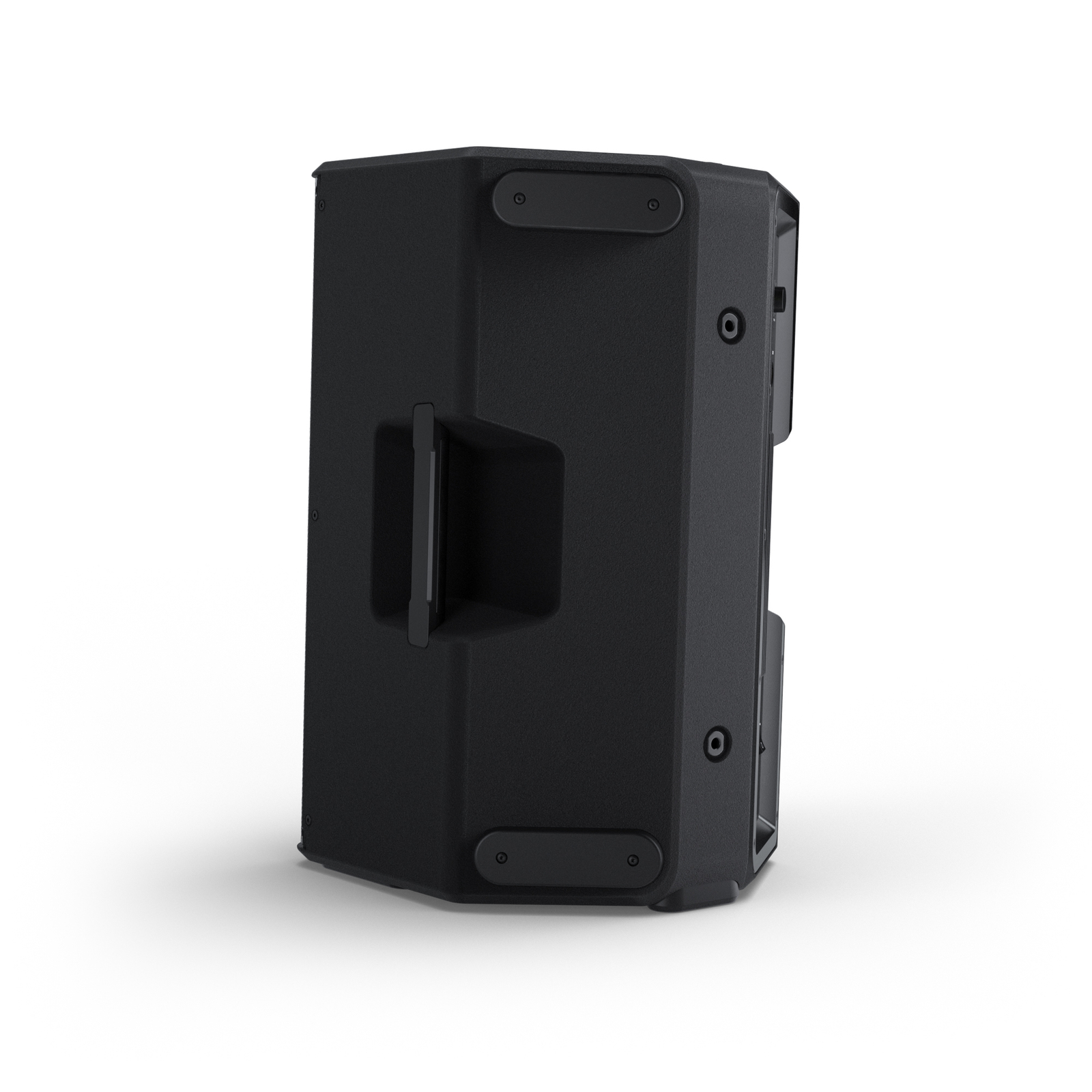

Ultra robusno ABS kućište s integriranom čeličnom konstrukcijom i rešetkom otpornom na udarce
Prednji LED indikator (identifikacija, napajanje i limiter)
Opsežan, opcionalno dostupan pribor za vanjsku upotrebu, instalaciju i transport
Specifications:
General:
Type (active/passive): Active
Peak output power: 2000 W
RMS output power: 1000 W
Amp class: Class D
SysLink®: No
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): 127 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4): 133 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): 118 dB
Frequency response (-10 dB, rel. Avg): 50 Hz – 20000 Hz
Speaker system: 2-way coaxial system (Common Motor Design)
Crossover frequency: 800 Hz
Beam angle: Hor.: 90° / Vert.:50°

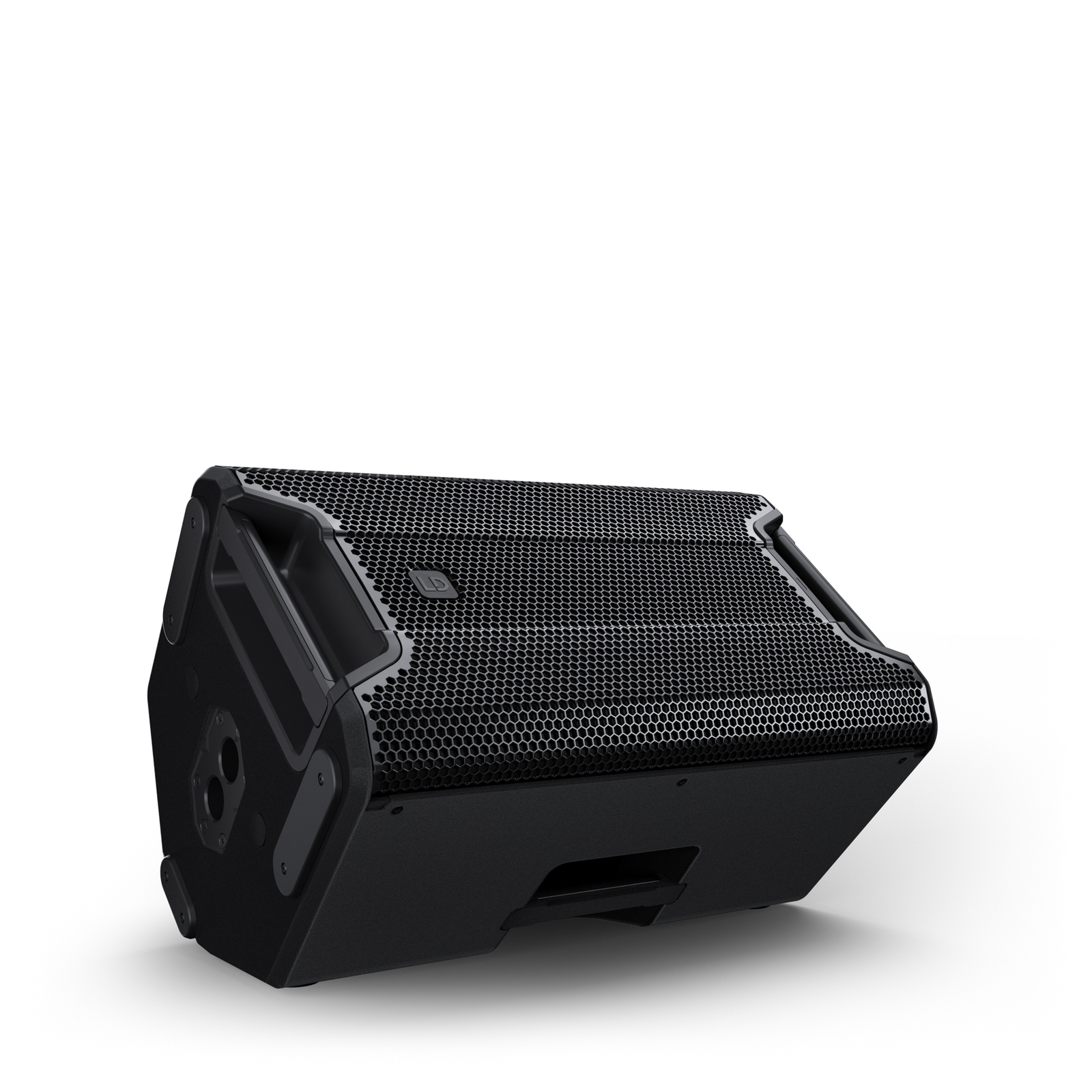

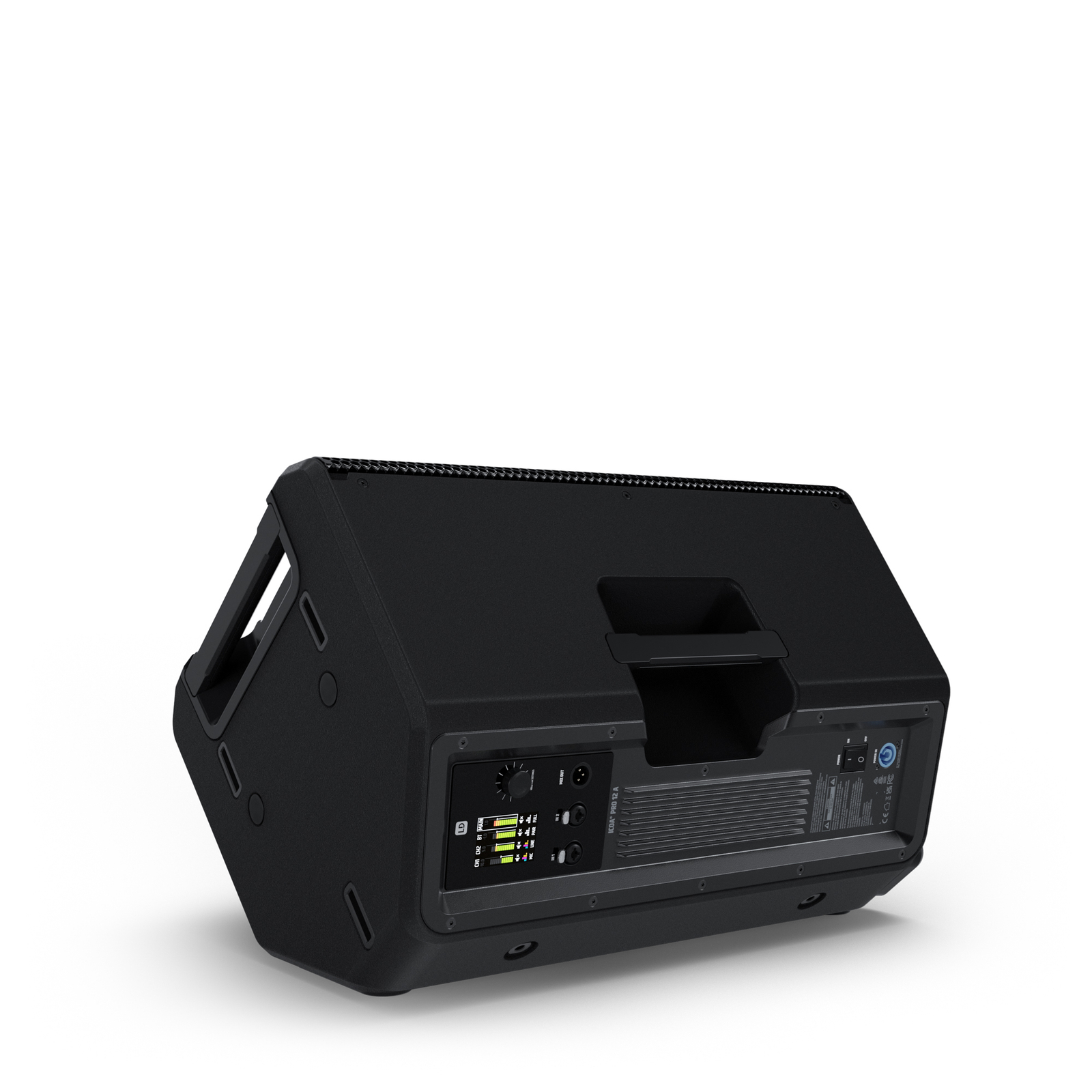

Monitor angle: 50 °
Protection features: Short circuit, Overheating, Multiband Limiter
Colour: Black
Bluetooth®:
Bluetooth® version: Bluetooth® 5.1
Features: True Wireless Stereo
Supported audio codecs: SBC, AAC
Receiver (client): No
Transmitter (host): No

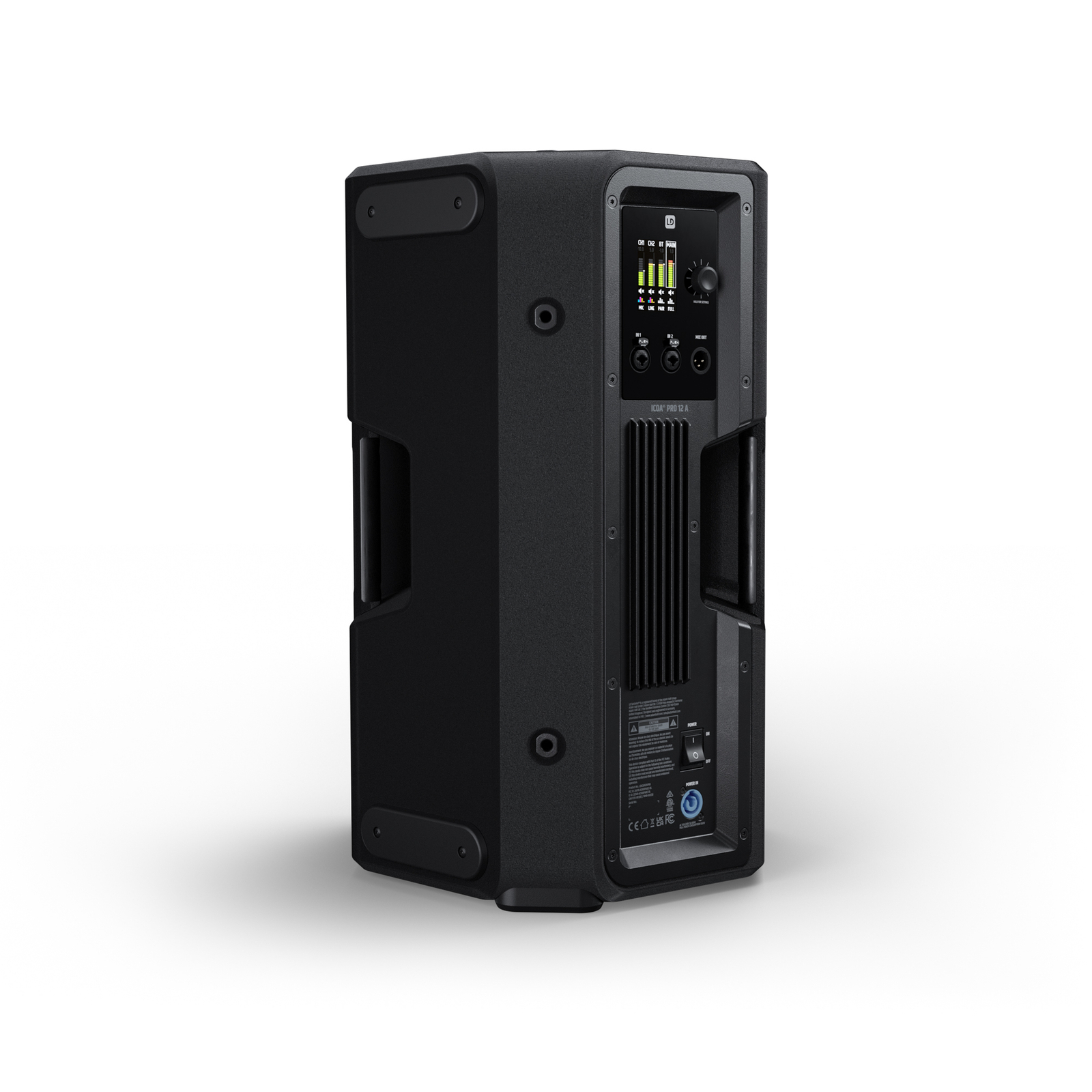

Inputs:
Number of mic/line inputs: 2
Mic/Line-in connector type: XLR combo socket
Outputs:
Number of line outputs: 1
Line outputs connector type: XLR combo socket
Signal processing:
DSP model: SysCore®
Mixer: No
AD/DA converter bit depth: 24 Bit
AD/DA converter sampling rate: 48 kHz
Min. Signal-to-noise ratio (SNR): 108 dB
Bass driver:
Size: 12″
Outer diameter: 312.3 mm
Manufacturer: Celestion Custom Made
Magnet: Ferrite
Voice coil: 3″
Tweeter:
Driver size: 3″
Outlet diameter: 36.68 mm
Manufacturer: Celestion Custom Made
Magnet: Ferrite
Voice coil: 3″
Mains operation:
Operation voltage: 100 V AC – 240 V AC / 50 – 60 Hz
Power supply type: Switched-mode power supply (SMPS)
Rated power: 650 W
Mains connector model name: powerCON®
Mains fuse: T6.3AH/250 V
Housing:
Design: Bass reflex
Number of handles: 4
Number of mounting points: 6
Flange: 36 mm (0°/5°)
Cabinet material: ABS
Cooling:
Cooling system: Convection cooling
Environmental:
Ambient temperature: 0 °C – 40 °C
Maximum air humidity (non-condensing): 80 %
Dimensions & weight:
Width: 376 mm
Height: 627.8 mm
Depth: 393.6 mm
Weight: 23.1 kg
