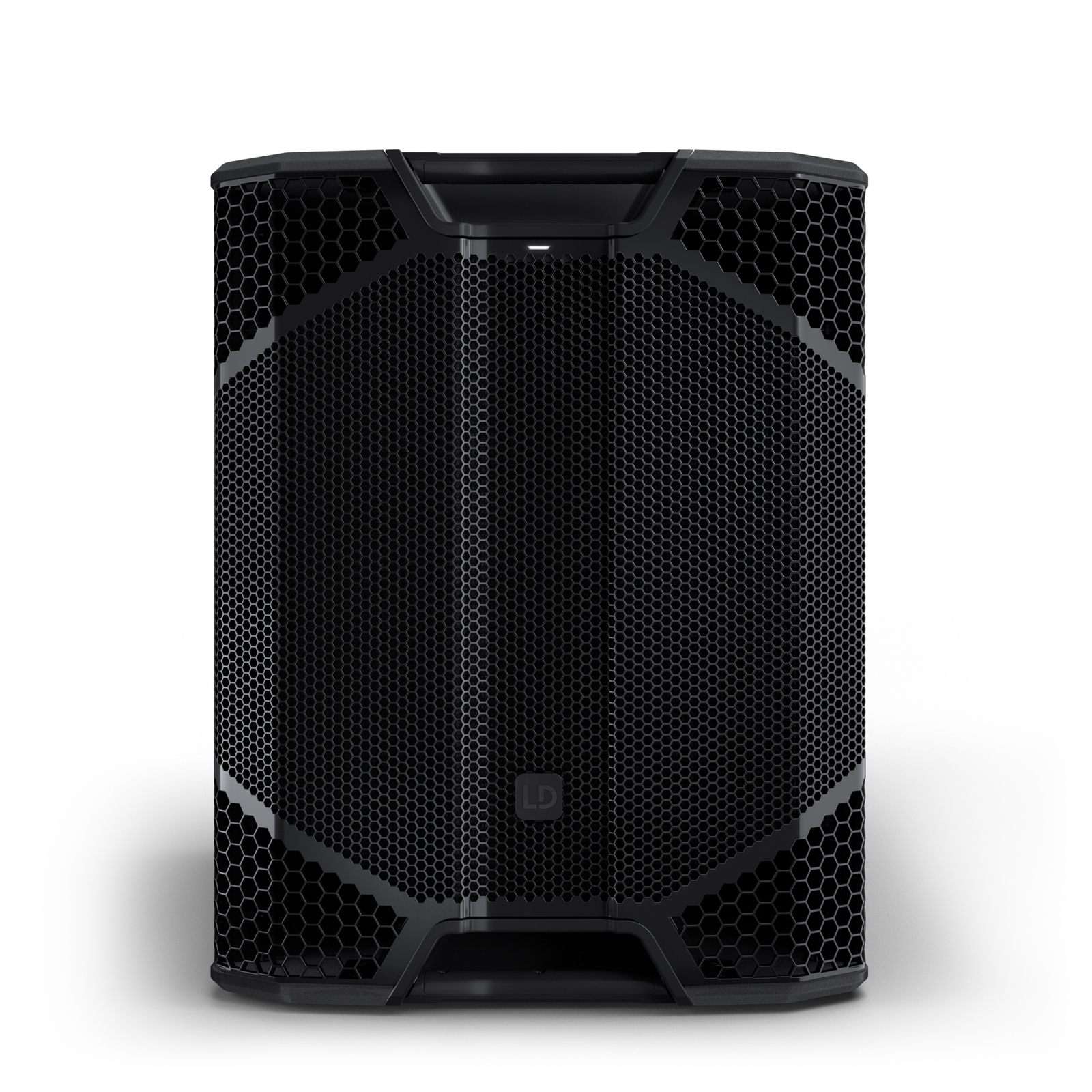

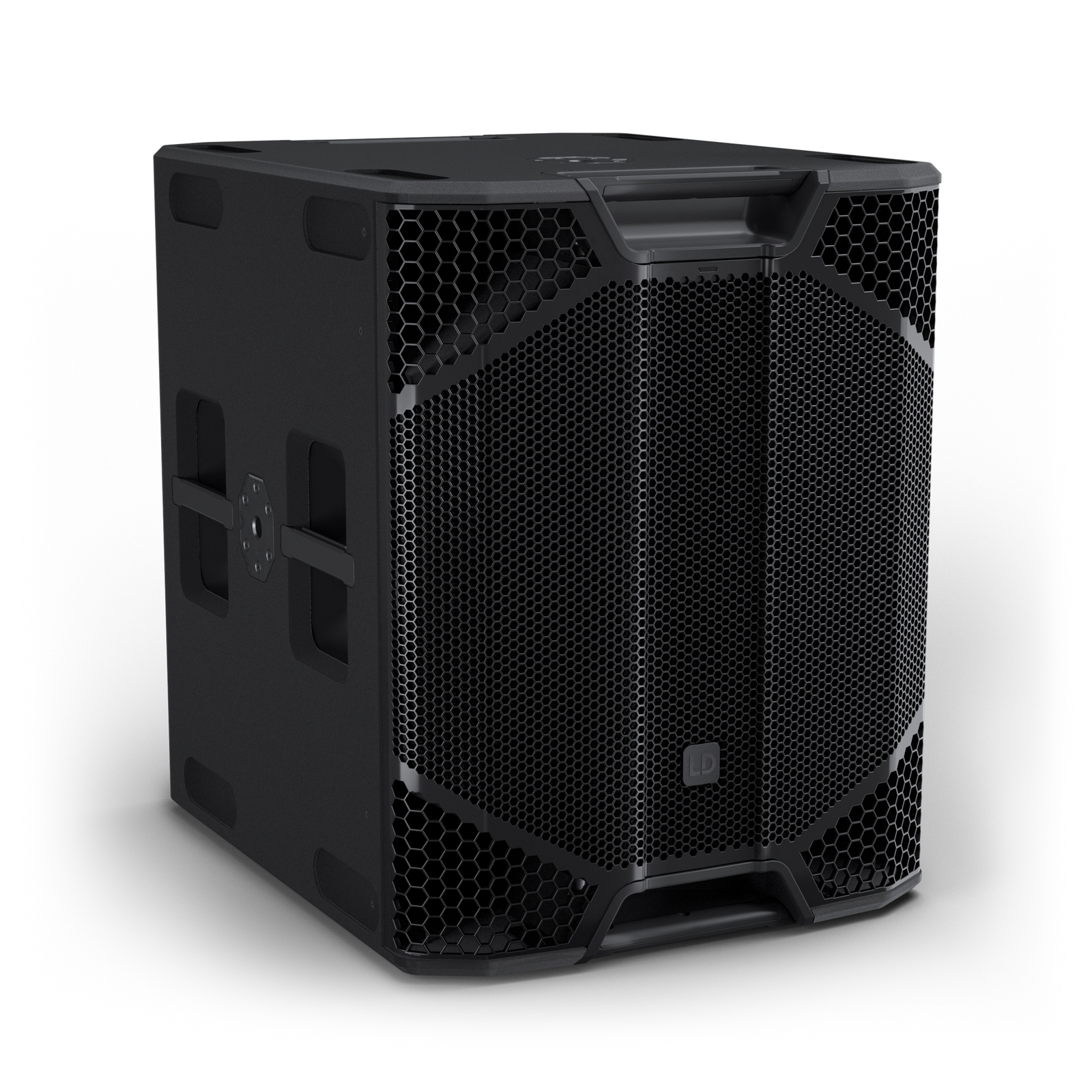

LD Systems ICOA® PRO SUB 21 A
Gotovina/virman
2.199,00 €
Snažan 21″ visokoučinkoviti bass reflex PA subwoofer
21″ visokosnažni bass reflex subwoofer s moćnim niskim frekvencijama do 29 Hz
136 dB maks. SPL i 1500 W RMS / 3000 W peak

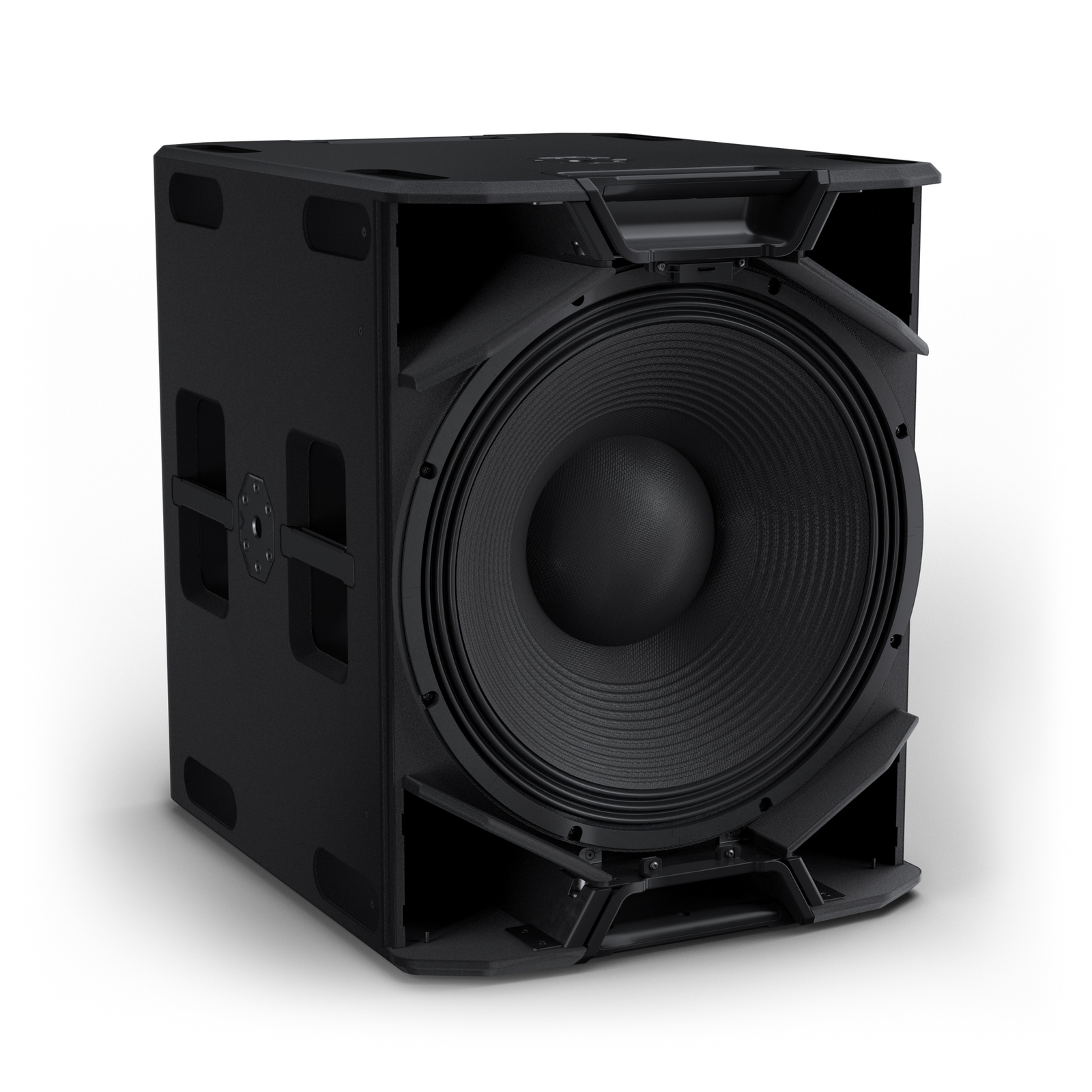

Ultra snažan neodimijski motor s 4,5″ zvučnom zavojnicom za brz i precizan odziv
4-pojasni parametarski EQ i 6 unaprijed postavljenih aplikacija (uklj. nisku latenciju i kardioidne funkcije)
Besplatna aplikacija za daljinsko upravljanje putem pametnog telefona ili tableta
SysCore® DSP s naprednim limiterima, uključujući praćenje temperature i napona za maksimalnu pouzdanost
Podesiv delay do 50 metara

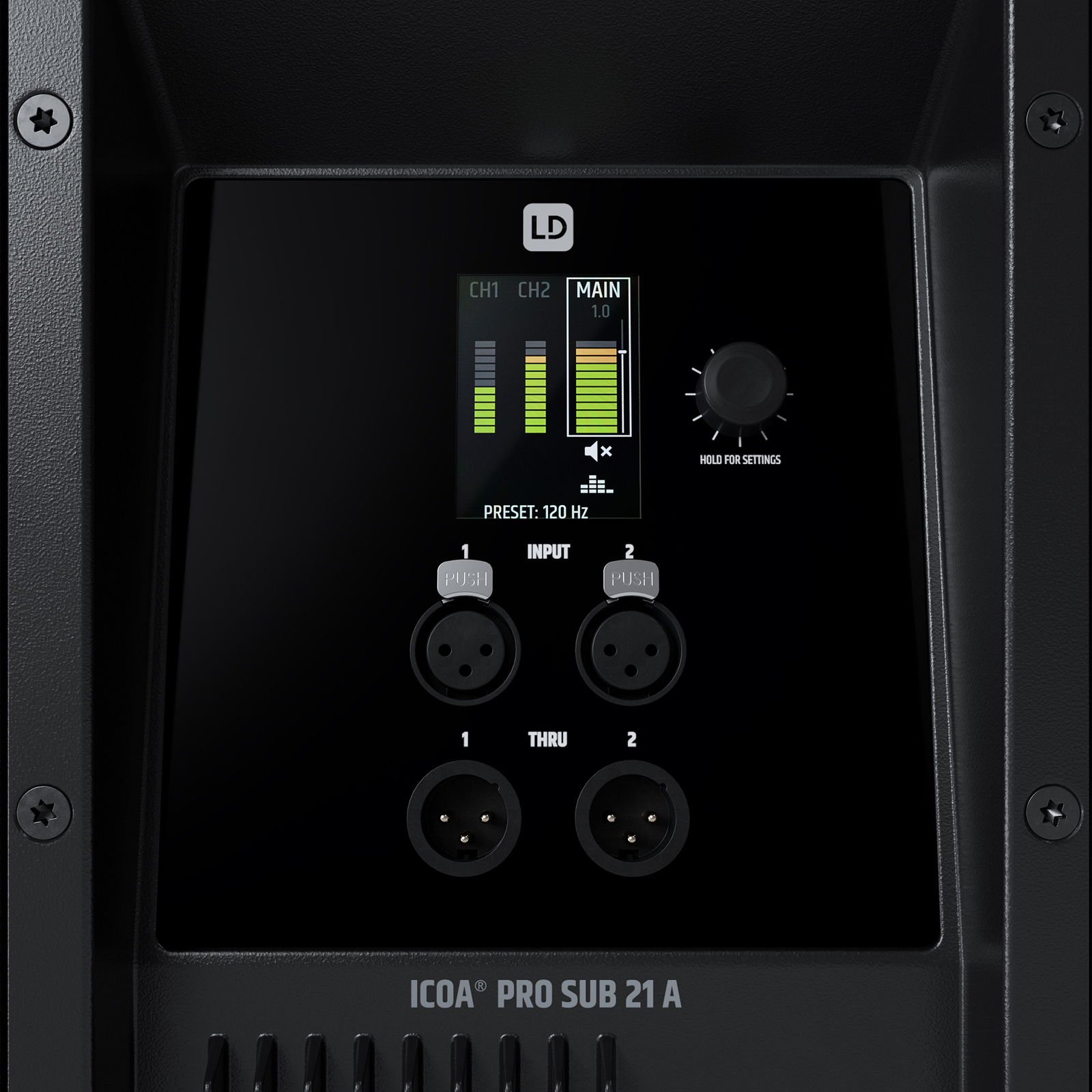

2 x XLR ulaza i 2 x XLR-THRU izlaza
Ultra robusno kućište od brezove šperploče s poliurea premazom i rešetkom otpornom na udarce

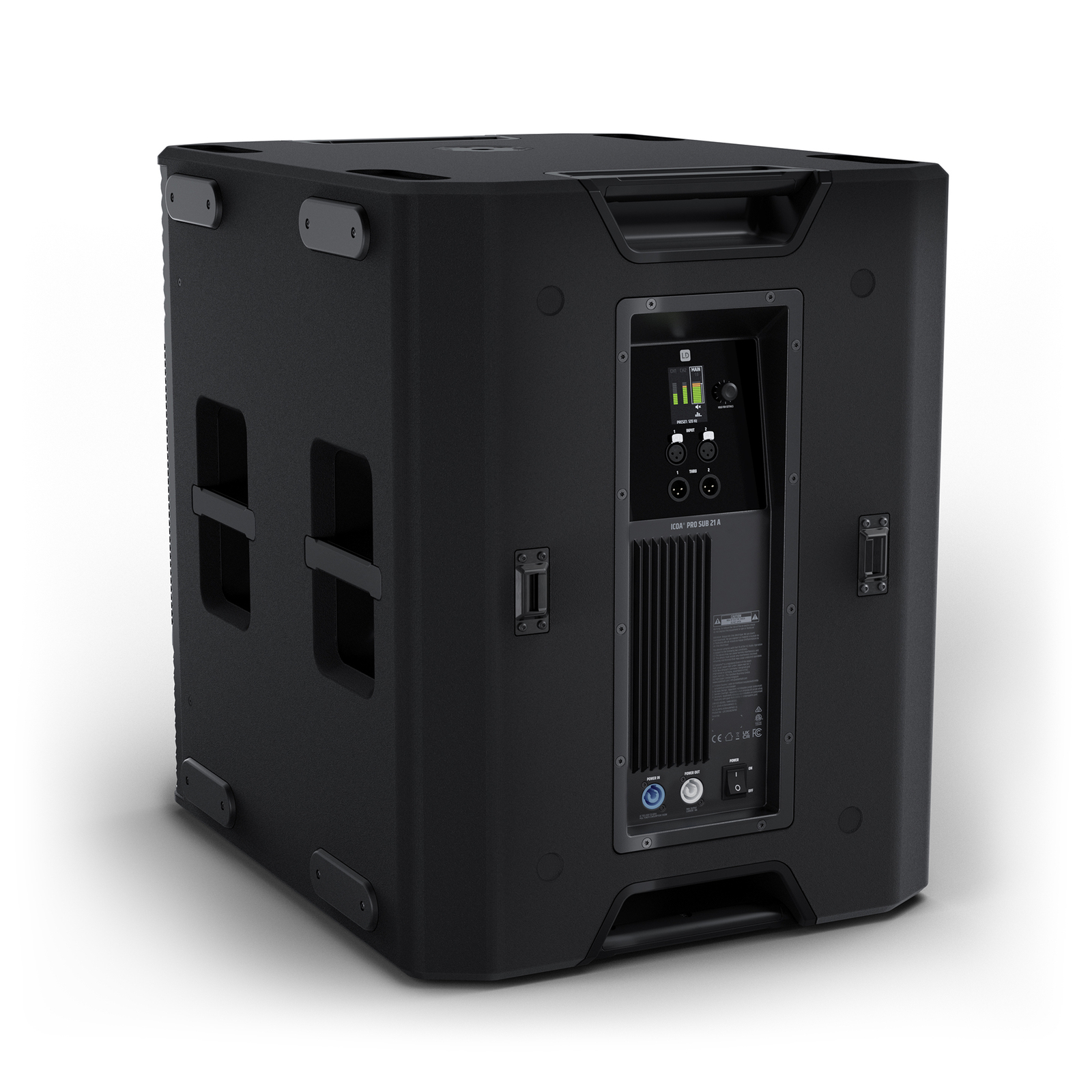

8 ergonomskih ručki za jednostavan transport

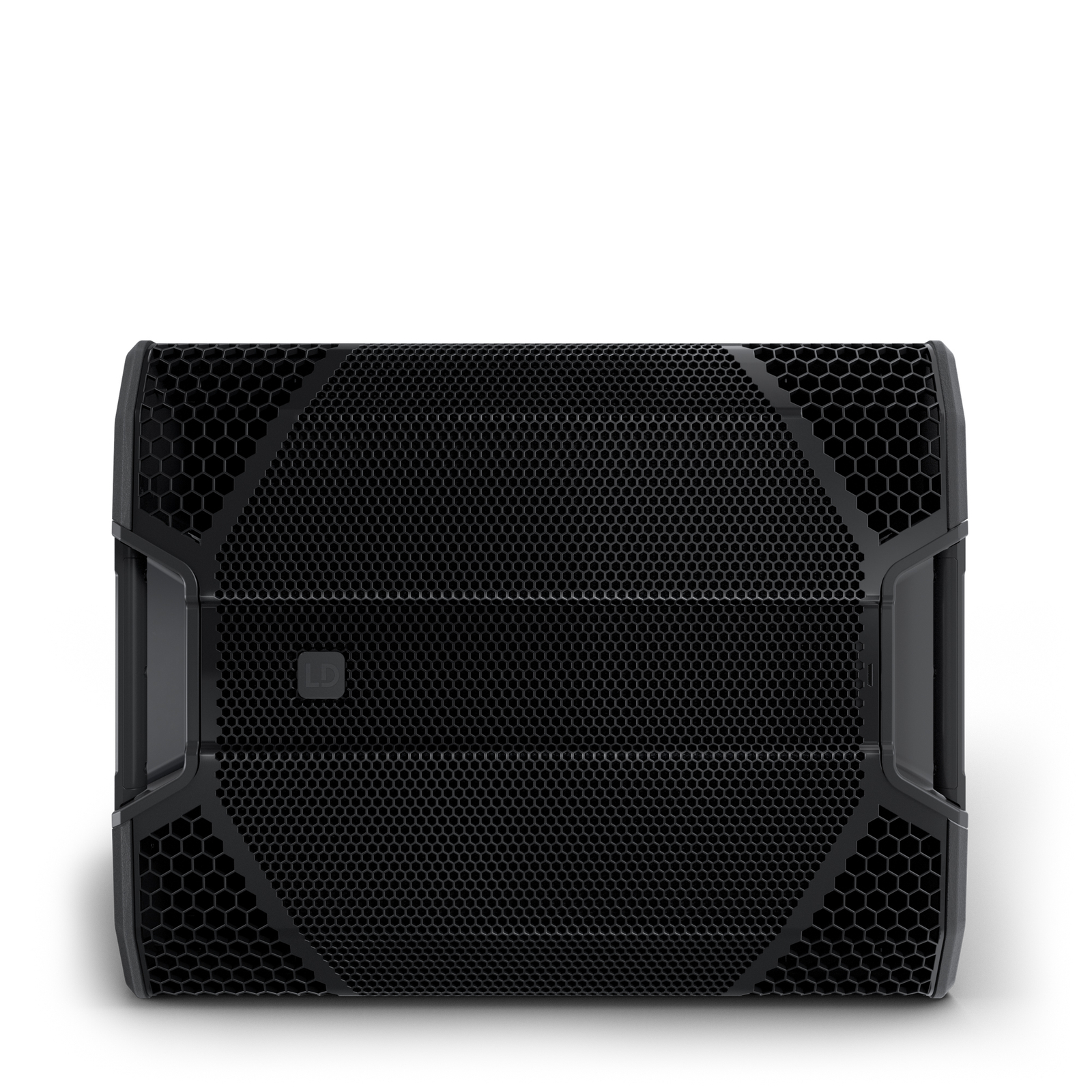

2 x M20 navoja za distančne stupove u vertikalnim i horizontalnim postavkama

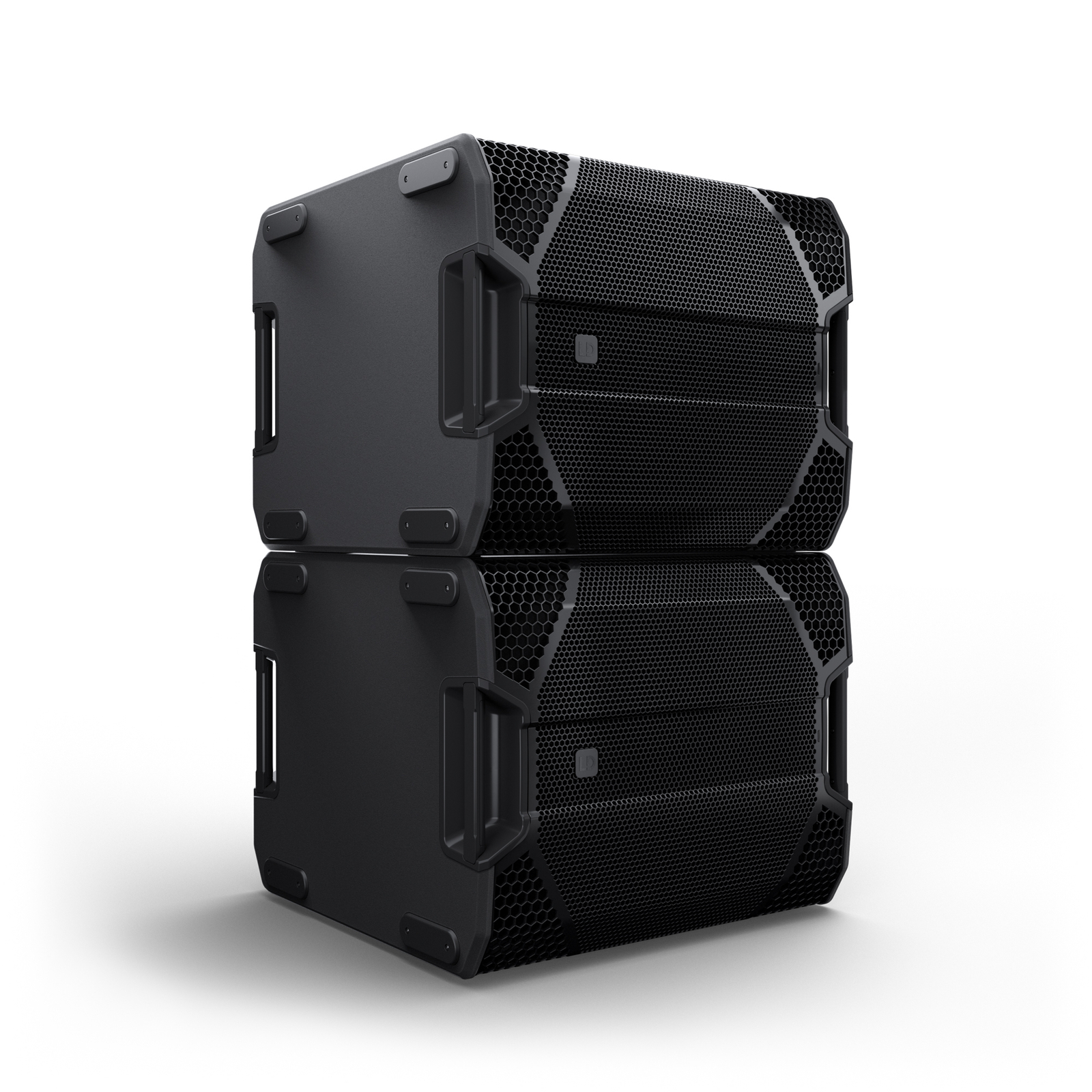

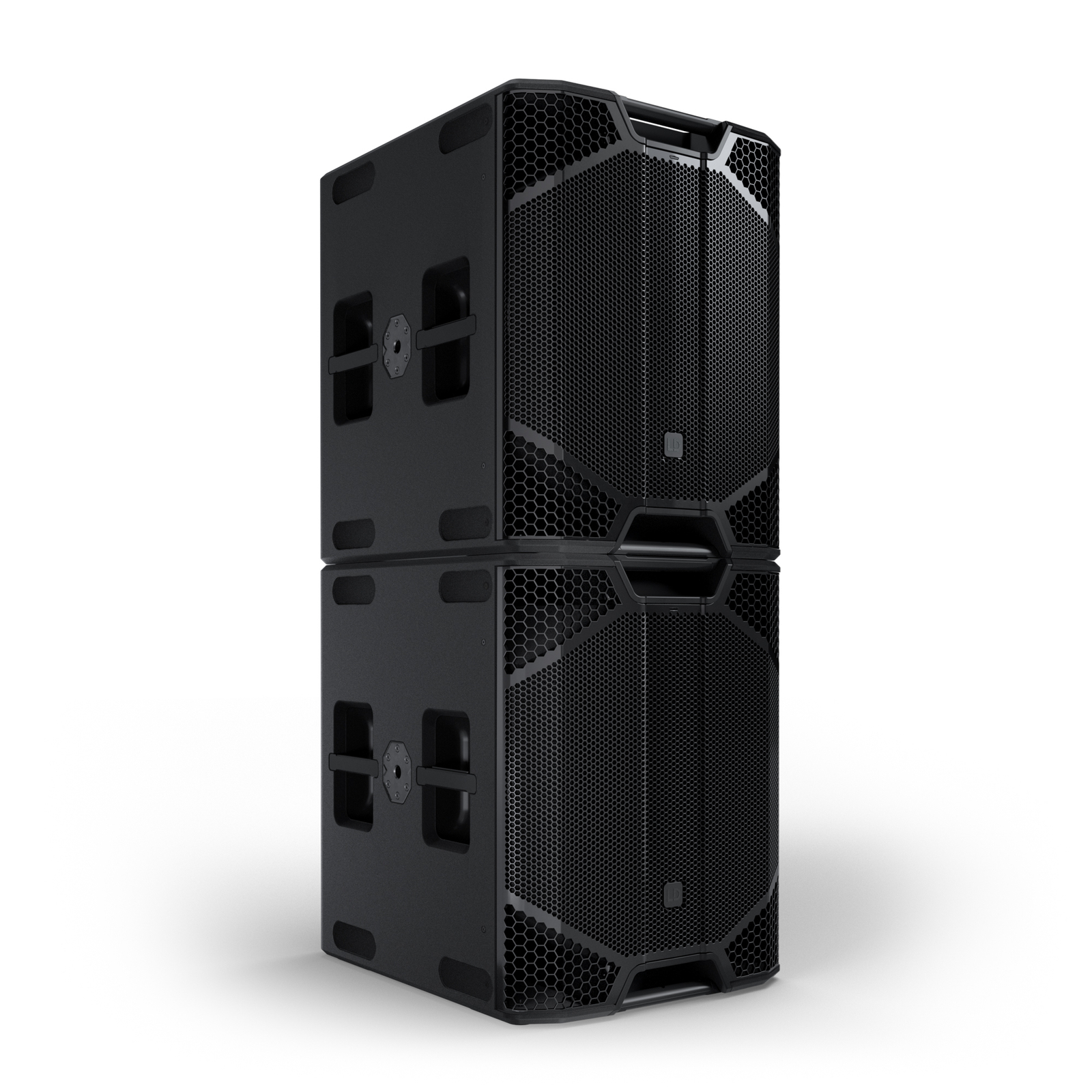

Sigurno slaganje s 2 x 4 utora za slaganje
Prednji LED indikator (identifikacija, napajanje i limiter)

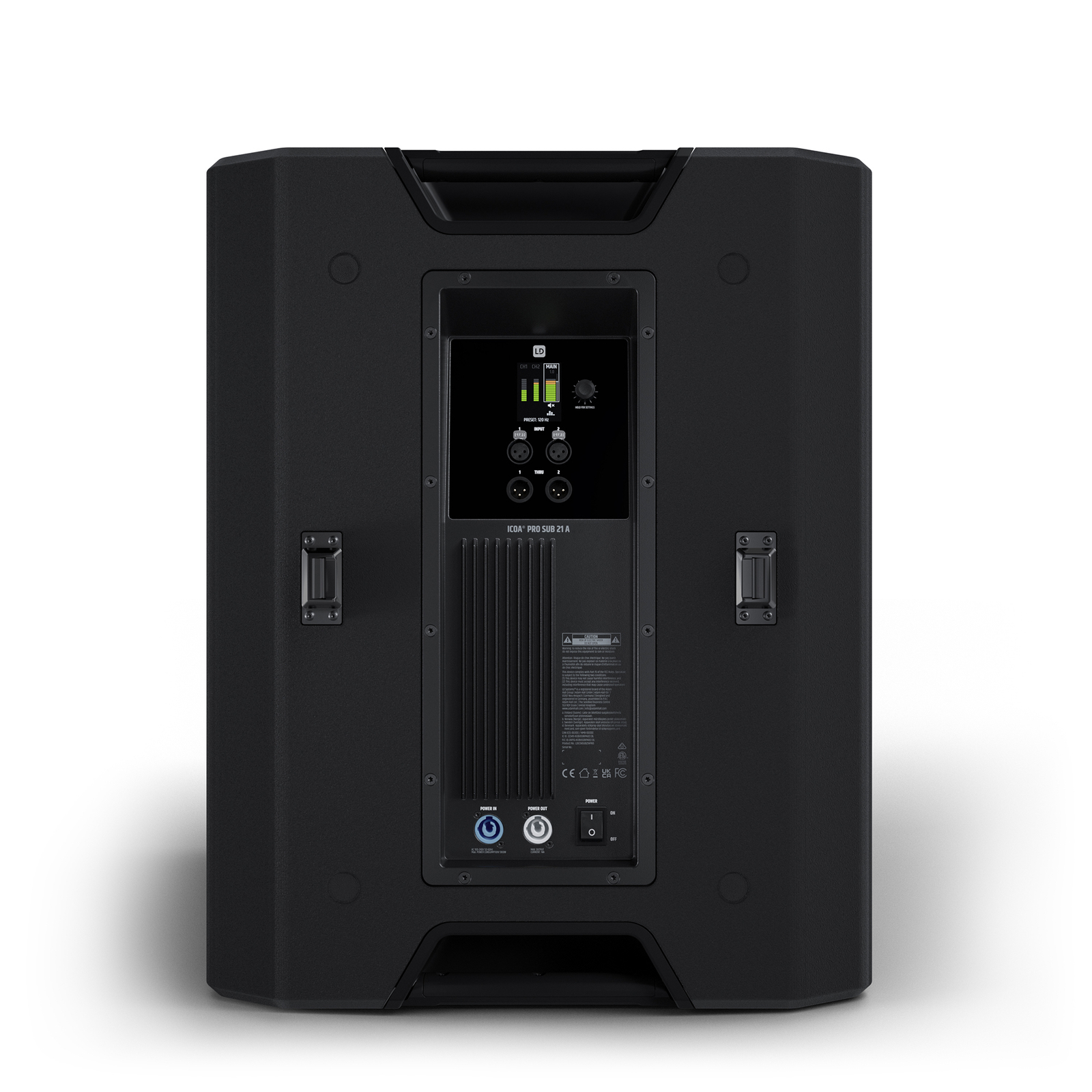

PowerCON loop-through priključak za napajanje
Pasivni sustav hlađenja bez ventilatora s hlađenjem elektronike uz pomoć protoka zraka

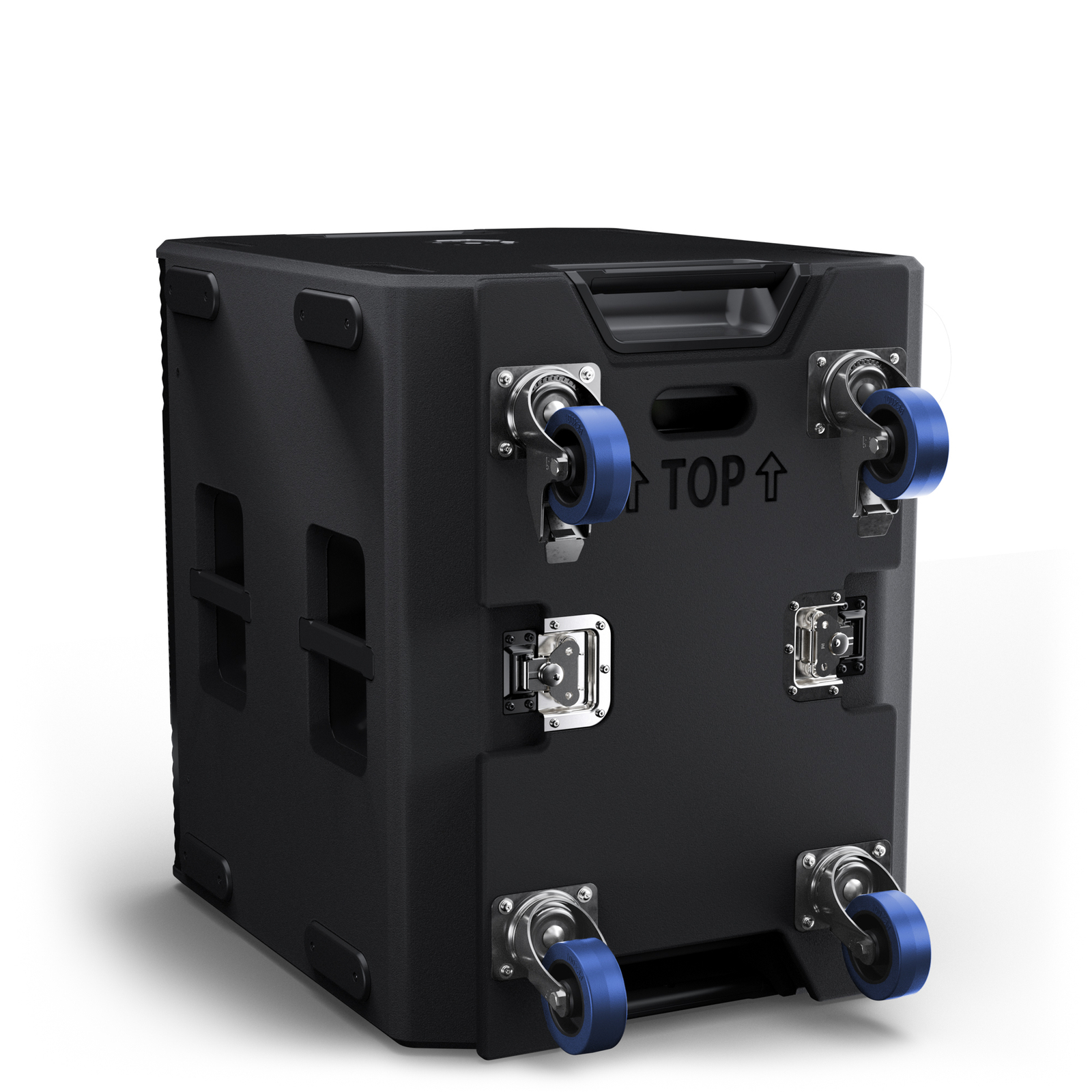

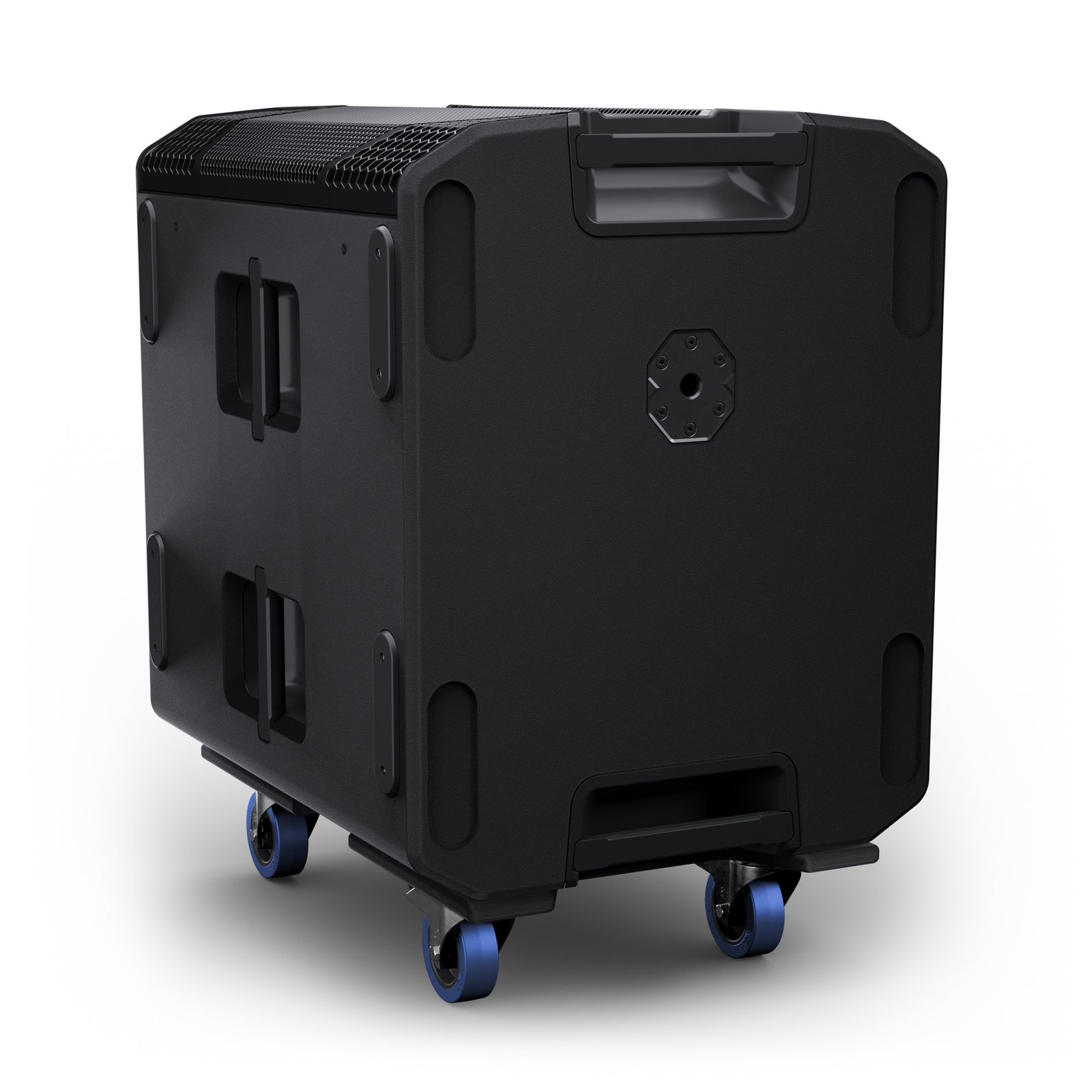

Dodatna oprema: Ploča s kotačićima za jednostavan transport i zaštitni poklopci
Specifications:
General:
Peak output power: 3000 W
RMS output power: 1500 W
Amp class: Class D
SysLink®: No
Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %): 133 dB
Max. SPL peak (pink noise, halfspace/1 m, CF 4): 136 dB
Max. SPL average (sine burst, BW, halfspace/1 m, THD≤10 %): 129 dB
Frequency response (-10 dB, rel. Avg): 29 Hz – 120 Hz
Input connector types: XLR 3-pole female
Output connector types: XLR 3-pole male
Protection features: Short circuit, Overheating, Multiband Limiter
Colour: Black
Bluetooth®:
Bluetooth® version: Bluetooth® 5.1
Supported audio codecs: AAC, SBC
Receiver (client): No
Transmitter (host): No
Inputs:
Number of mic/line inputs: 2
Mic/Line-in connector type: XLR 3-pole female
Outputs:
Number of line outputs: 2
Line outputs connector type: XLR 3-pole male
Signal processing:
DSP model: SysCore®
Mixer: No
AD/DA converter bit depth: 24 Bit
AD/DA converter sampling rate: 48 kHz
Min. Signal-to-noise ratio (SNR): 108 dB
Bass driver:
Size: 21″
Outer diameter: 547 mm
Manufacturer: Lavoce Custom Made
Magnet: Neodymium
Voice coil: 4.5″
Mains operation:
Operation voltage: 100 V AC – 240 V AC / 50 – 60 Hz
Power supply type: Switched-mode power supply (SMPS)
Rated power: 1300 W
Mains connector: Mains socket indoor power in male & powerCON®
Mains connector model name: powerCON®
Mains fuse: T10AH/250 V
Housing:
Design: Bass reflex
Number of handles: 8
Flange: M20
Cabinet material: Birch multiplex
Material thickness: 18 mm
Coating: Polyurea
Front grille material: Aluminium
Cooling:
Cooling system: Convection cooling
Environmental:
Ambient temperature: 0 °C – 40 °C
Maximum air humidity (non-condensing): 80 %
Dimensions & weight:
Width: 565.5 mm
Height: 700 mm
Depth: 698.8 mm
Weight: 57 kg
Other properties:
Included accessories: Mains cable
