Gotovina/virman

270,00 €

MPC: ~~350,00 €~~

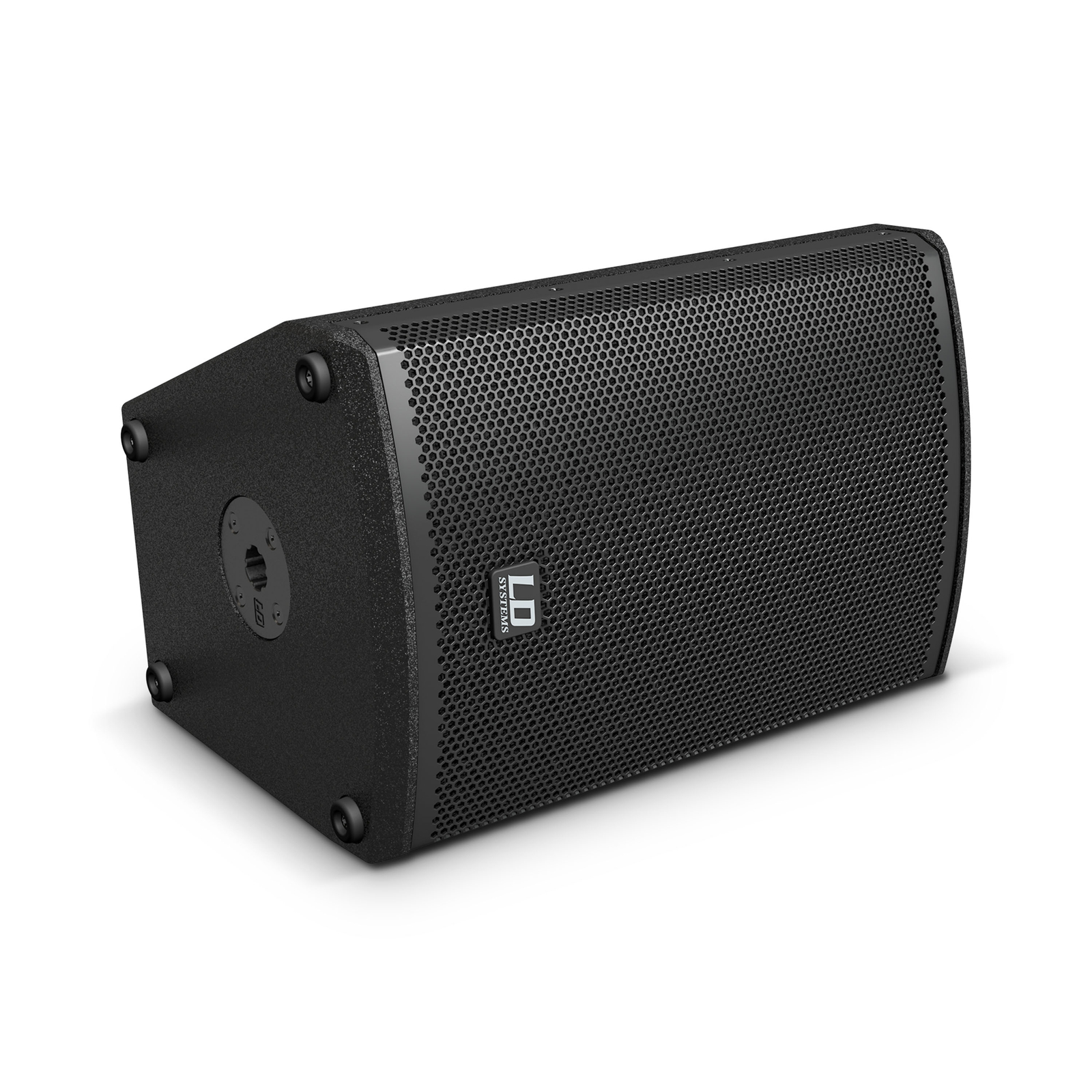

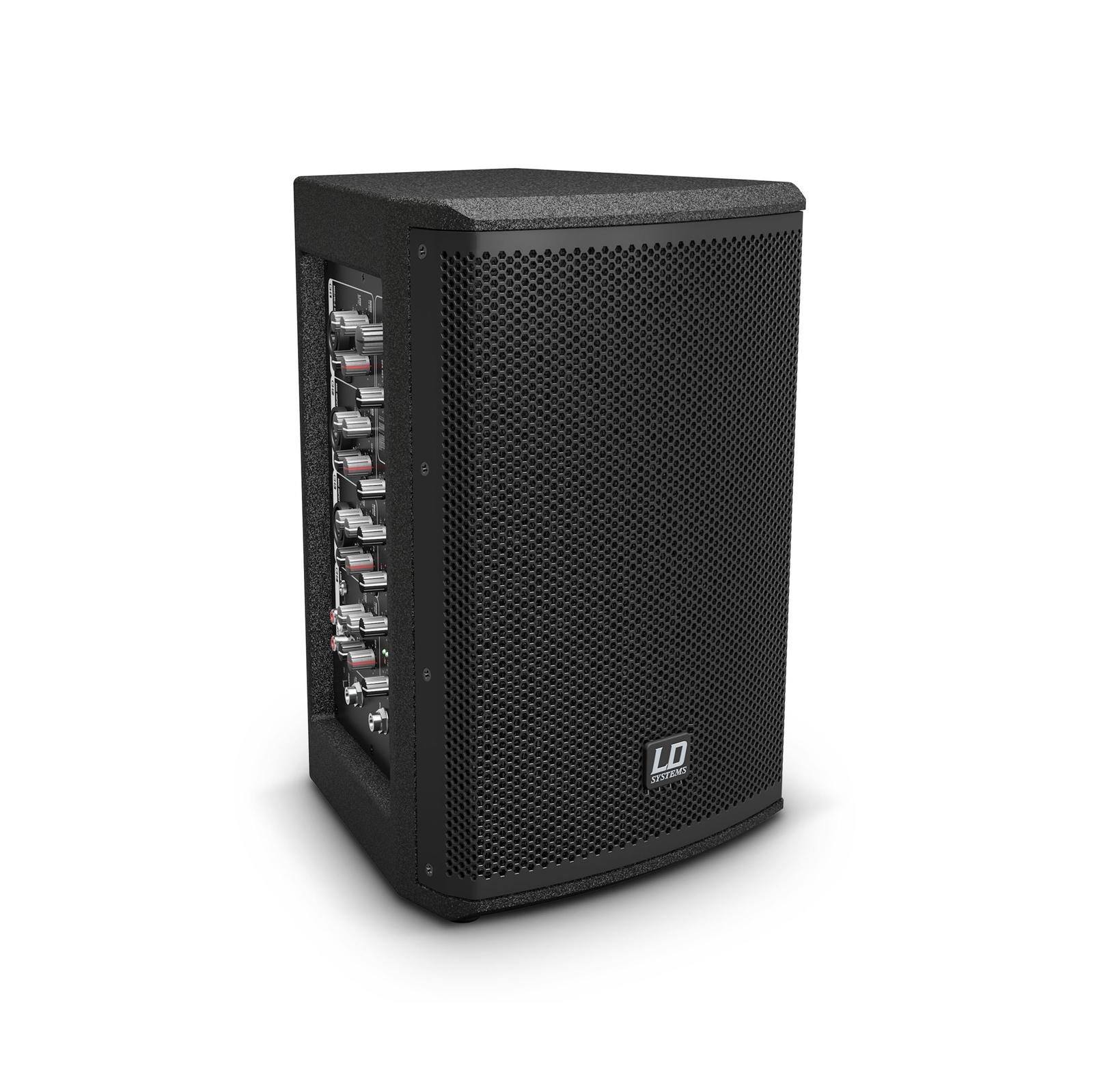

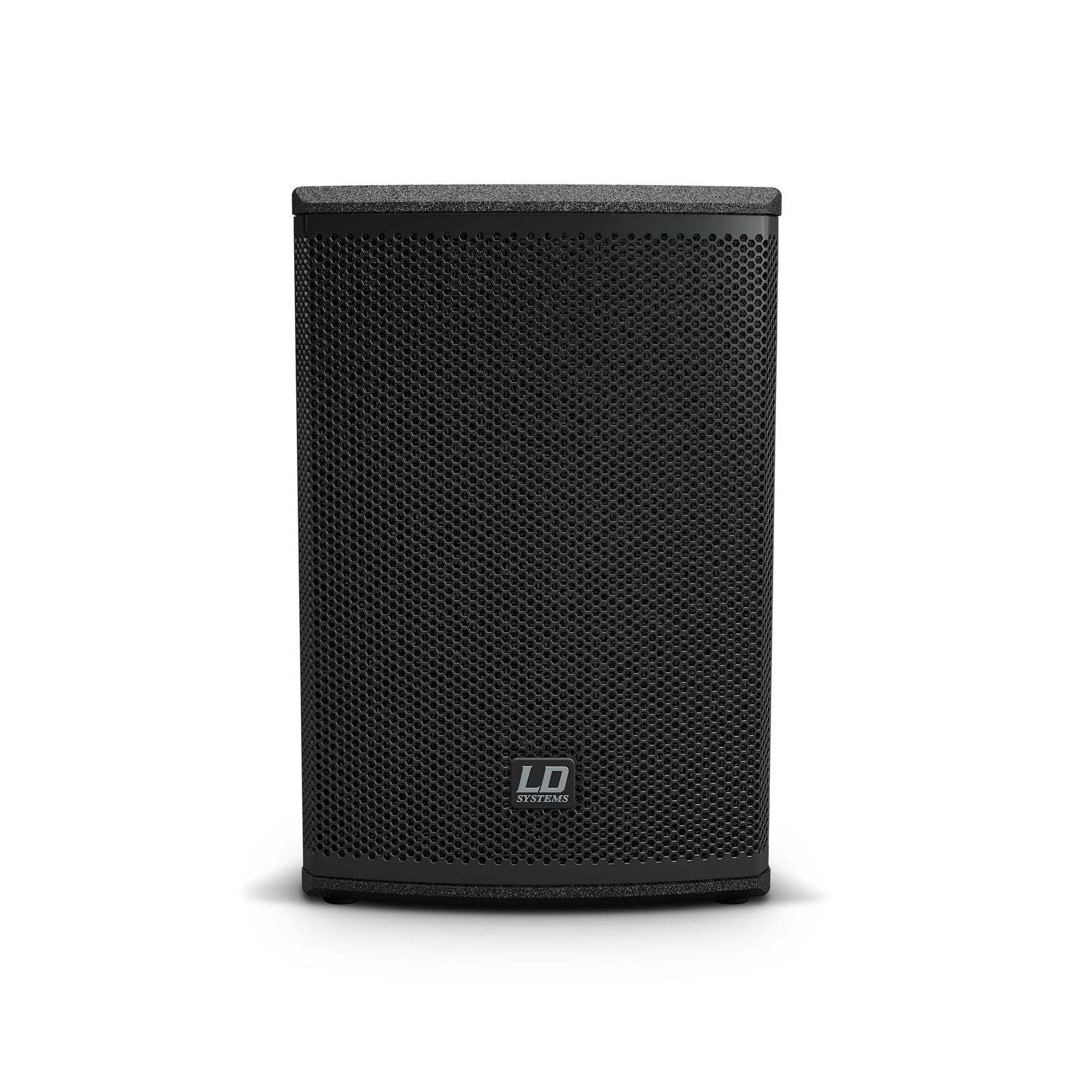

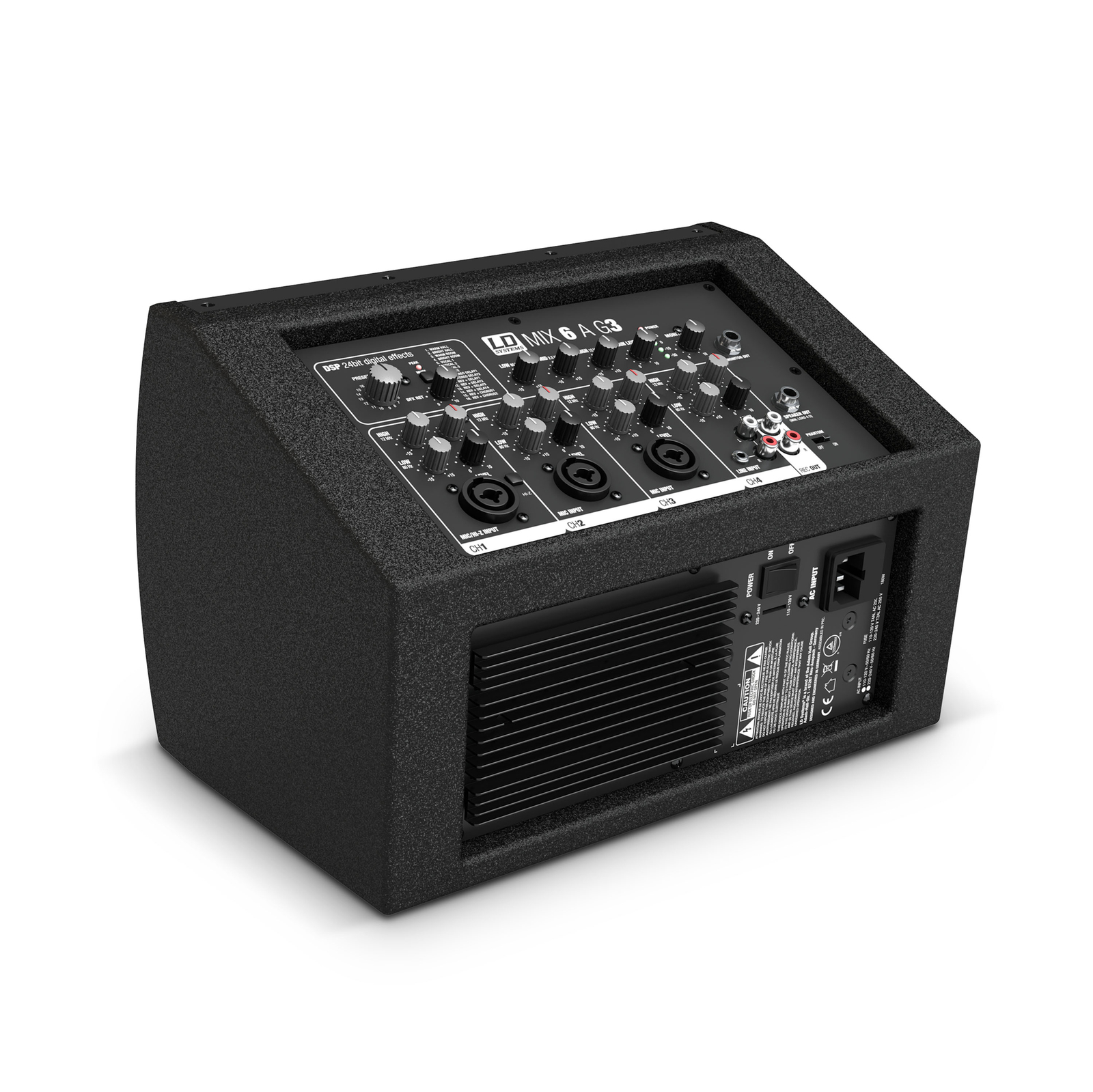

Aktivni 2-smjerni zvučnik s integriranim 4-kanalnim mikserom

Pojačalo klase D s vršnom snagom od 2 x 280 W
6,5” prilagođeni woofer i 1” HF driver

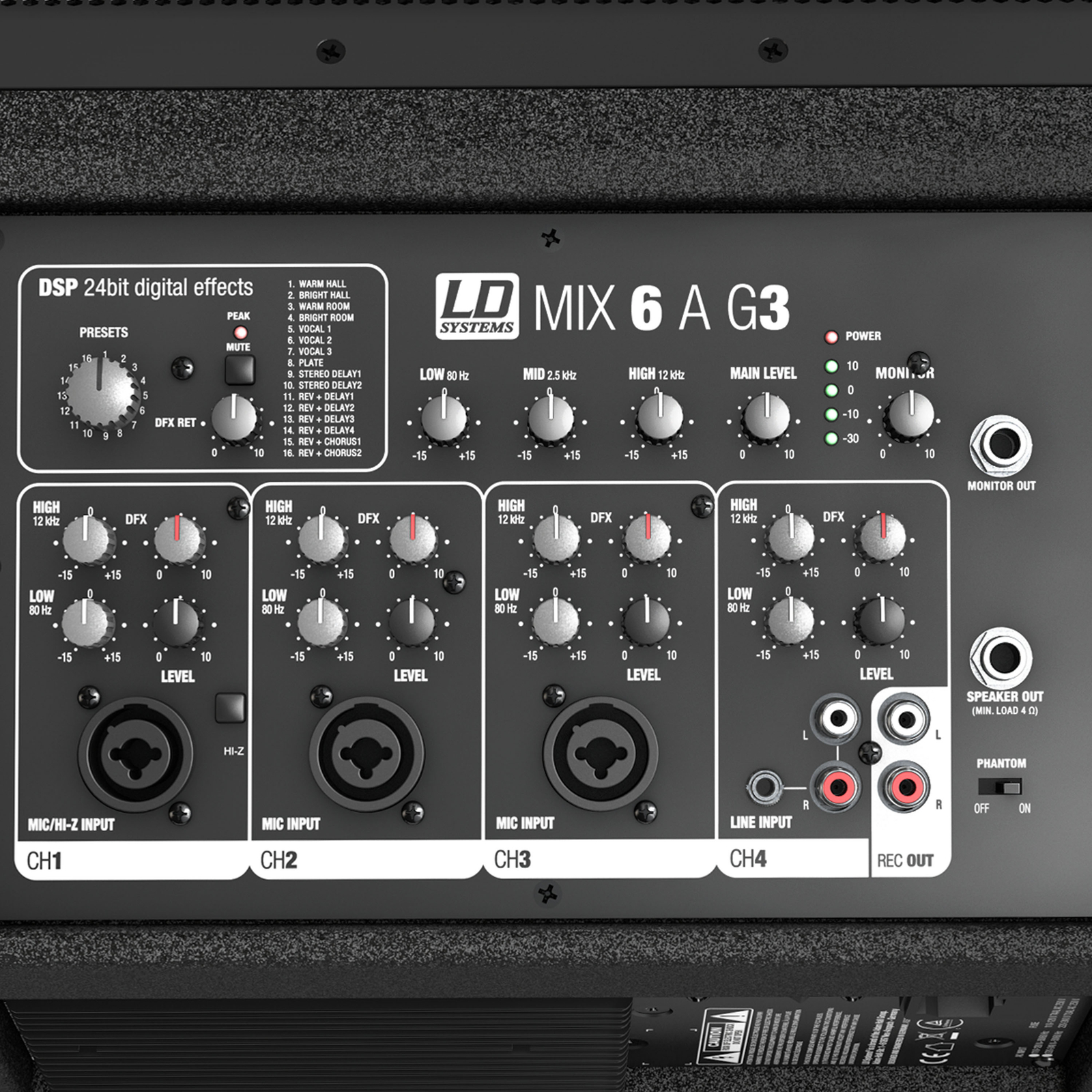

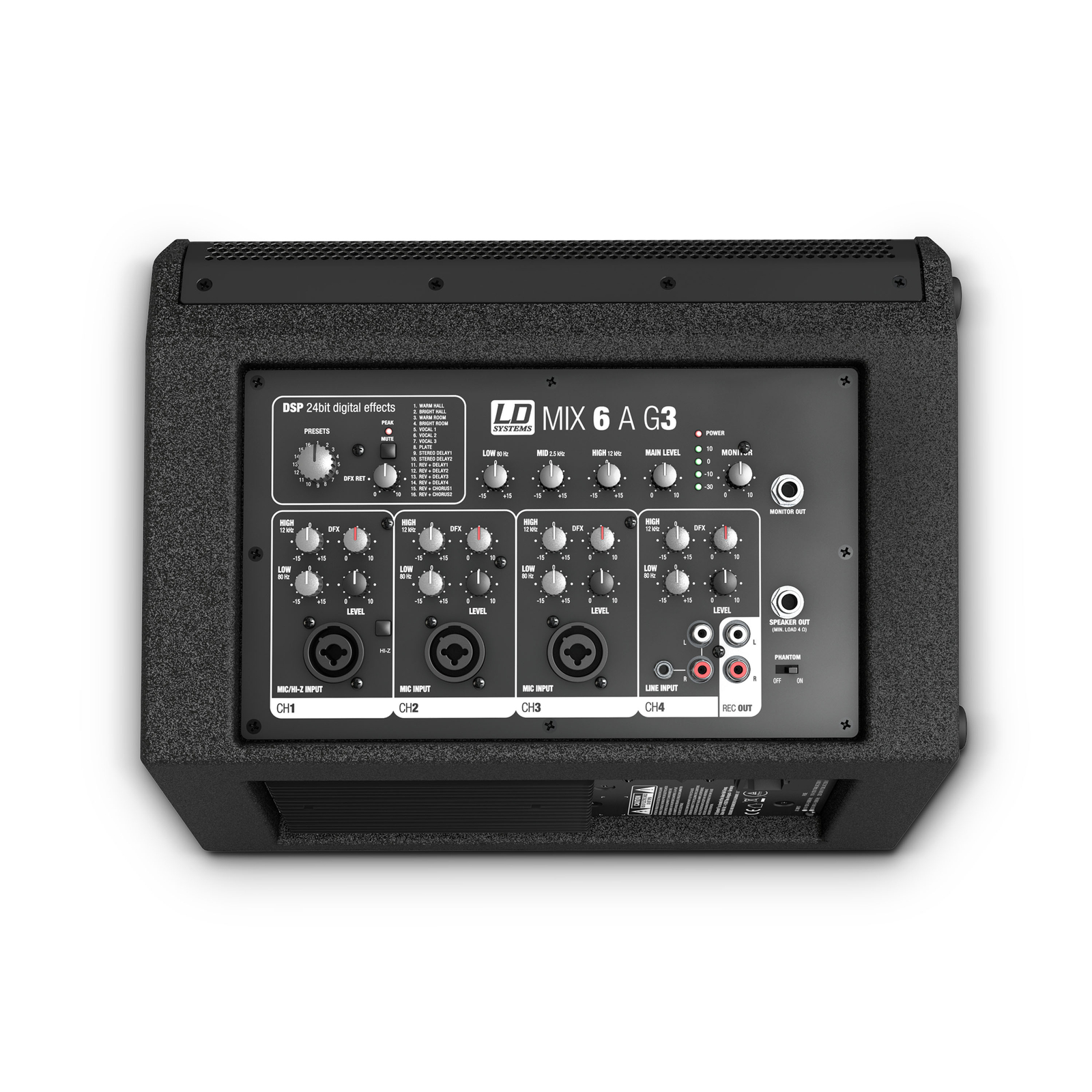

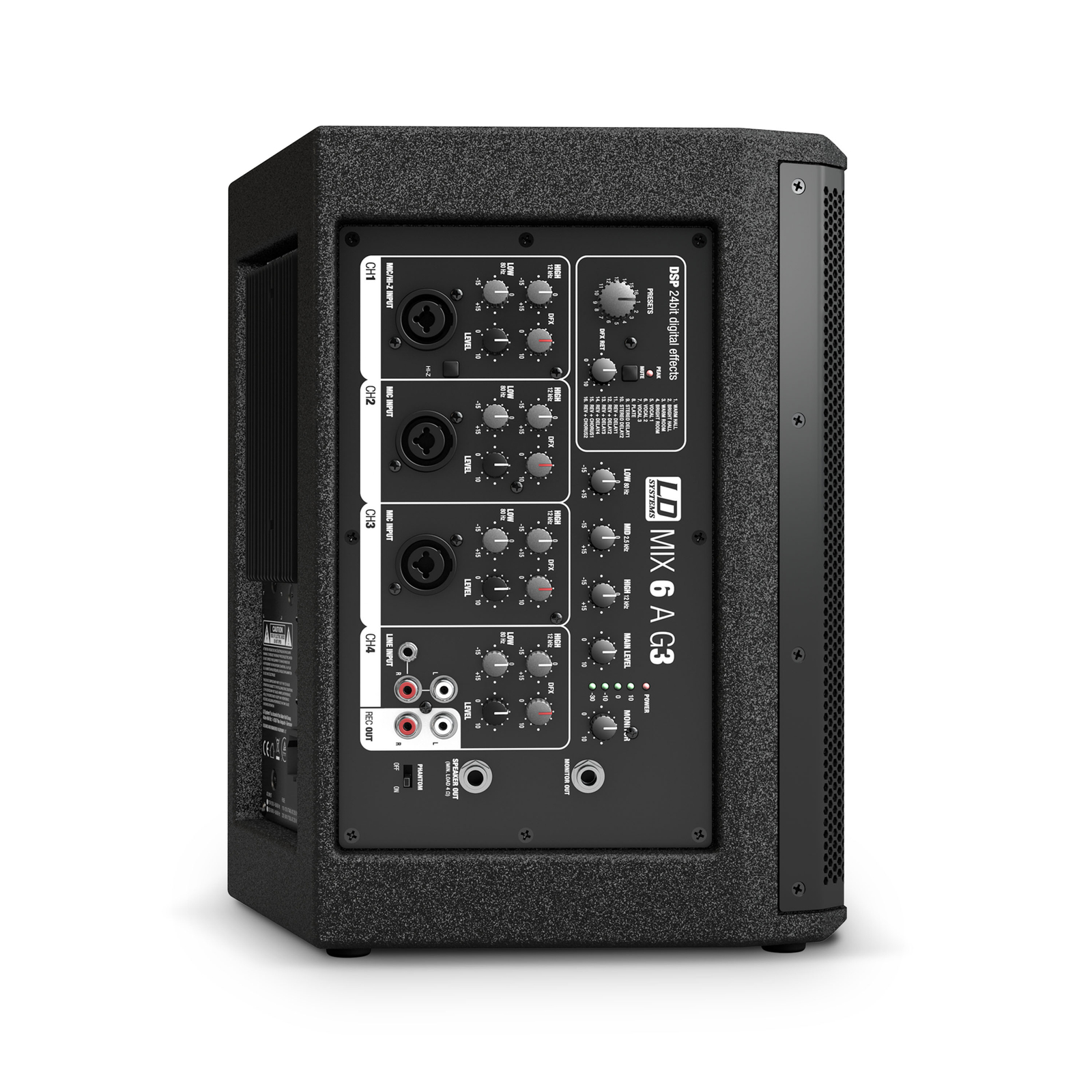

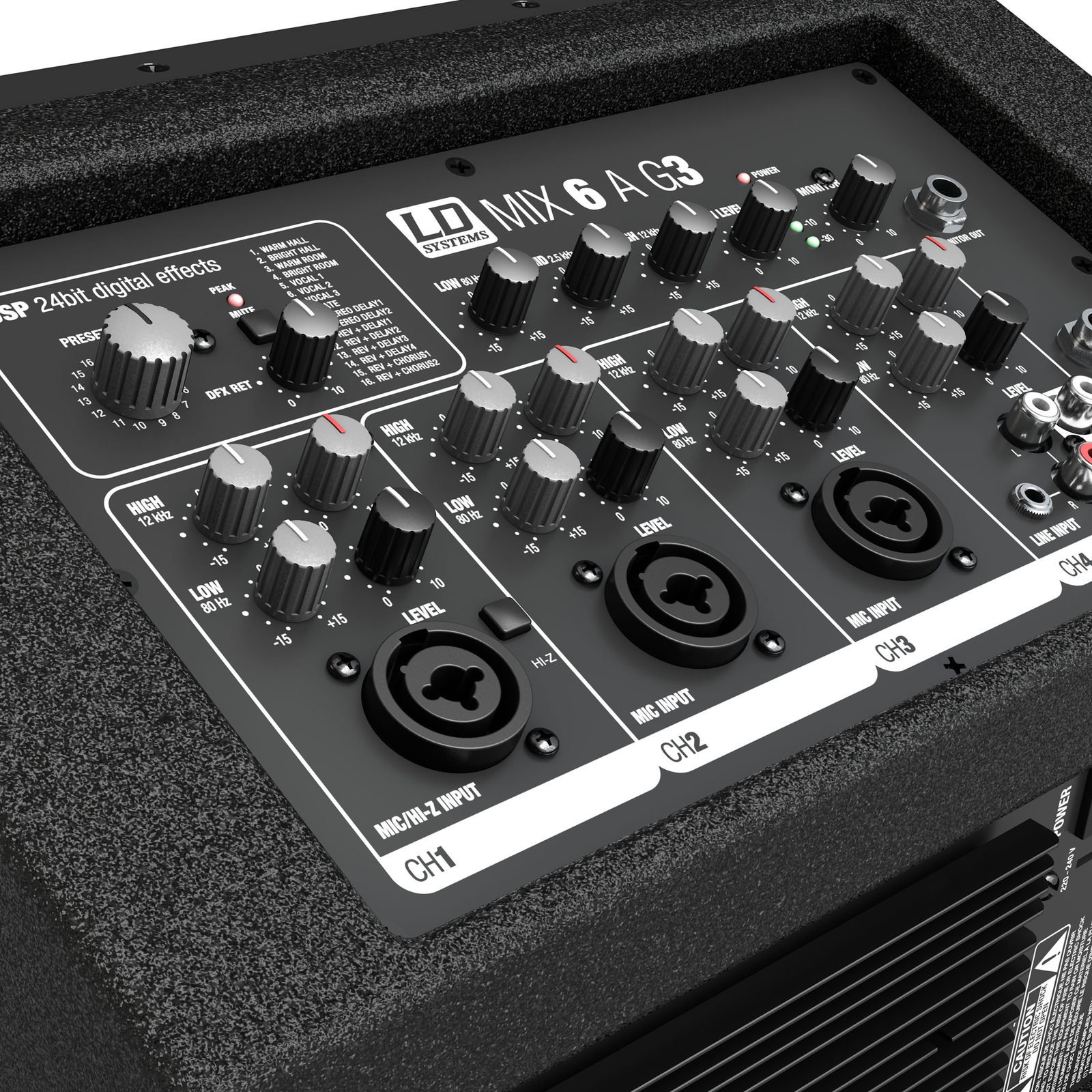

Integrirani 4-kanalni mikser
24-bitni DSP sa 16 FX preseta
Slave izlaz za kombinaciju s pasivnim zvučnikom LD MIX 6 G3
Kućište s bass reflexom za snažan i prodoran bas

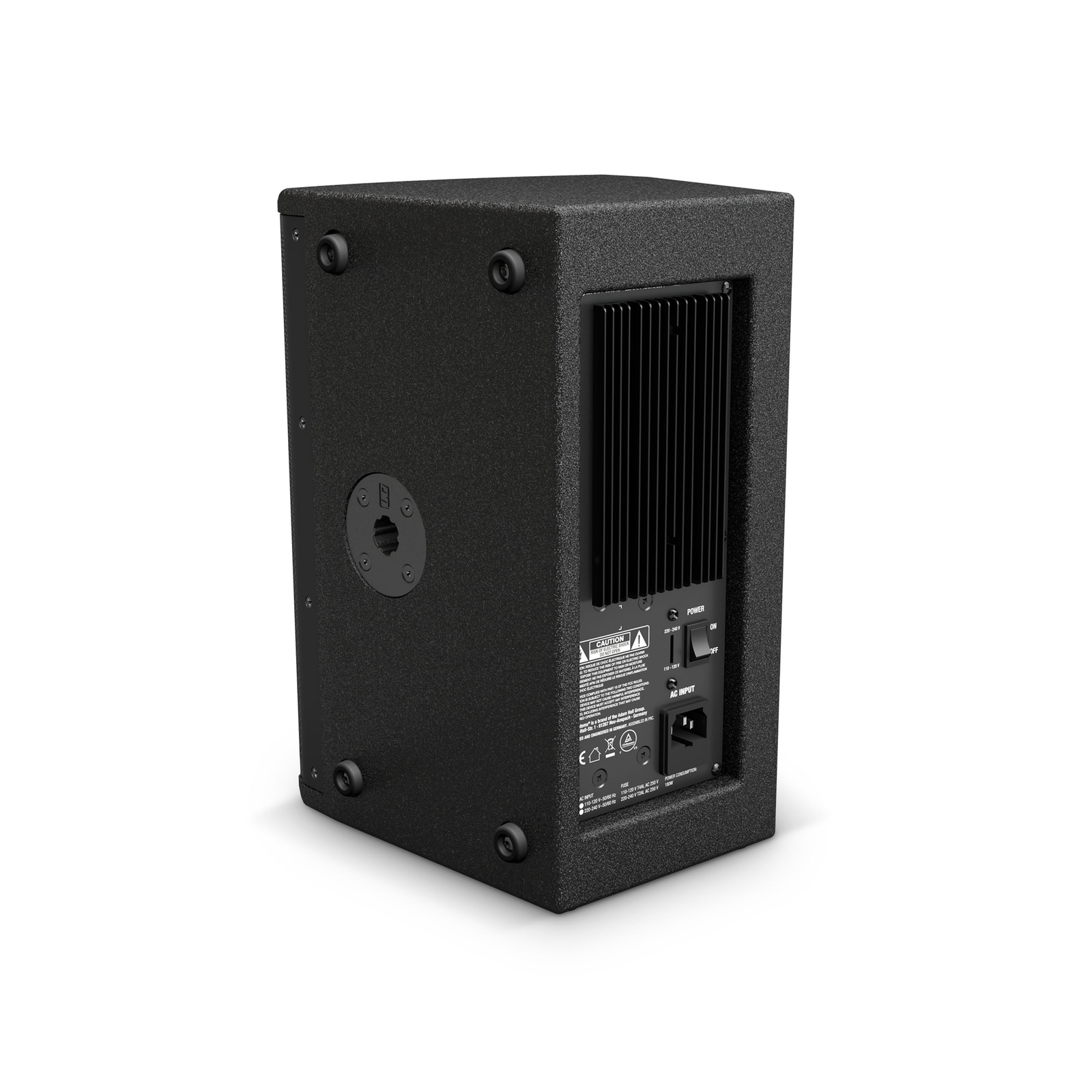

Dvostruki 16 mm nosači za horizontalnu ili vertikalnu orijentaciju

Mogućnost povrata robe
Slanje standardnih pošiljaka
Paletna dostava

Opis

Specifications:

General:
Type (active/passive): Active
Peak output power: 560 W
RMS output power: 160 W
Amp class: Class D
SysLink®: No
Max. SPL peak: 122 dB
Frequency response: 80 Hz – 20000 Hz
Speaker system: 2-way system
Beam angle: Hor.: 80° / Vert.:70°
Number of inputs: 5
Number of outputs: 2
Colour: Black

Inputs:
Number of microphone inputs: 3
Mic-in connector type: XLR combo socket
Phantom power: 15 V
Number of instrument inputs: 1
Inst-in connector type: XLR combo socket
Number of line inputs: 1
Line-In connector type: 2 x RCA female (Stereo)
Number of music inputs: 1
Music inputs connector types: 3.5 mm Jack TRS female

Microphone input performance:
Nom. Sensitivity (< 1% THD, 1 kHz, max. gain): 70 mV
Input impedance: 14 kΩ

Line input performance:
Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain): -5 dBu
Input impedance (balanced): 44 kΩ

Outputs:
Number of speaker outputs: 1
Speaker output connection type: 6.3 mm Jack TS female
Number of line outputs: 1
Line outputs connector type: 6.3 mm Jack TS female

Signal processing:
Mixer: Yes
Mixer channels: 4
Audio processing: Digital effects (DFX), 2 band EQ (High, Low)

Bass driver:
Size: 6.5″
Manufacturer: Custom Made
Magnet: Ferrite

Tweeter:
Driver size: 1″
Manufacturer: Custom Made

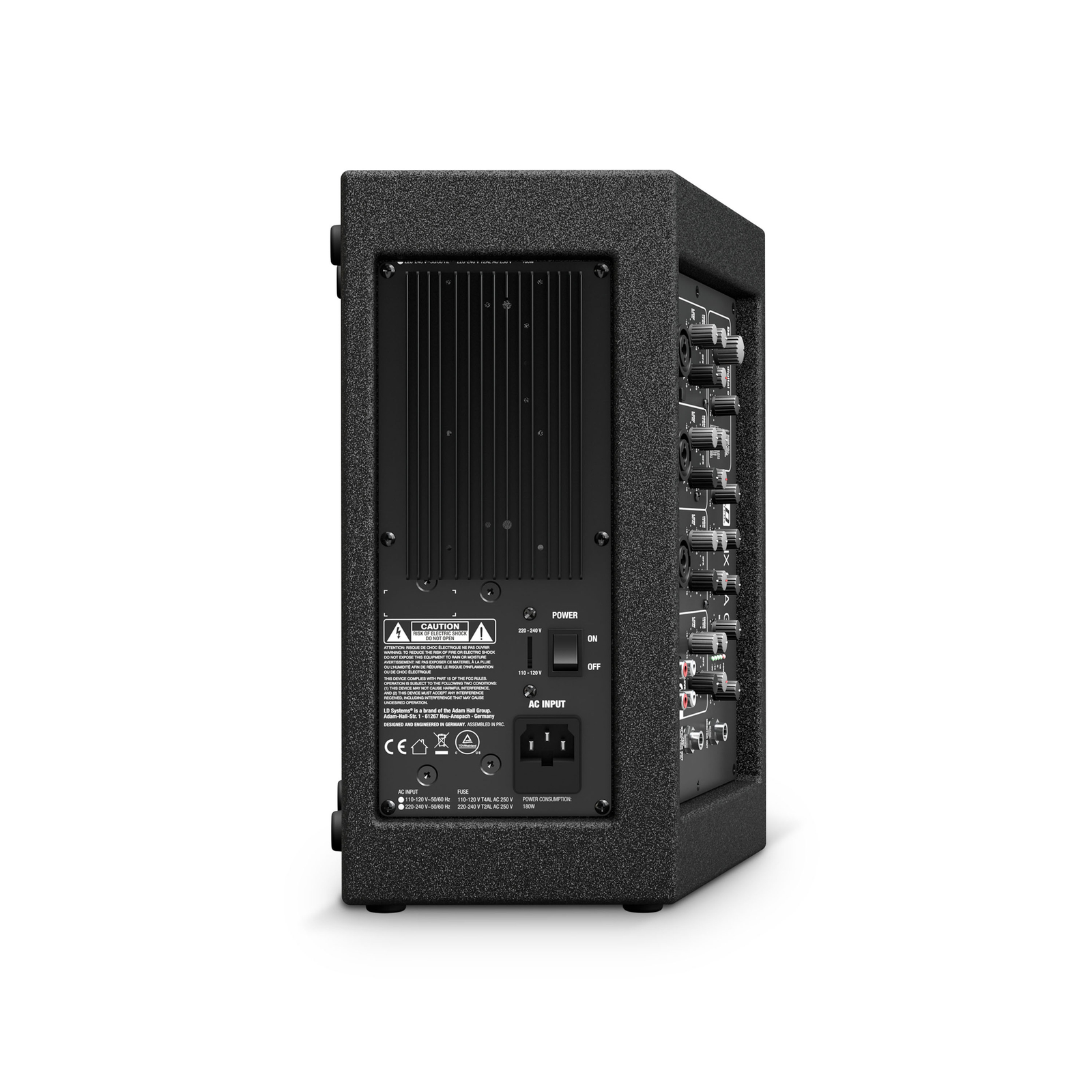

Mains operation:
Operation voltage: 220 V AC – 240 V AC / 50 – 60 Hz, 110 V AC – 120 V AC / 50 – 60 Hz
Power supply type: Linear power supply
Rated power: 180 W
Mains connector: IEC C14 plug male

Housing:
Design: Bass reflex
Flange: 16 mm flange
Cabinet material: Medium-density fibreboard MDF

Dimensions & weight:
Width: 214 mm
Height: 323 mm
Depth: 221 mm
Weight: 7 kg

Other properties:
Included accessories: Mains cable
