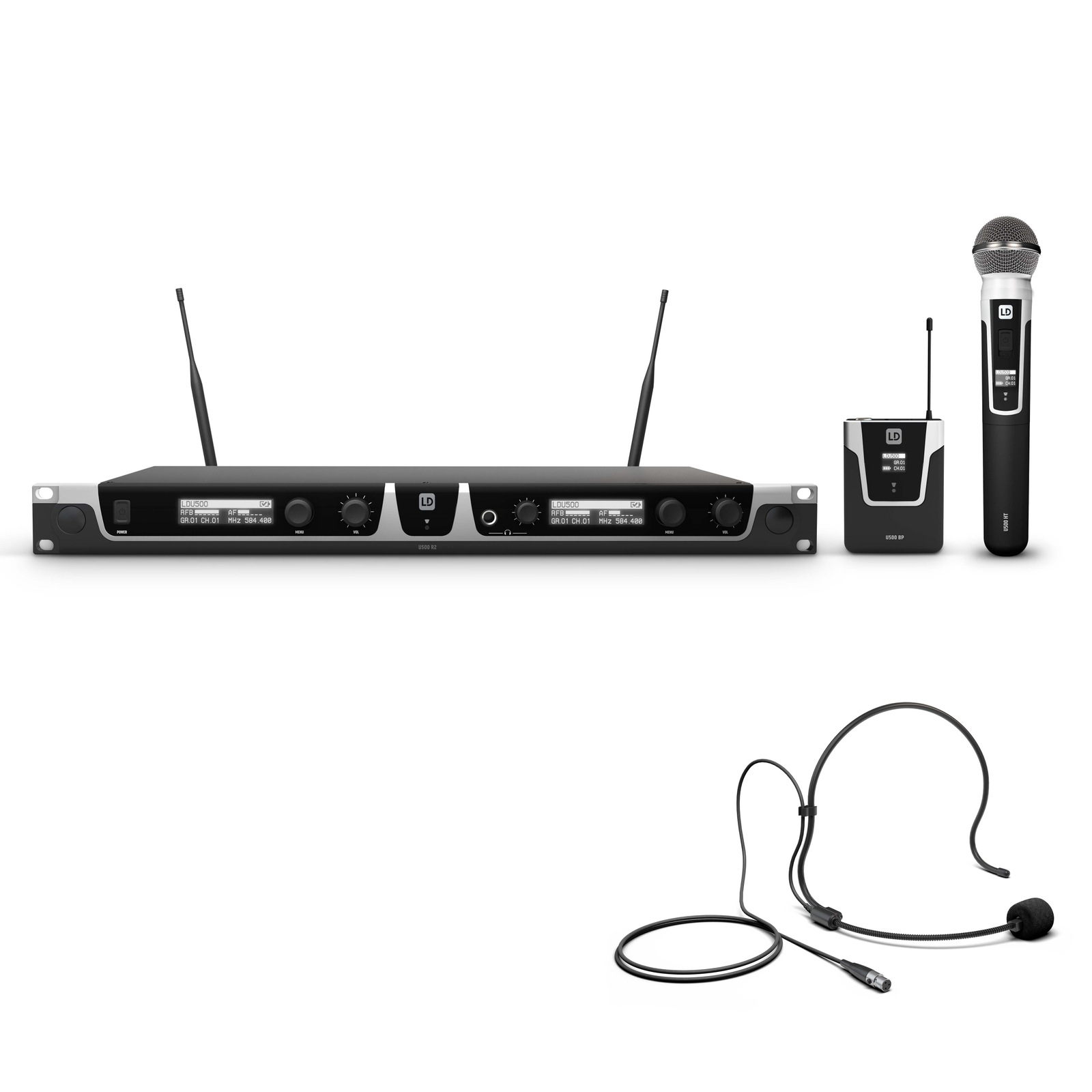

LD Systems U505 HBH 2

Specifications:

General:
Product type: Wireless Microphone Systems
Type: Headsets / Handhelds
Transmission frequency range: 584 – 608



Items in this set:

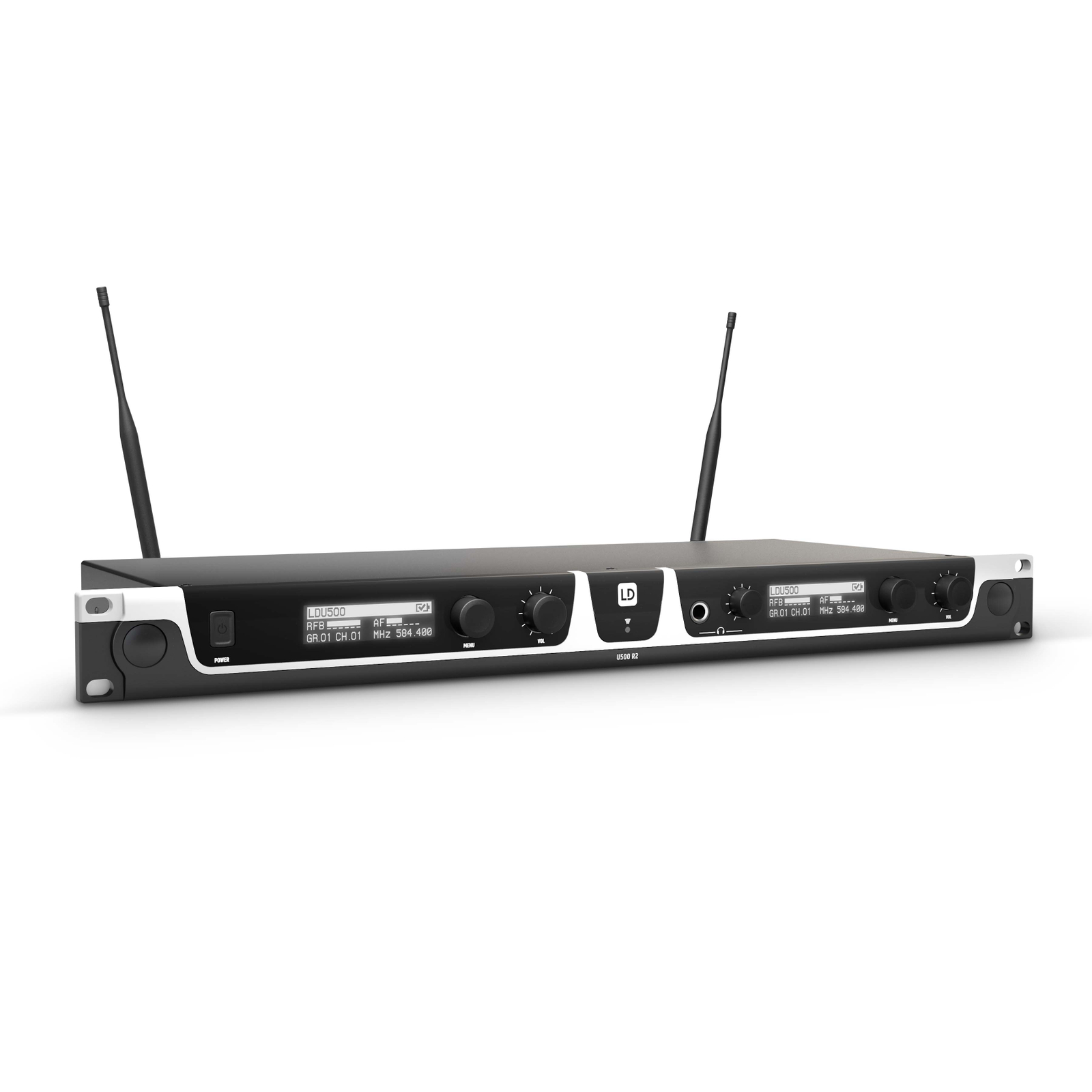

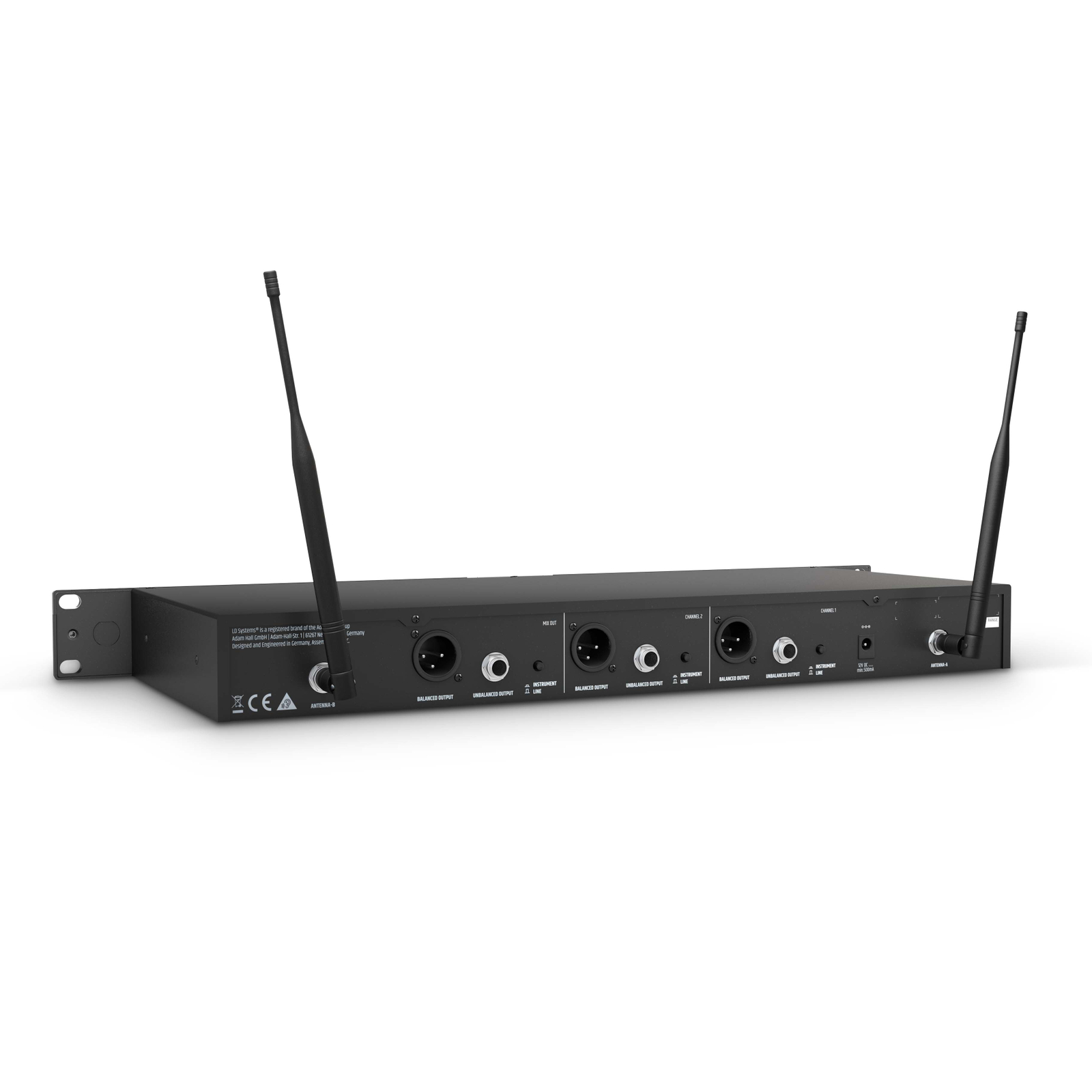

LD Systems U505 R2 Dual receiver:

General:
Material: Steel sheet
Coating: Powder coated
Wireless frequencies: 584 – 608 MHz
Frequency response (±0.5 dB, rel. Avg): 30 Hz – 16000 Hz
Colour: Black

Radio transmission:
Channel groups number: 8
Channels: 192 (8 groups with 24 channels per each)
Antennas: 2 x BNC female

Outputs:
Output signal type: Balanced & Unbalanced (parallel)
Number of line outputs: 4
Line outputs connector type: XLR 3-pole male, 6.3 mm Jack TS female
Headphone out connector type: 6.3 mm Jack TS female

Signal processing:
Min. Signal-to-noise ratio (SNR): 100 dB
Max. THD+N (1 kHz, +4 dBu, unity, unweighted): 1 %

Mains operation:
Operation voltage: 12 V DC – 18 V DC (external power supply)

Dimensions & weight:
Width: 484 mm
Height: 44 mm
Depth: 200 mm
Rack width: 19″
Rack height: 1 U
Installation depth: 200 mm

Other properties:
Included accessories: BNC antenna

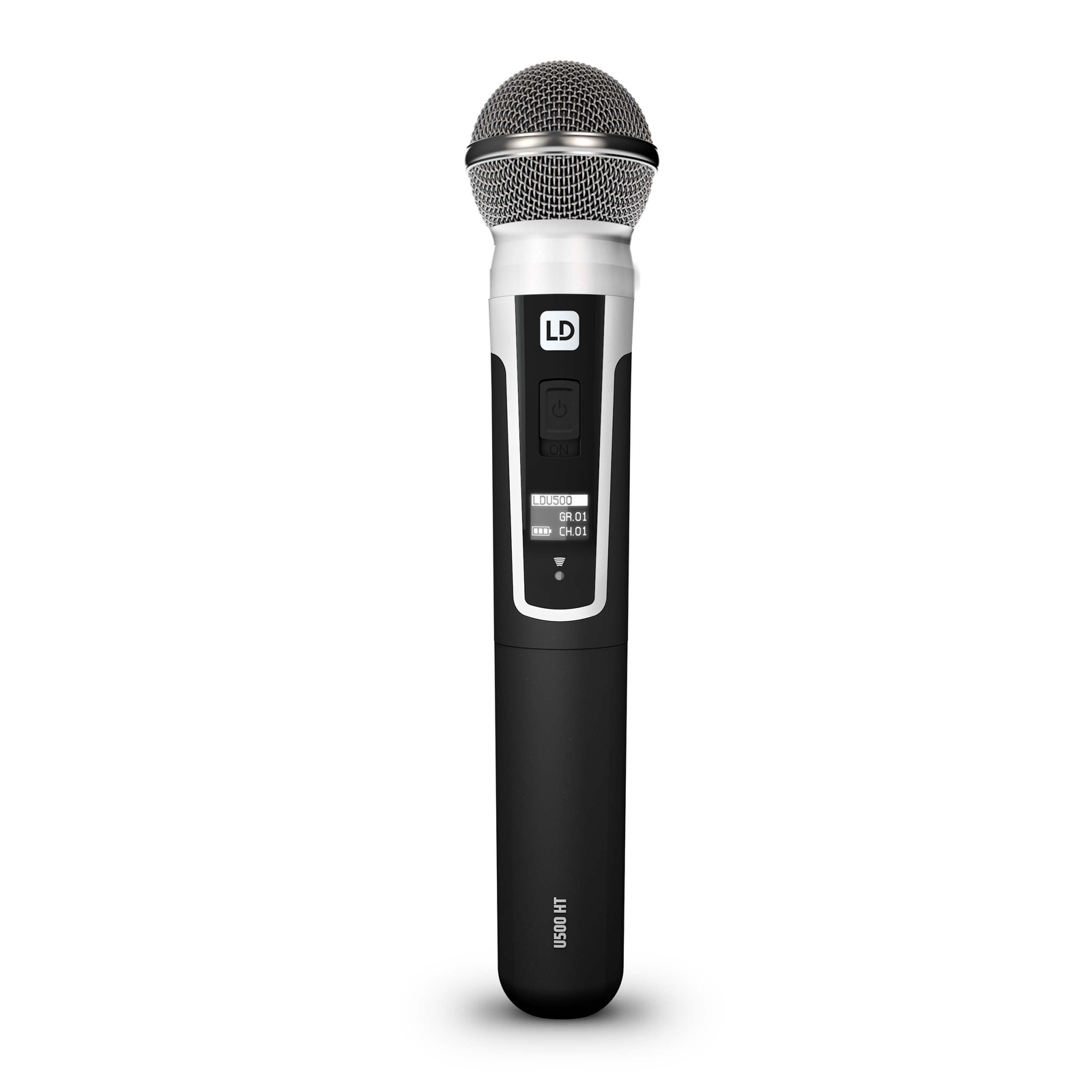

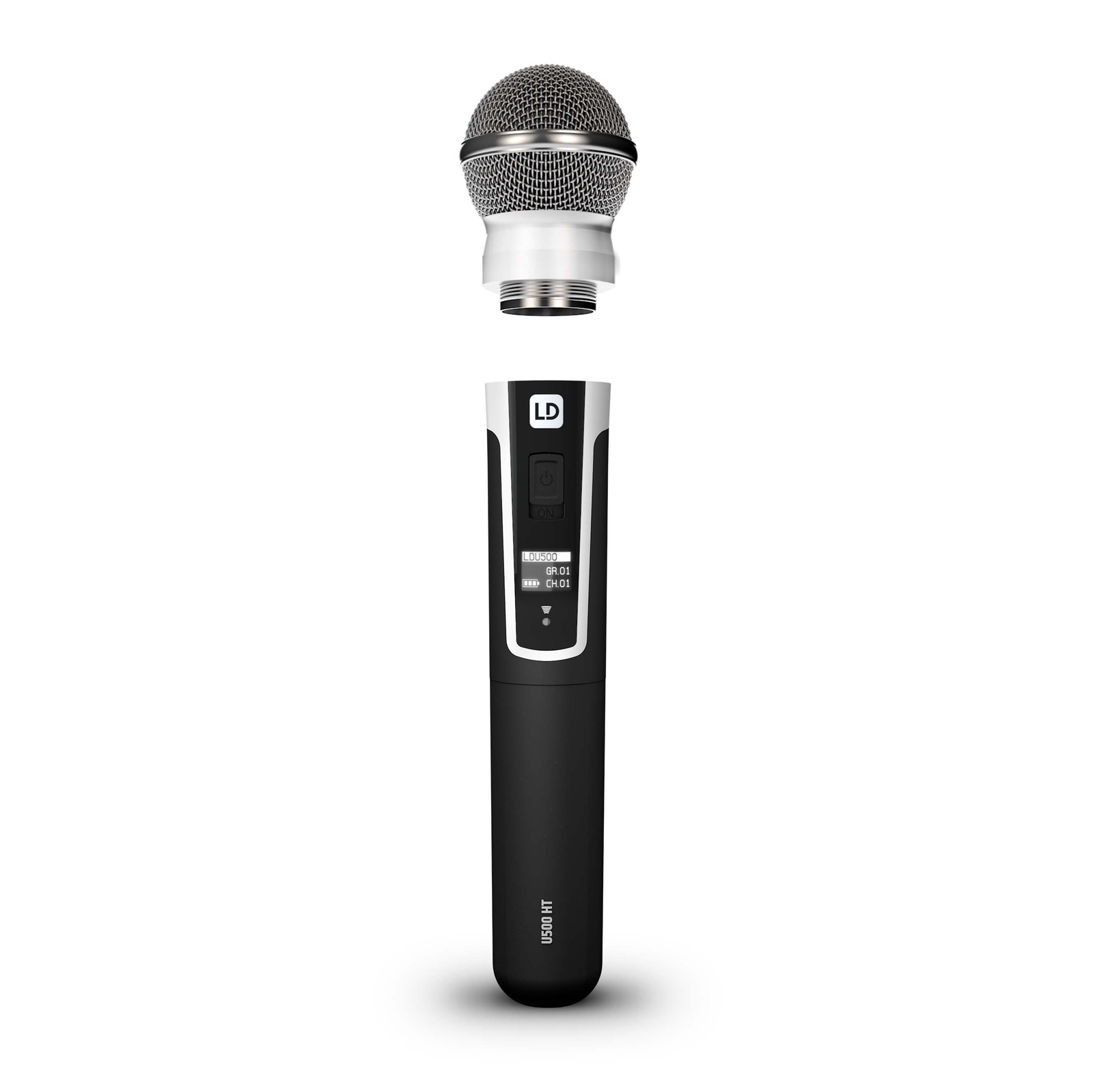

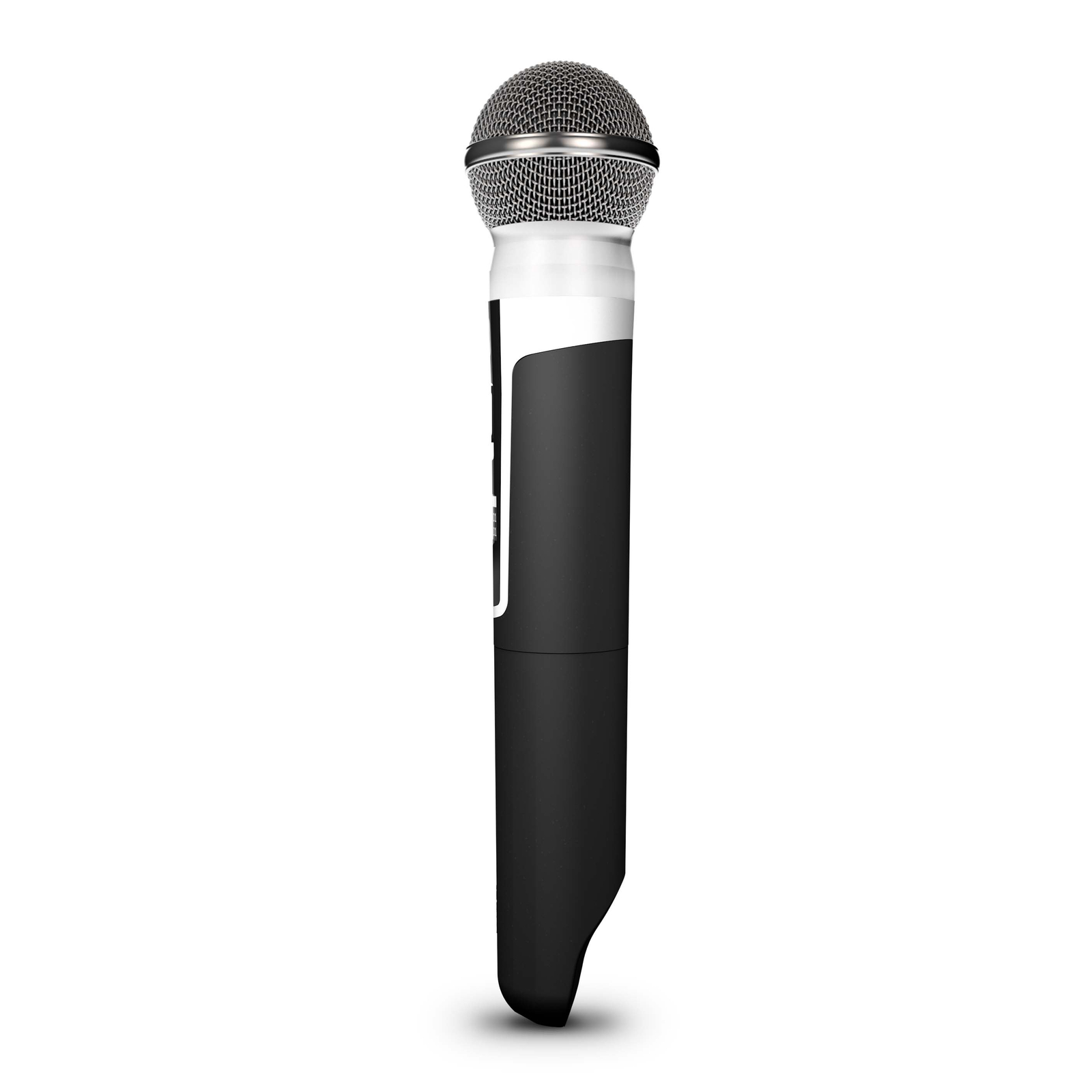

LD Systems U505 MD Dynamic handheld microphone:

General:
Directivity: Cardioid
Capsule type: Dynamic
Wireless frequencies: 584 – 608 MHz
Frequency response (-10 dB, rel. Avg): 60 Hz – 16000 Hz

Radio transmission:
Channel groups number: 8
Channels: 96 (8 groups with 12 channels per each)
Antennas: 1 (fixed)
Frequency synchronization via IR: Yes

Signal processing:
Min. Signal-to-noise ratio (SNR): 95 dB

Battery operation:
Batteries: 2 x 1.5 V AA/LR6 @ max.10 h
Built in battery tester: No

Dimensions & weight:
Length: 257 mm
Diameter: 51 mm
Weight: 25 kg

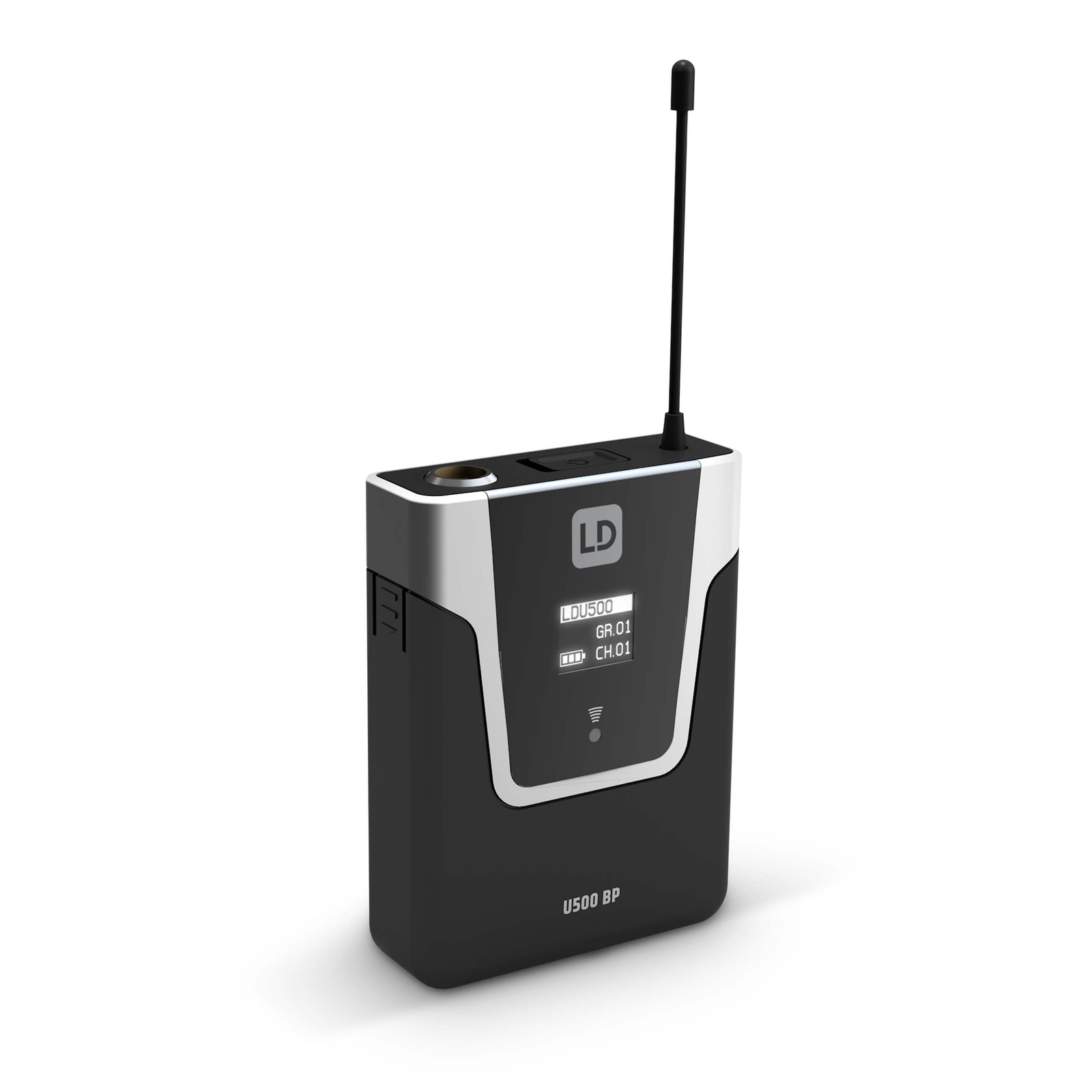

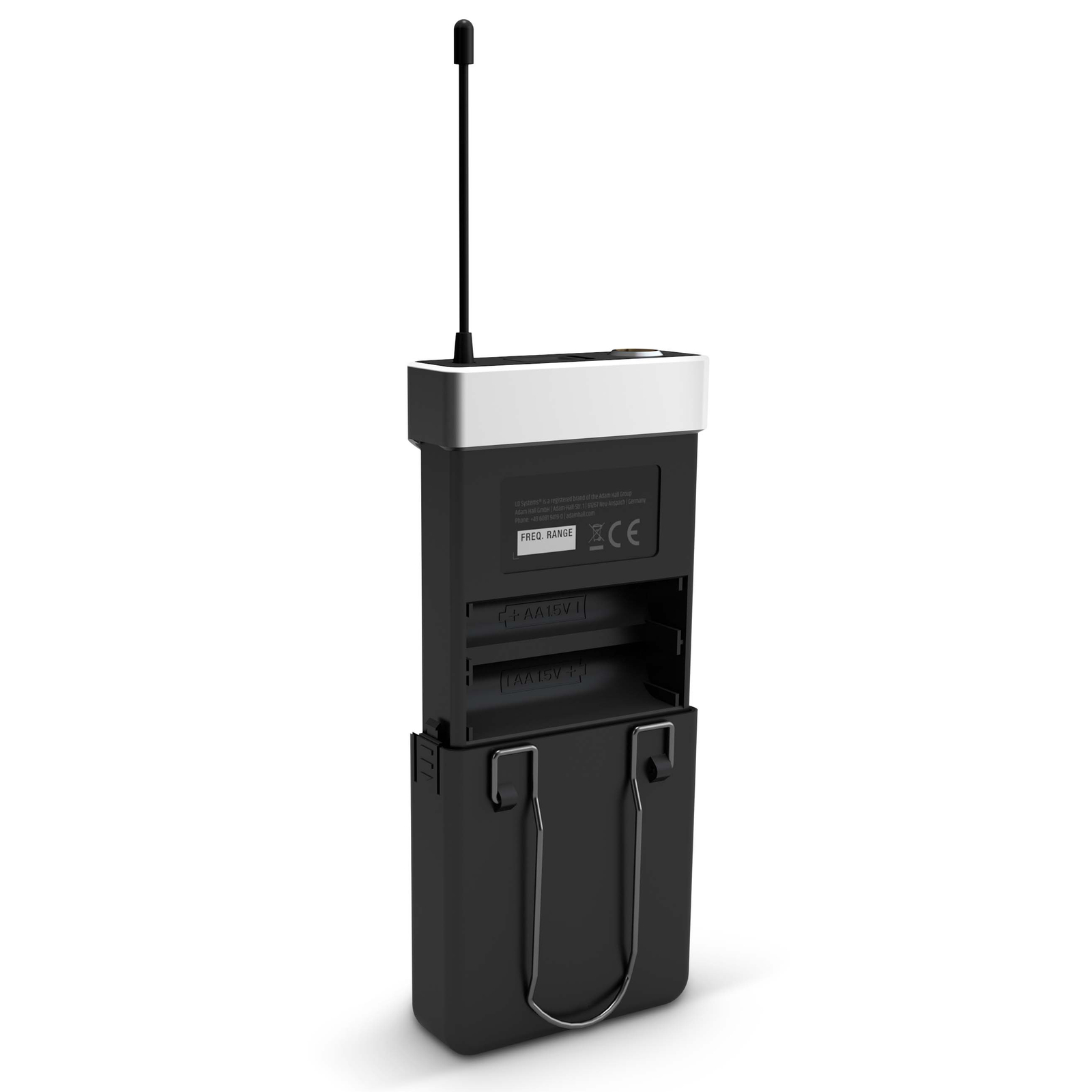

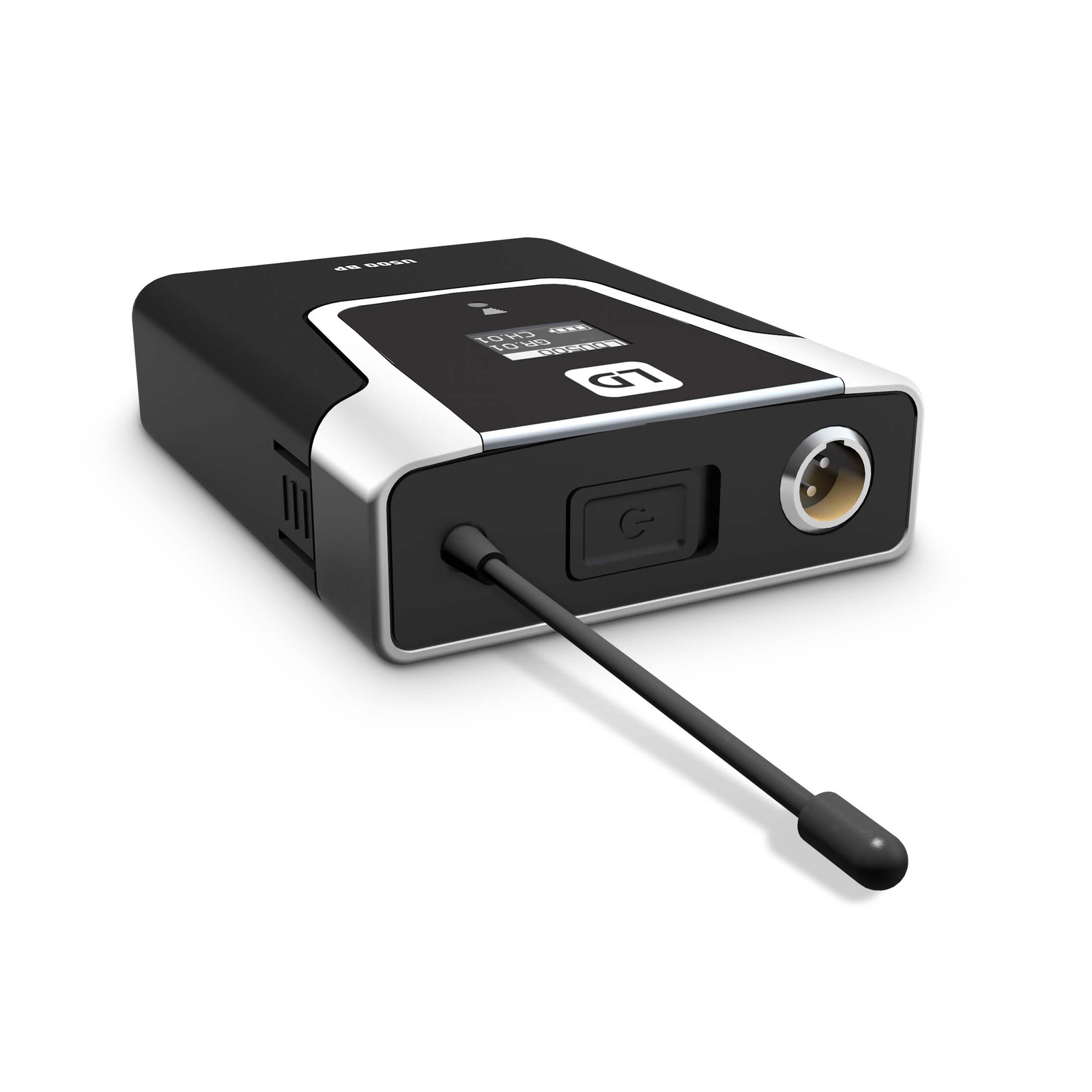

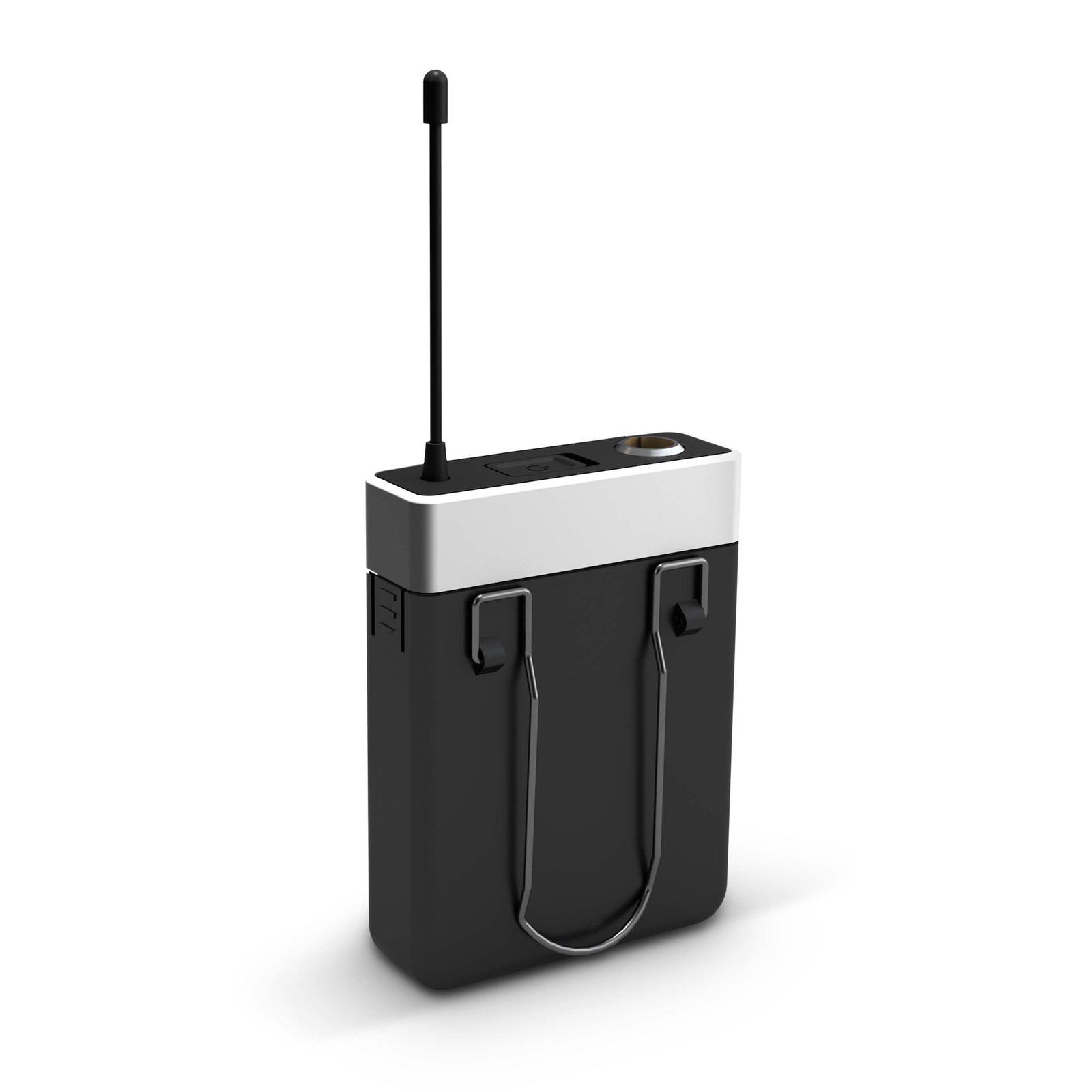

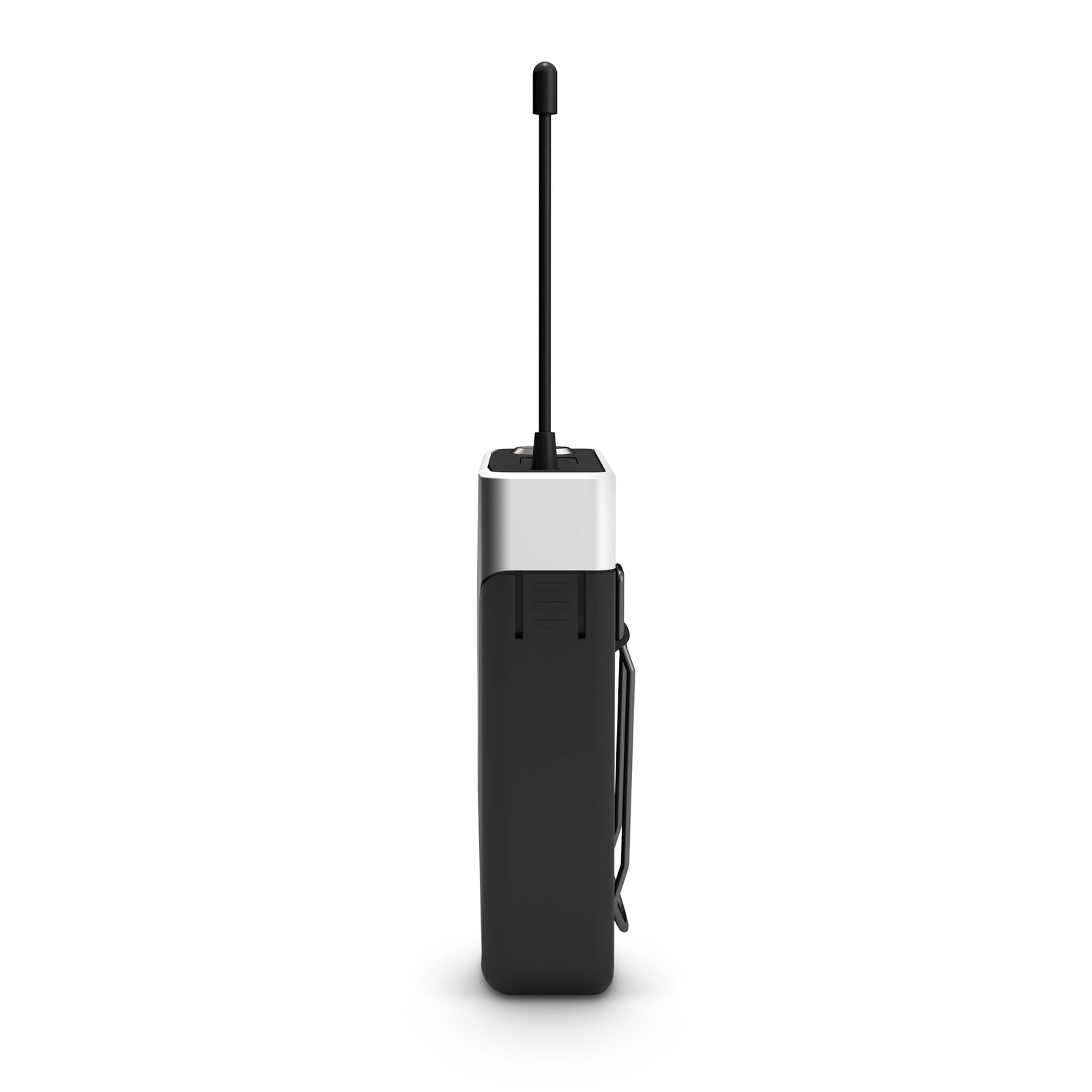

LD Systems U505 BP Bodypack transmitter:

General:
Material: ABS
Wireless frequencies: 584 – 608 MHz
Frequency response (±0.5 dB, rel. Avg): 30 Hz – 16000 Hz
Colour: Black

Radio transmission:
Channel groups number: 8
Channels: 96 (8 groups with 12 channels per each)
Transmitting power: 2 mW, 10 mW, 30 mW
Antenna connector: Mini XLR male
Antennas: Mini XLR male
Frequency synchronization via IR: Yes

Battery operation:
Batteries: 2 x 1.5 V AA/LR6 @ max.10 h
Built in battery tester: No

Dimensions & weight:
Width: 65 mm
Height: 86 mm
Depth: 23 mm

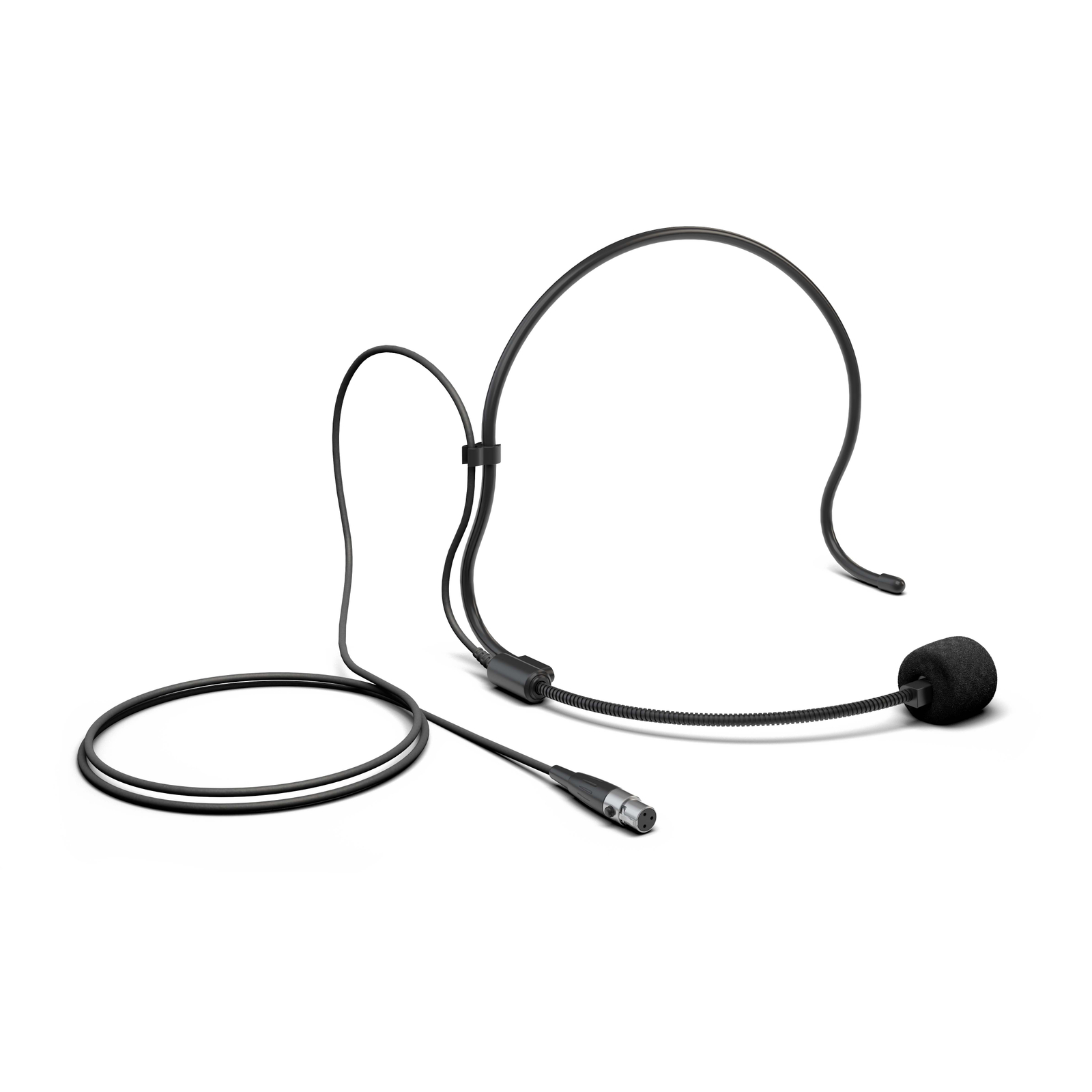

LD Systems WS 100 MH 1 Headset microphone, black:

General:
Directivity: Cardioid
Capsule type: Condenser
Nominal impedance: 680 Ω
Sensitivity (transfer factor): 6.31 mV/Pa
Phantom power: 5 V
Output connector type: Mini XLR female
Cable length: 1 m
Material: ABS
Frequency response (-6 dB, rel. Avg): 100 Hz – 12000 Hz
Colour: Black
Weight: 49 g
