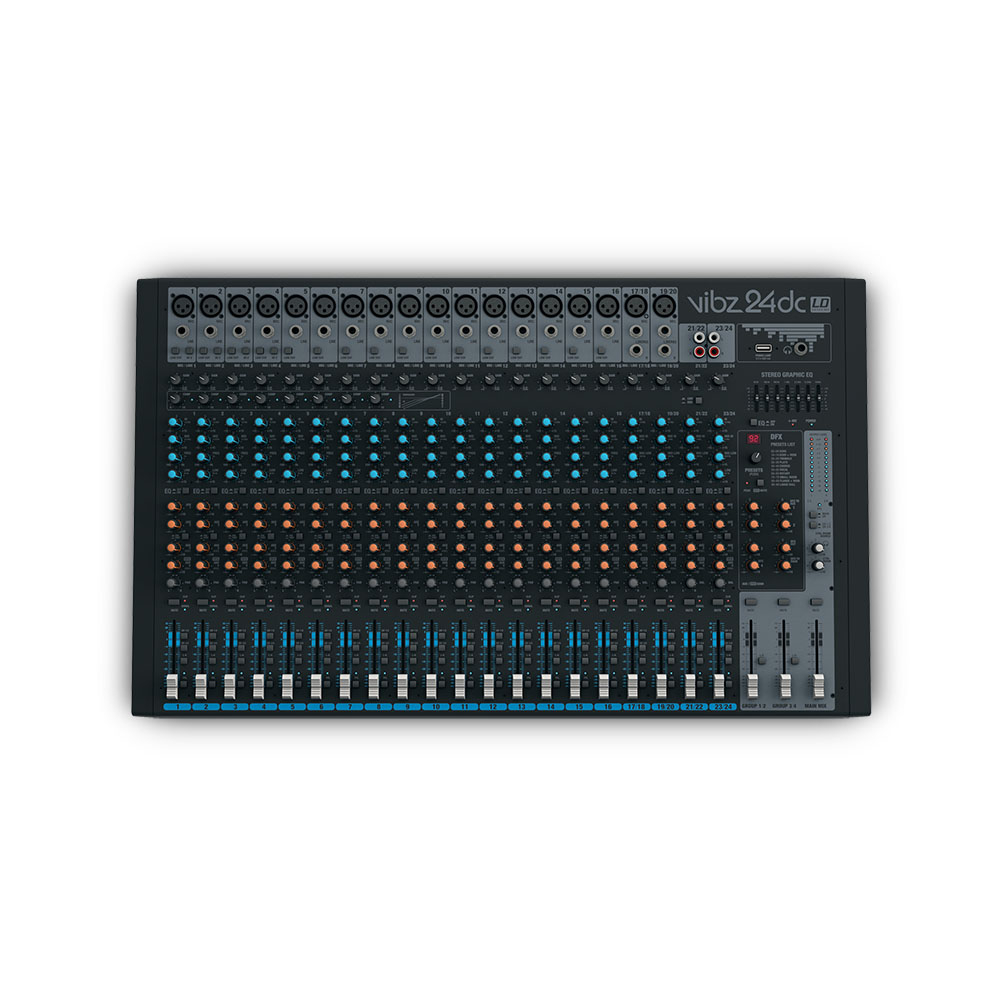

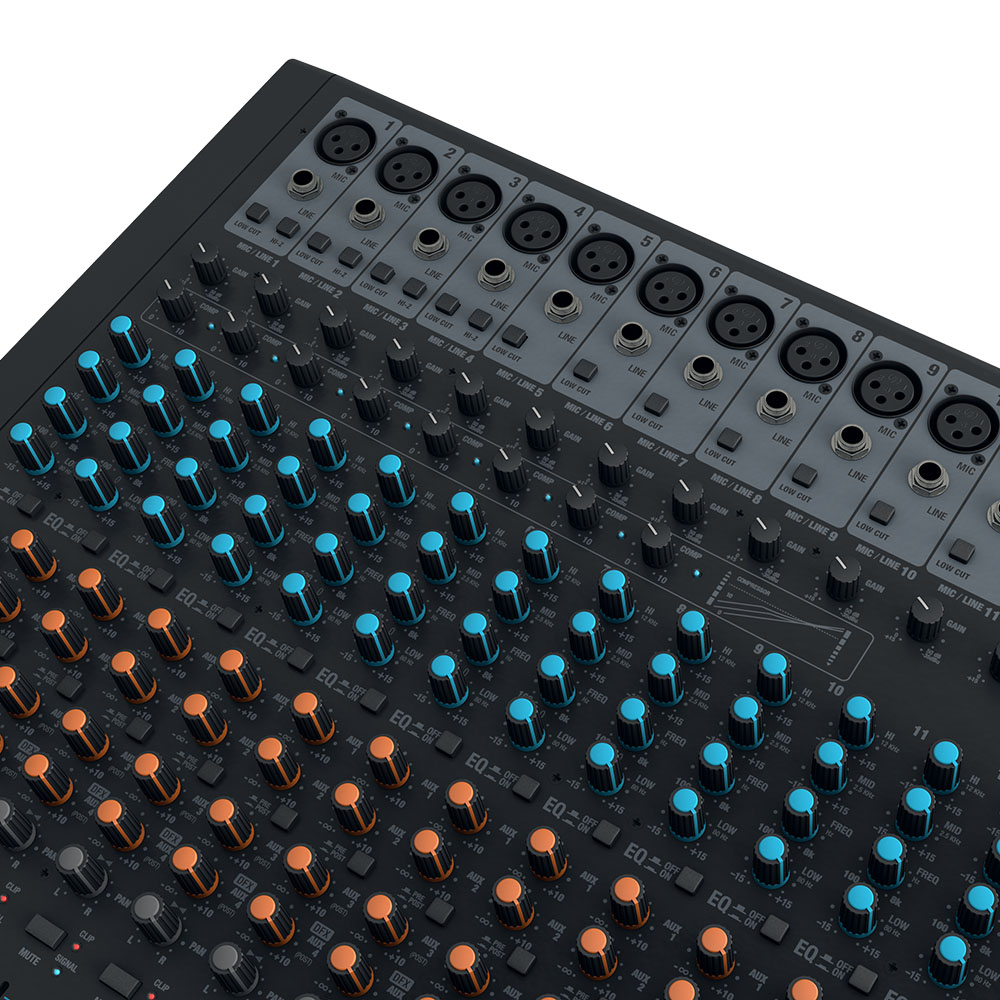

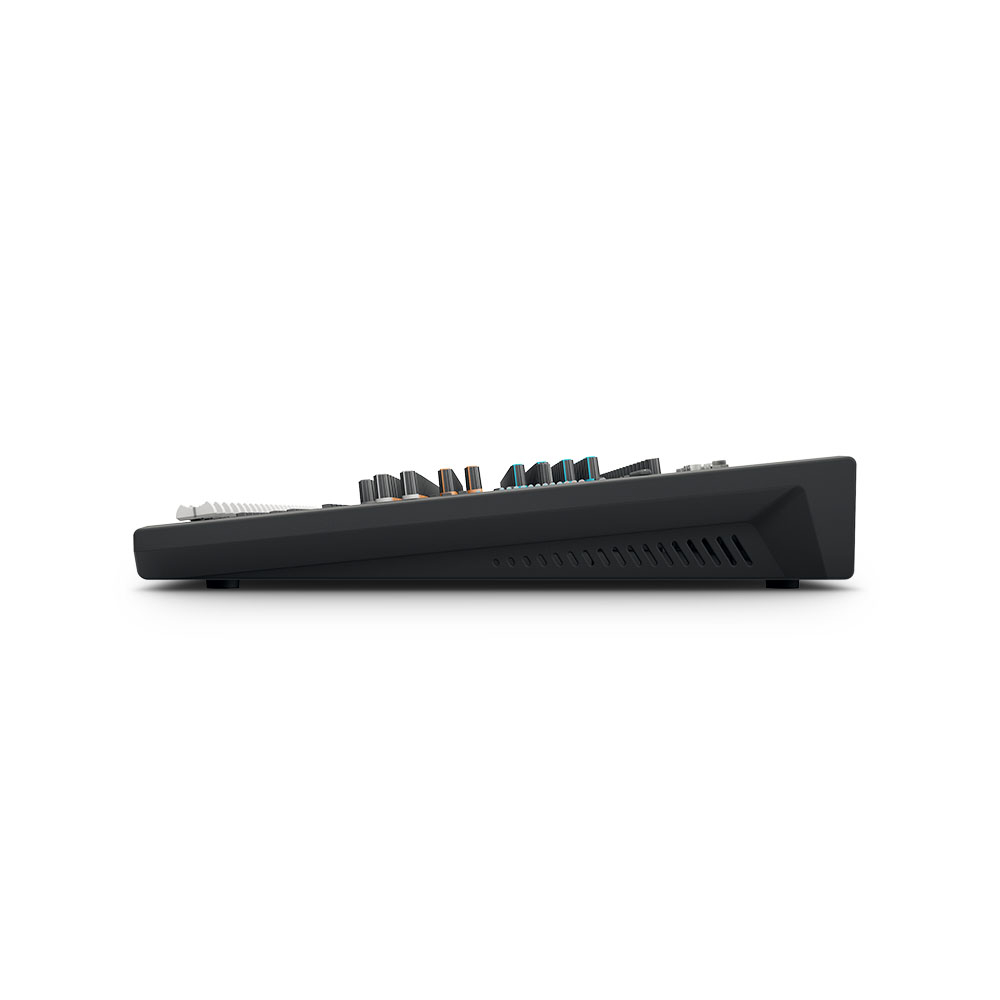

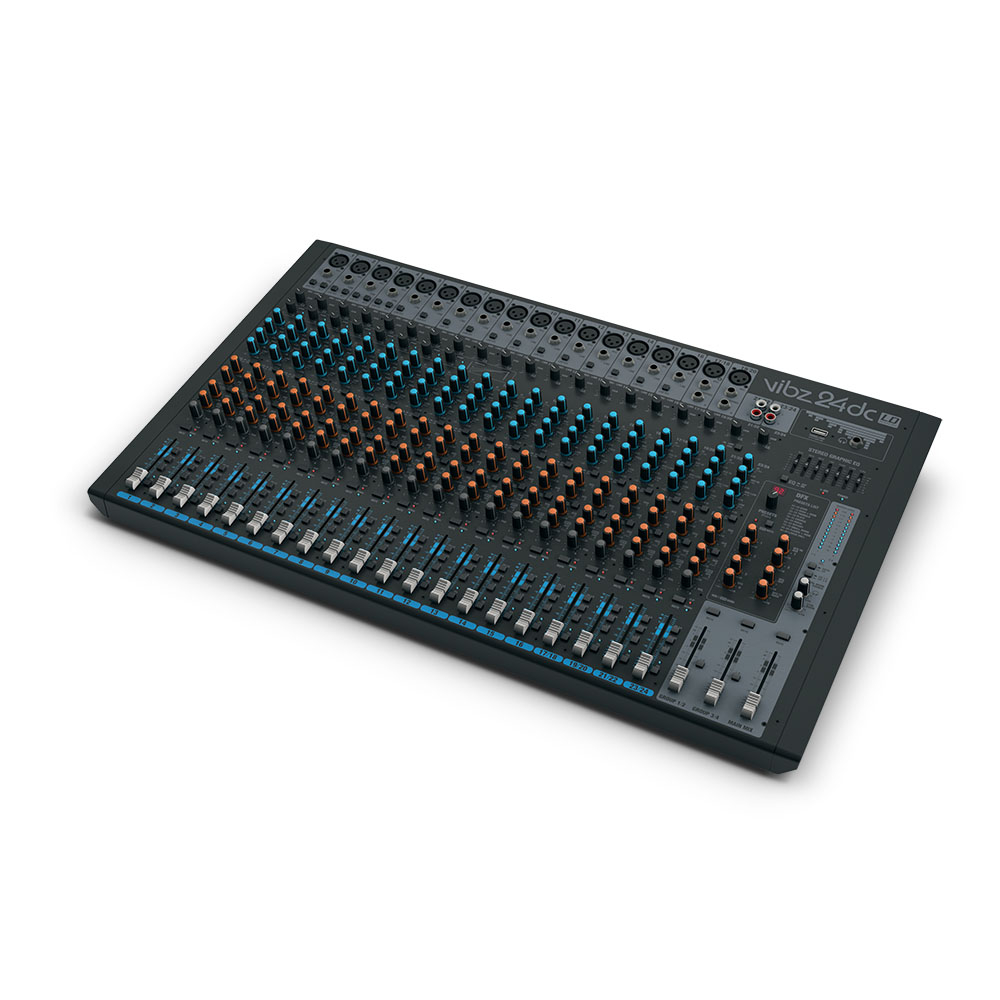

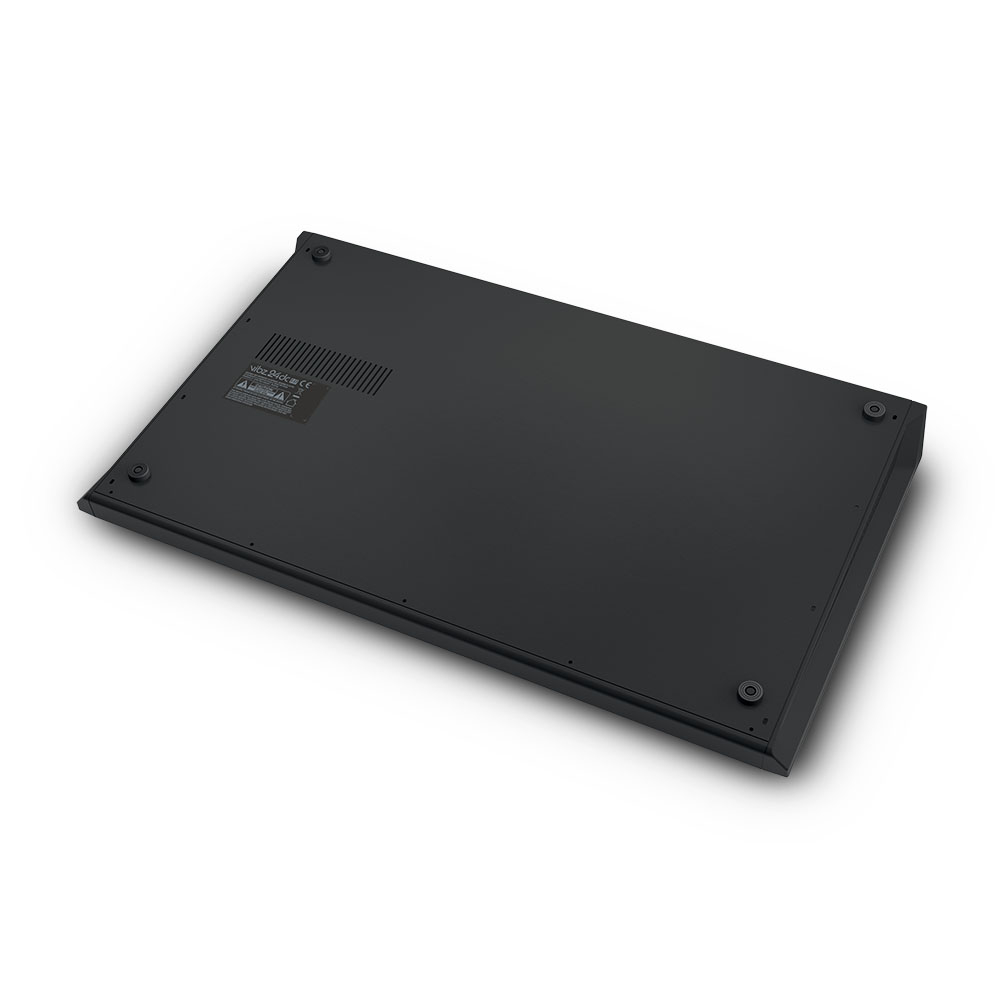

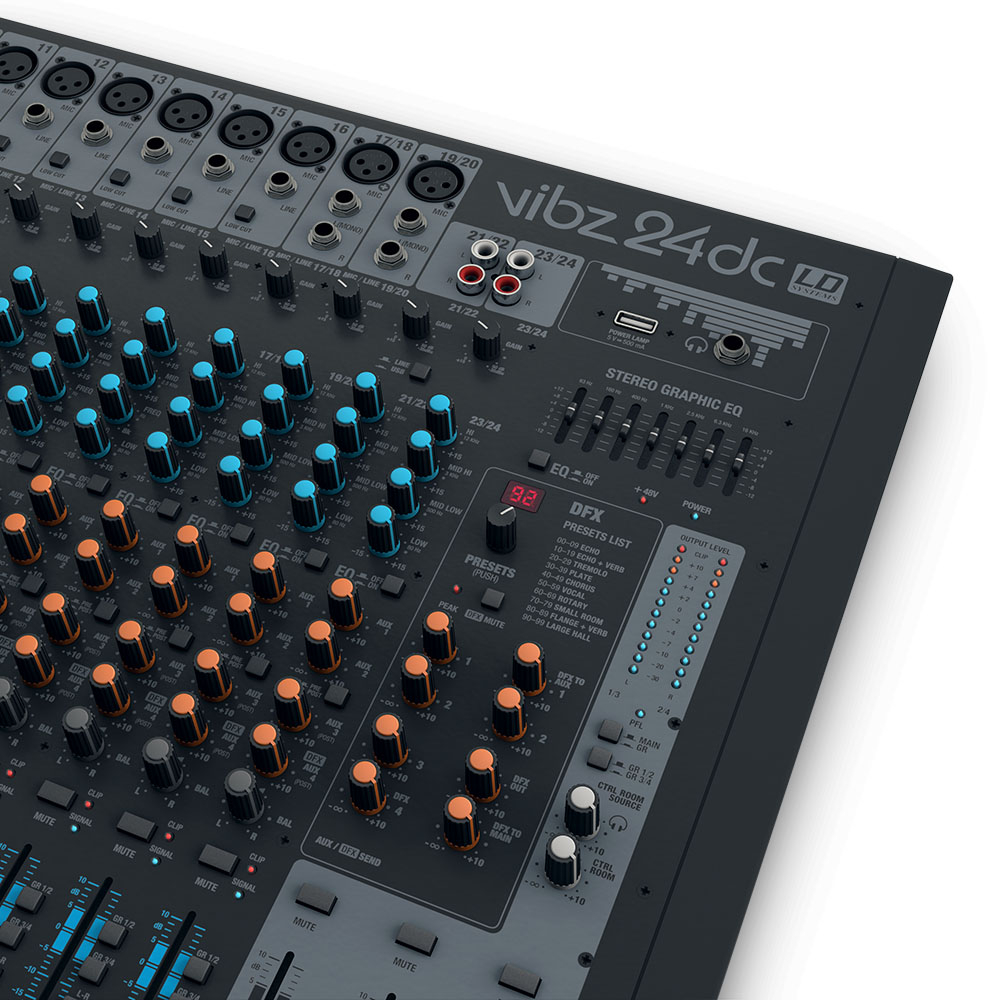

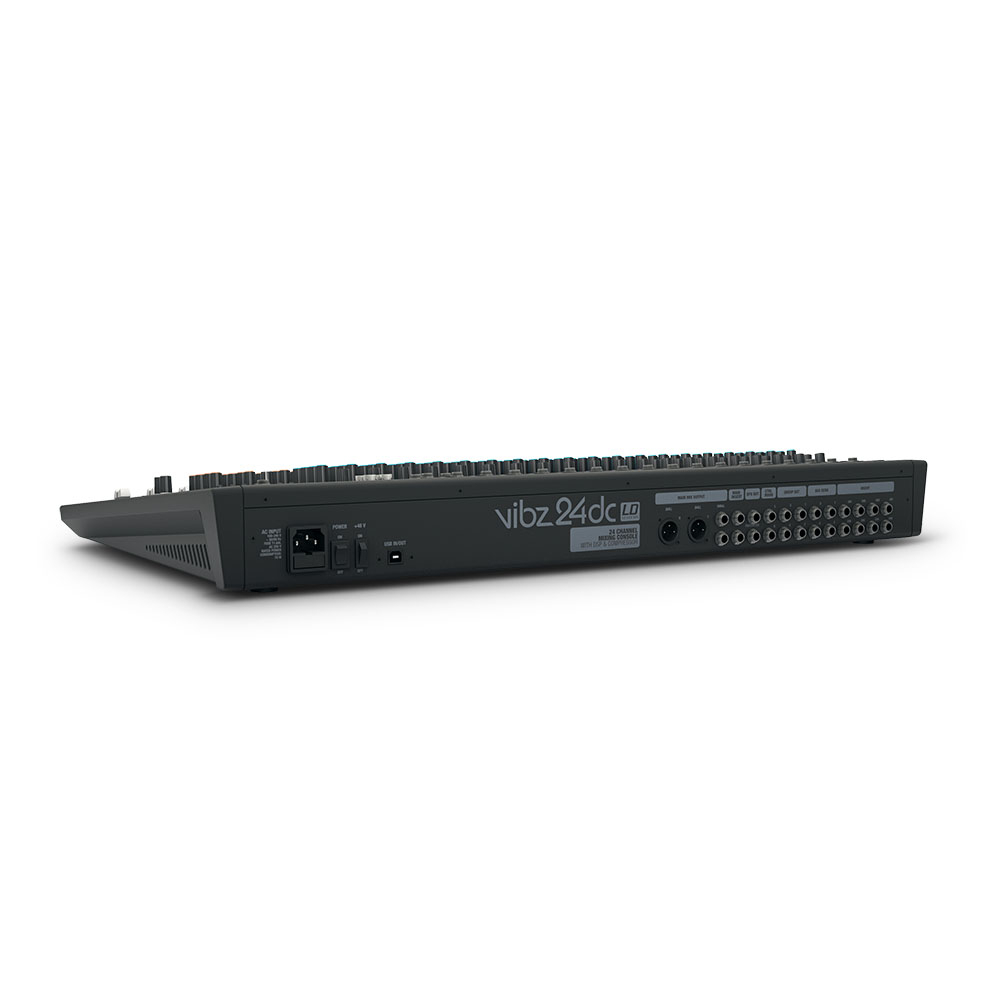

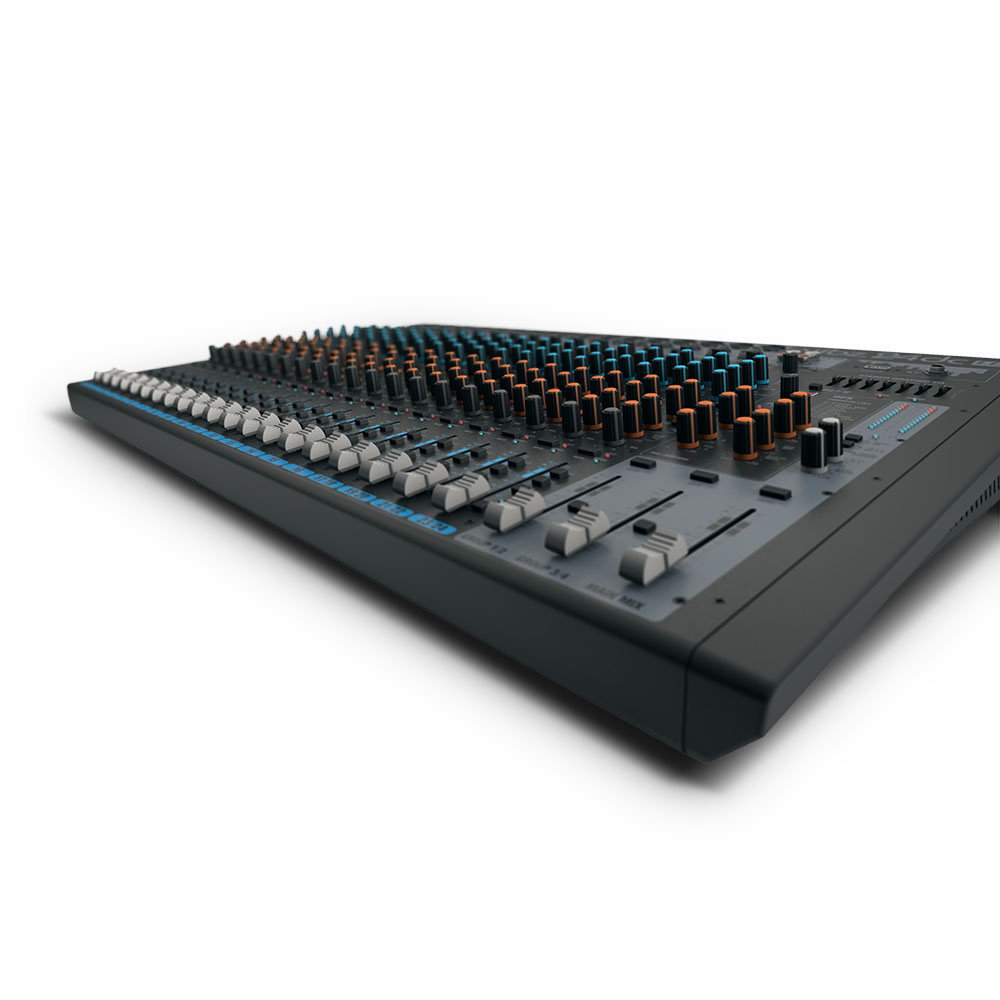

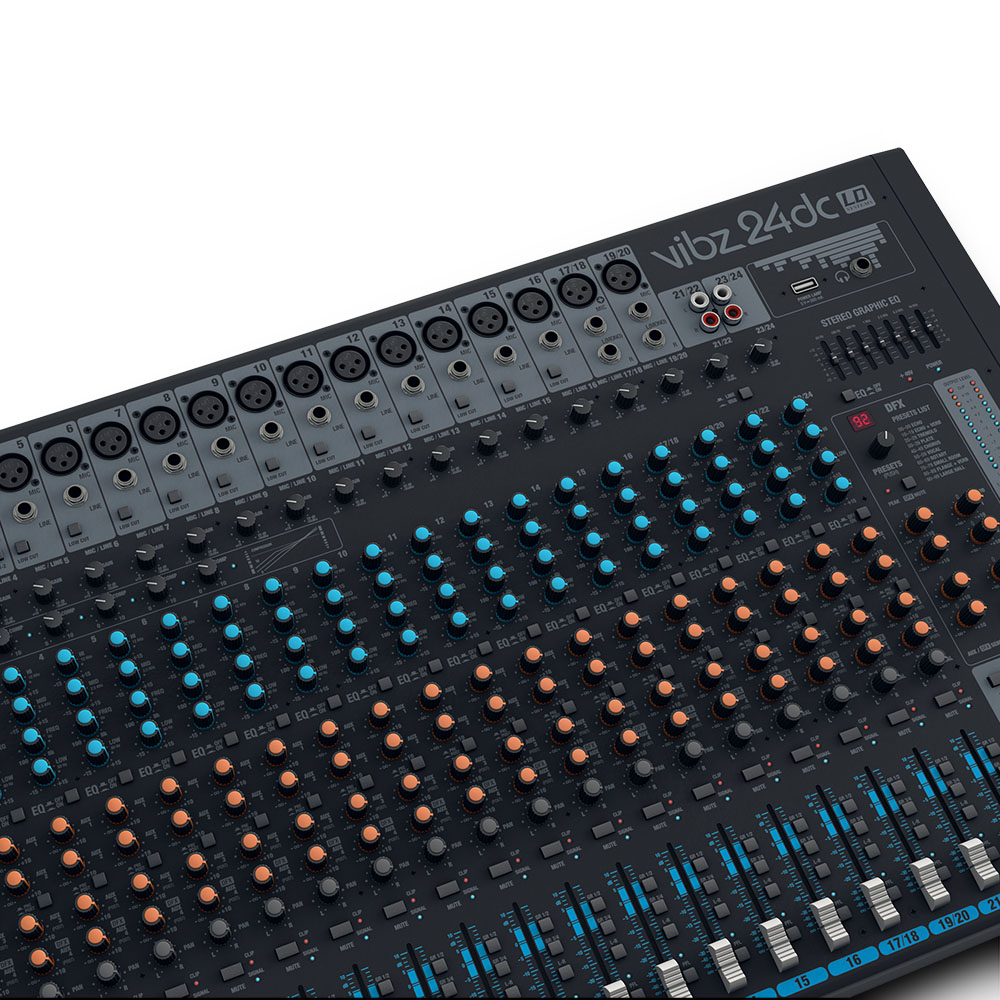

LD Systems VIBZ 24 DC
Gotovina/virman
499,00 €
24-kanalna mikserska konzola s DFX-om i kompresorom
24-kanalni mikser sa 16 mono i 4 stereo kanala
Uravnoteženi mikrofonski i linijski ulazi
3-pojasni EQ s polu-parametarskim srednjim tonovima
4 aux senda, 2 preklopna pre ili post fadera
8 mono kanala s insertima i kompresorom
Prekidači za usmjeravanje kanala, mute i PFL
48V fantomsko napajanje
4 podgrupe s pojedinačnim izlazima
24-bitni digitalni efekti i globalni 7-pojasni grafički EQ
Uravnoteženi i neravnomjerni glavni izlazi
Izlazi za kontrolnu sobu i slušalice
Frekvencijski odziv od 10 Hz do 45 kHz
integrira 16-bitni/48 kHz USB audio sučelje
3-pojasni EQ s polu-parametarskom regulacijom srednjih tonova na mono kanalima
4-pojasni EQ na stereo kanalima
Specifications:
General:
Product type: Mixers
Type: Home-Recording, Live
Channels: 24
Microphone:
Mono Mic and Line Input Channels: 16
Mono Mic input connectors: XLR, 6.3 mm TRS
Mono Mic Input Type: Electronically balanced
Mono Mic Input Frequency Range: 10 Hz – 45000 Hz
Amplification Range mono Mic Input: 0 dB – 50 dB
Mono Mic Input Input THD-N: 0.0058%
Mono Mic Input Impedance: 4000 Ω
Mono Mic Input S/N Ratio: 113 dB
Mono Line Input Type: Electronically balanced
Mono Line Input Frequency Range: 10 Hz – 45000 Hz
Amplification Range mono Line Input: 0 dB – 50 dB
Mono Line Input Input THD-N: 0.0045 %
Mono Line Input Impedance: 21000 Ω
Mono Line Input S/N Ratio: 116 dB
Mono Channel Equalizer High: +/-15 dB @ 12.000 Hz
Mono Channel Equalizer Mid: 200 – 8000
Mono Channel Equalizer Low: +/-15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels: AUX Send 1-2 pre (AUX2 pre/post switchable), 3-band EQ (High, Mid, Low), AUX Send 3-4 (post), Fader Routing switch (Group 1/2, Group 3/4, Main L+R), Channel Fader, Gain, PFL / Solo Switch, Bal, LINE/USB -switch (Channel 21 – 24)
Phantom power: 48 V DC switchable
Mono Inserts: 8
Mono Inserts Connectors: 6.3mm jack
Stereo Channels:
Stereo Line Input Channels: 4
Stereo Line Input Connectors: 6.3 mm TRS
Stereo Line Input Type: Unbalanced, Electronically balanced
Stereo Line Input Frequency Range: 10 Hz – 45000 Hz
Amplification Range stereo Line Input: 0 dB – 50 dB
Stereo Line Input Input THD-N: 0.0045 %
Stereo Line Input Impedance: 37000 Ω
Stereo Line Input S/N Ratio: 116 dB
Stereo channel equalizer treble: +/-15 dB @ 12.000 Hz
Stereo channel equalizer hi-mids: +/-15 dB @ 3.000 Hz
Stereo channel equalizer low-mids: +/-15 dB @ 500 Hz
Stereo channel equalizer bass: +/-15 dB @ 80 Hz
Controls Stereo Line Input Channels: LINE/USB -switch, AUX/DFX Send 1 – 4, Balance, EQ on/off, AUX 1 – 2 switchable Pre/Post, GROUP to Main -switch, 4-band EQ (High, High-Mid, Low-Mid, Low), Gain, Channel Volume
Main Section:
AUX / Effects Send Channels: 4
AUX / Effects Send Connectors: 6.3 mm TS
Stereo AUX Return Channels: 1
Group Out: 4
Group Out Connectors: 4 x 6,3mm TRS
Balanced Stereo Main Out: 1
Balanced Stereo Main Out Connectors: XLR
Unbalanced stereo Main Outputs: 1
Unbalanced stereo Main Output Connections: 2 x 6.3 mm TS
Main-Insert Inputs: 1
Main-Insert Input Ports: 2 x 6.3 mm TRS asymmetrically
DFX Out Outputs: 1
DFX Out Output Ports: 6.3 mm TRS
USB In/Out In-/Outputs: 1
USB In/Out Ports: USB-B
Max. Unbalanced Stereo Main Out Level: 22 dBu
Stereo Control Room Out: 1
Stereo Control Room Out Connectors: 2x 6.3 mm TRS
Headphones ouput: 1
Headphones outputs: 6.3 mm TRS
Digital Effects Processor: Yes
Number of Presets: 100
DMX output: 1
Footswitch Connector DFX Mute: 6.3 mm TS
Main section controls: Main Mix Fader, EQ on/off, Phones/CTRL Fader, GROUP to Main -switch, Phantom Power, DFX Presets, DFX to Aux, DFX to Main, 7-band graphic EQ, DFX Mute, TK In To Main/To CTRL, AUX/DFX Send 1 – 4, mains switch
Indicators: Power, DFX to Main, Signal, DFX Peak, PFL indicator, Phantom Power
Power supply: 100 V AC – 240 V AC, 50 – 60 Hz
Width: 712 mm
Height: 80 mm
Depth: 425 mm
