LD Systems ZONE X 1212
Gotovina/virman
2.790,00 €
Hibridna arhitektura DSP matrice – 12 ulaza / 12 izlaza
DSP procesor s hibridnom arhitekturom koji korisnicima omogućuje prilagodbu različitim zahtjevima instalacije putem predložaka
40-bitni DSP mehanizam s pomičnim zarezom s dvojezgrenim SHARC+ procesorom tvrtke Analog Devices i ARM Cortex A5
Nova generacija Linux operativnog sustava
Vrhunska mikrofonska pretpojačala i 32-bitni AD/DA pretvarači visoke rezolucije

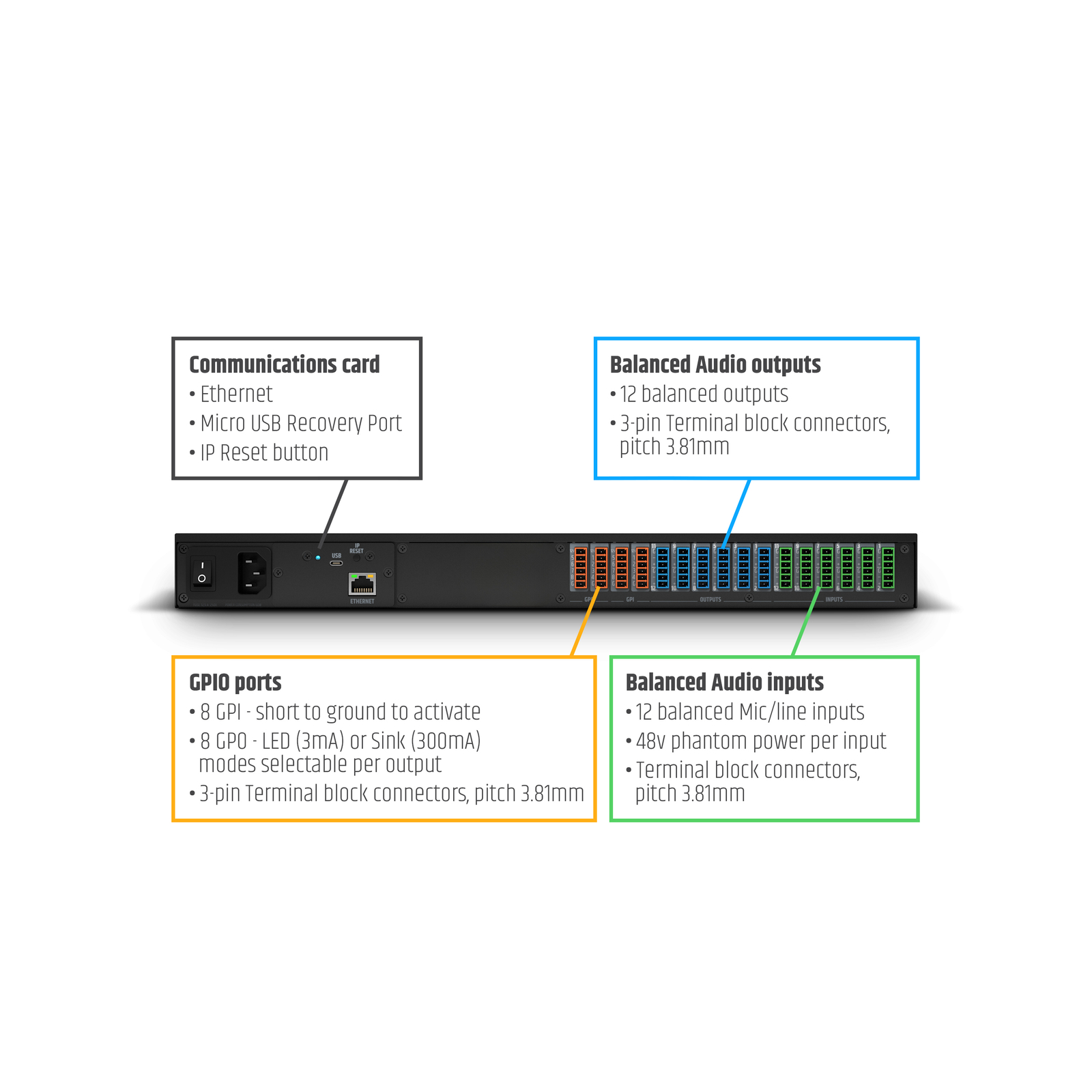

12 balansiranih audio mikrofonskih/linijski ulaza s odabirom fantomskog napajanja od 48 V po kanalu
12 balansiranih linijskih izlaza
8 GPI i 8 GPO logičkih priključaka
Ethernet sučelje za daljinsko upravljanje putem univerzalnog upravljačkog softvera Xilica Designer; Ethernet + Dante kartica opcionalno dostupna
Integrirani planer događaja
Specifications:
General:
Product type: Installation DSP Audio Matrix
General data:
Audio inputs: 12 balanced line outputs
Audio output: 12 balanced line outputs
Logic inputs: 8 GPI – short to ground to activate
Logic outputs: 8 GPO – LED (3mA) or Sink (300mA)

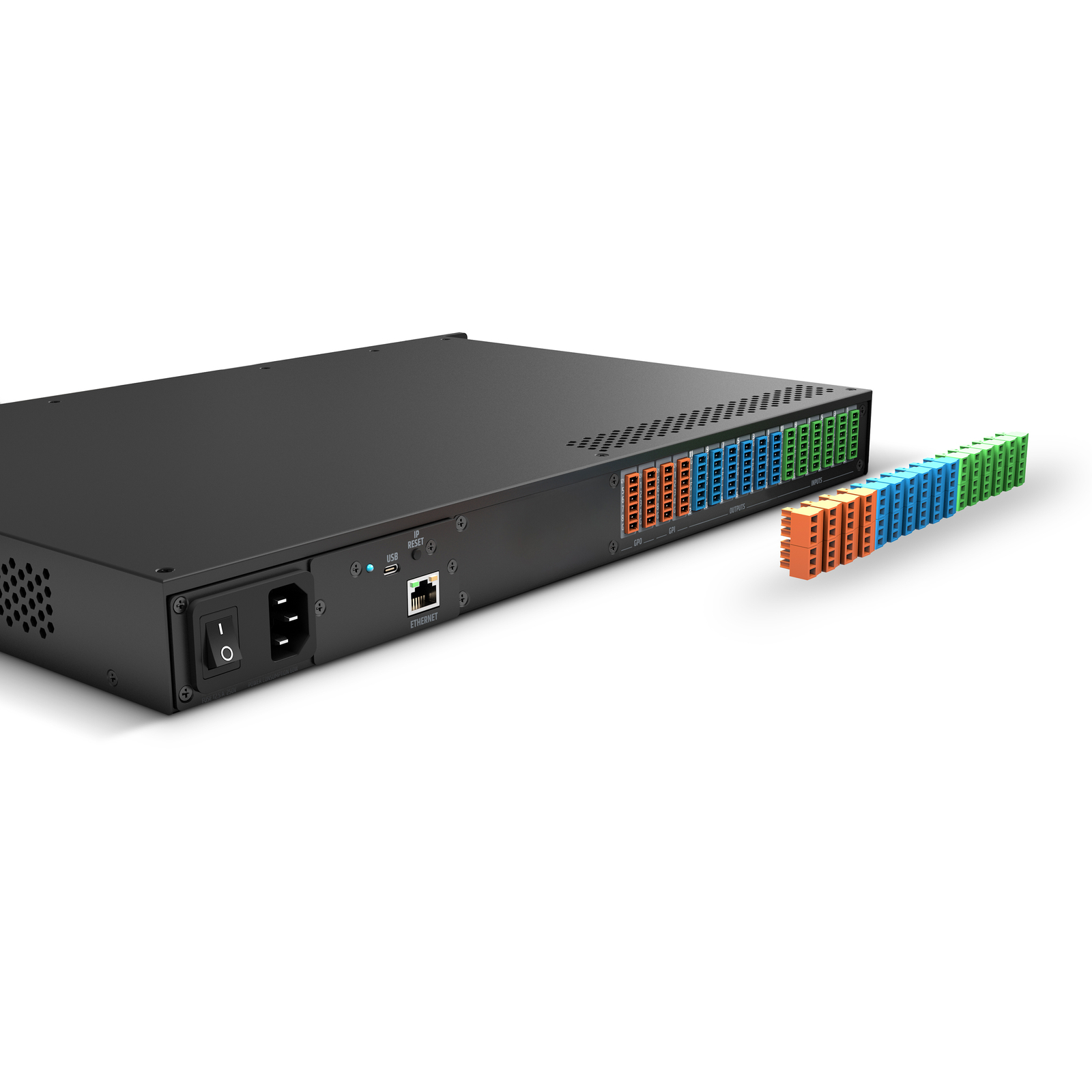

Connectors: 3-pin Terminal Block Pitch 3.81mm, I/O Connectors, Ethernet RJ45, Service connection MicroUSB Type-C

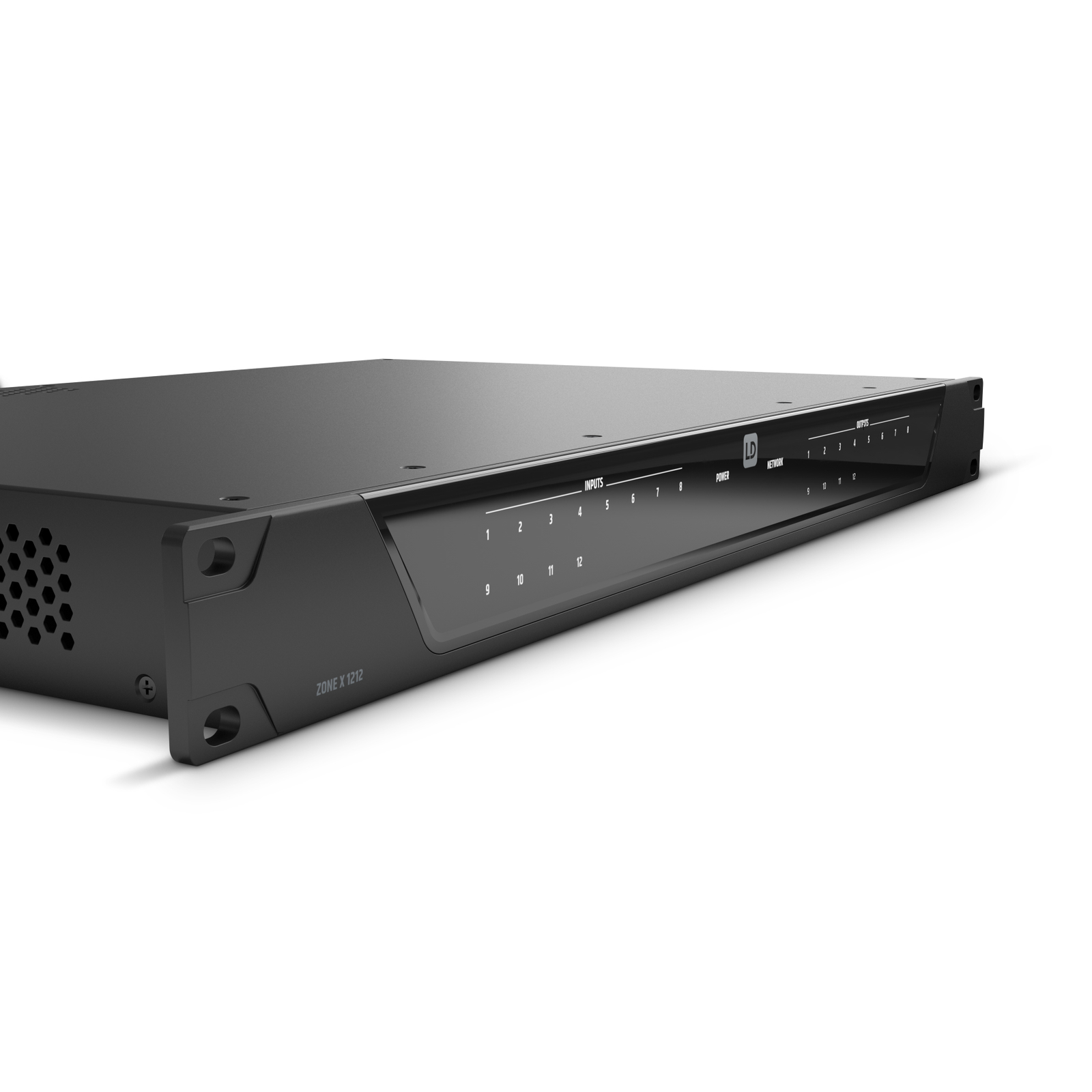

Indicators: Power, Inputs 1 – 12 and outputs 1 – 12: Signal LED white, Network
Front panel controls: No
Rear panel controls: IP Reset, Power On/Off
Expansion Slot: For Ethernet- (ZONEX1212), Ethernet + Dante- (ZONEX1212D)
Cooling: Convection, passive
Operating voltage: Wide Range SMPS
Mains connector: 3-pole IEC mains connection (mains socket)
Operating voltage: 90 – 240 V AC; 50/60 Hz
Input fuse (mains): T2,5 A L / 250 V
Inrush Current Power OFF-ON:: 21 A
Power Consumption @ idle mode: 23 W
Max. Power consumption: 60 W
Operating temperature: 0°C – 40°C; < 60% humidity
Width: 19“-Rack (483 mm)
Height: 1 RU (44.5 mm)
Depth: 315 mm (incl. terminal block connectors)
Performance specifications:
Nominal input sensitivity: -22 dBu (Sine 1 kHz, Gain max)
Nominal input clipping: +20 dBu (Sine 1kHz)
Distortion factor (THD+N): Line IN – OUT), Gain 0 dB), +13 dBu Signal, 20Hz – 20kHz
Intermodulation Distortion (SMPTE): < 0.01% (-10dB below clip) Analyzer BW 90kHz
Frequency response: 15 Hz – 22 kHz (+/-0.15 dB)
Input Impedance: Line 4k Ohms (balanced)
Signal-to-noise ratio: >117 dB @ +20 dBu, Gain 0 dB, 20 kHz BW, A-weighted
Dynamic range (DR AES17): 112
Crosstalk: 120 dB @ 1 kHz, 105 dB @ 10 kHz, 120 dB @ 100 Hz
CMRR IEC: > 60 dB (1 kHz)
Max. Gain: 42 dB
Digital Specifications:
DSP: 40-bit floating point Analog Devices Dual-core SHARC+ processor
System Latency: 4.3 ms
AD/DA converter resolution: 32 bit
AD/DA converter sampling rate: 48 kHz
