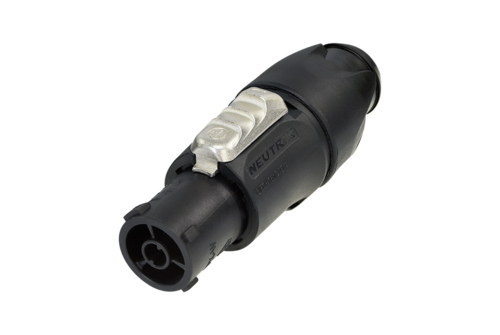

Neutrik NAC3FX-W-TOP
Gotovina/virman
11,00 €
Ženski kabelski konektor s zaključavanjem, vijčani priključci. PowerCON TRUE1 TOP je 16 A pravi mrežni konektor s zaključavanjem za vanjsku primjenu. Zamjenjuje spojnice uređaja gdje god je potrebno vrlo robusno rješenje u kombinaciji s uređajem za zaključavanje kako bi se jamčio siguran priključak napajanja. PowerCON TRUE1 TOP je konektor s prekidnom snagom (CBC), tj. može se spojiti ili odspojiti pod opterećenjem ili naponom.
Heavy duty sealed power connector for harsh and demanding environment
Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
Uses high impact UV-resistant materials
True mains connector with breaking capacity (CBC)
Lockable 16 A single phase connector (USA: 20 A)
Easy and reliable twist lock system
Extremely robust and reliable
Unique Neutrik cable retention
Technical Information:
Electrical:
Contact resistance: ≤ 3 mΩ
Dielectric strength: 4 kVdc / 2.8 kVac
Insulation resistance: >0,1 GΩ (after damp heat test IEC 68-2-30)
Number of electronical contacts: 2 + PE
Rated current per contact: 16 A rms (USA: 20 A)
Rated voltage: 250 V ac
Mechanical :
Cable O.D.: 6 – 12 mm
Lifetime: > 5000 mating cycles
Wiresize: 1.0 – 2.5 mm²
Wiresize: 12 AWG
Material:
Contact plating: 2 µm Ag
Contacts: Bronze (CuSn0.2)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: ZuAl4Cu1
Shell: Polyamide (PA 6.6 30 % GR)
Strain relief: Polyacetal (POM)
Environmental:
Flammability: UL 94 V-0
Protection class: IP65, UL50E enclosure type 4 (mated)
Temperature range: -30 °C – +80 °C
