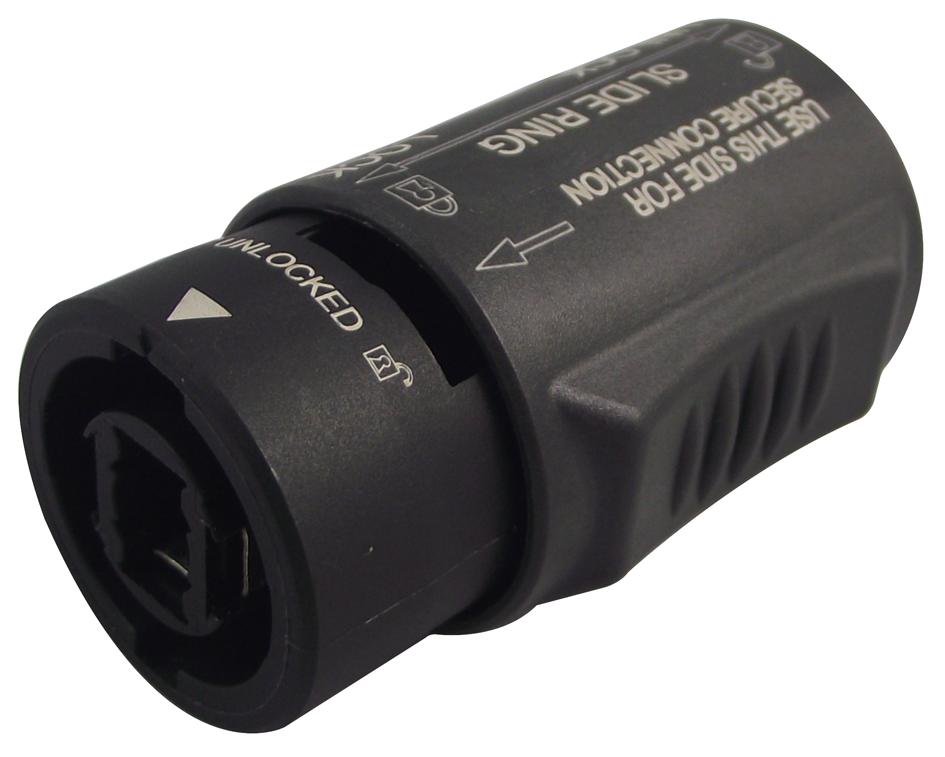

Zaključavajući 4-polni SpeakON adapter

Spaja dva NL2/4F* uređaja za produženje kabela. Mijenja spol u muški kada je trajno zaključan na kabelu.

Sadrži trajno sigurnu vezu na SpeakON kabelskom konektoru pomoću drugog zaključavanja. Može se trajno spojiti na NL2/4F*.

Mogućnost povrata robe
Slanje standardnih pošiljaka
Paletna dostava

Opis

Technical Information:

Product:

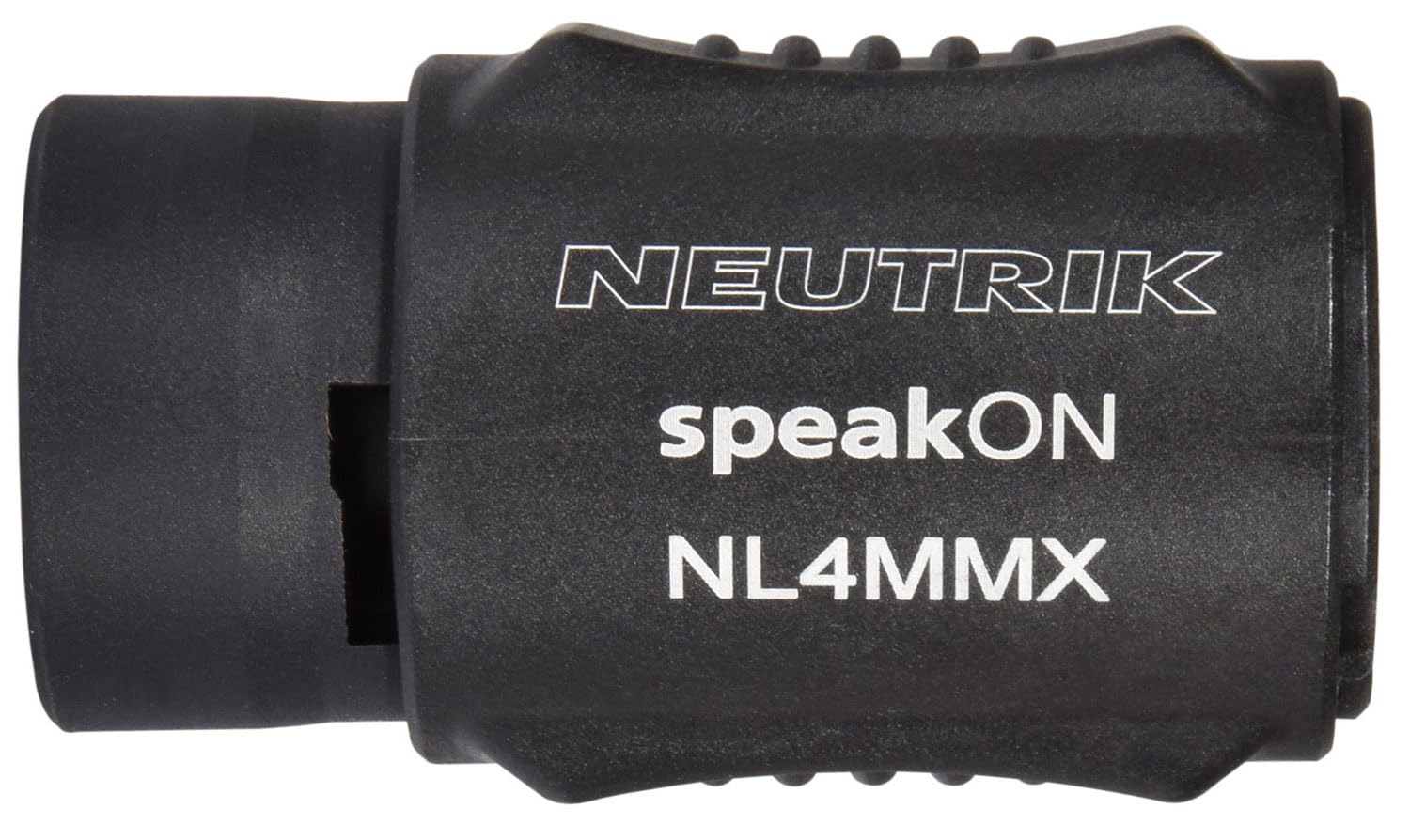

Title: NL4MMX
Gender: male

Electrical:
Contact resistance: ≤ 3 mΩ (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 1 GΩ (after dampheat)
Rated current per contact: 15 A rms continuous
Rated current per contact: 30 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!

Mechanical:
Lifetime: > 5000 mating cycles
Locking device: Quick Lock

Material:
Contact plating: 4 µm Ag
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6 30 % GR)
Shell: Polyamide (PA 6 30 % GR)

Environmental:
Flammability: UL 94 HB
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
