Neutrik NP2XL
Gotovina/virman
7,50 €
MPC: 8,50 €

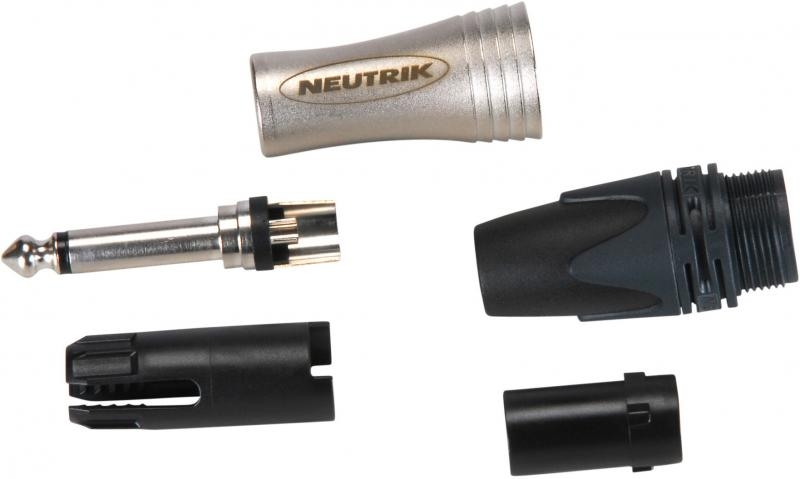

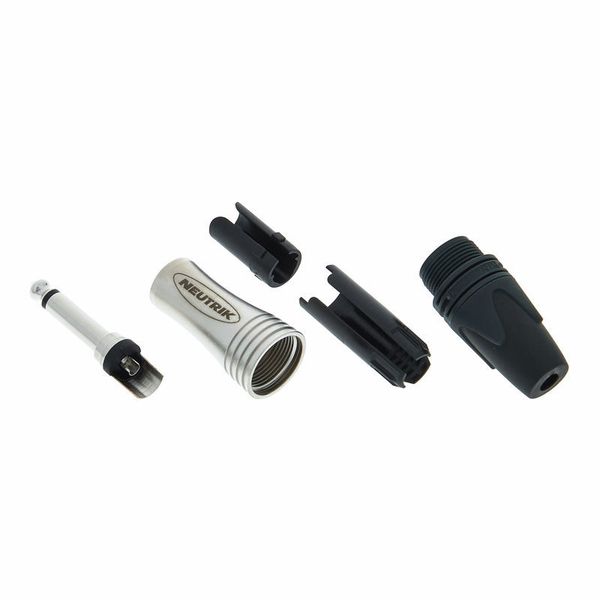

2-polni profesionalni telefonski utikač od 1/4”, vanjski promjer kabela do 10 mm.
Profesionalni jumboPLUG od 1/4” za debele instrumentalne i zvučničke kabele nudi ergonomski oblik i uključuje provjerene značajke i prednosti standardne PX serije.
Technical Information:
Electrical:
Contact resistance: ? mΩ depends on mating connector
Dielectric strength: 1 kVdc
Insulation resistance: > 2 GΩ (initial), ≥ 1 GΩ (after damp heat test)
Rated current per contact: ? A depends on mating connector
Rated voltage: < 50 V
Mechanical:
Cable O.D.: ≤ 10 mm
Lifetime: > 1000 mating cycles
Wiresize: 1 mm²
Wiresize: 18 AWG
Environmental:
Standard compliance: IEC 60603-11 / EIA RS-453
Temperature range: -20 °C to +65 °C
