Omnitronic UHF-200

Features:
Pocket transmitter as UHF PLL system, matching receivers with the same carrier frequency
Operation in the low-interference UHF band

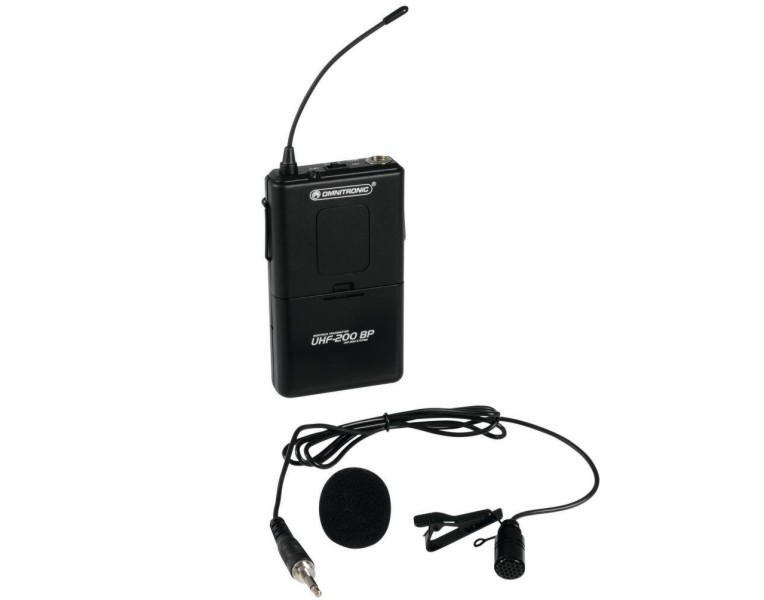

Incl. lavalier microphone
Transmitting power 10 mW
Sensitivity adjustable
Power LED
Mute switch
Operation via 2 x 1.5 V batteries, type AA
License-free and approved in the EU

Technical specifications:
Carrier frequency: 863.010 MHz
Coverage: 50 m (with line-of-sight)
RF power output: 10 mW
Modulation method: F3F
Frequency response: 40 Hz – 18 kHz
S/N ratio: >105 dB
Selectivity: >80 dB
T.H.D.: <0.5 % at 1 kHz
Connection: 3.5 mm jack
Battery: 2 x 1.5 V, type AA
Battery life: approx. 10 hours
Dimensions: 200 x 650 x 25 mm
Weight: 75 g
