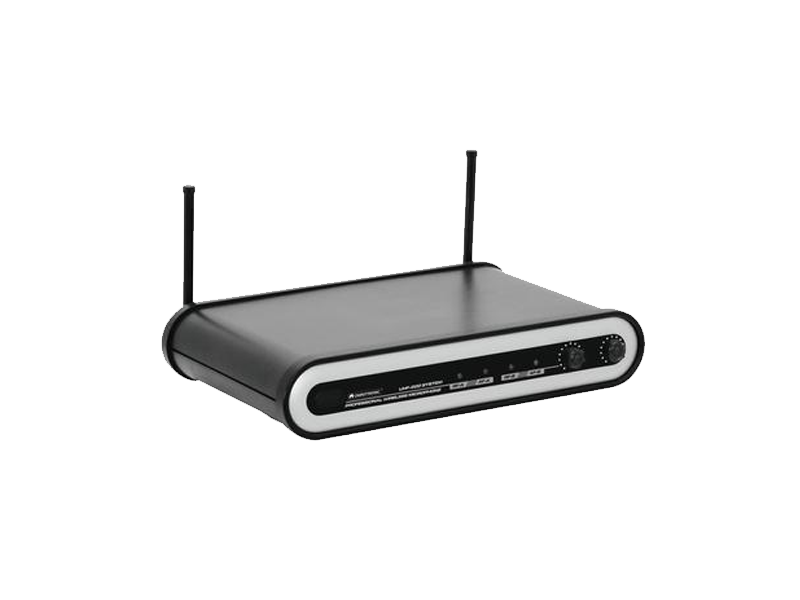

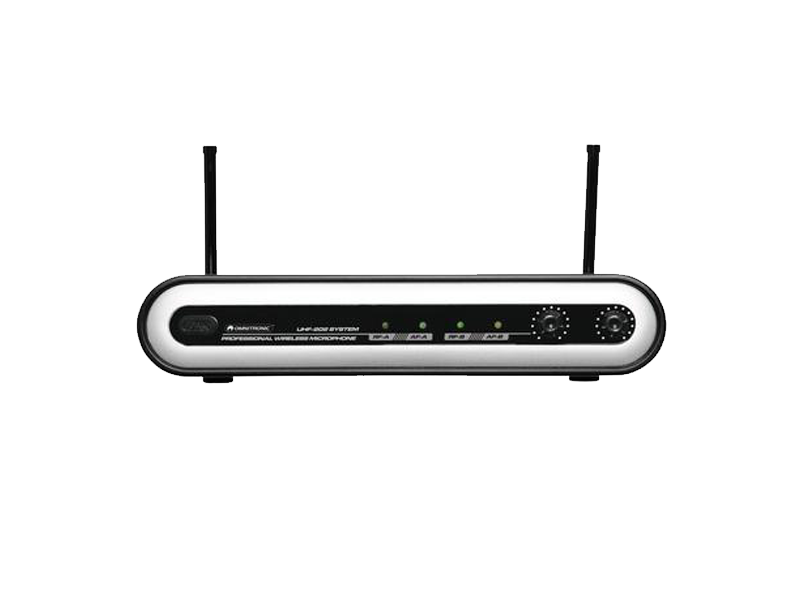

Omnitronic UHF-202

Features:
2-channel receiver unit and 2 hand-held microphones with UHF PLL technology
Operation in the low-interference UHF band (863-865 MHz) with 2 fixed frequencies
Parallel operation of up to 4 transmission channels is possible without any interference
2 separate channels with volume controls and LEDs for carrier signal and audio signal

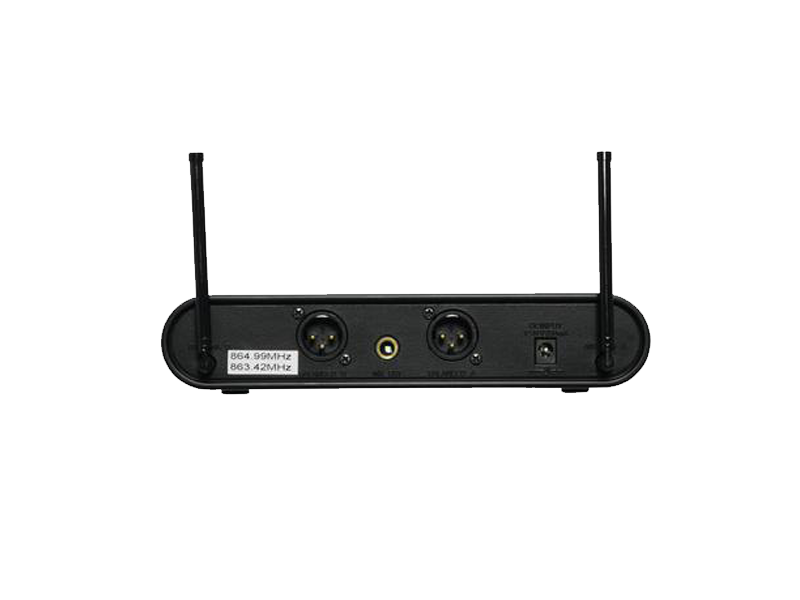

Balanced XLR output per channel
6.3 mm jack for mixed signal output
Jack cable included
Microphones with mute switch and color caps for distinction on stage
Matching pocket transmitters can be ordered separately
License-free and approved in the EU

Technical specifications:
System: Non-diversity, 2 channels
Carrier frequency: 863.010 MHz, 863,420 MHz
Coverage: 50 m (with line-of-sight)
RF power output: 10 mW
Modulation method: F3F
Frequency response: 40 Hz – 18 kHz
S/N ratio: >105 dB
Selectivity: >80 dB
T.H.D.: <0.5 % at 1 kHz
Audio outputs:
Mic: 2 x XLR, bal.
Level/impedance: 400 mV, 2.2 kohms
Line: 6.3 mm jack, unbal.
Level/impedance: 200 mV, 2.2 kohms
Power supply
Receiver: 100-240 V AC, 50/60 Hz ~ via supplied power unit
Power consumption: 10 W
Microphones: 2 x 1.5 V battery, type AA
Battery life: approx. 10 hours
Dimensions, weight:
Receiver: 155 x 210 x 45 mm (LxBxH), 1 kg
Microphones: 50 x 265 mm (DxL), 280 g
