OMNITRONIC UHF-301
Gotovina/virman
190,00 €
OMNITRONIC UHF-301 1-kanalni bežični mikrofonski sustav 823-832/863-865MHz 1-kanalni UHF PLL mikrofonski sustav 1-kanalna višefrekventna prijemna jedinica i ručni mikrofon s UHF PLL tehnologijom 93 unaprijed postavljena kanala u 10 kanalnih grupa Jednostavna i bezgrešna sinkronizacija između prijemnika i odašiljača putem infracrvenog signala LCD zasloni za grupu, frekvenciju i kanal LED zasloni za nosač i audio signal Kontrola glasnoće Balansirani XLR izlaz Nebalansirani 6,3 mm priključak Uključen kabel za priključke Odvojiva antena (BNC priključak) Uklj. nosače za montažu u rack od 483 mm 1 dinamički mikrofon s kardioidnim polarnim uzorkom i LCD zaslonom za kapacitet baterije i frekvenciju Odgovarajući džepni odašiljač može se naručiti zasebno Bez licence i odobren u velikim dijelovima EU (molimo provjerite ovisno o zemlji)
FEATURES:
1-channel UHF PLL microphone system
1-channel multifrequency receiver unit and hand-held microphone with UHF PLL technology
93 preset channels in 10 channel groups
Easy and error-free synchronization between receiver and transmitter via infrared signal
LCDs for group, frequency and channel
LEDs for carrier and audio signal
Volume control
Balanced XLR output
Unbalanced 6.3 mm jack
Jack cable included
Removable antenna (BNC connection)
Incl. mounting brackets for 483 mm rack installation
1 dynamic microphone with cardioid polar pattern and LCD for battery capacity and frequency
Matching pocket transmitter can be ordered separately
License-free and approved in large parts of the EU (please check on a country-by-country basis)

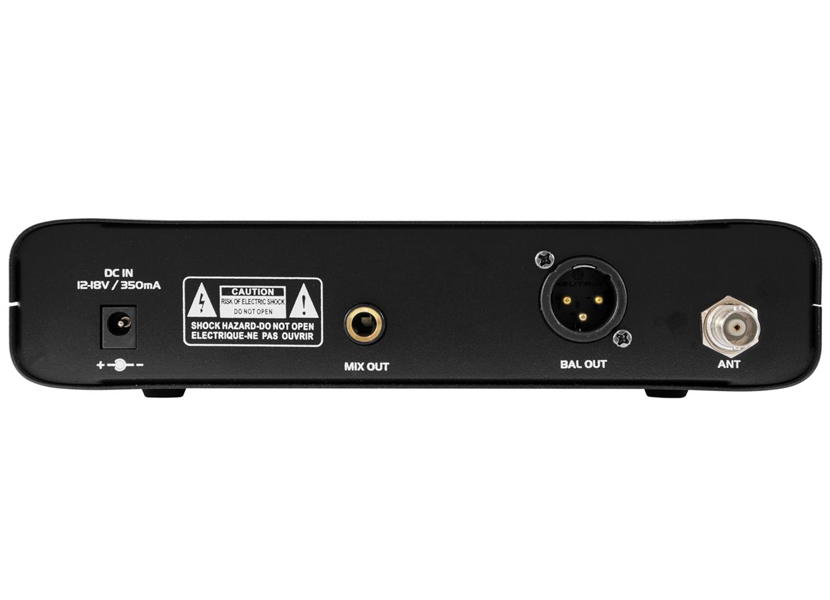

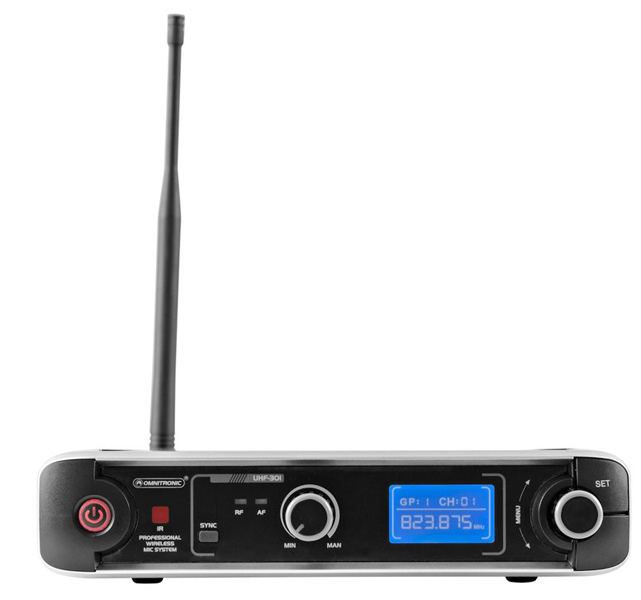

Receiver:
Housing design: (19″) 48,3 cm rack installation possible 1 U
Microphone:
Polar pattern: Cardioid
Battery: 2 x Mignon (AA) (not included)
Mute function: No
TECHNICAL SPECIFICATIONS:
System: Non-diversity, 1 channel
Receiving frequencies: 93
RF power output: 10 mW
Modulation method: FM
Frequency stability: 10 ppm
Sensitivity: 6 dBµV
S/N ratio: >80 dB
THD: less than 0.5 % at 1 kHz
Audio outputs:
Mic: XLR, bal.
Mix: 6.3 mm jack, unbal.
Current consumption: 130 mA
Frequency range: 50 – 18,000 Hz
Frequency band: UHF 823 – 832 MHz; UHF 863 – 865 MHz
Number of channels: 1
Range: 60 m
Type: Wireless set
Weight: 1,51 kg
Receiver:
Power supply: 110-240 V AC, 50/60 Hz; 12 V DC 350 mA
Power consumption: 4 W
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
Material: Metal
Housing design: (19″) 48,3 cm rack installation possible 1 U
Width: 21 cm
Height: 4,7 cm
Depth: 23,5 cm
Microphone:
Power supply: 3 V DC
Polar pattern: Cardioid
Battery: 2 x Mignon (AA) (not included)
Power connection: Battery/battery pack
Microphone-Type: Dynamic
Material: Plastic
Length: 25 cm
Diameter: 5,2 cm
Weight: 0,23 kg
