Palmer BRIDGE 4A
Gotovina/virman
399,00 €
19″ DI box, 4 kanala, aktivni
Balansiranje i usklađivanje impedancije za gitaru, bas, klavijature i sintisajzere
Uklanja brujanje uzemljenja zahvaljujući galvanskoj izolaciji transformatora

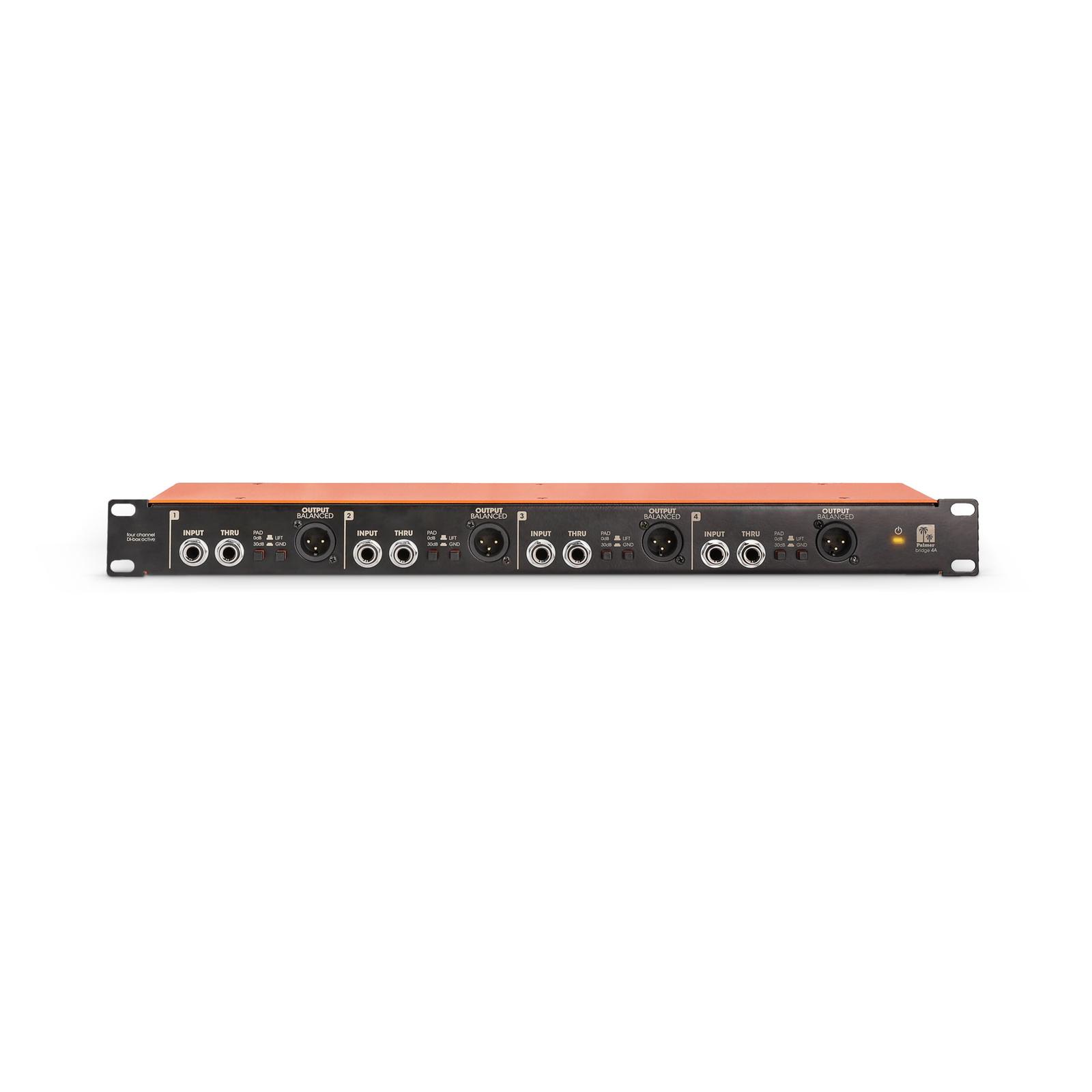

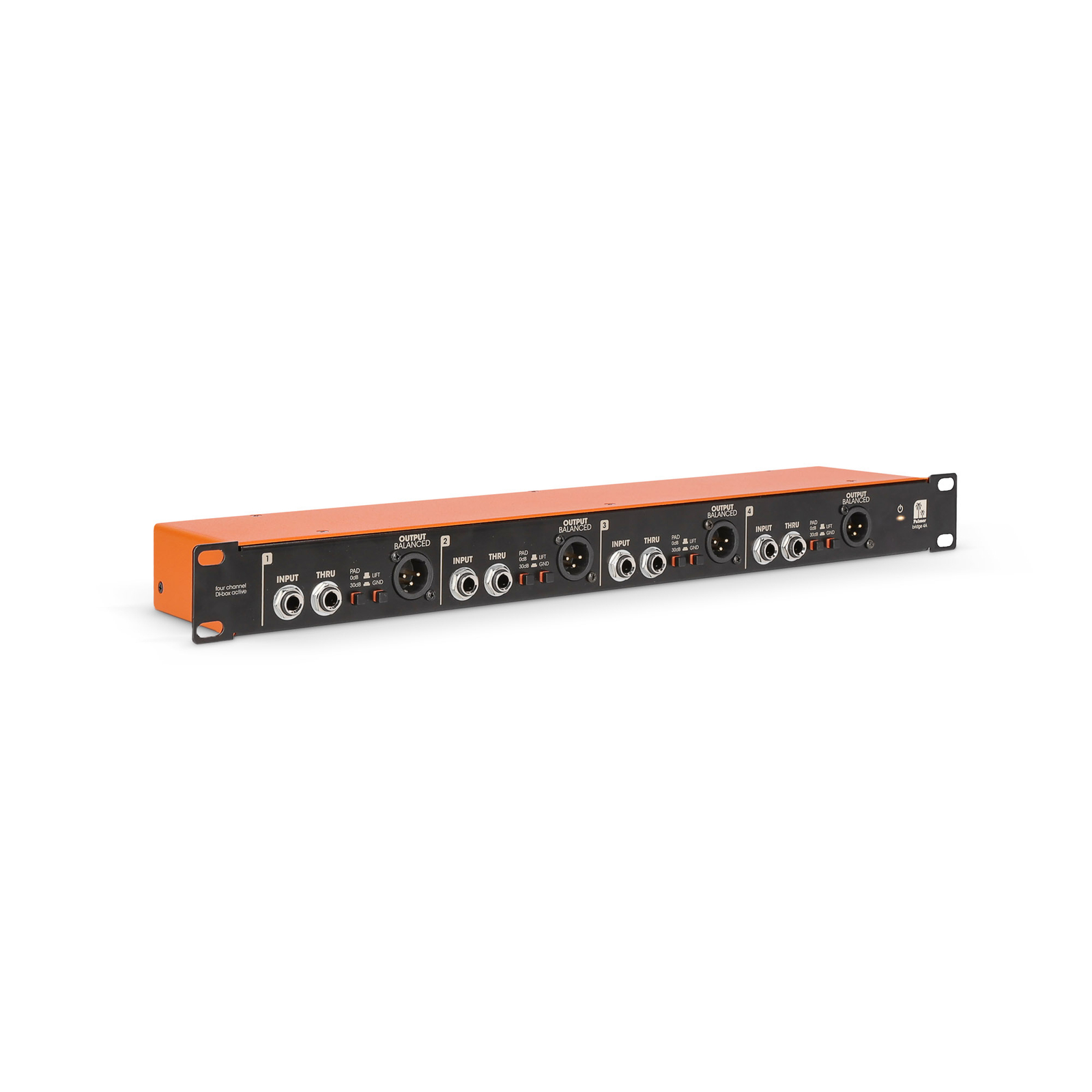

4 neovisna DI boxa u čvrstom 19″ kućištu (1U)
Viša izlazna razina od pasivnog DI boxa
THRU izlaz za propuštanje ulaznog signala
Audio preko Cat izlaza (AES72 tip 5e) za prosljeđivanje svih signala putem jednog Cat kabela
Čist i nepromijenjen zvuk s niskim šumom
Ruši čak i ulaze visoke razine bez izobličenja zahvaljujući preklopnom -30dB padu
Prekidač za podizanje uzemljenja za svaki izlaz
Napajanje: 9V DC, središnji negativni
Proizvedeno u Njemačkoj
Specifications:
General data:
Product type: DI boxes
Type: active
Transformer isolated: yes
Channels: 4
Inputs: 4
input type: unbalanced
Input connectors: 6.3 mm jack
Input pad: 0 dB / 30 dB
Number of outputs: 4 (+ 4 parallel XLR outs + AoC)
THRU outputs/channel: 1
Output type: balanced

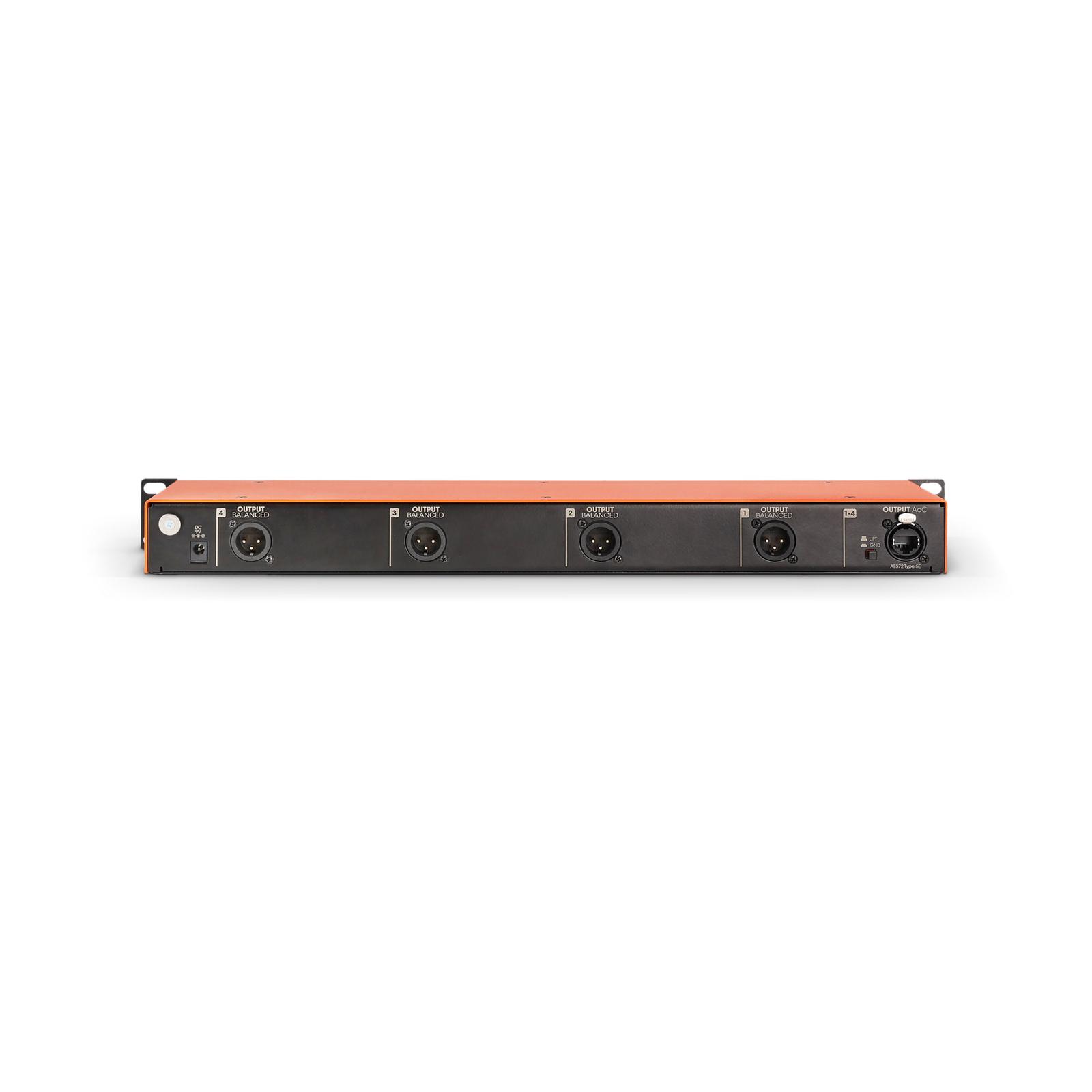

Output connectors: XLR, RJ45

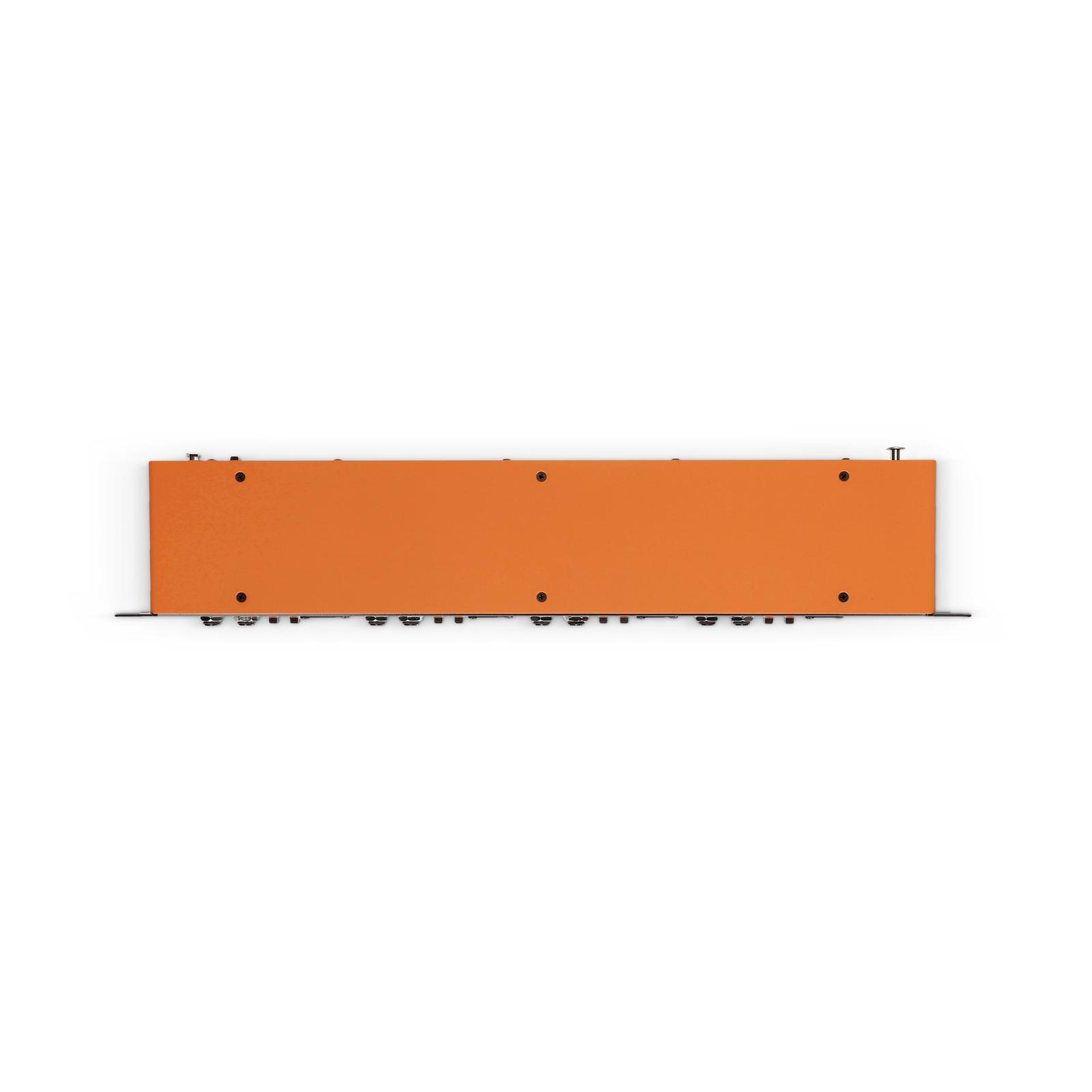

Cabinet material: sheet steel
Width: 482 mm
Width: 19 Inch
Depth: 90 mm
Height: 44 mm
Height: 1 U
Weight: 1,96 kg
Ground lift switch: yes
Operating voltage: 9 V
Power consumption: 2 W
Additional Features: power LED, AoC output with ground lift
Ambient temperature during operation: -20 °C – 70 °C
Relative Humidity: < 80 %, not condensing
Accessories (included): external power supply PW9V
Audio:
Max. input level (< 1% THD, 20 Hz): + 14 dBu
Max. input level (< 1% THD, 1 kHz): + 23 dBu
Max. output level (<1% THD, 20 Hz – 20kHz): +19 dBu
Frequency response (±0,5 dB, relative 1 kHz): 20 Hz – 20 kHz
Input impedance (1 kHz): 390 KOHM
Output impedance (1 kHz): 110 Ω
THD + N (30 Hz, +4 dBu, unity, unweighted): < 0.0026%
THD + N (1 kHz, +4 dBu, unity, unweighted): < 0.0011%
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): < 0.0021%
SNR (+4 dBu, 22 kHz BW, unity, unweighted): 105 dB
Transformer ratio: 1:3
