Rean NYS 230
Gotovina/virman
1,60 €
MPC: 1,90 €

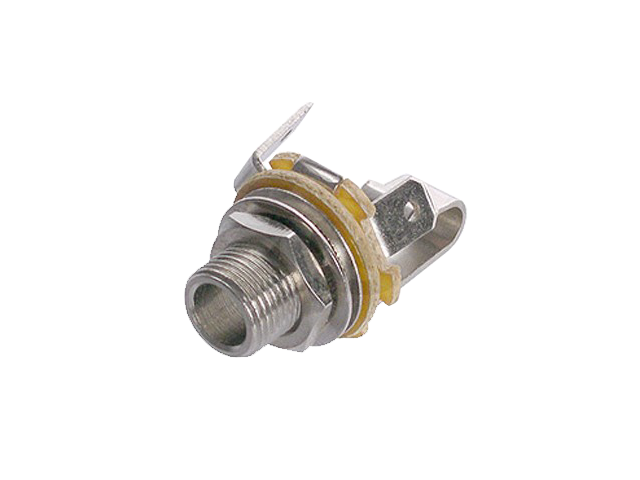

3-polni otvoreni priključak od 1/4”, 3 kontakta, s podloškom i maticom, debljina ploče 3,5 mm, s faston konektorima od 0,205″
Title: NYS230
Electrical
Dielectric strength: 0.5 kVdc
Insulation resistance: ≥ 1 GΩ
Rated current: depends on mated connector
Contact resistance: depends on mated connector
Mechanical
Insertion force: ≤ 20 N
Withdrawal force: ≥ 10 N
Lifetime: 1000 mating cycles
Panel thickness: 3.5 mm
Material
Insulation: Insulation board
Environmental
Temperature range: -20 °C to +70 °C
