Rean NYS 240 BG

Name: Rean NYS 240 BG
Brand: Rean
SKU: 674
Availability: InStock

Gotovina/virman

1,40 €

MPC: ~~1,60 €~~

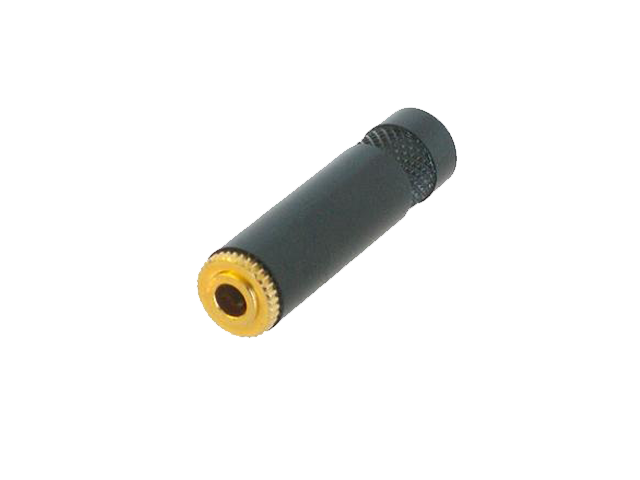

3-polni 3,5 mm kabelski priključak, crna metalna ručka, pozlaćeni kontakti, maks. vanjski promjer kabela 4 mm

Mogućnost povrata robe
Slanje standardnih pošiljaka
Paletna dostava

Opis

Title: NYS240BG
Electrical
Dielectric strength: 0.5 kVdc
Insulation resistance: ≥ 1 GΩ
Rated current: depends on mated connector
Contact resistance: depends on mated connector
Mechanical
Cable O.D.: 4 mm
Insertion force: ≤ 20 N
Withdrawal force: ≥ 10 N
Lifetime: 1000 mating cycles
Material
Insulation: Thermoplastic
Environmental
Temperature range: -25 °C to +70 °C
