Rean NYS 373-9
Gotovina/virman
3,50 €
MPC: 4,00 €

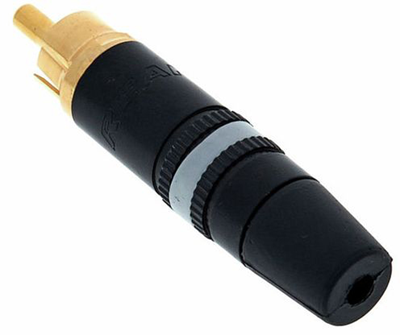

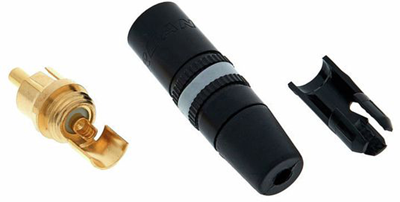

Phono utikač, crno kućište, pozlaćeni kontakti, gumena zaštitna navlaka za najbolju zaštitu od savijanja, stezna zaštitna navlaka za kabel vanjskog promjera 3,5 do 6,1 mm, prsten za označavanje boja: 9-bijela
Title: NYS373-0
Electrical
Dielectric strength: 0.5 kVdc
Insulation resistance: ≥ 1 GΩ
Rated current: depends on mated connector
Contact resistance: depends on mated connector
Mechanical
Cable O.D.: 3.5 – 6.1 mm
Lifetime: > 1000 mating cycles
Wiresize: 24 AWG
Material
Insulation: Thermoplastic
Strain relief: Internal plastic chuck
Environmental
Temperature range: -25 °C to +70 °C
