Rean RCAC3F-X-000
Gotovina/virman
12,00 €

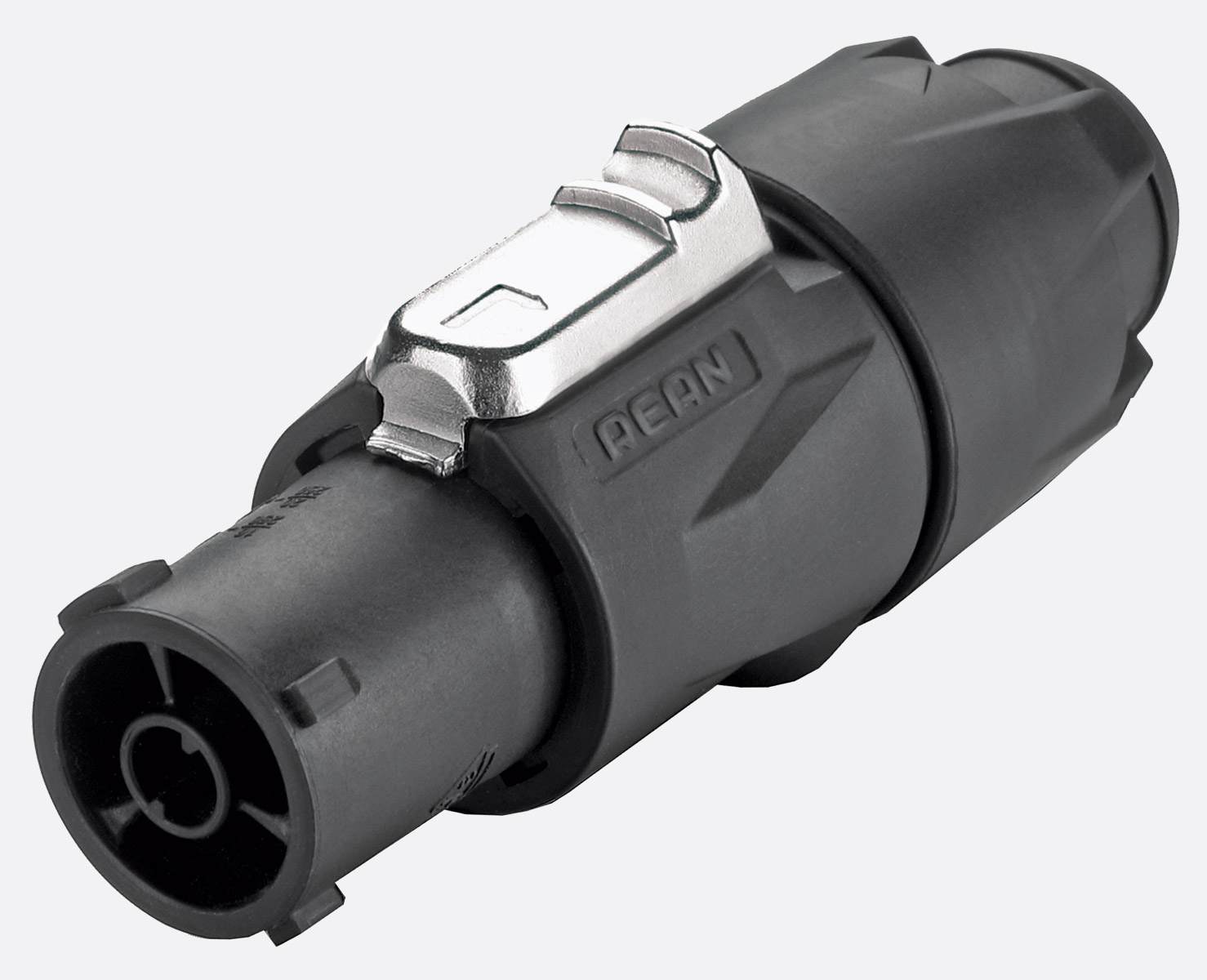

Ženski kabelski konektor s mogućnošću zaključavanja, s izvrsnom klasom zapaljivosti korištenjem V0 materijala.
Dizajniran za vanjsku primjenu, IP65 zaštita, otporan na vremenske uvjete.
Power X serija su konektori s prekidnom snagom (CBC), tj. mogu se spajati ili odspajati pod opterećenjem ili pod naponom.
Technical Information:
Product:
Title: RCAC3F-X-000
Connection Type: Power Connectors
Electrical:
Number of contacts: 2 + PE
Rating Europe: EN 60320-1: 16 A 250 V AC
Dielectric strength: 4 kV dc / 2.8 kV ac
Contact resistance: ≤ 2 mΩ
Insulation resistance (after dampheat): > 0.1 GΩ
Mechanical:
Retention method: Twist lock
Lifetime: > 5000 mating cycles
Cable O.D. range: 6 – 12 mm
Wiring: Screw terminals
Wiresize: 1.0 – 2.5 mm²
Wiresize: 12 AWG
Material:
Shell: Polyamide
Insert: Polyamide
Contacts: Copper alloy
Contact plating: Ag
Strain relief: PBT
Environmental:
Temperature range: -30 °C to +80 °C
Flammability: UL94 V-0
