Rean RT3 MPR
Gotovina/virman
2,30 €

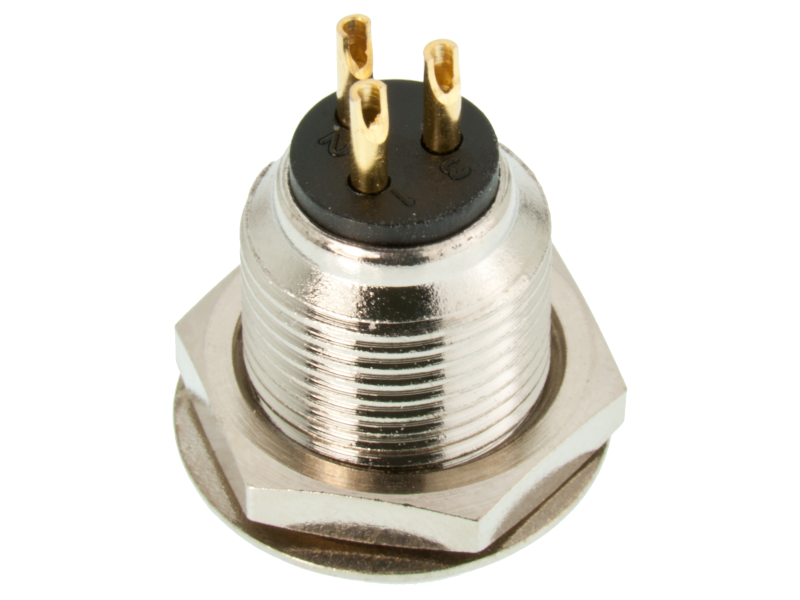

3-polni TINY xlr muški konektor za šasiju, stražnja montaža, niklano kućište, pozlaćeni kontakti, maks. debljina ploče: 3 mm Dizajn za stražnju montažu Zaštićeni sustav – visoka otpornost na buku i EMI zaštita Vodonepropusni konektor za šasiju, čak i u nespajanom stanju
TECHNICAL SPECIFICATIONS:
Product:
Title: RT3MPR
Electrical:
Contact resistance: < 10 mΩ Dielectric strength: > 0.5 kVdc
Insulation resistance: > 1 GΩ
Rated current per contact: < 5 A Transmission Performance: null Mechanical: Lifetime: > 5000 mating cycles

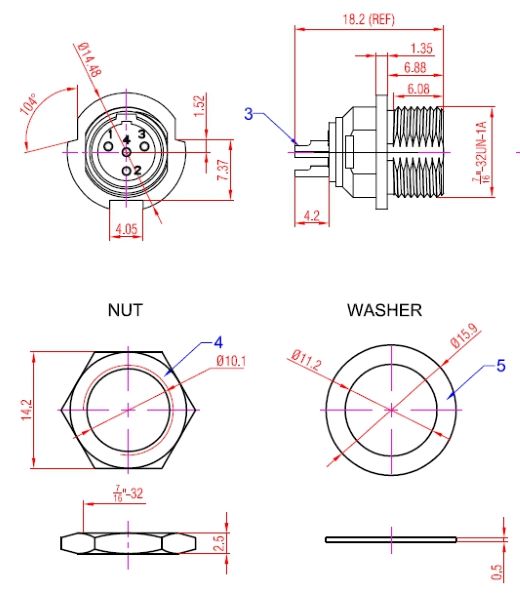

Panel thickness: max. 3 mm
Wiresize: 0.22 mm²
Wiresize: 24 AWG
Material:
Contact plating: Au
Contacts: Brass (CuZn38Pb3)
Insert: PA 6.6 30 % GF
Shell: ZuAl4Cu1
Shell plating: Nickel
Environmental:
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +85 °C
