Procab PRX222/50
Gotovina/virman
300,00 €
Kabelski kolut – 2 x XLR muški i ženski – 2 x XLR muški

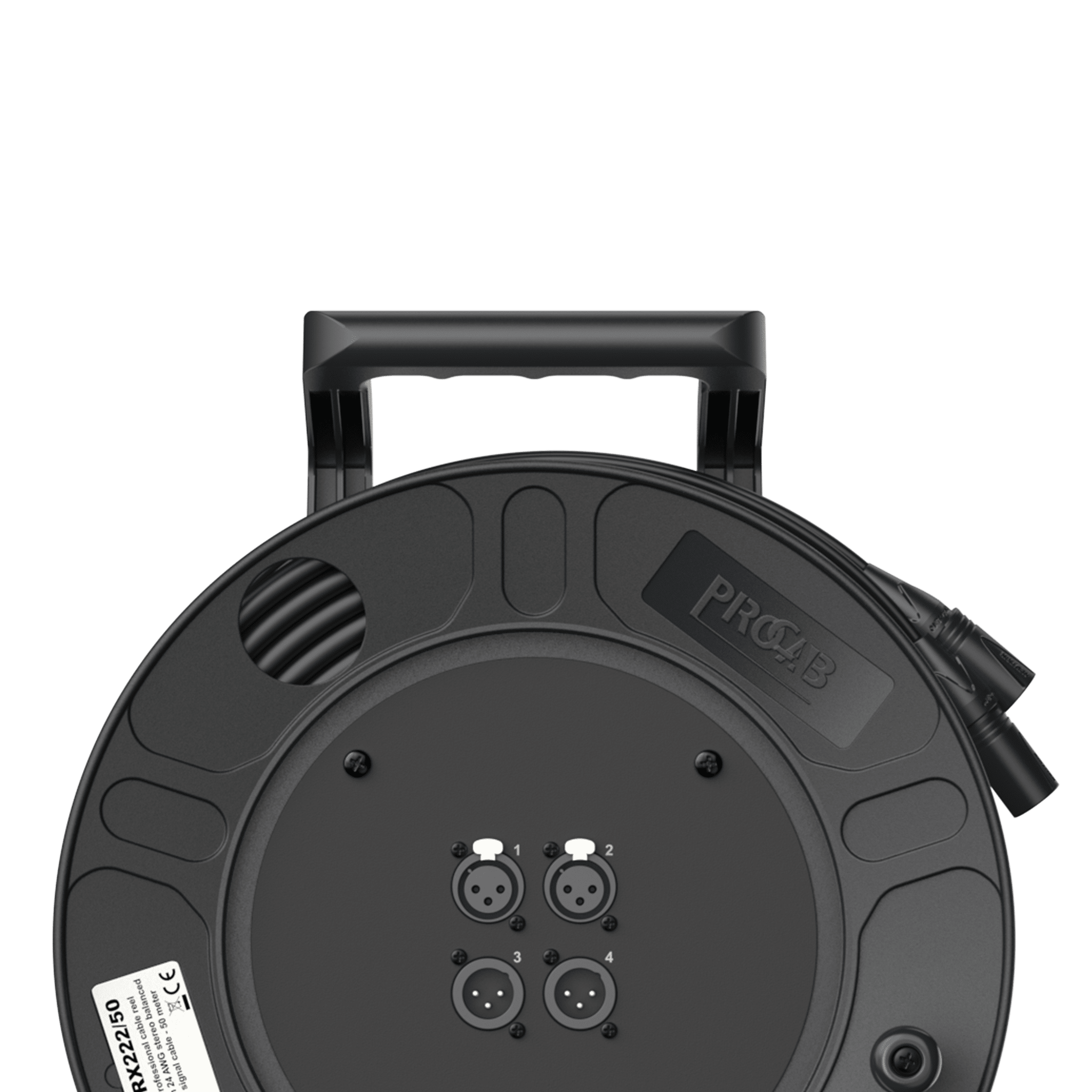

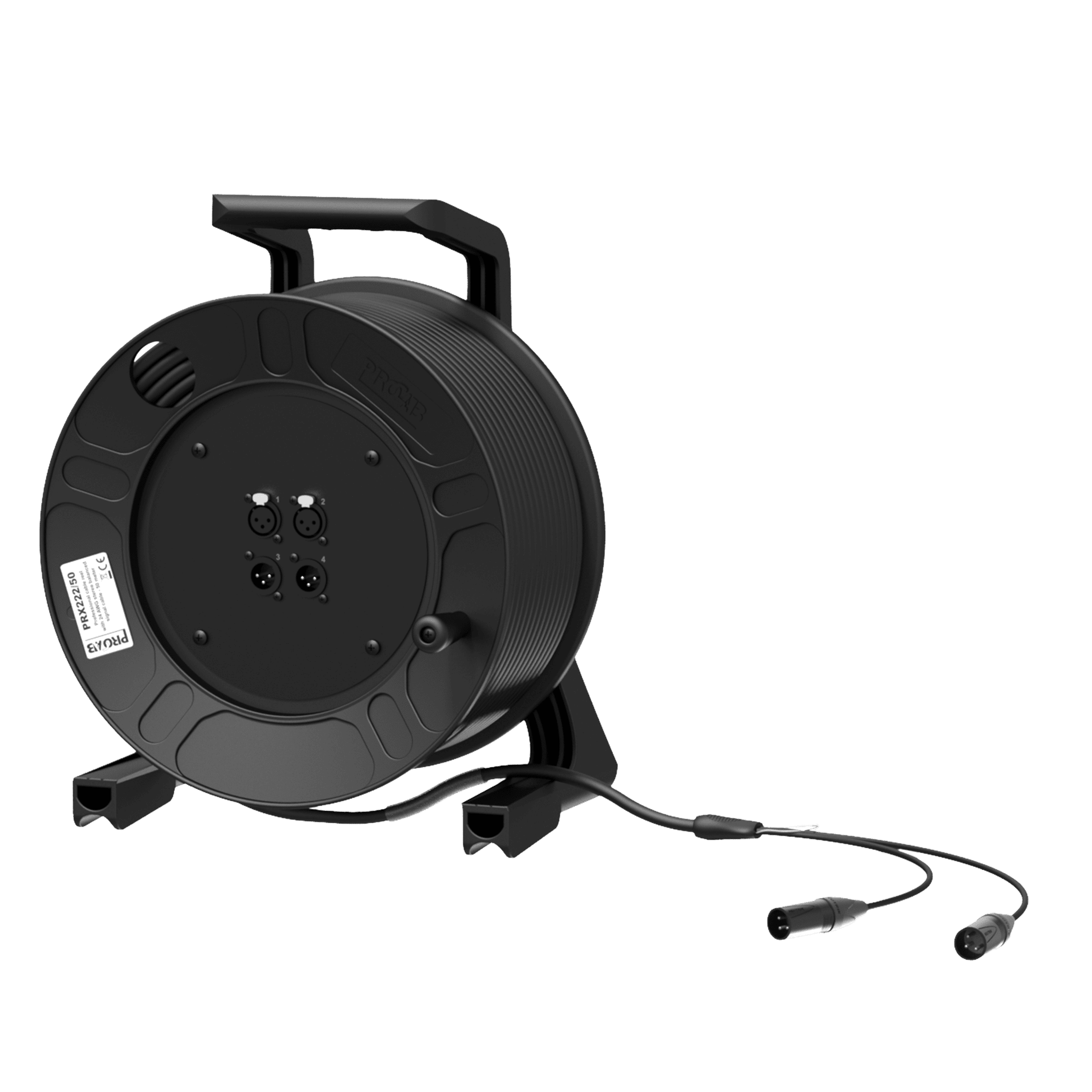

PRX222 je HighFlex balansirani stereo kabel (MCX102) sastavljen na laganom, izuzetno čvrstom i otpornom na udarce plastičnom kolutu (CDM310). Kabel je konstruiran kao višežilni s dva odvojena kanala za balansirani stereo prijenos zvuka. Svaki kanal je konstruiran korištenjem dvije 24 AWG žičane žice okružene dvostrukim oklopom koji se sastoji od spirale i aluminijske folije, nudeći visoku imunost na buku i smetnje uzrokovane vanjskim uređajima, uz visoku fleksibilnost i pouzdanost za mobilne primjene. Krajevi kabela oba kanala su odvojeni na duljini od 500 mm i spajaju se u lajsnu s čeličnom spojnom žicom. Krajevi kabela završavaju se muškim Neutrik XLR konektorima (srebrni kontakti, crno metalno XLR kućište), dok je strana kućišta opremljena muškim i ženskim Neutrik XLR konektorom za svaki kanal.
Product Features:
Dimensions: 312 x 392 x 234 mm (W x H x D)
Application: Rental & MI
Series: Prime Series
Physical Characteristics:
Inner conductor: Insulation material: PE 1.4 mm (Ø); Colours: White / Red
Shielding spiral: BC 32 x 0.12 mm (Ø) (OFC); Aluminium foil: Al-mylar, 100% coverage – 25% Overlap
Outer jacket material: Highflex PVC 8.8 mm (Ø); Colours: Black
Type of cable: 24 AWG Stereo signal cable
Inner conductor material: BC 20 x 0.12 mm (Ø) (OFC); Section 0.22 mm²
Filling: Cotton Yarn
Separator: Cotton paper
Inner conductor number of conductors: 4 (2 pairs)
Connection type: XLR male (cable) to XLR female & male (chassis) – 2x
Fitted connectors: NC3 mXX-BAG, NC3FDLX, NC3 mDLX
Length: 50 m
Standards and regulations:
RoHS2 compliant: According EU Directive 2011/65/EU
Reach compliant: According EC 1907/2006
Indoor / outdoor: Indoor
Shielding effectiveness: According EN 50083-2:2001 Class A
Mechanical Characteristics:
Temperature range: Fixed installation: – 40 °C till + 80 °C; Mobile installation: – 25 °C till + 70 °C
Bending radius: Fixed installation: 8 x outer diameter; Mobile installation: 10 x outer diameter
Electrical Characteristics:
Max. conductor DC resistance: 87 (Ω / km)
Dielectric strength: 2 (kV / 1 min. DC)
Rated voltage: 300 V
Shielding effectiveness: > 60 dB
