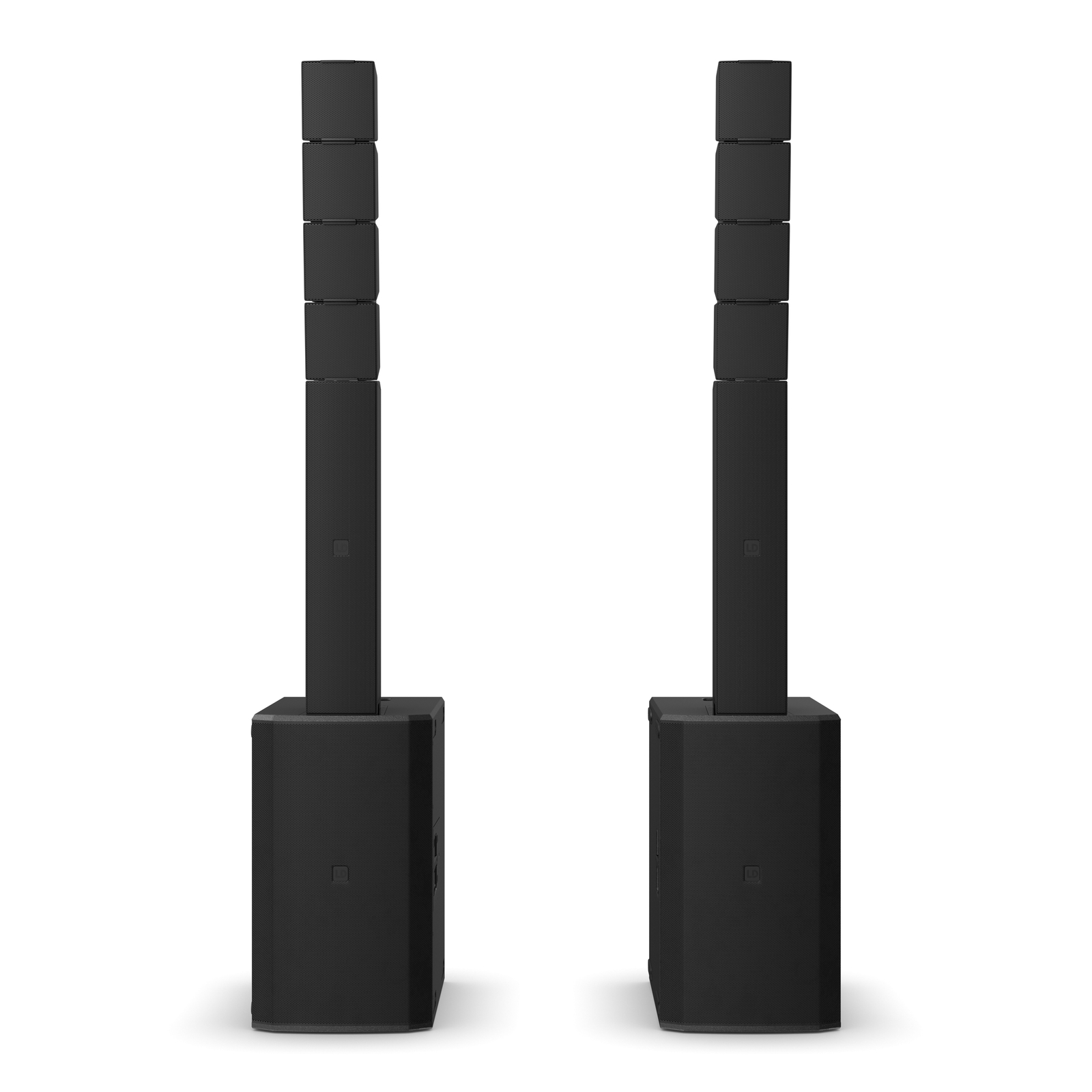

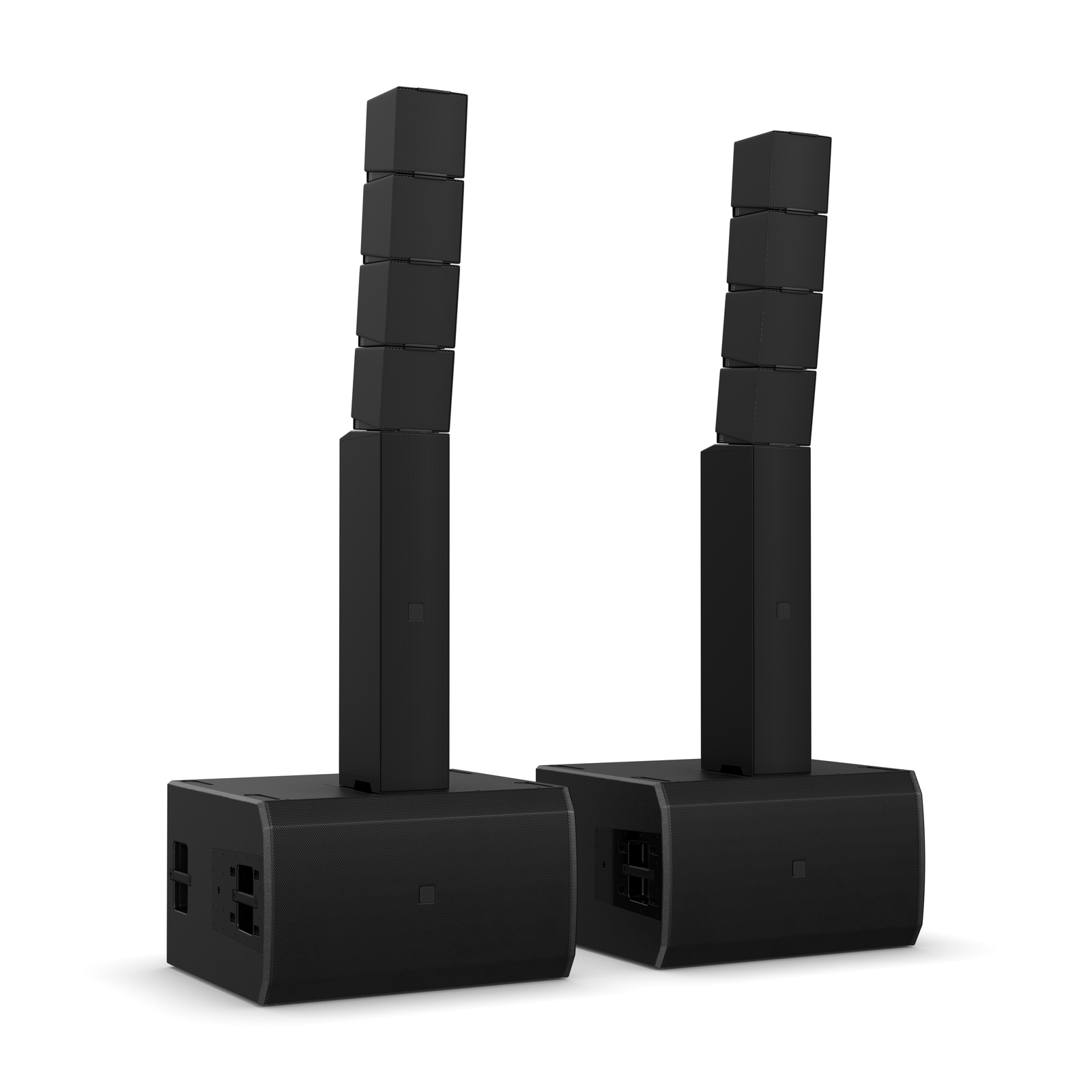

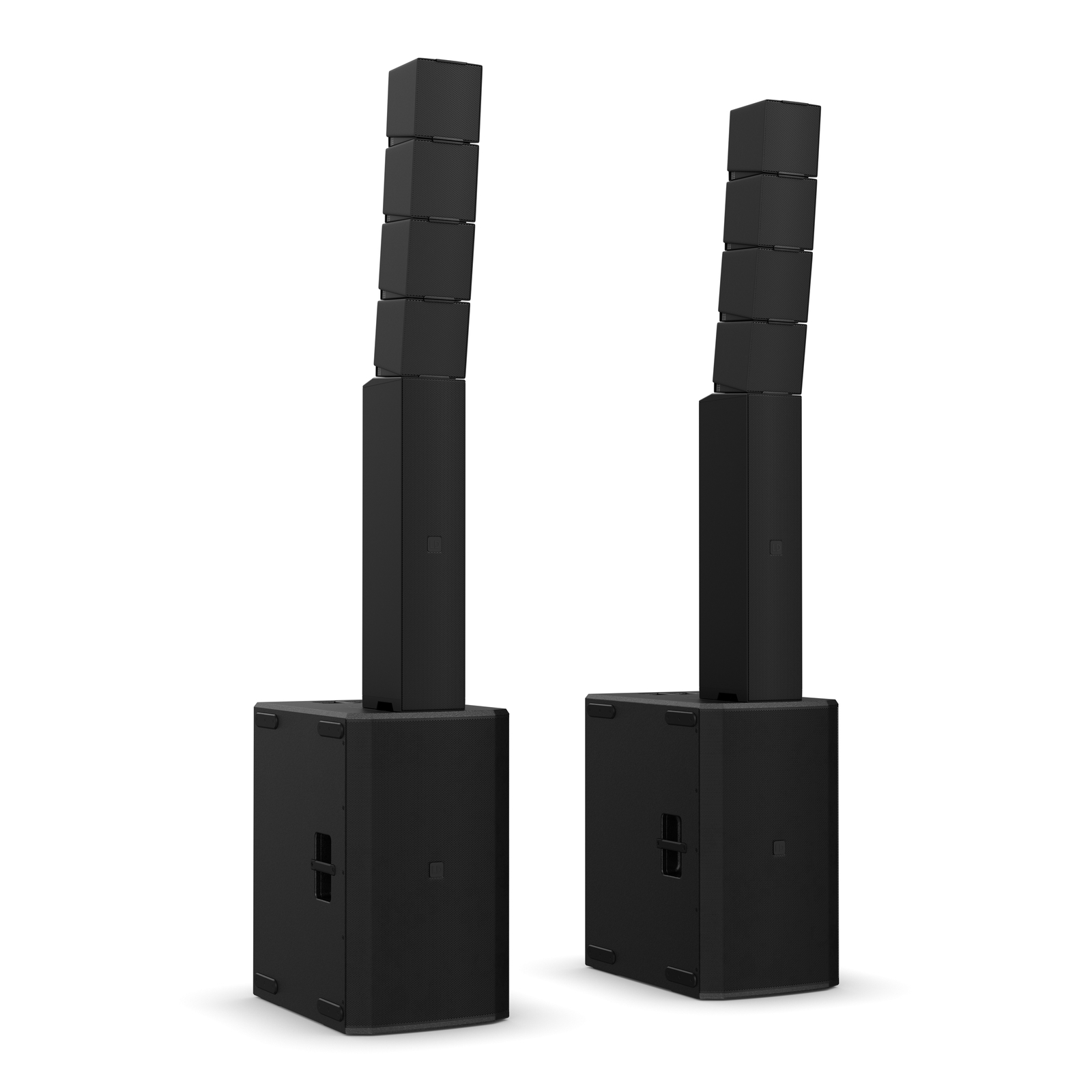

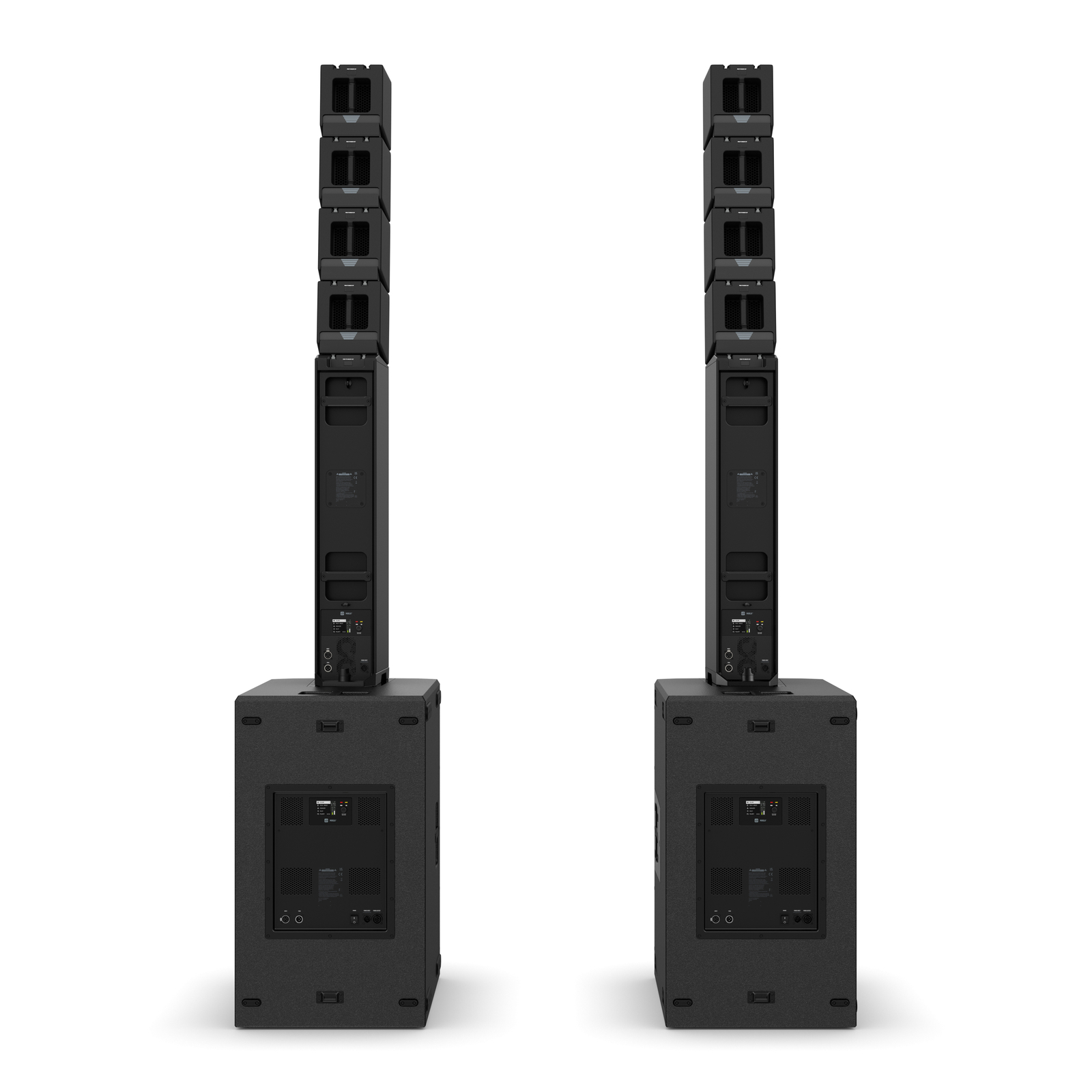

LD Systems MAILA M
Gotovina/virman
28.880,00 €
Kompaktni linijski sustav, 10 kW
Stereo sustav kao kombinacija ground stack PA, stupnog sustava i linijskih komponenti
Ukupna snaga: 10 kW
2×15″ visokoučinkoviti subwoofer u bandpass dizajnu
MAILA COL nisko-srednjetonski stupni modul s integriranim pojačalom od 2,5 kW
Visokotonski i srednjetonski zvučnik satelita u WaveAhead® rasporedu + pasivna membrana za proširenu reprodukciju nisko-srednjetonskih zvučnika
Elegantno i robusno aluminijsko kućište za MAILA SAT i MAILA COL
Inovativni EasySplay® mehanizam za podešavanje kuta (0 – 8°) svakog satelita samo jednom rukom
SmartLink+® omogućuje bežično povezivanje stupnog modula i satelita
Konfigurira se putem namjenske MAILA aplikacije za brzo postavljanje (iPadOS)
LogoLink®: Bežične antene integrirane u LD logotip za bežično povezivanje s aplikacijom
Specifications:
General:

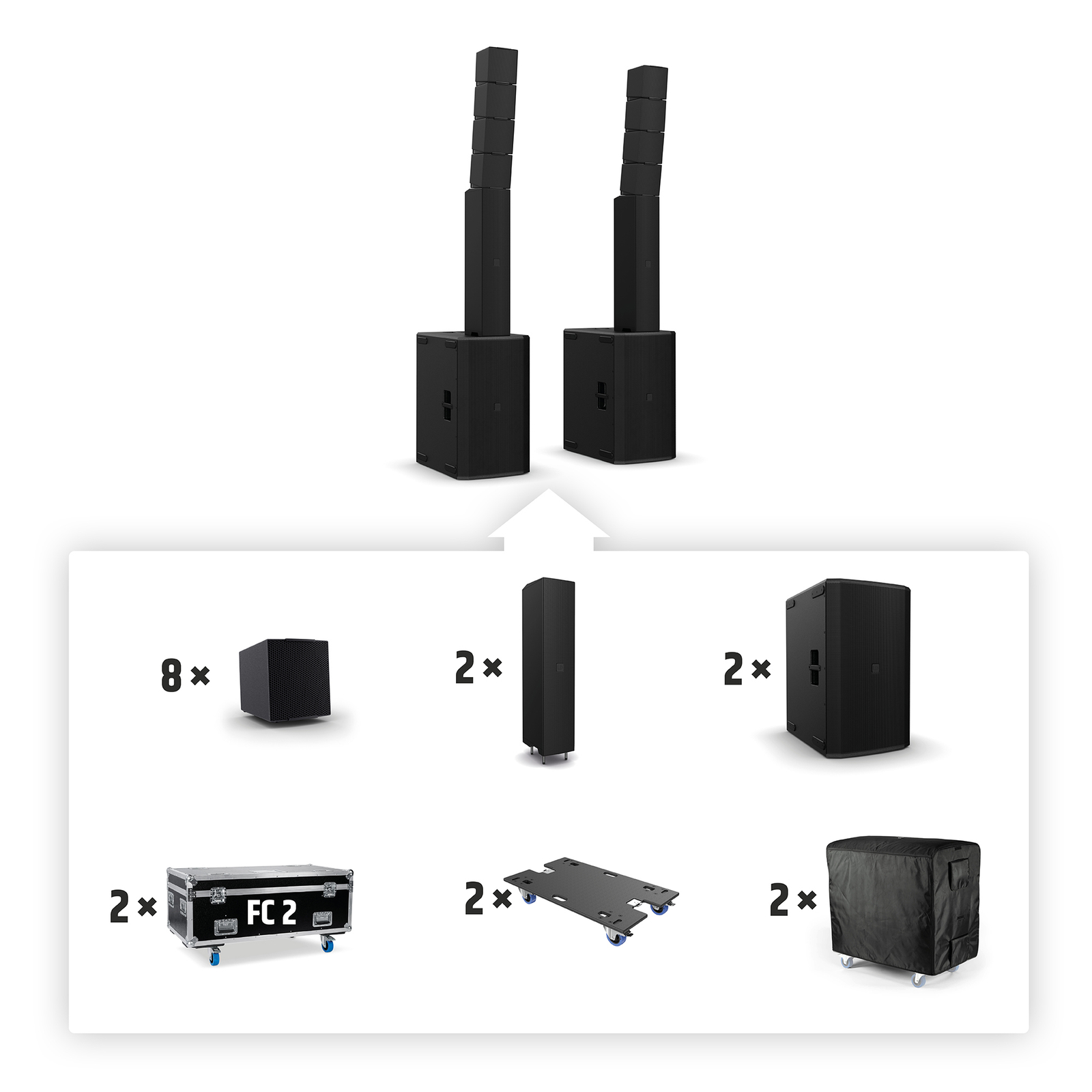

Scope of delivery: 8x MAILA SAT satellite, 2x MAILA COL column, 2x MAILA SUB subwoofer, 2 x MAILA FC2*, 2 x MAILA SUB CB, 2 x MAILA SUB PC and 4 x power cable.
Material: Birch multiplex
RMS output power: 10000 W
Frequency response (-6 dB, rel. Avg): 34 Hz – 20000 Hz
Beam angle: Hor.: 100° / Vert.: 8 – 36°
Colour: Black

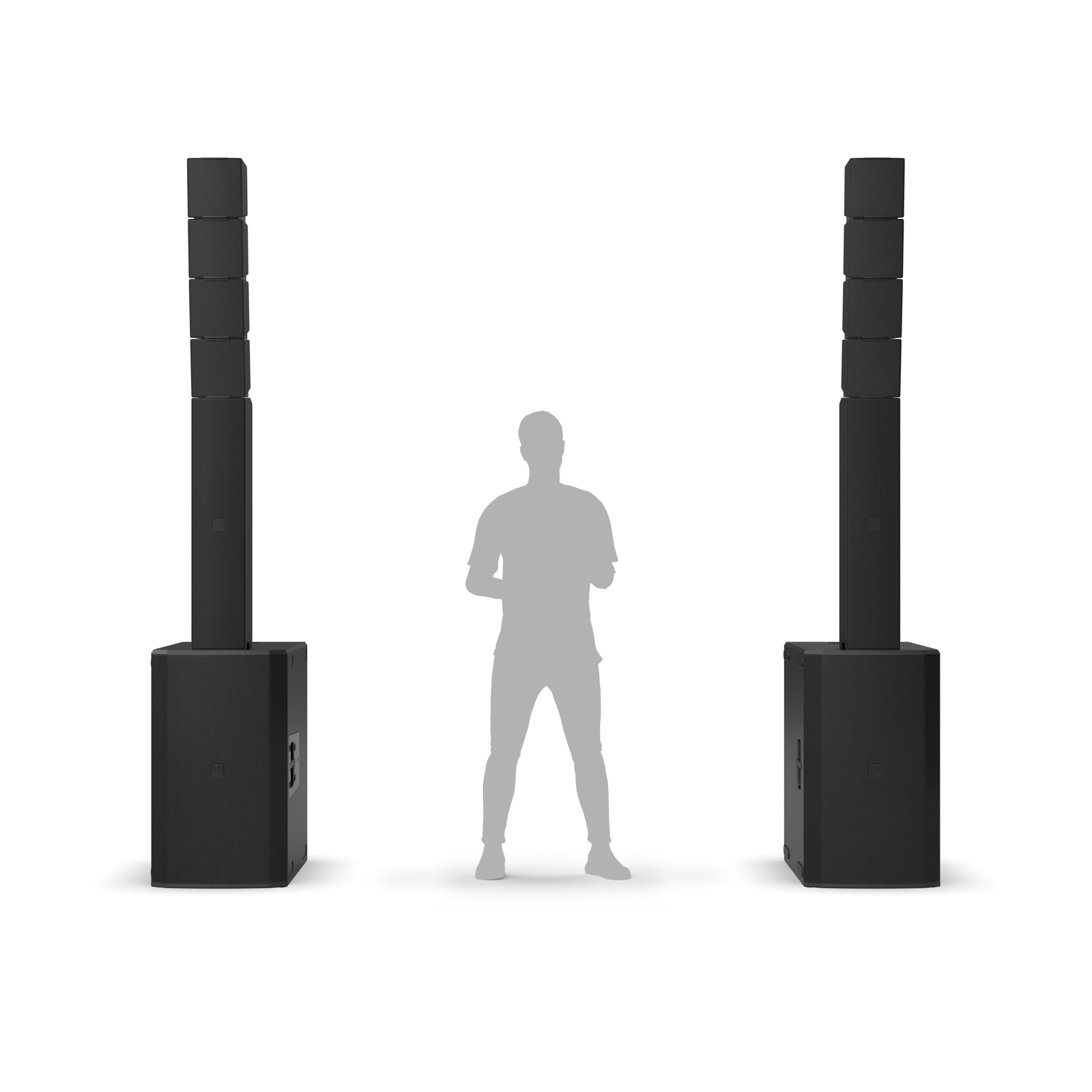

Maximum height: 2920 mm
Weight: 293.2 kg,
Items in this set
LD Systems MAILA COL 4 x 6.5″ Powered Column Speaker + Power Amplifier for up to eight Satellites:
General:
Type (active/passive): Active
RMS output power: 2500 W
Amp class: Class D
SysLink®: No
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): 125.4 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4): 130 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): 122 dB
Frequency response (-6 dB, rel. Avg): 105 Hz – 500 Hz
Number of inputs: 1
Input connector types: XLR 3-pole female
Number of outputs: 1
Output connector types: XLR 3-pole male
Protection features: Overheating, Overload, Overvoltage
Colour: Black
Bluetooth®:
Bluetooth® version: Bluetooth® 4.2
Receiver (client): No
Transmitter (host): No
Inputs:
Number of line inputs: 1
Line-In connector type: XLR 3-pole female
Line input performance:
Input impedance (balanced): 20000 Ω
Signal processing:
Mixer: Yes
Mixer channels: 4
Audio processing: 3 band EQ (High, Mid, Low), Delay Line, Dynamics, Reverb
AD/DA converter bit depth: 24 Bit
AD/DA converter sampling rate: 48 kHz
Bass driver:
Size: 6.5″
Quantity: 4
Manufacturer: Custom Made
Magnet: Neodymium
Voice coil: 2″
Mains operation:
Operation voltage: 100 V AC – 240 V AC / 50 – 60 Hz
Power supply type: Switched-mode power supply (SMPS)
Rated power: 800 W
Housing:
Design: Bass reflex
Number of handles: 2
Number of mounting points: 3
Cabinet material: Aluminum continuous casting
Front grille material: Aluminium
Environmental:
Ambient temperature: 0 °C – 40 °C
Maximum air humidity (non-condensing): 80 %
Dimensions & weight:
Width: 205 mm
Height: 1028 mm
Depth: 354 mm
Weight: 36.195 kg
LD Systems MAILA SUB 2 x 15″ Powered Bandpass PA Subwoofer:
General:
RMS output power: 2500 W
Amp class: Class D
SysLink®: No
Max. SPL peak (pink noise, halfspace/1 m, CF 4): 137 dB
Max. SPL average (sine burst, BW, halfspace/1 m, THD≤10 %): 132 dB
Low frequency limit (-6 dB, rel. Avg.): 33 Hz
Number of inputs: 1
Input connector types: XLR 3-pole female
Number of outputs: 1
Output connector types: XLR 3-pole male
Protection features: Overheating, Overload
Colour: Black
Bluetooth®
Bluetooth® version: Bluetooth® 5.0
Receiver (client): No
Transmitter (host): No
Line input performance:
Input impedance (balanced): 20000 Ω
Signal processing:
DSP model: SysCore®
Mixer: No
Audio processing: Delay Line, Presets, Fully parametric 10-band EQ
AD/DA converter bit depth: 24 Bit
AD/DA converter sampling rate: 48 kHz
Bass driver:
Size: 15″
Quantity: 2
Manufacturer: Custom Made
Magnet: Neodymium
Voice coil: 4″
Mains operation:
Operation voltage: 100 V AC – 240 V AC / 50 – 60 Hz
Power supply type: Switched-mode power supply (SMPS)
Rated power: 1300 W
Mains connector: Mains socket indoor power in male & powerCON®
Housing:
Design: Bandpass
Number of handles: 6
Cabinet material: Birch multiplex
Material thickness: 18 mm
Coating: Polyurea
Front grille material: Aluminium
Cooling:
Cooling system: Convection cooling
Environmental:
Ambient temperature: 0 °C – 40 °C
Maximum air humidity (non-condensing): 80 %
Dimensions & weight:
Width: 540 mm
Height: 934 mm
Depth: 803 mm
Weight: 89.8 kg
Other properties:
Included accessories: Mains cable
LD Systems MAILA SAT Passive Array Satellite Speaker:
General:
Type (active/passive): Passive
Power handling (AES): LF: 170 W / HF: 50 W
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): 128.2 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4): 129.1 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): 115 dB
Frequency response: 100 Hz – 20000 Hz
Speaker system: 2-way system
Beam angle: Hor.: 100° / Vert.:8°
Input connector types: SmartLink+®
Colour: Black
Bass driver:
Size: 6.5″
Manufacturer: Custom Made
Magnet: Neodymium
Voice coil: 1.8″
Tweeter:
Driver size: 1″
Quantity: 5
Housing:
Design: Bass reflex
Number of handles: 1
Cabinet material: Die-cast aluminium
Dimensions & weight:
Width: 205 mm
Height: 234 mm
Depth: 226 mm
Weight: 7.65 kg
