LD Systems STINGER G3 EVENT SET A
Gotovina/virman
3.780,00 €
2 x 10″ aktivna PA zvučnika + 2 x 15″ aktivna subwoofera
Za publiku do 300 ljudi
Za DJ-eve, male bendove i privatnu upotrebu
Kompaktan i jednostavan za transport
Opsežan i pametan pribor za instalaciju i transport
Svestran uređaj za primjenu u punom rasponu, satelitskim i monitorskim sustavima
Praktični preseti za brzo podešavanje frekvencijskog odziva
Visoko učinkovito digitalno pojačalo bez ventilatora
36 mm dvostruki nagibni nosač za kut nagiba od 0° i 5°
Kućište od brezove šperploče s ultra robusnim poliurea premazom
Kardioidni preseti za subwoofer
Set uključuje zaštitne navlake i kotačiće
Specifications:
General:

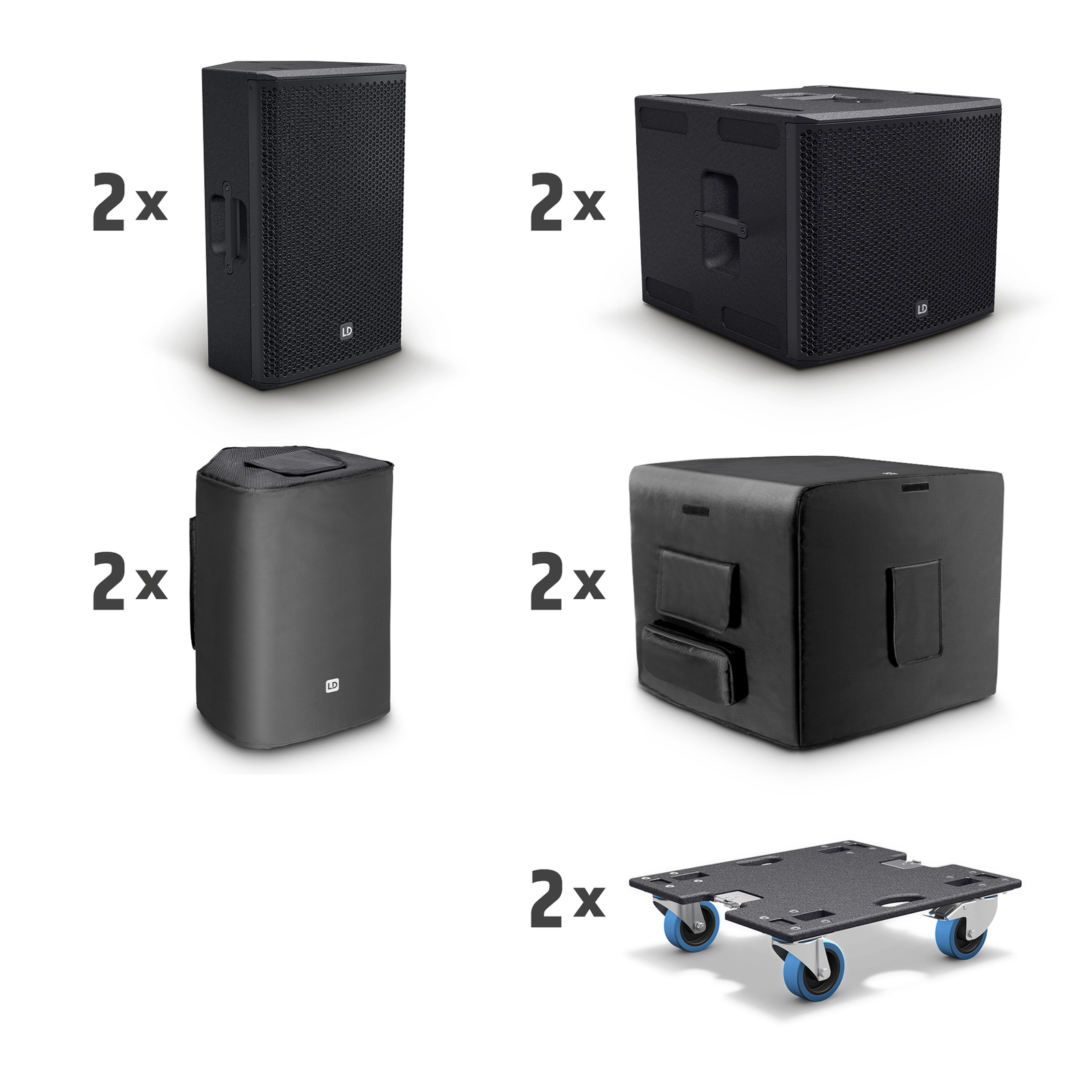

Scope of delivery: 2 x STINGER 10 A G3, 2 x STINGER SUB 15 A G3, 2 x STINGER 10 G3 PC, 2 x STINGER SUB 15 G3 PC, 2 x STINGER SUB 15 G3 CB
RMS output power: 1500 W
Frequency response (-6 dB, rel. Avg): 40 Hz – 20000 Hz
Dispersion: Hor.: 90° / Vert.:50°
Colour: Black
Weight: 91.8 kg
Items in this set:
LD Systems STINGER SUB 15 G3 CB Castor board for STINGER SUB 15 G3 models:
General:
Material: Multiplex
Coating: Polyurea
Colour: Black
Wheel:
Roller type: Heavy-duty castor
Material: Rubber
Colour: Blue
Manufacturer: Adam Hall
Quantity: 4
Braked castors: 2
Diameter: 100 mm
With brake: Yes
Dimensions & weight:
Width: 567 mm
Depth: 624 mm
Material thickness: 15 mm
Weight: 6 kg
LD Systems STINGER SUB 15 G3 PC Padded protective Cover for STINGER® G3 Subwoofer 15″:
Material: Nylon 1680D
Padding thickness: 8 mm
Colour: Black
Width: 567 mm
Height: 470 mm
Depth: 625 mm
Weight: 1.2 kg
LD Systems STINGER 10 G3 PC Padded protective cover for Stinger® G3 PA Loudspeaker 10″:
Product type: PA Loudspeakers Accessories
Type: Covers
Material: Nylon 1680D
Color: Black
Thickness of the padding: 8 mm
Height: 530 mm
Width: 350 mm
Depth: 320 mm
LD Systems STINGER 10 A G3 Active 10″ 2-way bass-reflex PA Loudspeaker:
General:
Type (active/passive): Active
Peak output power: 600 W
RMS output power: 300 W
Amp class: Class D
SysLink®: No
Max. SPL peak: 127 dB
Frequency response: 65 Hz – 20000 Hz
Speaker system: 2-way system
Dispersion: Hor.: 90° / Vert.:50°
Monitor angle: 54 °
Number of inputs: 2
Input connector types: XLR combo socket
Number of outputs: 1
Output connector types: XLR 3-pole male
Protection features: Multiband Limiter, Overheating, Overload, Overvoltage
Colour: Black
Inputs:
Number of line inputs: 2
Line-In connector type: XLR combo socket
Line input performance:
Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain): -9 dBu
Outputs:
Number of line outputs: 1
Line outputs connector type: XLR 3-pole male
Signal processing:
Mixer: No
Bass driver:
Size: 10″:
Outer diameter: 254 mm
Manufacturer: Custom-made
Magnet: Ferrite
Voice coil: 2″
Tweeter:
Driver size: 1″
Manufacturer: BMS
Magnet: Ferrite
Voice coil: 1″
Mains operation:
Operation voltage: 100 V AC – 240 V AC / 50 – 60 Hz
Power supply type: Switched-mode power supply (SMPS)
Mains connector: Standard speaker connector 4-pole male & speakON®
Housing:
Design: Bass reflex
Number of handles: 1
Mounting type: M10 for SuperClamp
Flange: 36 mm (0°/5°)
Cabinet material: Birch plywood
Material thickness: 12 mm
Front grille material: Aluminium
Environmental:
Ambient temperature: 0 °C – 40 °C
Maximum air humidity (non-condensing): 80 %
Dimensions & weight:
Width: 325 mm
Height: 527 mm
Depth: 318 mm
Weight: 12.7 kg
Other properties:
Included accessories: Mains cable
LD Systems STINGER SUB 15 A G3 Active 15″ bass-reflex PA subwoofer:
General:
Peak output power: 900 W
RMS output power: 450 W
Amp class: Class D
SysLink®: No
Max. SPL peak: 133 dB
Low frequency limit: 40 Hz
Number of inputs: 2
Input connector types: XLR combo socket
Number of outputs: 2
Output connector types: XLR 3-pole male
Protection features: Short circuit, Overvoltage
Colour: Black
Inputs:
Number of line inputs: 2
Line-In connector type: Standard speaker connector 4-pole male & speakON®
Line input performance:
Input impedance (balanced): 30 kΩ
Outputs:
Number of line outputs: 2
Line outputs connector type: XLR 3-pole male
Signal processing:
Mixer: No
Amplifier:
Sub output power per channel (RMS): 450 W
Sub output power per channel (Peak): 900 W
Bass driver:
Size: 15″
Outer diameter: 381 mm
Manufacturer: Custom Made
Magnet: Ferrite
Voice coil: 3″
Mains operation:
Operation voltage: 100 V AC – 240 V AC / 50 – 60 Hz
Power supply type: Switched-mode power supply (SMPS)
Rated power: 600 W
Mains connector: Mains socket indoor power in male & powerCON®
Housing:
Design: Bass reflex
Number of handles: 4
Flange: M20
Cabinet material: Birch plywood
Material thickness: 18 mm
Front grille material: Aluminium
Environmental:
Ambient temperature: 0 °C – 40 °C
Maximum air humidity (non-condensing): 80 %
Dimensions & weight:
Width: 567 mm
Height: 477 mm
Depth: 624 mm
Weight: 31.9 kg
Other properties:
Included accessories: Mains cable
