LD Systems STINGER G3 POWER SET A

Specifications:

General:

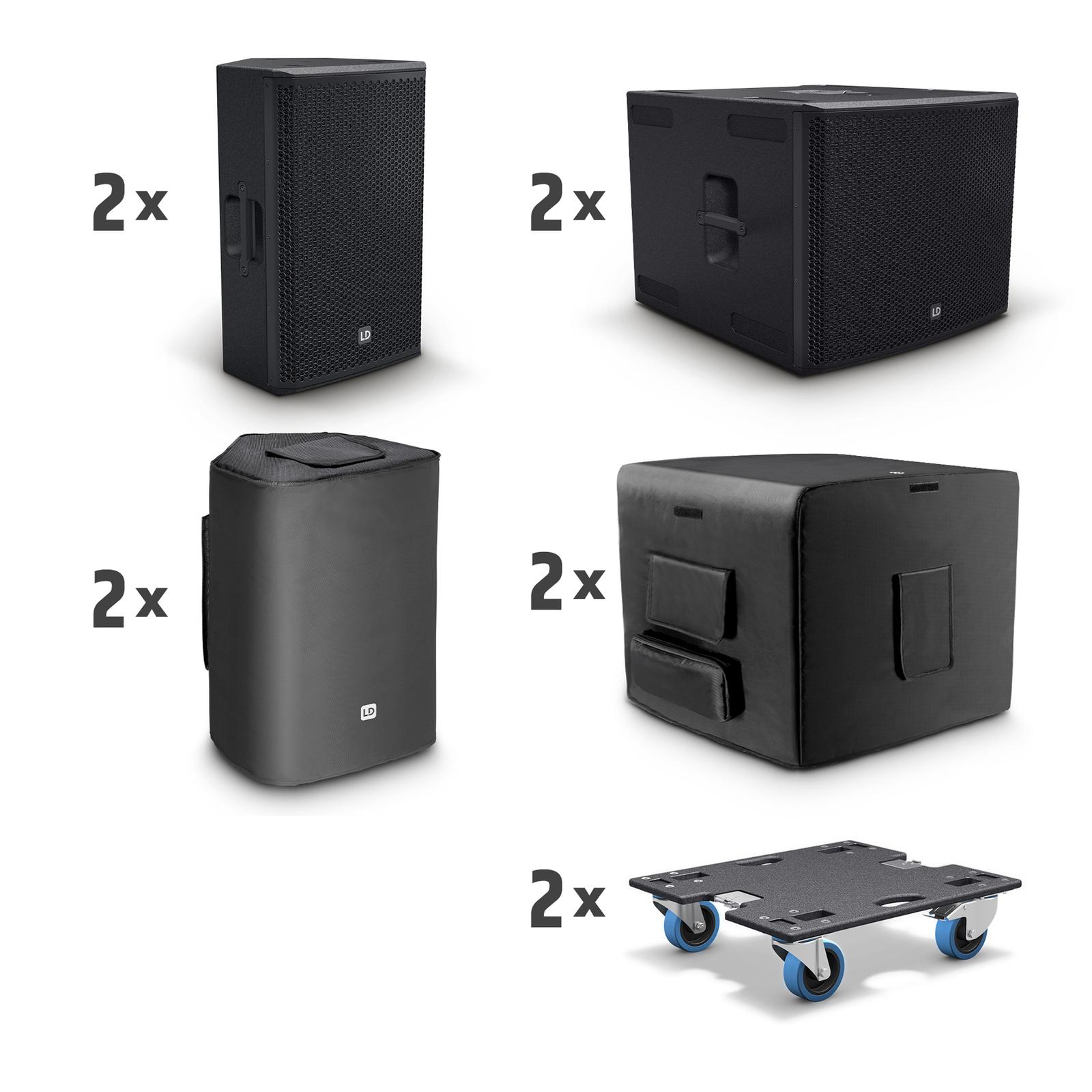

Scope of delivery: 2 x STINGER 12 A G3, 2 x STINGER SUB 18 A G3, 2 x STINGER 12 G3 PC, 2 x STINGER SUB 18 G3 PC, 2 x STINGER SUB 18 G3 CB
RMS output power: 2600 W
Frequency response (-6 dB, rel. Avg): 35 Hz – 20000 Hz
Dispersion: Hor.: 90° / Vert.:50°
Colour: Black
Weight: 144 kg



Items in this set:



LD Systems STINGER® SUB 18 A G3 Active 18″ bass-reflex PA subwoofer:

General:
Peak output power: 1600 W
RMS output power: 800 W
Amp class: Class D
SysLink®: No
Max. SPL peak: 135 dB
Low frequency limit: 40 Hz
Number of inputs: 2
Input connector types: Standard speaker connector 4-pole male & speakON®
Number of outputs: 2
Output connector types: XLR 3-pole male
Colour: Black

Inputs:
Number of line inputs: 2
Line-In connector type: Standard speaker connector 4-pole male & speakON®

Line input performance:
Input impedance (balanced): 30 kΩ

Outputs:
Number of line outputs: 2
Line outputs connector type: XLR 3-pole male

Signal processing:
Mixer: No

Bass driver:
Size: 18″
Manufacturer: Custom Made
Magnet: Ferrite
Voice coil: 4″

Mains operation:
Operation voltage: 100 V AC – 240 V AC / 50 – 60 Hz
Power supply type: Switched-mode power supply (SMPS)
Rated power: 600 W
Mains connector: Mains socket indoor power in male & powerCON®

Housing:
Design: Bass reflex
Number of handles: 4
Flange: M20
Cabinet material: Birch plywood
Material thickness: 18 mm
Front grille material: Aluminium

Environmental:
Ambient temperature: 0 °C – 40 °C
Maximum air humidity (non-condensing): 80 %

Dimensions & weight:
Width: 677 mm
Height: 547 mm
Depth: 740 mm
Weight: 42.6 kg

Other properties:
Included accessories: Mains cable



LD Systems STINGER SUB 18 G3 CB Castor board for STINGER SUB 18 G3 models:

Material: Multiplex
Coating: Polyurea
Colour: Black

Wheel:
Roller type: Heavy-duty castor
Material: Rubber
Colour: Blue
Manufacturer: Adam Hall
Quantity: 4
Braked castors: 2
Diameter: 100 mm
With brake: Yes

Dimensions & weight:
Width: 540 mm
Depth: 650 mm
Material thickness: 15 mm
Weight: 7 kg



LD Systems STINGER SUB 18 G3 PC Padded protective Cover for Stinger® G3 Subwoofer 18″:

Material: Nylon 1680D
Padding thickness: 8 mm
Colour: Black
Width: 567 mm
Height: 470 mm
Depth: 625 mm
Weight: 1.2 kg



LD Systems STINGER 12 A G3 Active 12″ 2-way bass-reflex PA Loudspeaker:

General:
Type (active/passive): Active
Peak output power: 1000 W
RMS output power: 500 W
Amp class: Class D
SysLink®: No
Max. SPL peak: 131 dB
Frequency response: 58 Hz – 20000 Hz
Speaker system: 2-way system
Dispersion: Hor.: 90° / Vert.:50°
Monitor angle: 54 °
Number of inputs: 2
Input connector types: XLR combo socket
Number of outputs: 1
Output connector types: XLR 3-pole male
Protection features: Multiband Limiter, Overheating, Overload, Overvoltage
Colour: Black

Inputs:
Number of line inputs: 2
Line-In connector type: XLR combo socket

Line input performance:
Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain): -5 dBu

Outputs:
Number of line outputs: 1
Line outputs connector type: XLR 3-pole male

Signal processing:
Mixer: No

Bass driver:
Size: 12″
Outer diameter: 304.8 mm
Manufacturer: Custom-made
Magnet: Ferrite
Voice coil: 2.5″

Tweeter:
Driver size: 1″
Manufacturer: BMS
Magnet: Ferrite
Voice coil: 1″

Mains operation:
Operation voltage: 100 V AC – 240 V AC / 50 – 60 Hz
Power supply type: Switched-mode power supply (SMPS)
Mains connector: Standard speaker connector 4-pole male & speakON®

Housing:
Design: Bass reflex
Number of handles: 1
Mounting type: M10 for SuperClamp
Flange: 36 mm (0°/5°)
Cabinet material: Birch plywood
Material thickness: 15 mm
Front grille material: Aluminium

Environmental:
Ambient temperature: 0 °C – 40 °C
Maximum air humidity (non-condensing): 80 %

Dimensions & weight:
Width: 390 mm
Height: 627 mm
Depth: 377 mm
Weight: 20.1 kg

Other properties:
Included accessories: Mains cable



LD Systems STINGER 12 G3 PC Padded protective Cover for Stinger® G3 PA Loudspeaker 12″

Material: Nylon 1680D
Padding thickness: 8 mm
Colour: Black
Width: 420 mm
Height: 600 mm
Depth: 400 mm
Weight: 670 g
