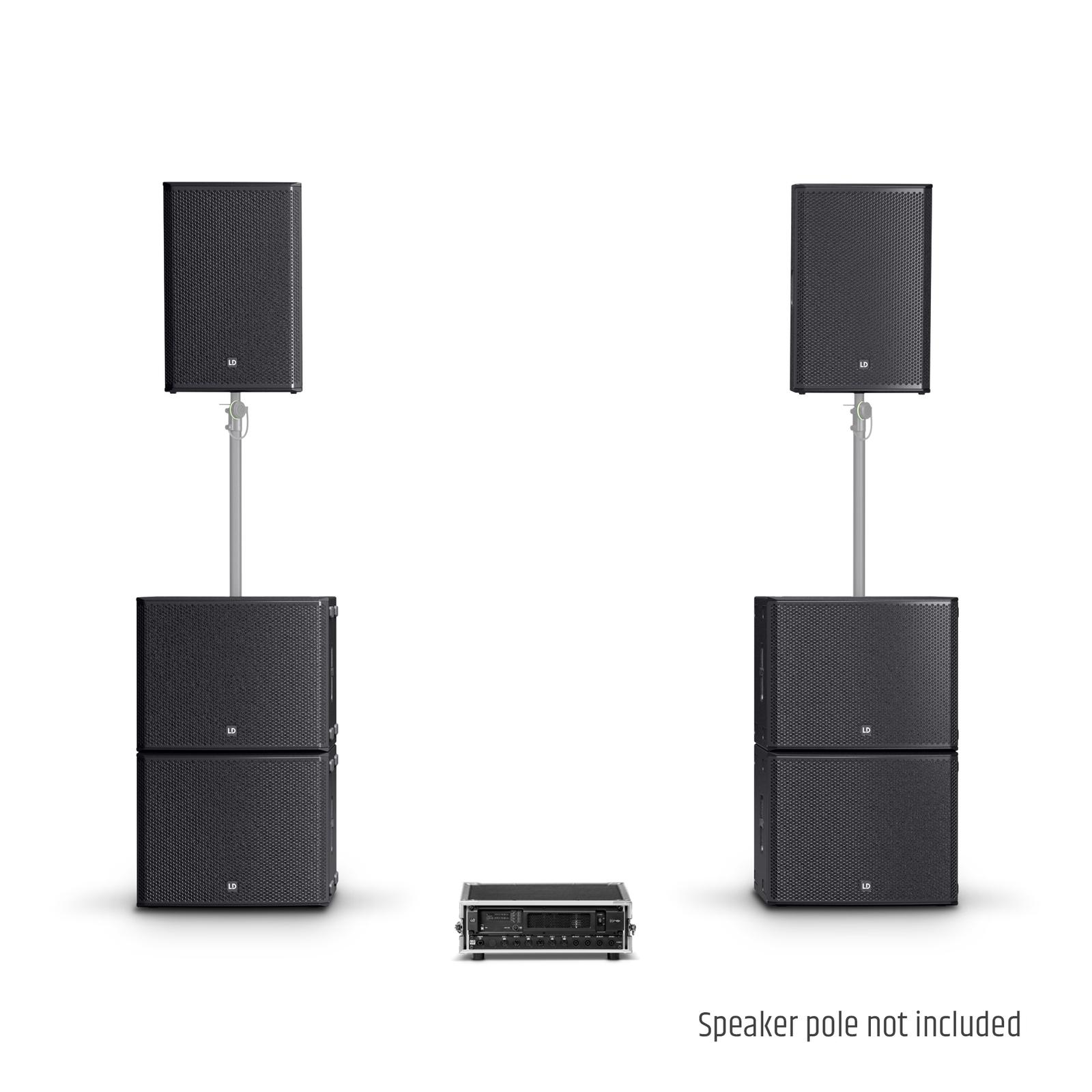

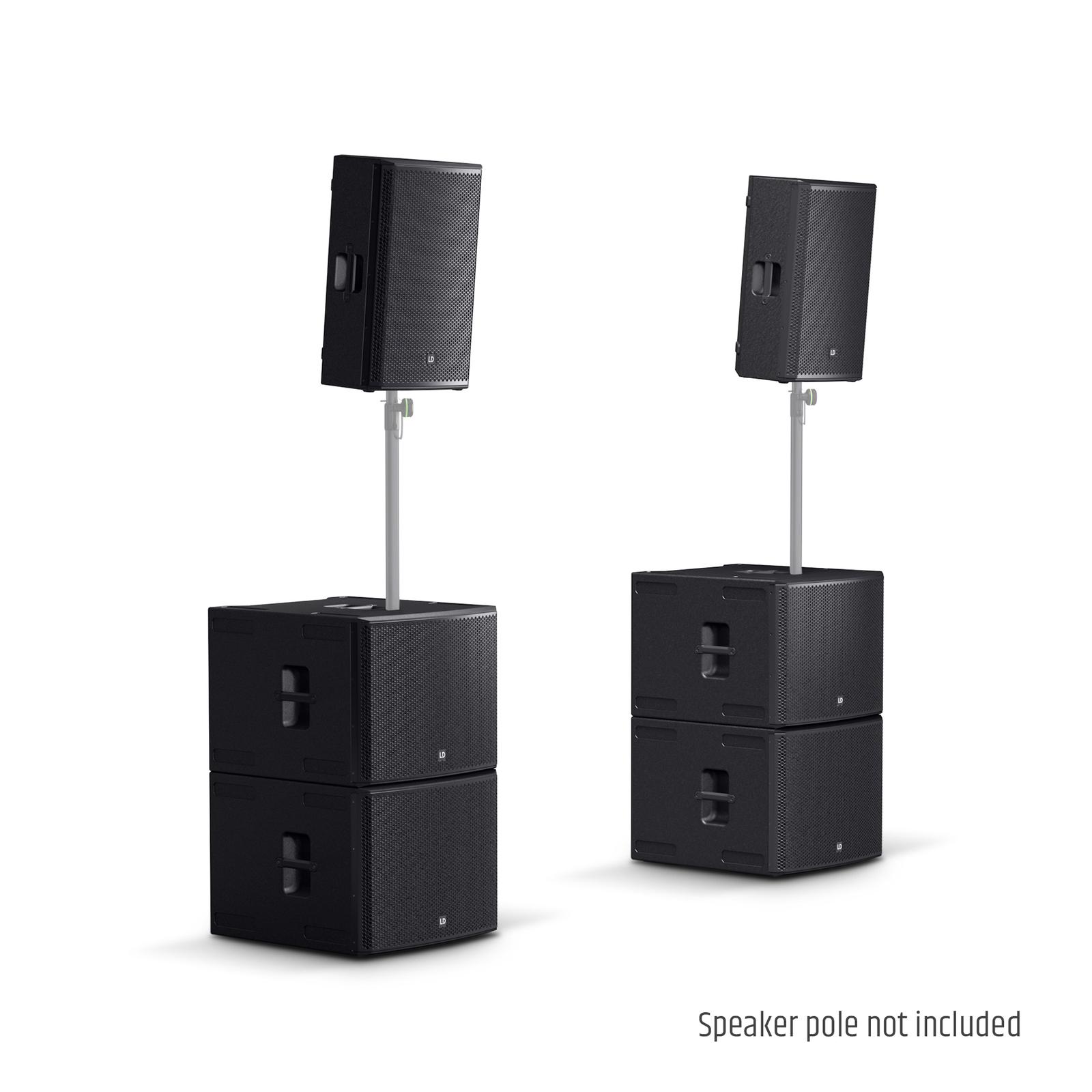

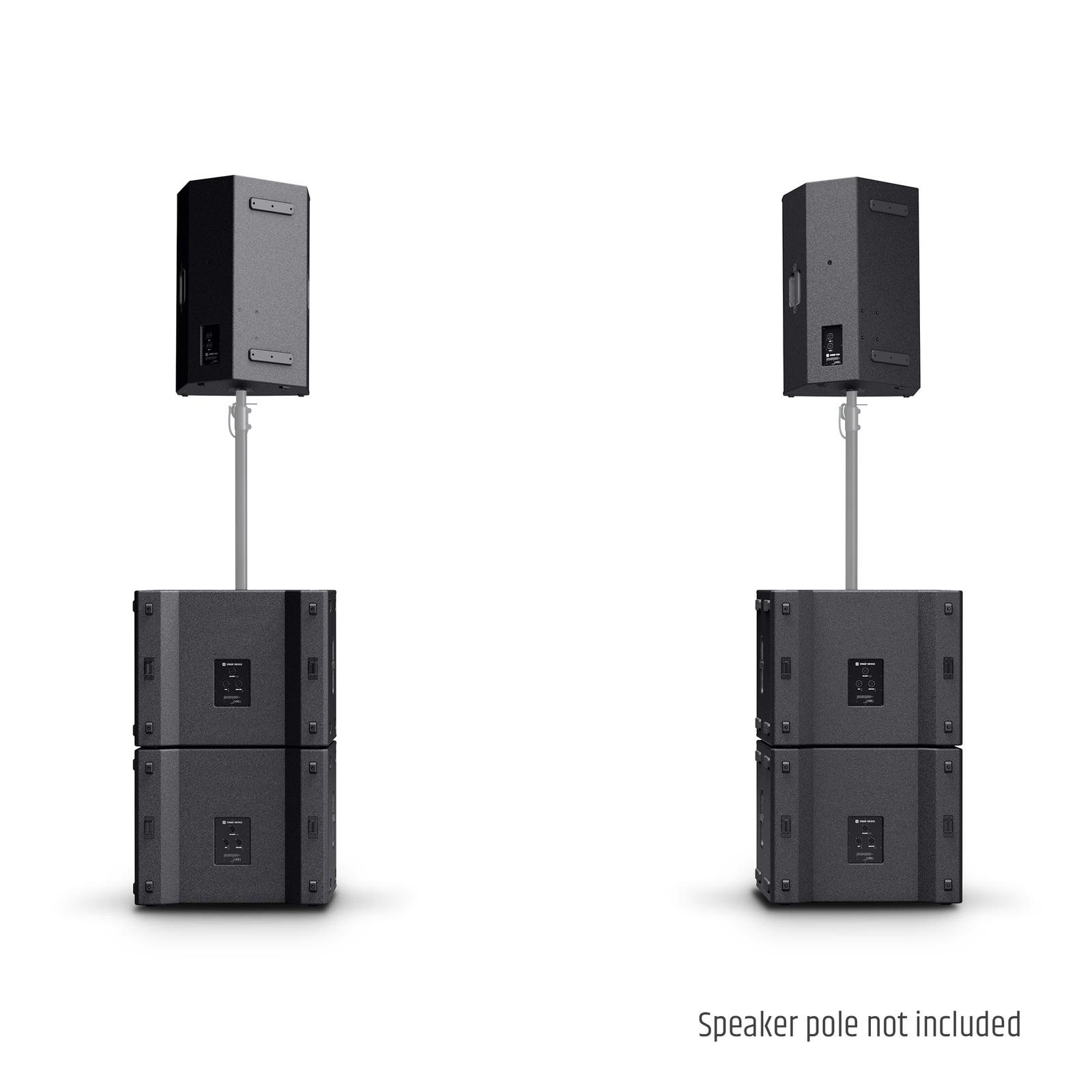

LD Systems STINGER G3 IMPACT SET
Gotovina/virman
8.999,00 €
2 x 15″ pasivni PA zvučnik + 4 x 18″ pasivni subwoofer + rack za pojačalo
Za publiku do 400 osoba
Za DJ-eve, ozvučenje na otvorenom za bendove i veliku privatnu upotrebu
Kompaktan i jednostavan za transport
Opsežan i pametan pribor za instalaciju i transport
Svestran uređaj za primjenu u punom rasponu, satelitima i monitorima
36 mm nosač za dvostruki nagib od 0° i 5°
Kućište od brezove šperploče s ultra-robusnim poliurea premazom
Namjenski izlaz za subwoofer za davanje signala i napajanja pasivnim satelitima
Set uključuje zaštitne poklopce i kotačiće
Specifications:
General:

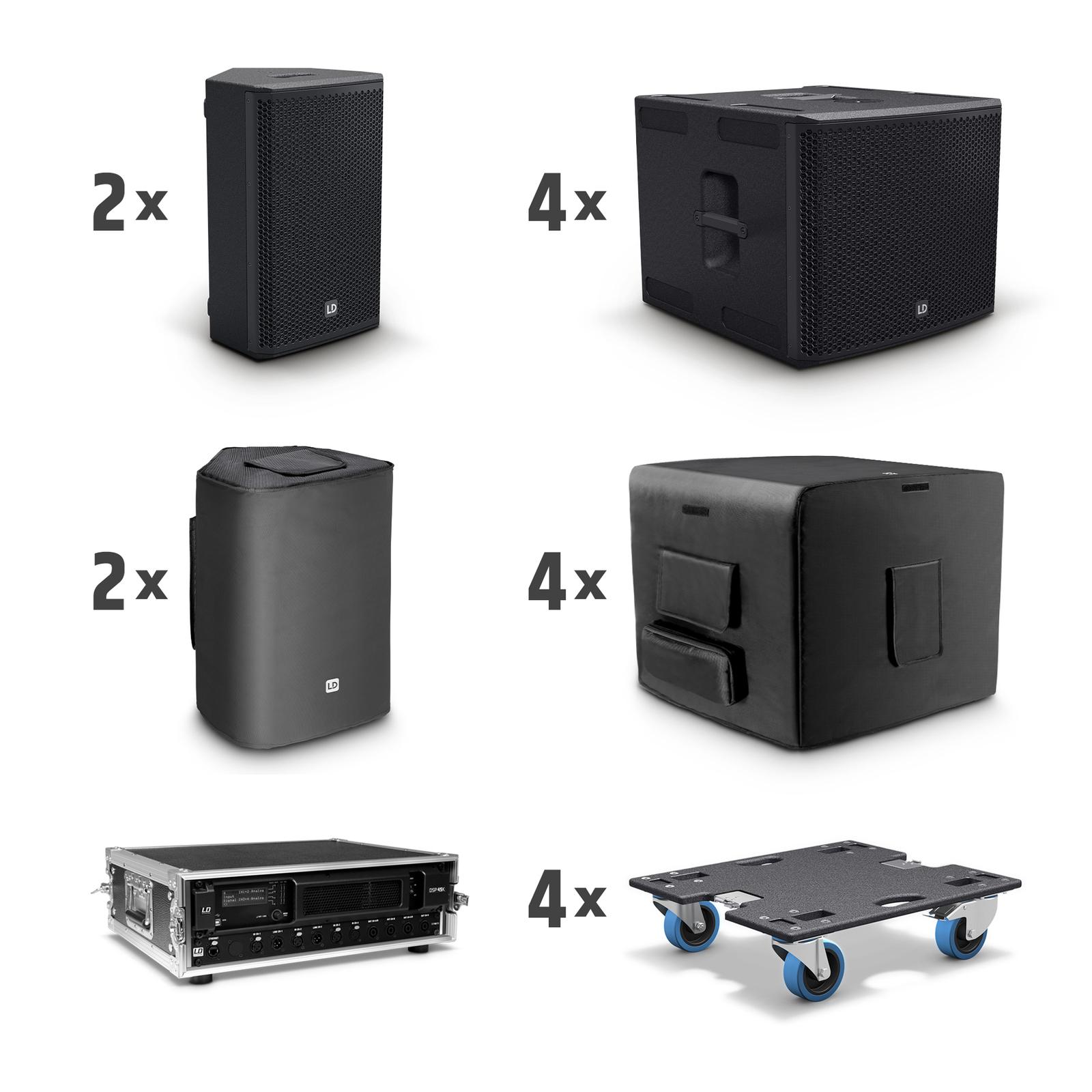

Scope of delivery: 2 x STINGER 15 G3, 4 x STINGER SUB 18 G3, 1 x DSP 45K RACK, 2 x STINGER 15 G3 PC, 4 x STINGER SUB 18 G3 PC, 4 x STINGER SUB 18 G3 CB
RMS output power: 3400 W
Frequency response (-6 dB, rel. Avg): 35 Hz – 20000 Hz
Beam angle: Hor.: 90° / Vert.:50°
Colour: Black
Weight: 268 kg
Items in this set:
LD Systems STINGER 15 G3 15″ PA Loudspeaker passive:
General:
Type (active/passive): Passive
Power handling (Peak): 1000 W
Power handling (RMS): 500 W
SPL (1 W/1 m): 100 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): 127 dB
Frequency response: 50 Hz – 20000 Hz
Impedance: 8 Ω
Speaker system: 2-way system
Beam angle: Hor.: 90° / Vert.:50°
Monitor angle: 54 °
Number of inputs: 1
Input connector types: Standard speaker connector 4-pole male & speakON®
Number of outputs: 1
Output connector types: Standard speaker connector 4-pole male & speakON®
Colour: Black
Bass driver:
Size: 15 ”
Manufacturer: Custom Made
Magnet: Ferrite
Voice coil: 3 ”
Tweeter:
Driver size: 1″
Manufacturer: BMS
Magnet: Ferrite
Voice coil: 1″
Housing:
Design: Bass reflex
Number of handles: 1
Mounting type: M10 for SuperClamp
Flange: 36 mm (0°/5°)
Cabinet material: Birch plywood
Material thickness: 15 mm
Front grille material: Aluminium
Dimensions & weight:
Width: 480 mm
Height: 737 mm
Depth: 455 mm
Weight: 25.7 kg
Other properties:
Included accessories: Mains cable
LD Systems STINGER 15 G3 PC Padded protective Cover for Stinger® G3 PA Loudspeaker 15″:
General:
Material: Nylon 1680D
Padding thickness: 8 mm
Colour: Black
Width: 510 mm
Height: 700 mm
Depth: 460 mm
Weight: 1 kg
LD Systems STINGER SUB 18 G3 CB Castor board for STINGER SUB 18 G3 models:
General:
Material: Multiplex
Coating: Polyurea
Colour: Black
Wheel:
Roller type: Heavy-duty castor
Material: Rubber
Colour: Blue
Manufacturer: Adam Hall
Quantity: 4
Braked castors: 2
Diameter: 100 mm
With brake: Yes
Dimensions & weight:
Width: 540 mm
Depth: 650 mm
Material thickness: 15 mm
Weight: 7 kg
LD Systems STINGER SUB 18 G3 PC Padded protective Cover for Stinger® G3 Subwoofer 18″:
General:
Material: Nylon 1680D
Padding thickness: 8 mm
Colour: Black
Width: 567 mm
Height: 470 mm
Depth: 625 mm
Weight: 1.2 kg
LD Systems DSP 45 K RACK 4-Channel DSP Power Amplifier and Patchbay in 19″ Rack Case:
Product type: Power Amplifiers
Type: 19″ / 3 HE
LD Systems STINGER® SUB 18 G3 18” Passive Bass Reflex PA Subwoofer:
General:
Power handling (Peak): 1600 W
Power handling (RMS): 800 W
SPL (1 W/1 m): 100 dB
Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %): 129 dB
Low frequency limit: 40 Hz
Impedance: 8 Ω
Number of inputs: 1
Input connector types: Standard speaker connector 4-pole male & speakON®
Number of outputs: 1
Output connector types: Standard speaker connector 4-pole male & speakON®
Colour: Black
Bass driver:
Size: 18″
Outer diameter: 457.2 mm
Manufacturer: Custom Made
Magnet: Ferrite
Voice coil: 4″
Housing:
Design: Bass reflex
Number of handles: 4
Flange: M20
Cabinet material: Birch plywood
Material thickness: 18 mm
Front grille material: Aluminium
Dimensions & weight:
Width: 677 mm
Height: 547 mm
Depth: 740 mm
Weight: 40.6 kg
Other properties:
Included accessories: Mains cable
